Go Back   UG Community @ Ultimate-Guitar.Com > Instruments > Gear Building & Customizing
User Name
Password
Search:

Reply
Old 01-02-2010, 12:28 AM   #1
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA
How to: Scarf joints

First off let me say that this is by no means the only way to cut and do a scarf joint. However, with the tools i have, i found this to be easiest with me. I'll cover more ways in the future, but this should suffice for now.


I.The jig
II. Using/setup with jig
III. Preparing the headstock joint

---Then it branches off to two ways of gluing on the headstock.--

IV.Scarf joint type #1
V. Scarf joint type #2

VI.Last steps/finishing touches.
__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.

Last edited by metalwarrior40 : 01-02-2010 at 12:50 AM.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 12:29 AM   #2
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA
I. Making the jig
This is made of 1.75" by 1.75" poplar. You can get this at any home depot place. I already had some laying around.


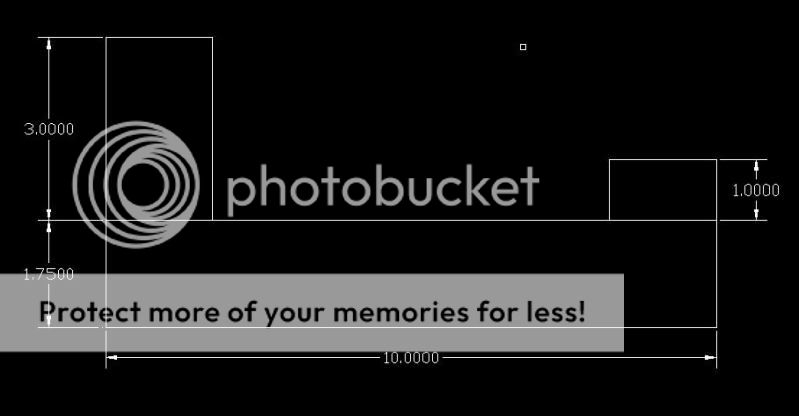

* I forgot to take pictures when i made this, so i just drew it all out*

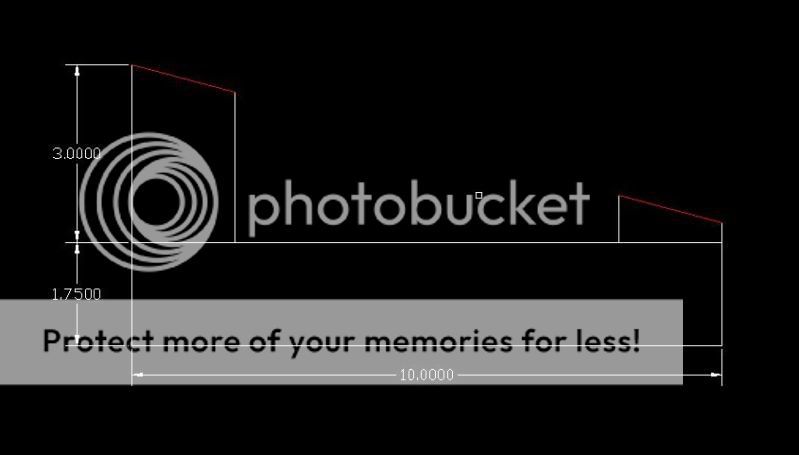

1. First, we cut up three pieces, and put them together like so:


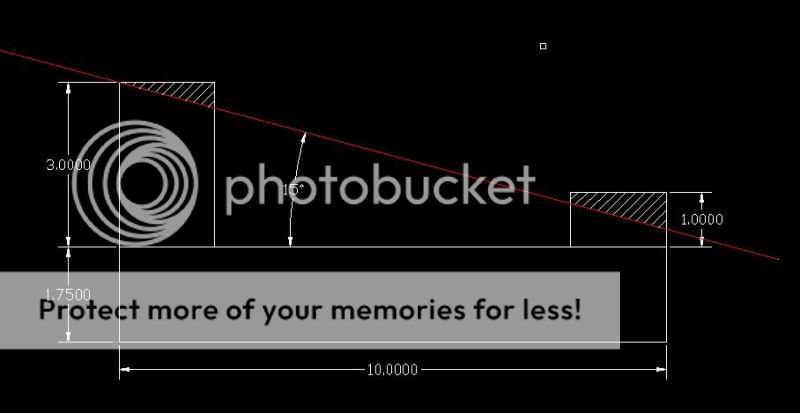

2.We then using a protractor, mark out 15* (or what ever you want) degrees.


3. We make the cut. Easiest way to do this is a miter saw, but it can be done by hand as well.
__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.

Last edited by metalwarrior40 : 01-02-2010 at 12:48 AM.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 12:29 AM   #3
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA
II. Setup, drawing out your scarf, etc.

Drawing the joint
For this part, you just need a protractor, a square/ruler, a pencil, and your blank.

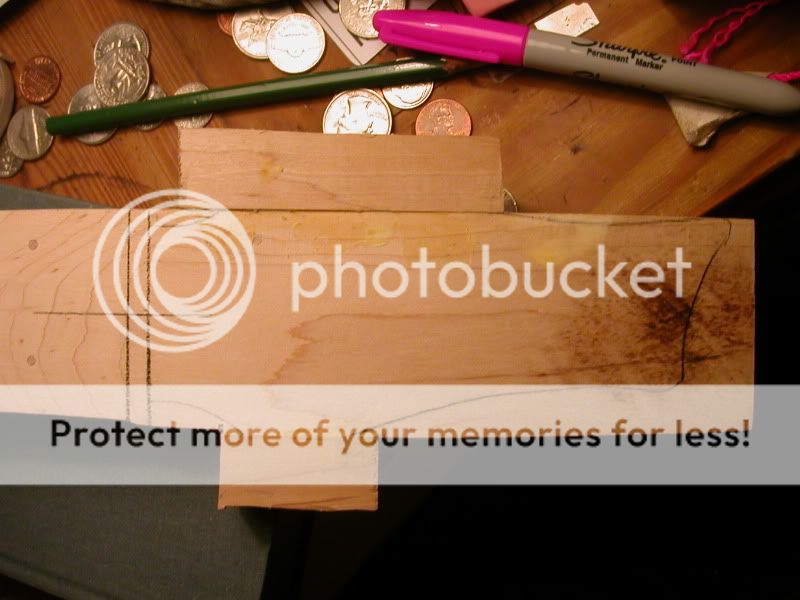

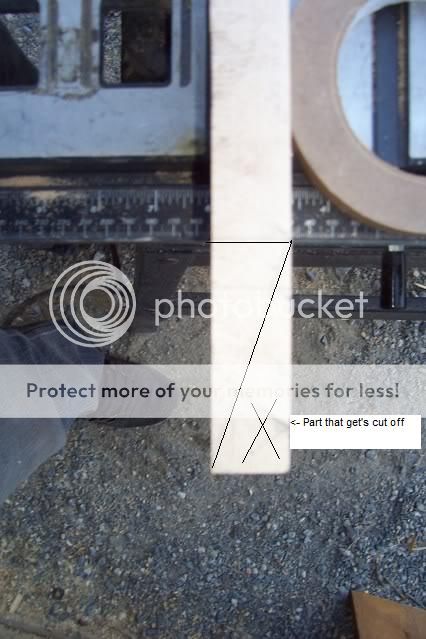

1.Draw a line across the top of the blank, where you want the nut to go.
2.Bring that line straight down the side.
3.line up the center of the protractor (90* mark) on the line you just drew.
4.Mark where the angle is to be (ie, a mark at the 15*, 12*, etc)
5.Connect from the first line to the mark you just made.

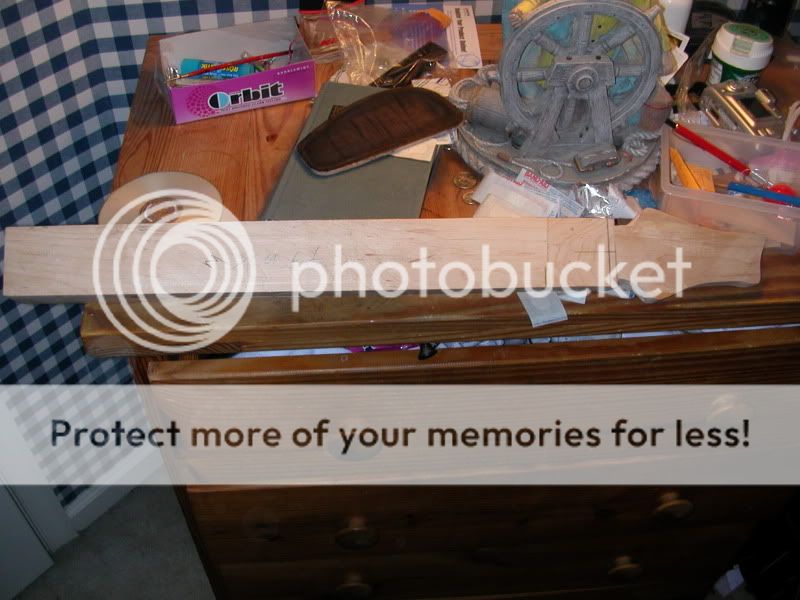

Should look something like this:




--------------------------------------------------------------
Cutting out the joint with the jig

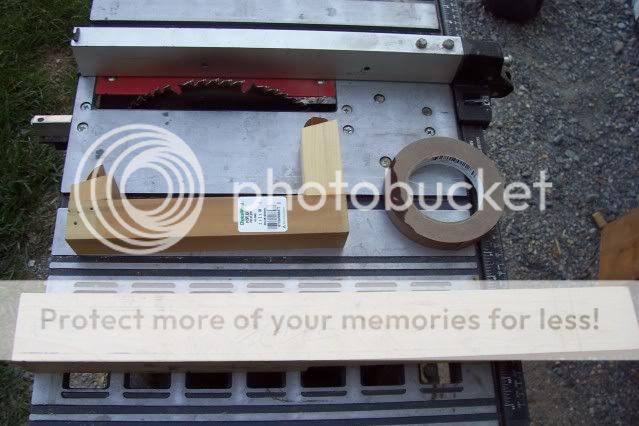

A.Materials.


B.How to set it up with the saw:


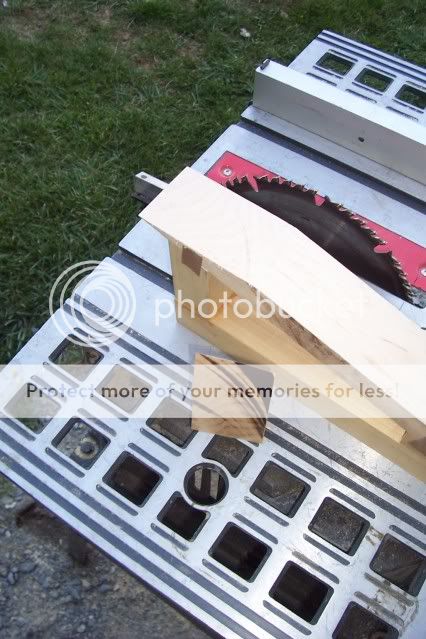

1.Bring up the blade to a proper height.
2.Attach the neck blank to the jig via tape.
3.You then line up the blade with the line you drew earlier.
4.Bring the guide over so that the jig can ride against it.

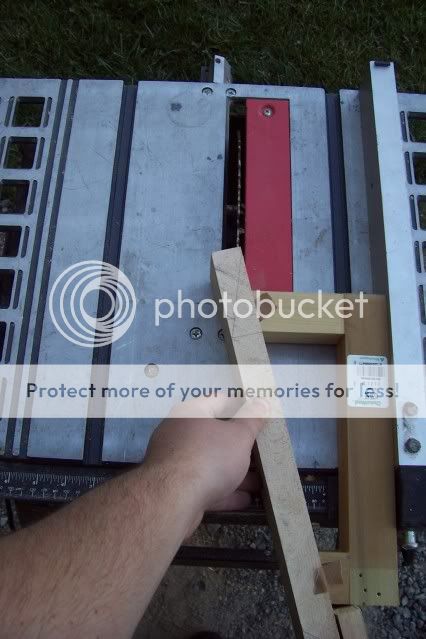

5.Power up and make the cut

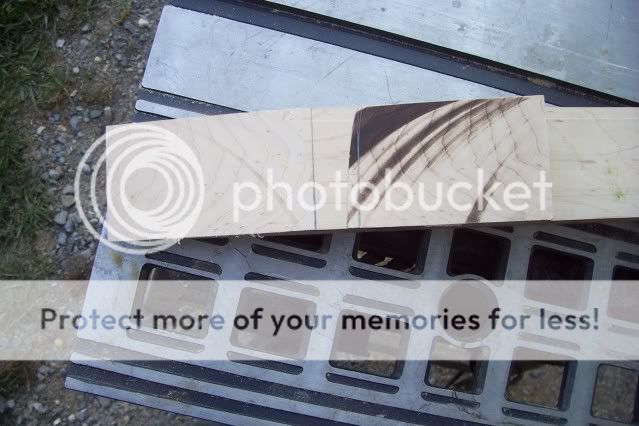

Joint after being cut out:





__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.

Last edited by metalwarrior40 : 01-02-2010 at 12:35 AM.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 12:30 AM   #4
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA
IV. Style one

1.Glue one a piece of properly thicknessed wood:


2. Cut and plane it flat with the neck:


V.Style two
1.Take your cutoff and clamp it to the top of the cut joint. Then plane them together until they are perfectly in line with each other (black line shows what i mean)


2.Position and glue the cut off like so: (note that where you glue it affects the thickness of the headstock)


3.Cut off excess wood, and plane things smooth.
__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.

Last edited by metalwarrior40 : 01-02-2010 at 12:49 AM.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 12:32 AM   #5
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA

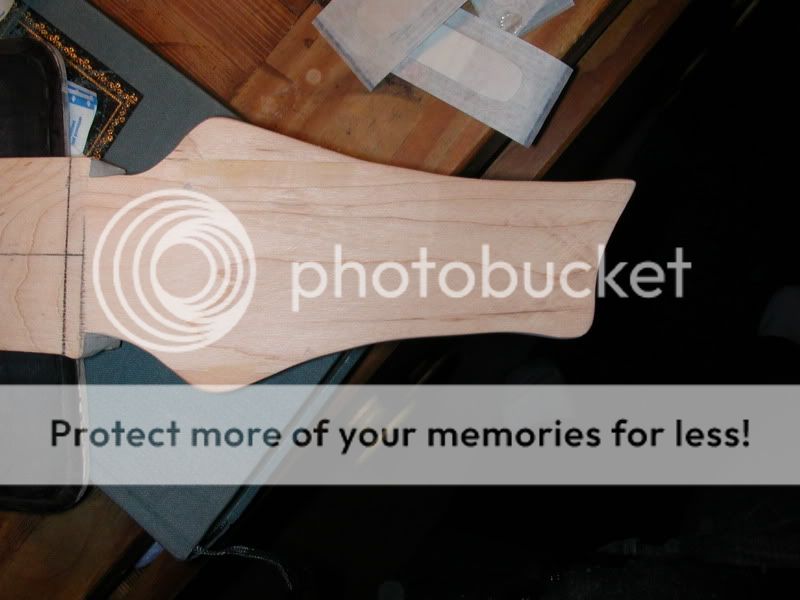

VI. Final Steps

1.We then cut out ears for the head stock, and glue those on:



2.After it dries, plane it even, and sand it down. The cut out your headstock:




3.Finished Headstock:

__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.

Last edited by metalwarrior40 : 01-02-2010 at 12:38 AM.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 12:32 AM   #6
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA
*For future use and expansion, FAQ?*
__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.

Last edited by metalwarrior40 : 01-02-2010 at 12:51 AM.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 01:04 AM   #7
metal-matt
see's whut u did thar

metal-matt's Avatar

Join Date: Jul 2009
Location: rural austrlia. WITH MY PET KANGAROO. jk.
looks good, bobby
__________________
Quote:
Originally Posted by Scowmoo




You deserved this, Matt.
metal-matt is offline   Reply With Quote
Old 01-02-2010, 01:07 AM   #8
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA
Thanks. It's alright. I need to redo some pics on my next scarf joint. I just hope this is easy to follow and understand.
__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 01:10 AM   #9
metal-matt
see's whut u did thar

metal-matt's Avatar

Join Date: Jul 2009
Location: rural austrlia. WITH MY PET KANGAROO. jk.
yeah.
i wonder if this could be used on a bandsaw?
__________________
Quote:
Originally Posted by Scowmoo




You deserved this, Matt.
metal-matt is offline   Reply With Quote
Old 01-02-2010, 01:11 AM   #10
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA
The Jig? yea. You can get a fence for them like the one i use on my table saw. You could also free hand it, and just plane it flat.
__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 01:34 AM   #11
Zep_shizzle
It's All In The Finger's

Zep_shizzle's Avatar

Join Date: Oct 2007
what is a scarf joint?
__________________
Classical Guitarist
Zep_shizzle is offline   Reply With Quote
Old 01-02-2010, 01:36 AM   #12
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA

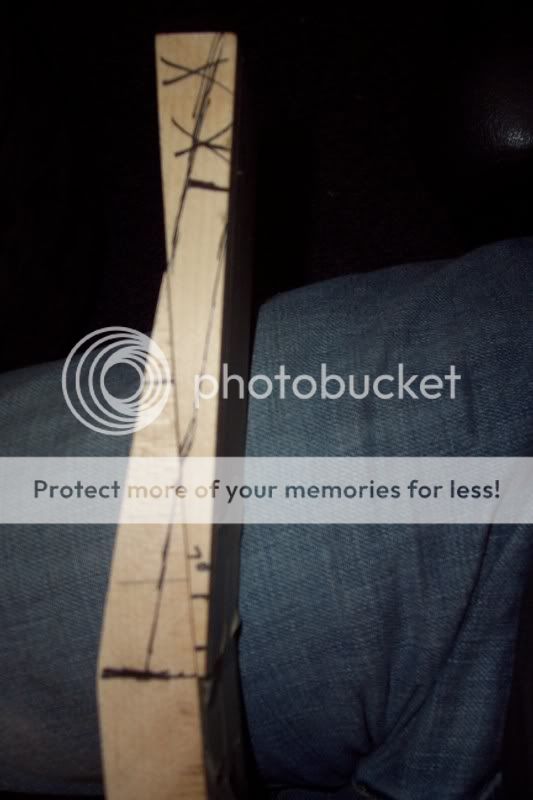

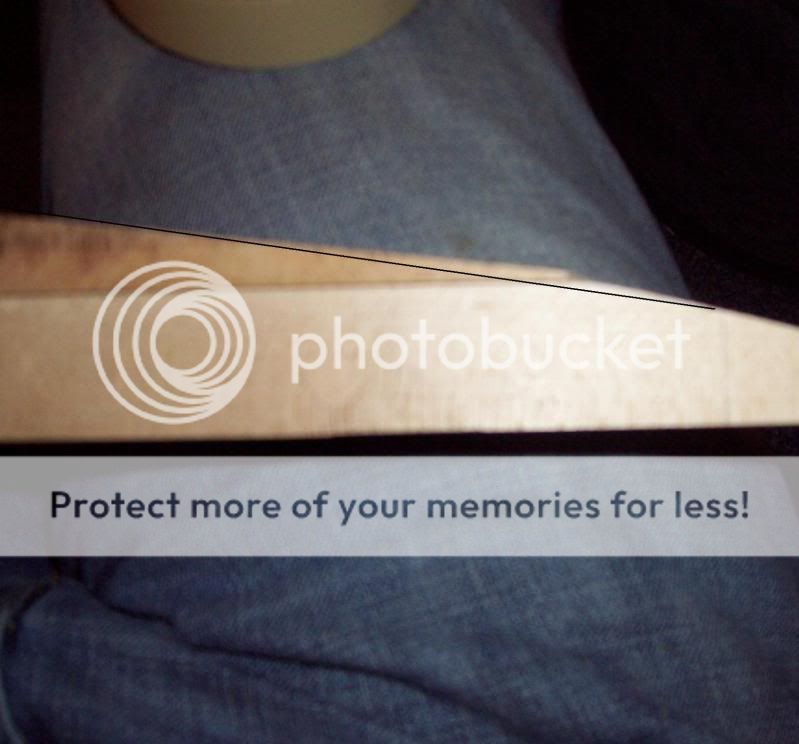

Post 4, picture 2.

That is a scarf joint from the side.
__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 01:38 AM   #13
Scowmoo
Fancykipz!

Scowmoo's Avatar

Join Date: Sep 2008
Location: California!
I wish this was here befoe my dumbass teacher/bandsaw/scarf joint incident xD
Nice one Bobbo.
__________________


Quote:
Originally Posted by Saint78
Jackal is like 90.

Quote:
Originally Posted by Jackal58
Buy stock in Viagra. Imma gonna fuck you in the ass.
Scowmoo is offline   Reply With Quote
Old 01-02-2010, 01:47 AM   #14
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA
^ I agree with you. Like i said in the beginning, it works great for my setup. Many people were confused after that step, which is why i did this. The process can easily lead to different jigs and setups for each persons own tools. I merely was showing mine.
__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 02:07 AM   #15
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA
I will agree. I fear even my small table saw. I've had a kickback or two, and that's enough to teach you a lesson. I've never had a issue with this jig though, thankfully.
__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 04:17 AM   #16
littlephil
Registered User

Join Date: Nov 2007
Nice tutorial. I use a jig I made in about 10 minutes from some scrap ply, with a router. It looks like this;

With that you dont have to cut it very well since you smooth it off with the router afterwards. I cut mine roughly by hand, and I also did it Ibanez style, so you can see the joint on the back of the neck after its shaped.
littlephil is offline   Reply With Quote
Old 01-02-2010, 05:02 AM   #17
ohspyro89
Hit it. Quit it.

ohspyro89's Avatar

Join Date: Jan 2005
Location: Ohio
I think there is about 500 ways to do a scarf joint. This seems to be a good one, if you've got a decent table saw to cut something that tall. Mine can't.

I use a router jig, I have to do a scarf joint soon on this 6 stringer, maybe I'll send you something and you can shove it in here.
ohspyro89 is offline   Reply With Quote
Old 01-02-2010, 12:11 PM   #18
metalwarrior40
UG Resident

metalwarrior40's Avatar

Join Date: Jun 2007
Location: Maryland,USA
Phil, i can't see your picture, but i know what your talking about (i think)
It holds the neck at whatever degrees, and then you take that to a table router and rout till it's flat. I saw it on PG. I don't have a router table but i want to try it

That said, i don't do many scarfs anyway.


Sounds good ohspyro, and my table saw cuts up to 3-1/4". It's just enough to resaw fretboard blanks. Cant do much else with it but cut up neck lams.
__________________
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote:
Originally Posted by mikeyElite
you build guitars worthy of sexual favors

Quote:
Originally Posted by Invader Jim
if this party gets any livelier a funeral is gonna break out.
metalwarrior40 is offline   Reply With Quote
Old 01-02-2010, 12:27 PM   #19
Invader Jim
Registered User

Invader Jim's Avatar

Join Date: Aug 2005
went ahead and put this in the hub bobbert.
__________________
The Wiring Thread
Invader Jim is offline   Reply With Quote
Old 01-02-2010, 08:16 PM   #20
littlephil
Registered User

Join Date: Nov 2007
Quote:
Originally Posted by metalwarrior40
Phil, i can't see your picture, but i know what your talking about (i think)
It holds the neck at whatever degrees, and then you take that to a table router and rout till it's flat. I saw it on PG. I don't have a router table but i want to try it

That said, i don't do many scarfs anyway.


Sounds good ohspyro, and my table saw cuts up to 3-1/4". It's just enough to resaw fretboard blanks. Cant do much else with it but cut up neck lams.

Yeah, I dont know why the pic isnt there. I dont use a table router though, you just need to make a base for the router thats big enough to not fall into the jig. Its really easy and the joints are perfect.
littlephil is offline   Reply With Quote
Reply


Thread Tools Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

vB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump



All times are GMT -4. The time now is 01:08 PM.

Forum Archives / About / Terms of Use / Advertise / Contact / Ultimate-Guitar.Com © 2014
Powered by: vBulletin Version 3.0.9
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
