Old 05-16-2010, 06:23 PM   #1
james4
Registered User

james4's Avatar

Join Date: Mar 2006
Location: Brampton, Ontario, Canada
James builds a tele! ..sorta

Well it's not exactly a full build, but I'm putting together a tele

Here's basically what it'll look like:

white with a black pickguard, birdseye maple neck, two p90s and a wraparound bridge



I can't decide which way I want the pickups..whether i go black bridge/cream neck, or cream bridge/black neck.

anyway, aside from the pickups, I've pretty much got the rest figured out

I'm gonna recess the bridge a bit so that I don't need a neck angle, and cause I don't like the look of a guitar with a tune-o-matic bridge, when the strings are so far from the body.

in the kisekae theres a pretty big gap between the pickguard and the bridge that makes the p90look like it's not filling up enough space. in reality, the p90's gonna fit perfectly into that space.

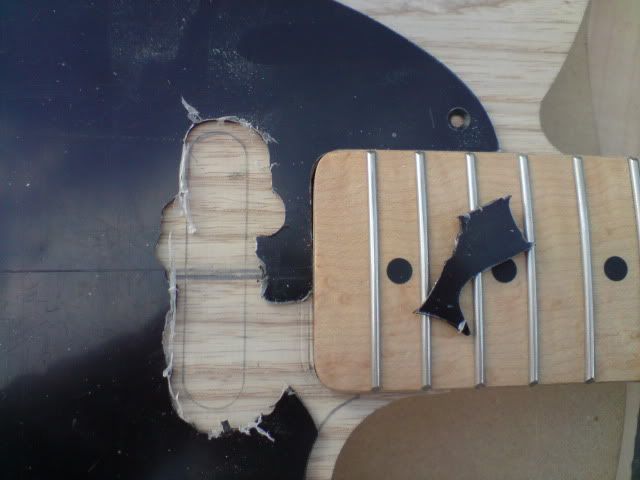

the cutout on the pickguard that usually leaves room for the bridge is just a tiny bit bigger than the p90 template I've got, so it should fit real nice in there

I found the neck (made by mighty mite) on ebay for just over $100, so I went for it
i kinda want to build my own neck at some point, but right now I don't have the time or tools to do it

for the wiring i'm not doing anything ridiculous.. 1volume 1 tone and a 5 way super switch
the positions of the switch are gonna be:
bridge/ n+b in series/ n+b in parallel/ n+b out of phase/ neck

so all the way towards the bridge is still just the bridge, and all the way towards the neck is only the neck. straight up and down is both pickups in parallel like they usually are.
i figured this setup would be less confusing than having the series and phase positions in positions 1 and 5, or 4 and 5 or something

I'm still not sure what pickups to use..
my plan right now is to buy a set from guitarfetish, and a set from iron gear since they're both fairly cheap
I'll keep whichever set I like best, sell the ones I don't like as much, then save up for some rockmonkeys (I have a set of single coils in my strat and they're great)
any other suggestions would be appreciated, too

everything else is pretty straight forward.. 2 piece swamp ash body, white finish, chrome hardware

I'll probably edit the first post with a more detailed specs list if anyone wants, but i'm just giving an outline for now..

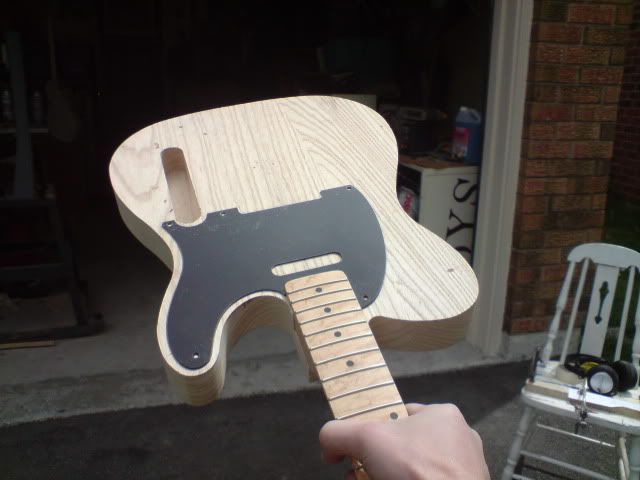

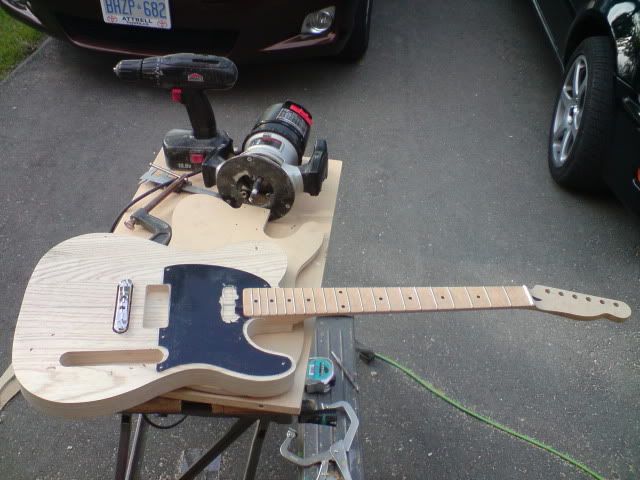

I've got the body cut to shape and marked out to be routed right now, so heres a picture:


progress will probably be fairly slow because I don't have many tools at home and I work often, but I should have it done in the near future


EDIT:
I was gonna update with a specs list, but I realized I'll go over everything through the build anyway
I just didn't say much about the bridge..

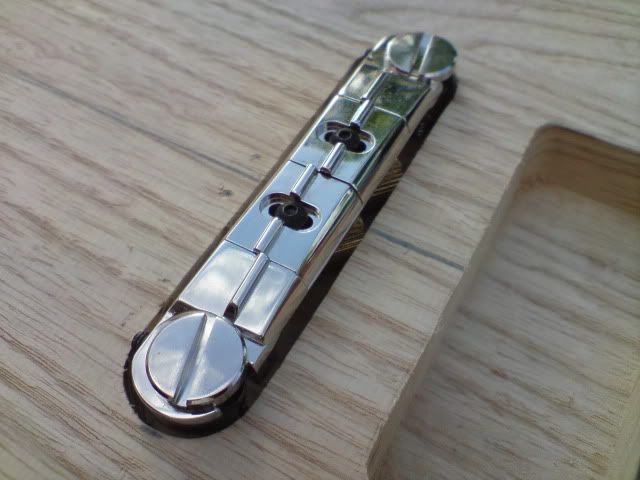

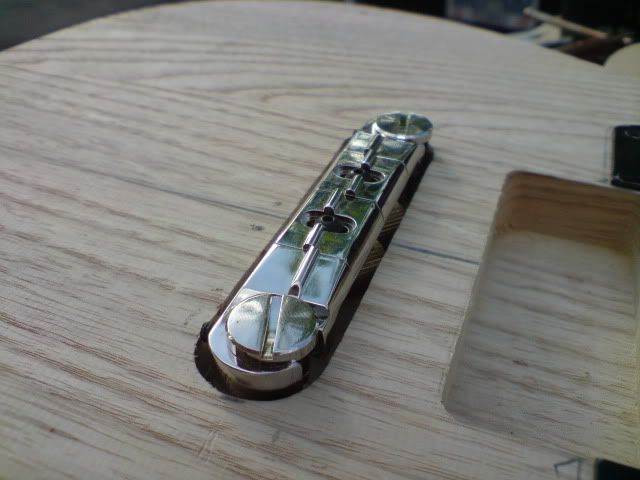

it'll be a recessed Gotoh/Wilkinson wraparound bridge
it looks a little different than in the pictures, but it looks pretty damn classy to me
I'm also trading out the studs it came with for locking ones. I've only ever worked on one guitar with a wraparound, and locking studs would have done wonders for it, so..there ya go.

heres a couple pictures from before i started the thread, just for any interested

heres some wood:
http://i143.photobucket.com/albums/...44/IMG_0107.jpg
rough cut:
http://i143.photobucket.com/albums/...44/DSC00106.jpg
and the neck:
http://i143.photobucket.com/albums/...4/DSC_00012.jpg
http://i143.photobucket.com/albums/...44/DSC_0003.jpg
__________________
Wiring your guitar?

Member of the official GB&C "Who to Listen to" list

Last edited by james4 : 05-16-2010 at 10:15 PM.
james4 is offline   Reply With Quote
Old 05-16-2010, 06:26 PM   #2
Who?!
Registered User

Join Date: Dec 2009
nice!
Who?! is offline   Reply With Quote
Old 05-16-2010, 06:29 PM   #3
russianmetal11
Registered User

Join Date: Sep 2008
I like the black bridge/cream neck option better so you can see the pickups, buts thats just my opinion. Do it the way you like.
russianmetal11 is offline   Reply With Quote
Old 05-16-2010, 06:32 PM   #4
mcjosh
DUN DUN DUN

mcjosh's Avatar

Join Date: Dec 2009
Location: Michigan
Good luck!
__________________
ಥ_ಥ ಠ_ಠ ಠ_ೃ ಢ_ಢ

E-Married to the sexy DarkConcertine

and Jon777 .

mcjosh is offline   Reply With Quote
Old 05-16-2010, 06:34 PM   #5
salgala2000
GB&C's Noob of the Year

Join Date: Feb 2010
^ agree totally
salgala2000 is offline   Reply With Quote
Old 05-16-2010, 06:39 PM   #6
monkey_dancer
Tastes like chicken.

monkey_dancer's Avatar

Join Date: May 2006
Location: Manchester
Nice, I'd really like a tele with P90s, it's cool to see someone doing it. I'd have a 3 saddle tele bridge, but that's just me I guess. And you would have to cut it out for a P90.
__________________
Quote:
Originally Posted by XxLloydxX
How young would you consider no-pedo attempt

Last edited by monkey_dancer : 05-16-2010 at 08:24 PM.
monkey_dancer is offline   Reply With Quote
Old 05-16-2010, 08:55 PM   #7
MonkeyLink07
UG's Fire Gym Leader

MonkeyLink07's Avatar

Join Date: Dec 2008
Location: Vermont, USA
Your gonna do fine, I'm kind of surprised your not building things yourself, You have the know-how (I'm pretty sure, you've been around here a while).

And how about something like a P-rail, with push-pulls for splitting them how you want, or if not, maybe hum-canceling P90's, I haven't used any, but from what I've read they are supposed to be pretty noisy.

EDIT: Just noticed you had the template already, so that kinda nulls the P-rails suggestion.
MonkeyLink07 is offline   Reply With Quote
Old 05-16-2010, 09:43 PM   #8
james4
Registered User

james4's Avatar

Join Date: Mar 2006
Location: Brampton, Ontario, Canada
yeah, this is my second full assembly/half build thing, and I've taken apart/re-built/worked on enough guitars to know I'm gonna do just fine with it

for not building things myself: I actually did plane/cut/route the body shape out of a board. So the body's being built from scratch, i just didn't post pictures from before

and I think I could probably make a neck just fine as well, but as I said in the OP..time and tools are a big issue.


aaand pickup-wise, I'm definitely set on soapbars as opposed to anything else. mostly since I'm 99% sure I already have my 'ideal' pickups chosen (and they're soapbar-sized). I just need something to put in while I save up for them


russianmetal: I agree. I was leaning towards the black bridge and cream neck pickups at first..just wanted to hear a few other opinions as well


and thanks for the encouragement, guys. even though I'm confident with everything I'm doing, I haven't done much woodworking in the last 2 years so I'll take all the encouraging words I can get

edit: i'll add some more pictures and a more complete specs list now
__________________
Wiring your guitar?

Member of the official GB&C "Who to Listen to" list

Last edited by james4 : 05-16-2010 at 09:45 PM.
james4 is offline   Reply With Quote
Old 05-16-2010, 10:14 PM   #9
Jason Jillard
Luthier

Join Date: Mar 2009
Location: Brampton Ontario
ooooh don't worry im here to help =]


but yeah definatly cream in neck position.
__________________
Handmade Custom Guitars: www.jillardguitars.com
Twitter! https://twitter.com/#!/JillardGuitars
Jason Jillard is offline   Reply With Quote
Old 05-16-2010, 11:36 PM   #10
blindsagacity
UG's Bowser Tattoo

blindsagacity's Avatar

Join Date: Dec 2008
Location: User Title: I Dub=Dame in 'is Mojo Pants
No competition, cream in the neck
__________________
R.I.P. Les Paul, 1915-2009
Quote:
Originally Posted by Shinozoku
You have a walnut stop sign banjo-tar signed by MAB

˙ןooɔ sı uosɐǝɹ ןɐǝɹ ou ɥʇıʍ ƃıs ɹnoʎ uı ʇxǝʇ uʍop ǝpısdn ƃuıʇʇnd
Quote:
Originally Posted by Scowmoo
You deserve an Awesome Award for Awesome People.
Seriously.

Stop Sign Guitar? HELL YES!
blindsagacity is offline   Reply With Quote
Old 05-17-2010, 04:15 AM   #11
LeviMan_2001
Registered User

Join Date: Mar 2008
Quote:
Originally Posted by blindsagacity
cream in the neck


Dude, I like neck pickups too, but not thaaat much.
__________________
Danelectro Longhorn guitar build: http://www.ultimate-guitar.com/foru...d.php?t=1564392
LeviMan_2001 is offline   Reply With Quote
Old 05-17-2010, 05:07 AM   #12
minnis
Registered User

Join Date: Feb 2010
Out of the two, i'd say black bridge, cream neck, but IMO the cream clashes with the white finish slightly, have you tried a white P90, or a white cover?
minnis is offline   Reply With Quote
Old 05-17-2010, 09:57 AM   #13
Jason Jillard
Luthier

Join Date: Mar 2009
Location: Brampton Ontario
white covers are pretty much impossible to find for p90s.

if you have any insight, please share.
__________________
Handmade Custom Guitars: www.jillardguitars.com
Twitter! https://twitter.com/#!/JillardGuitars
Jason Jillard is offline   Reply With Quote
Old 05-17-2010, 10:20 AM   #14
minnis
Registered User

Join Date: Feb 2010
Quote:
Originally Posted by Jason Jillard
white covers are pretty much impossible to find for p90s.

if you have any insight, please share.


Afraid i'm not that into P90s, have no idea where you would get one, but im sure i have seen them somewhere, and if they are only PRETTY MUCH impossible, then there is still a chance. IMO if you're going to build a custom guitar yourself then make sure its exactly what you want, meaning dont settle for a colour you want. They may be hard to find but it'll make the guitar that little bit more special.
But if you dont want white and prefer cream, then just ignore my comments lol!
minnis is offline   Reply With Quote
Old 05-17-2010, 11:11 AM   #15
james4
Registered User

james4's Avatar

Join Date: Mar 2006
Location: Brampton, Ontario, Canada
I think if the bridge pickup was cream, it might clash with the white body
but in the neck position, the colour is close to that of the fretboard so I think it'll blend fine

plus I've never seen white p90 covers
__________________
Wiring your guitar?

Member of the official GB&C "Who to Listen to" list
james4 is offline   Reply With Quote
Old 05-17-2010, 11:17 AM   #16
timbit2006
DEATH THRASH!

timbit2006's Avatar

Join Date: Jan 2009
Location: Canada
Looking good!
I think though, that you should make this like a Nashville Tele, with a mid pickup. I've always wanted to do that. Mid 'Bucker, and the neck with single in the bridge.(Phrasing needed )
__________________
--Tyrone the White from Canada.
timbit2006 is offline   Reply With Quote
Old 05-17-2010, 11:21 AM   #17
minnis
Registered User

Join Date: Feb 2010
Quote:
Originally Posted by james4
plus I've never seen white p90 covers


Just to prove that im not crazy, look at the one on the left!!!
minnis is offline   Reply With Quote
Old 05-17-2010, 11:27 AM   #18
kurtlives91
Let The Pretend Take Over

kurtlives91's Avatar

Join Date: Jun 2007
Location: Toronto, Canada.
I like black in the neck.
__________________
Shove me out to see
The sea
The quiet of December
To the deep I turn



My DIY Site: Amps, Pedals and More...
kurtlives91 is offline   Reply With Quote
Old 05-17-2010, 11:35 AM   #19
Jason Jillard
Luthier

Join Date: Mar 2009
Location: Brampton Ontario
i know they exist, im saying its nearly impossible to find a place to buy them from.

i think james is just going creme for now, then when he gets his rockmonkeys made hes going to see if cord can put a white cover on. i unno tho maybe he changes his mind from alst time i talked to him
__________________
Handmade Custom Guitars: www.jillardguitars.com
Twitter! https://twitter.com/#!/JillardGuitars
Jason Jillard is offline   Reply With Quote
Old 05-17-2010, 11:38 AM   #20
minnis
Registered User

Join Date: Feb 2010
Quote:
Originally Posted by Jason Jillard
i know they exist, im saying its nearly impossible to find a place to buy them from.

i think james is just going creme for now, then when he gets his rockmonkeys made hes going to see if cord can put a white cover on. i unno tho maybe he changes his mind from alst time i talked to him


Ok then, just wanted to make sure he knew all the options, would hate it if he made it wanting a white P90 but had to settle for a cream one.
minnis is offline   Reply With Quote
