Old 03-24-2011, 03:48 PM   #21
vodkanoodle
Registered User

vodkanoodle's Avatar

Join Date: Nov 2008
Location: South Africa
Firstly, and most importantly, I think I speak for everyone here: you can NEVER have too many pictures! Keep posting.

And nice work so far. Keen to see how this turns out. You seems to be so chilled about the whole thing like its not all that difficult to build a good guitar! I like the confidence man.
vodkanoodle is offline   Reply With Quote
Old 03-24-2011, 03:54 PM   #22
Nutter_101
...

Nutter_101's Avatar

Join Date: Aug 2006
Location: London, Scotland, or Cornwall.
Quote:
Originally Posted by xstillspinninx
I dont think it's strong enough, Warmoth doesn't offer it as a neck option so I'd personally be a bit concerned.


A fair few luthiers make necks out of ash, Michael Tobias definitely does.

I don't think he needs to worry.
__________________
In the bass chat:

Quote:
<Jon> take the quote of me out your sig plx
<Jon> i hate seeing what i said around lol


Leader of the Bass Militia PM to join!


And now on BANDCAMP!

Officially the funniest member of the Bass Forum.
Nutter_101 is offline   Reply With Quote
Old 03-24-2011, 04:09 PM   #23
Speckled_Hen
Dr Monkey Pants

Speckled_Hen's Avatar

Join Date: Mar 2009
Location: England
Well, this particular piece of ash is pretty damn strong, I'm actually surprised that I haven't managed to dent it at all yet, as I usually somehow do.

According to wikipedia, ash apparently has a hardness of 1320, which is harder than walnut, and MUCH harder than both african and honduran mahogany. Plus this is a pretty straight grained piece so I figure that I'll probably be ok when it comes to warping and twisting. We'll see how it turns out.

With the headstock I can always build up the face side with more ash and plane the extra from the other side to get it to a manageable thickness, If its too weak I'll leave space for some steel rods inside the headstock, sort of like mini truss rods.

Quote:
Originally Posted by vodkanoodle
And nice work so far. Keen to see how this turns out. You seems to be so chilled about the whole thing like its not all that difficult to build a good guitar! I like the confidence man.

My course is in cabinet making, and this is way more fun than making tables and surprisingly easier...
I don't want to sound like I know it all but thanks, we'll see how it goes.
__________________
Was lacking a decent sig. Still is.

Last edited by Speckled_Hen : 03-24-2011 at 04:14 PM.
Speckled_Hen is offline   Reply With Quote
Old 03-24-2011, 09:17 PM   #24
LeviMan_2001
Registered User

Join Date: Mar 2008
I think the only thing I would worry about with that step is the break angle. It might be kind of nasty harsh as is.
__________________
Danelectro Longhorn guitar build: http://www.ultimate-guitar.com/foru...d.php?t=1564392
LeviMan_2001 is offline   Reply With Quote
Old 03-29-2011, 03:05 PM   #25
xstillspinninx
McNubbin

Join Date: Dec 2007
Location: Twin Cities
Quote:
Originally Posted by Speckled_Hen
According to wikipedia, ash apparently has a hardness of 1320, which is harder than walnut, and MUCH harder than both african and honduran mahogany. Plus this is a pretty straight grained piece so I figure that I'll probably be ok when it comes to warping and twisting. We'll see how it turns out.

Hardness =/= Strength. Flexural modulus is what you're looking for, and it is lower than the normal neck woods. Just trying to help, but either way its good practice and I'm sure it'll work for at least a while.
__________________
Chain:
Fingers -> Schecter Damien FR -> Fulltone OCD -> ABY Box -> Bugera V22 / Peavey 6505+

Last edited by xstillspinninx : 03-29-2011 at 03:07 PM.
xstillspinninx is offline   Reply With Quote
Old 03-29-2011, 04:11 PM   #26
Speckled_Hen
Dr Monkey Pants

Speckled_Hen's Avatar

Join Date: Mar 2009
Location: England
I know what you mean there, I was just going for a general figure, thanks anyway.
__________________
Was lacking a decent sig. Still is.
Speckled_Hen is offline   Reply With Quote
Old 03-29-2011, 04:59 PM   #27
Jason Jillard
Luthier

Join Date: Mar 2009
Location: Brampton Ontario
if its regular ash you should be fine. baseball bats and canoe paddles are made from ash.
__________________
Handmade Custom Guitars: www.jillardguitars.com
Twitter! https://twitter.com/#!/JillardGuitars
Jason Jillard is offline   Reply With Quote
Old 03-29-2011, 06:50 PM   #28
nowa90
Strike the Earth!

Join Date: Mar 2008
Location: Nova scotia, Canada
If the truss rod does it job too, you'll be fine. If yo do see warping (which I doubt) just switch to lighter gauge. Looking god though, I need to make an explorer soon....
__________________
Just call me Julius, J, etc.
Taking an Internet break for a while, will come on when I can.
nowa90 is offline   Reply With Quote
Old 03-29-2011, 06:52 PM   #29
Jason Jillard
Luthier

Join Date: Mar 2009
Location: Brampton Ontario
Quote:
Originally Posted by nowa90
, I need to make an explorer soon....



yeah, ive been meaning to as well. ive done almost everything else.

next time im buying wood il find a nice big chunk of korina for an explorer..
__________________
Handmade Custom Guitars: www.jillardguitars.com
Twitter! https://twitter.com/#!/JillardGuitars
Jason Jillard is offline   Reply With Quote
Old 03-30-2011, 12:59 PM   #30
Speckled_Hen
Dr Monkey Pants

Speckled_Hen's Avatar

Join Date: Mar 2009
Location: England
Its one of those hot rod double truss rods they sell at stewmac, so I'm pretty sure it'll hold out.
Thats actually the reason that theres that massive drop on the headstock, according to their instruction you have to have the adjusting nut at the bottom, so I cut away enough so i could get the Allen key to it.

Also +1 to the explorer love

EDIT: Major, major edit.

So, managed to get the body cut out, and look, no burn!
http://i473.photobucket.com/albums/...pg?t=1301507443
http://i473.photobucket.com/albums/...pg?t=1301507443

The body is a bit smaller than normal, sort of a 7/8ths normal size which i should probably have compensated for as the longer neck makes it look tiny...
http://i473.photobucket.com/albums/...pg?t=1301507443

Levelling the body with a scraper plane. Great tool.
http://i473.photobucket.com/albums/...pg?t=1301507443
http://i473.photobucket.com/albums/...pg?t=1301507443

Sanded down the dots. Sorry for the blurry photos, the camera will not focus on them
http://i473.photobucket.com/albums/...pg?t=1301507443
http://i473.photobucket.com/albums/...pg?t=1301507443

Anyway, time to fix that headstock. I thought up a few different solutions for this, recessing the tuning pegs so they'd stick out more, cutting this one of and going for an angled headstock, or building it up and reinforcing it. I chose the last one in the end. These metal bars are going into the neck/ headstock area, and are fixed in with silicon.
http://i473.photobucket.com/albums/...pg?t=1301507767
http://i473.photobucket.com/albums/...pg?t=1301507767
__________________
Was lacking a decent sig. Still is.

Last edited by Speckled_Hen : 03-30-2011 at 02:20 PM.
Speckled_Hen is offline   Reply With Quote
Old 03-30-2011, 02:38 PM   #31
Speckled_Hen
Dr Monkey Pants

Speckled_Hen's Avatar

Join Date: Mar 2009
Location: England
Forgot to photo it but I chiselled out a nice tight channel for each rod in the back of this piece of wood, lots of silicone went in with the rods so they won't be going anywhere.

http://i473.photobucket.com/albums/...pg?t=1301507767
http://i473.photobucket.com/albums/...pg?t=1301507767
http://i473.photobucket.com/albums/...pg?t=1301507767

The veneer is just to fill in a small gap caused by the rods between the old and new parts of the headstock, I didn't want to chisel any more wood away from the channels or else they would too thin and would be useless. It shouldn't affect the structural integrity of my botched together headstock, I'm sure the titebond seeped through it.
http://i473.photobucket.com/albums/...pg?t=1301509132
http://i473.photobucket.com/albums/...pg?t=1301509132

Extra little piece of headstock so I can cut it to the right shape
http://i473.photobucket.com/albums/...pg?t=1301509132
http://i473.photobucket.com/albums/...pg?t=1301509132

Truss rod access hole, I'll do a cover later too.
http://i473.photobucket.com/albums/...pg?t=1301509132
http://i473.photobucket.com/albums/...pg?t=1301509132

Now that I've finished hideously botching my headstock, I'll try to get the tuner holes drilled tomorrow. Also, I just thought of a solution to my small body, but I'm saving that for later :P
__________________
Was lacking a decent sig. Still is.
Speckled_Hen is offline   Reply With Quote
Old 03-30-2011, 05:08 PM   #32
Lightbluemk2
New Zealand rep!

Lightbluemk2's Avatar

Join Date: May 2010
Location: Christchurch, New Zealand
Nice solution, looking forward to seeing more

edit: how about you thickness the body down until its rather thin, then glue basically a scaled up version of that design on the bottom, then use a rasp to fade them in togeather, you'll have a cool carved top that way too
__________________
________________________________________

Chur

Last edited by Lightbluemk2 : 03-31-2011 at 02:37 PM.
Lightbluemk2 is offline   Reply With Quote
Old 04-27-2011, 02:03 PM   #33
Speckled_Hen
Dr Monkey Pants

Speckled_Hen's Avatar

Join Date: Mar 2009
Location: England
Ah god its been a while. My idea with the body was to plane the top down quite a bit, cut out a larger version like a cap and then bend and glue dark veneer round the body side to take up the remaining space. Or I could just leave out the top altogether. In the end I decided that it wasn't small enough to worry about anyway :P

So, lots of news. Got the tuning peg holes drilled, made a little template first so I didn't **** it up royally.
http://i473.photobucket.com/albums/...pg?t=1303926849
http://i473.photobucket.com/albums/...pg?t=1303926849

Shaped the neck and then the heel
http://i473.photobucket.com/albums/...pg?t=1303926849
http://i473.photobucket.com/albums/...pg?t=1303926849
http://i473.photobucket.com/albums/...pg?t=1303926849
http://i473.photobucket.com/albums/...pg?t=1303926849
http://i473.photobucket.com/albums/...pg?t=1303927047


Sorry about not having any good pics of the finished neck, I'll get some tomorrow.
Carved the belly and leg contours too
http://i473.photobucket.com/albums/...pg?t=1303927047
http://i473.photobucket.com/albums/...pg?t=1303927047

Also done today, routed most of a roundover and the control cavity. Pics come tomorrow
__________________
Was lacking a decent sig. Still is.
Speckled_Hen is offline   Reply With Quote
Old 04-30-2011, 10:14 AM   #34
Speckled_Hen
Dr Monkey Pants

Speckled_Hen's Avatar

Join Date: Mar 2009
Location: England
__________________
Was lacking a decent sig. Still is.
Speckled_Hen is offline   Reply With Quote
Old 04-30-2011, 10:29 AM   #35
matt154
Subtle Overdrive

Join Date: Jan 2007
Location: NSW, Australia
Damn this so nice. The grain on the heel area looks awesome. My browser keeps dieing on this page though and i can't see the last couple of pics. Keep up the great work, i can't wait to see the end result.
matt154 is offline   Reply With Quote
Old 04-30-2011, 08:02 PM   #36
MH400
‭‭

MH400's Avatar

Join Date: Mar 2008
Man, this is looking great!
MH400 is offline   Reply With Quote
Old 05-01-2011, 04:22 PM   #37
wolvenrick
rock n f'in roll

Join Date: Nov 2008
that thing looks smooth. i love this thread! you've got so many pictures that i now have more of an idea what i takes to make a guitar by myself. i've seen many thread if builds but none of them show it the way yours does. sincerely, thank you!
wolvenrick is offline   Reply With Quote
Old 05-02-2011, 01:43 PM   #38
Speckled_Hen
Dr Monkey Pants

Speckled_Hen's Avatar

Join Date: Mar 2009
Location: England
^ Thats the nicest thing you could of said
__________________
Was lacking a decent sig. Still is.
Speckled_Hen is offline   Reply With Quote
Old 05-02-2011, 08:15 PM   #39
xstillspinninx
McNubbin

Join Date: Dec 2007
Location: Twin Cities
Dope ass dude, that neck looks sexy.
__________________
Chain:
Fingers -> Schecter Damien FR -> Fulltone OCD -> ABY Box -> Bugera V22 / Peavey 6505+
xstillspinninx is offline   Reply With Quote
Old 11-16-2012, 04:33 PM   #40
Speckled_Hen
Dr Monkey Pants

Speckled_Hen's Avatar

Join Date: Mar 2009
Location: England

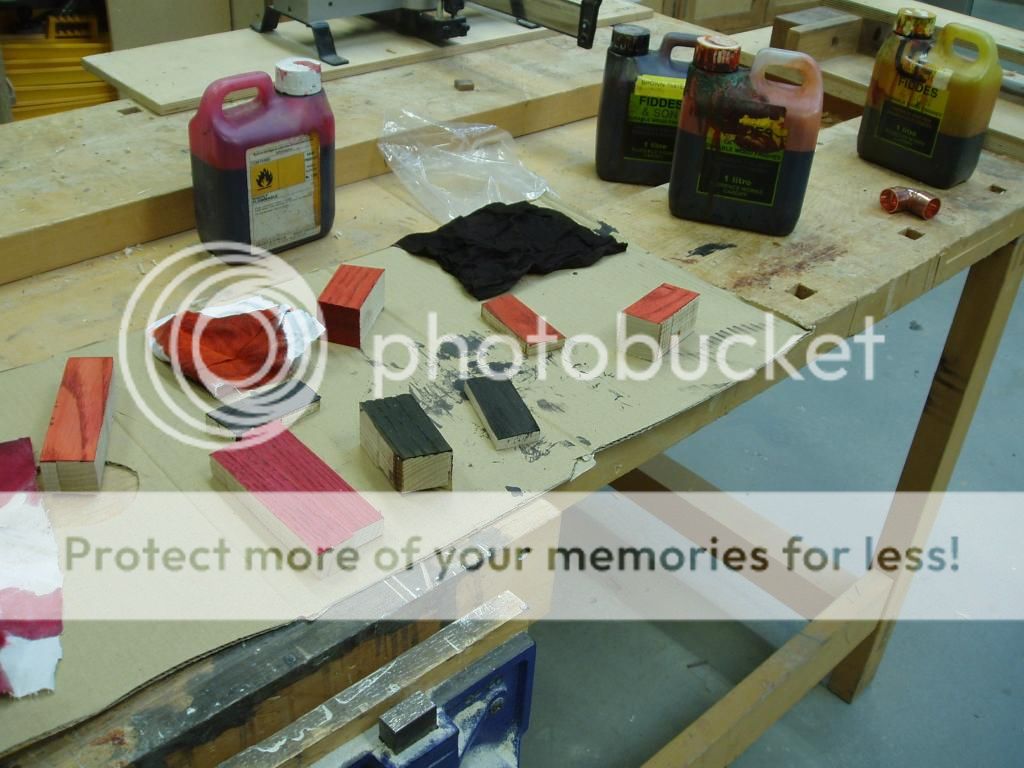

Alright, I know this has been over a year since I last posted in here (and finished the guitar) and that this is a massive necrobump, but I forgot to post the rest of the photo's until yesterday and I thought I better do that before I come out of hibernation for another build.

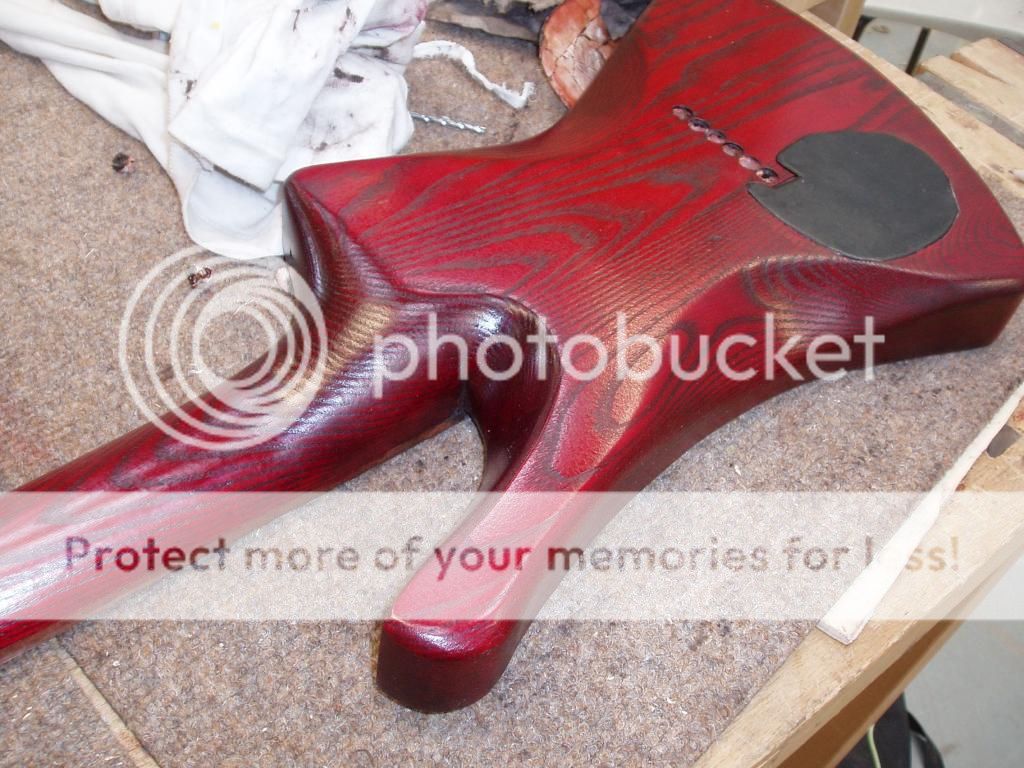

So, a year and a half after it was finished, the rest of my explorer:

I pick up just where I let off, with the bridge. These next couple of photos are blurry, sorry about that, my camera wouldn't focus. The problem I had is that hipshot had send the bridge with the wrong type of screws, and the heads stuck out and messed up the bridge saddles. I emailed them and they basically told me to go down the shop and buy some new one, which was shitty of them seeing as they mucked up and the thing wasn't cheap to begin with. Alas.



Lovely pic of that clamp. Thanks, camera. Anyway, you can see how the saddle tilts to the side from where the hipshot screw gets underneath it.



String holes drilled. Just put the bridge on and drilled from there, no template needed



Shiny fretboard pics. I sanded up to 400 and then went over it with some wire wool. These are after a few coats of tru-oil, to protect the ash dots.





Fretting time. Started with just the hammer but I found that that dented the frets a bit much, so I found a bit of some dense hardwood and hit that instead. It worked pretty well.




My end nipping plier things. Just got a normal set of these and ground the face flat like stewmac's ones. They worked perfectly and I have no idea why anyone buys the ones from stewmac.
