Old 02-11-2012, 08:22 PM   #41
-Blue-
Sarcastic block of color.

-Blue-'s Avatar

Join Date: Dec 2007
Thanks guys!

Quote:
Originally Posted by n1ckn1ce
Whats the point of the allen nut on the side of the side of the heel, ? truss rod adjustement?


Exactly.

Quote:
Originally Posted by Viban
thats one sexy lookin' red guitar, maybe some clearcoat to go on it? and maybe black hardware?


I'm still in a toss-up between clearcoat and an oil finish. Oil might be winning right now, actually. And I've already got all the black hardware in

And Gandalf, I've already got the DPDT switch for the burn, so I may as well use it Thanks for the suggestion, though, might be good in the future.
-Blue- is offline   Reply With Quote
Old 02-11-2012, 08:42 PM   #42
Viban
UG's resident bum

Viban's Avatar

Join Date: Nov 2011
depends on what type of gloss you want on it i suppose, look at some different samples and see what you like, different techniques and different thicknesses will create different appearances.
Viban is offline   Reply With Quote
Old 02-19-2012, 06:57 PM   #43
-Blue-
Sarcastic block of color.

-Blue-'s Avatar

Join Date: Dec 2007
Time for another update... all front routing is done! Aside from the holes for the controls, but thats because the control cavity isn't done yet. Next I'll be doing the back routs, which should be fairly straightforward aside from the ring around the control cavity. But we'll see how that goes, an MDF template on top of the normal template should make for fairly easy work.

But, pics. All of them except the last 2 make the wood look brown, but it's still the same red. You can see it in the last 2 test fit pics.

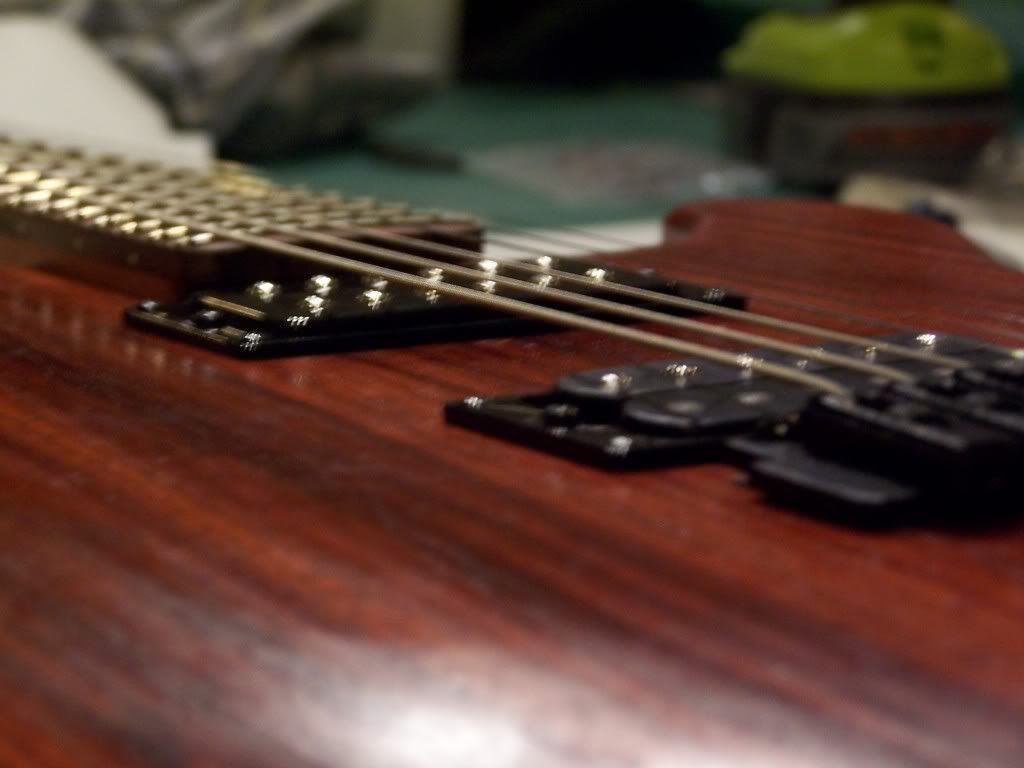

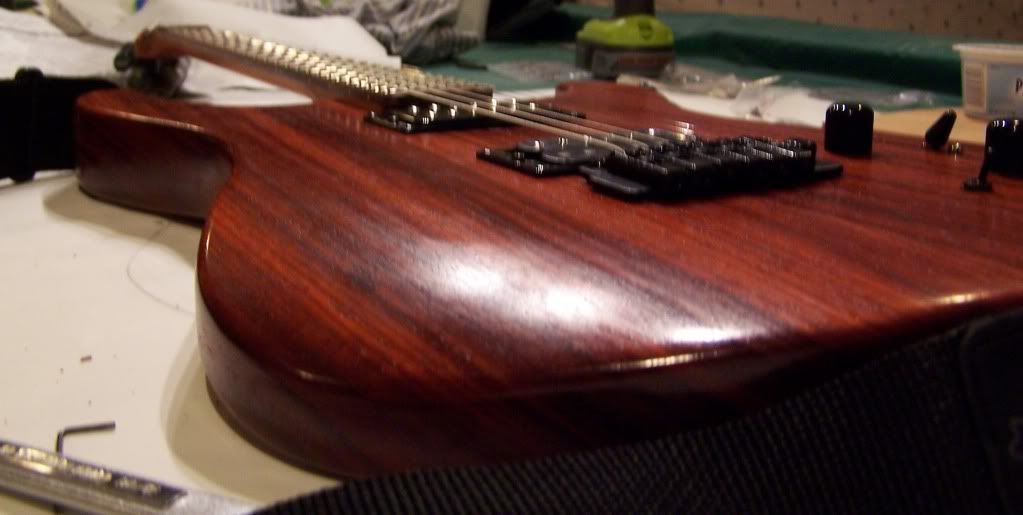

And with a hardware test fit...
-Blue- is offline   Reply With Quote
Old 02-19-2012, 07:08 PM   #44
GABarrie
Call me Gordon

Join Date: May 2011
Location: Plymouth, UK
out of interest, how do you fix your acrylic templates to the body?
__________________
Epiphone Les Paul Ultra-III
Jet City JCA5212RC
Archer "Nuns in Poses" Distortion
Archer "Dry Ice" Overdrive
EHX Deluxe Memory Boy
GABarrie is offline   Reply With Quote
Old 02-19-2012, 07:52 PM   #45
nowa90
Strike the Earth!

Join Date: Mar 2008
Location: Nova scotia, Canada
looks like double sided turners tape. Looking good so far bro!
__________________
Just call me Julius, J, etc.
Taking an Internet break for a while, will come on when I can.
nowa90 is offline   Reply With Quote
Old 02-19-2012, 07:53 PM   #46
Mufassa
Real Pimpin goin on

Mufassa's Avatar

Join Date: Feb 2012
Location: Waco,Texas
damn.. gunna look sweet when its done
__________________
Gear:
'89 Randall RG 100es
'91 ART SGX2000
'85 Gibson SG Studio Special with EMG 85/H
'01 MII Jackson DK-2 w/ customized electronics
'99 ESP LTD m-107
Peavey 412MS cabinet
pair of 70's woodson 2x12's
87' RAT 2,Dunlop GCB 95 wah
Mufassa is offline   Reply With Quote
Old 02-19-2012, 10:02 PM   #47
-Blue-
Sarcastic block of color.

-Blue-'s Avatar

Join Date: Dec 2007
Quote:
Originally Posted by GABarrie
out of interest, how do you fix your acrylic templates to the body?

Just used some double sided tape for these ones. I use clamps for the ones I can because they're easier, but these were too small for that.

Thanks guys!

Last edited by -Blue- : 02-21-2012 at 10:29 AM.
-Blue- is offline   Reply With Quote
Old 02-25-2012, 08:09 PM   #48
-Blue-
Sarcastic block of color.

-Blue-'s Avatar

Join Date: Dec 2007
More progress!

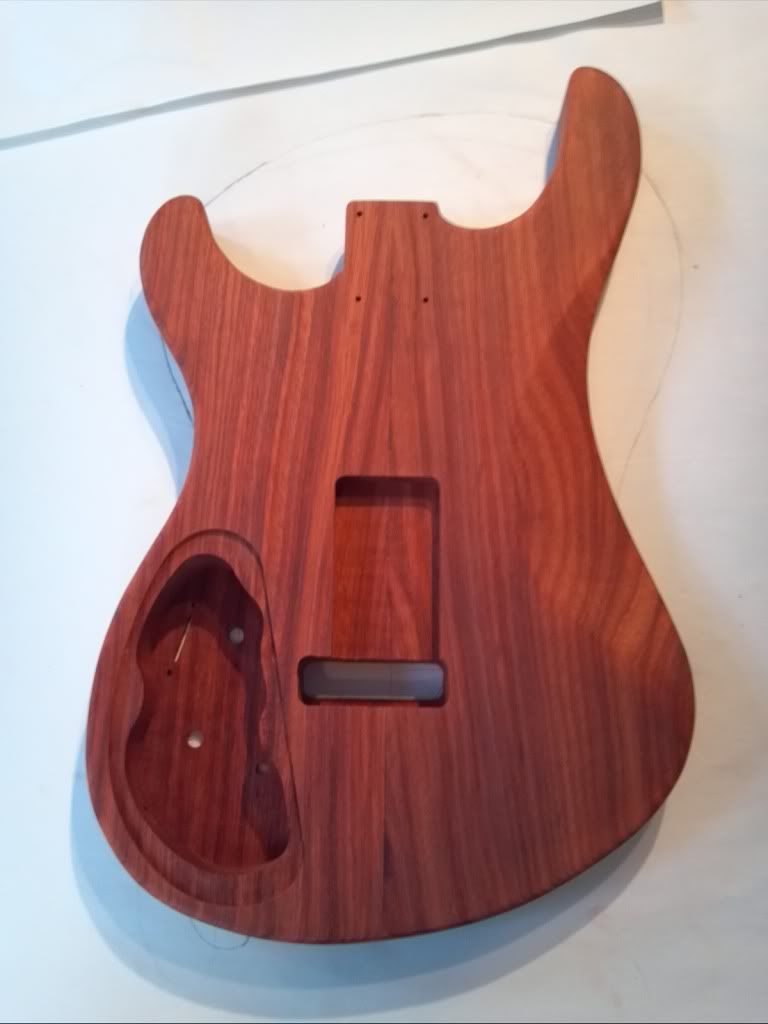

Got the back trem cavity and the control cavity all routed out now... it's impressive how much lighter the body is getting after all of these.








Test fit the covers...


Whew.

Now, the trem fits better in the front too, now that the cavity goes all the way through.




Now that I'm thinking about controls, I've come across an issue... should I shield the control cavity somehow? I know some people use foil, and some people use some sort of paint... any recommendations? I don't know a whole lot about the electronics side of things (compared to some of you regular luthiers, that is).
-Blue- is offline   Reply With Quote
Old 02-25-2012, 08:12 PM   #49
-MintSauce-
Time Lord

-MintSauce-'s Avatar

Join Date: May 2006
Location: England
Dat wood :3
-MintSauce- is offline   Reply With Quote
Old 02-25-2012, 08:45 PM   #50
rapfohl09
Registered User

Join Date: Dec 2008
Wow man, this is looking really awesome! It is really coming together!

I will reverberate the mentality of everyone else so far when I say that I am jealous of that beautiful Padauk!

As for shielding, meh, I have never found it necessary. I can't imagine you would with humbuckers.
rapfohl09 is offline   Reply With Quote
Old 02-25-2012, 08:49 PM   #51
Absent Mind
Celibate Porn Star

Absent Mind's Avatar

Join Date: Apr 2006
Location: Location Location
Damn that end grain!

Quote:
Originally Posted by -Blue-
Now that I'm thinking about controls, I've come across an issue... should I shield the control cavity somehow? I know some people use foil, and some people use some sort of paint... any recommendations? I don't know a whole lot about the electronics side of things (compared to some of you regular luthiers, that is).
You should shield.

Copper tape is the better shielder, but paint looks much better and is easier to apply.
__________________




Quote:
Originally Posted by dogismycopilot
Absent Mind, words cant express how much i love you. Id bone you, oh yea.

Quote:
Originally Posted by lumberjack
Absent Mind is, as usual, completely correct.

Quote:
Originally Posted by littlemurph7976
Id like to make my love for Neil public knowledge as he is a beautiful man
Absent Mind is offline   Reply With Quote
Old 02-25-2012, 09:57 PM   #52
n1ckn1ce
Slight douchebag.

n1ckn1ce's Avatar

Join Date: Nov 2010
Location: QC, bro.
the body seems massive :0
How thick?
__________________
PRS BUILD
PINE CAB BUILD

Since when do you fingerpick?

I ran out of picks last night.
n1ckn1ce is offline   Reply With Quote
Old 02-25-2012, 11:42 PM   #53
nowa90
Strike the Earth!

Join Date: Mar 2008
Location: Nova scotia, Canada
I feel like its between 1 3/4 and 2. OP, I never shielded any cavities before and they aren't any louder then the shielded guitars I own. I don't see a point, but I will do it on this PRS build because they seem really worried about buzz and I may as well make them feel ok about it.
__________________
Just call me Julius, J, etc.
Taking an Internet break for a while, will come on when I can.
nowa90 is offline   Reply With Quote
Old 02-26-2012, 12:33 AM   #54
michaelbot9000
ug's pastafarian

michaelbot9000's Avatar

Join Date: Apr 2008
Location: Canada
I, as well, will be jumping on the "shielding not necessary, but not bad" and "that padoak is unreal" bandwagon. Keep up the work!
__________________
ESP eclipse II (JB+59)
Modded Squier Strat (fender fat 50's)
Super Strat Build
Taylor 416ce
Orange Rocker 30 combo
michaelbot9000 is offline   Reply With Quote
Old 02-26-2012, 02:58 AM   #55
-Blue-
Sarcastic block of color.

-Blue-'s Avatar

Join Date: Dec 2007
Alright, thanks everyone; I think I will bypass shielding unless there's some easily obtainable, cheap shielding paint. My wallet has suffered enough throughout this project

Also, it's a 1 3/4" thick body. Once the sanding and contours are done, it should look regular, although it does look thick in some of the pictures. And the wood was definitely a lucky find, the Woodcraft I went to never had 2" thick boards until I was actually starting the project. Got the only one
-Blue- is offline   Reply With Quote
Old 03-03-2012, 03:03 PM   #56
-Blue-
Sarcastic block of color.

-Blue-'s Avatar

Join Date: Dec 2007
Good news: I'm on spring break from college now, and should be getting more done faster on the project! (Some people go to the beach. Screw those people.)

The plan today is just sanding the edges to get them perfectly smooth and to match the shape exactly, then roundover the edges on the back in preparation for contouring. I took a picture of my "planning workstation" (read: pool table) as I've been planning the different contours, mainly because I feel like some kind of awesome architect/inventor.



Pictures and updates will come in much more frequently now. And if you're wondering what the angles/design are in the bottom paper, I'm building a jig for making the belly contour with a bandsaw. If anybody would like pictures of that process as a reference for their own project, let me know, as I'll have to get someone to take pictures while I'm doing it.
-Blue- is offline   Reply With Quote
Old 03-05-2012, 07:37 PM   #57
-Blue-
Sarcastic block of color.

-Blue-'s Avatar

Join Date: Dec 2007
Just got in from working on it more... had to do a LOT of sanding on the edges to get it smooth. That's been on and off the past 2 days, as I've had a lot going on. So the guitar spent most of its time in a position like this:



Those horns were the devil to sand.

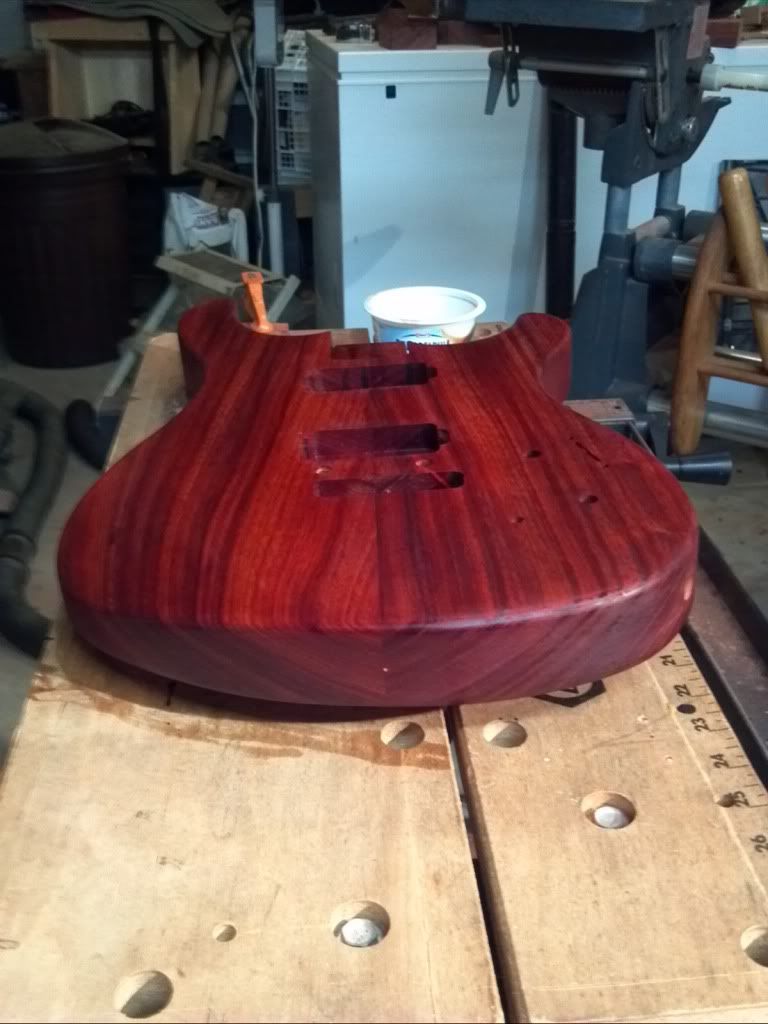

But aside from that, after it was smooth, I was able to go along the edges with a 1/4" roundover bit... very pleased with the results. It looks a lot more finished now.

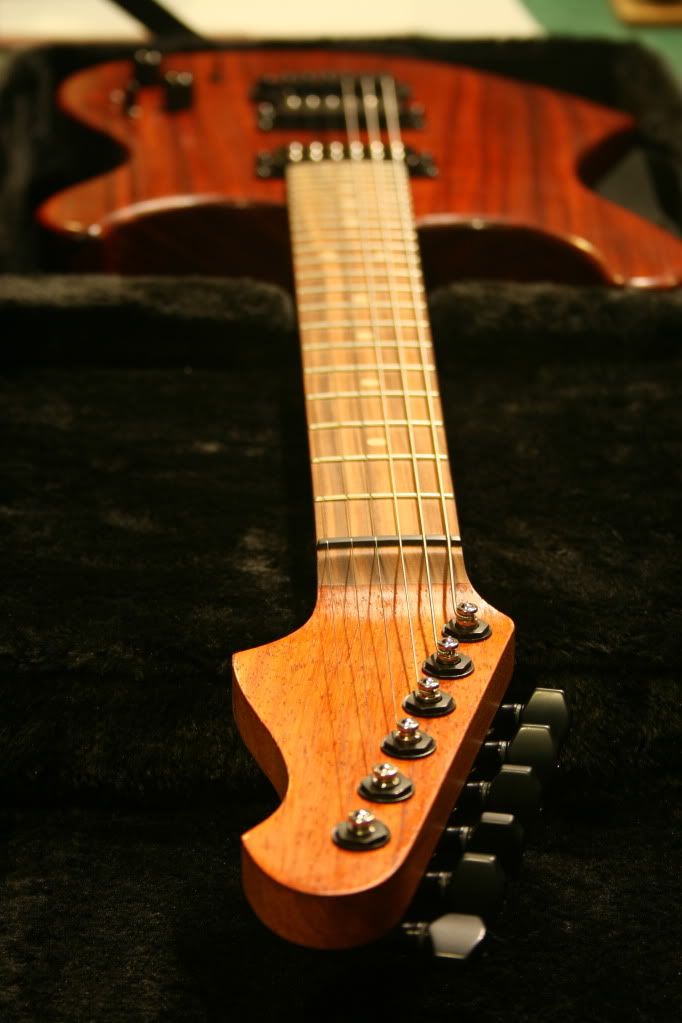

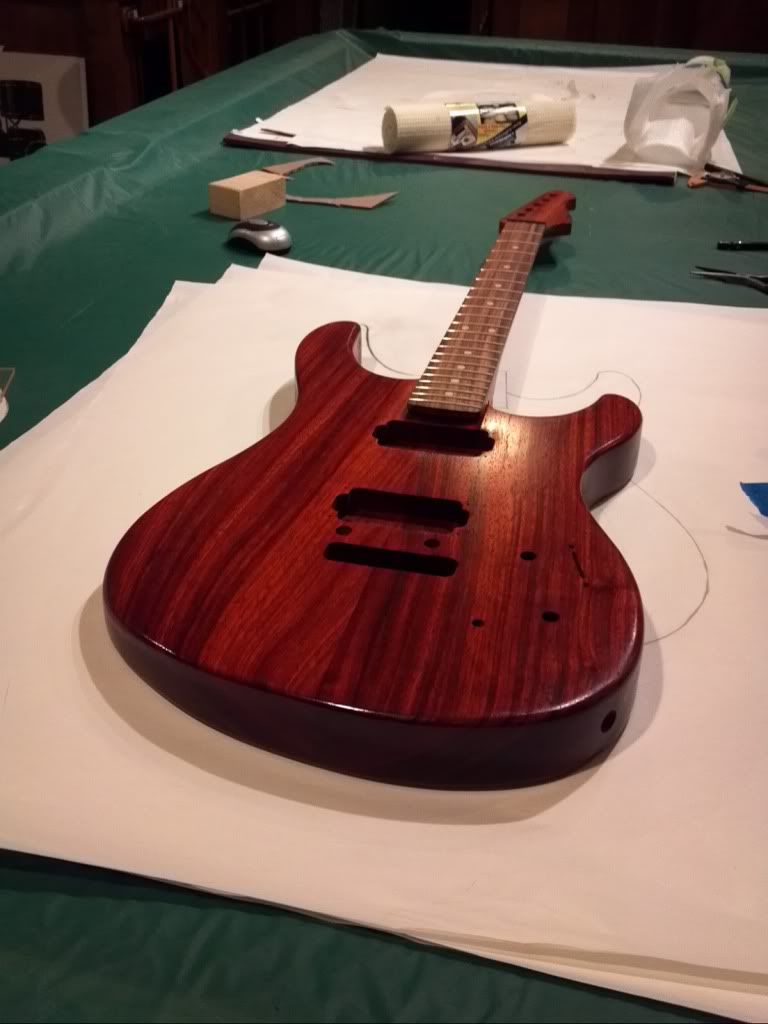

And of course, pics with the neck in (because I like them):





Next step: contours. I'm having second thoughts on the PRS-esque "scoop" I was planning. We'll see.
-Blue- is offline   Reply With Quote
Old 03-05-2012, 10:40 PM   #58
GypsyJive
The Fibonacci Sequence

Join Date: Apr 2011
Location: Texas
Awesome build man! Those contours are going to fill out the guitar nicely!
__________________
I have felt the taste of sound.
GypsyJive is offline   Reply With Quote
Old 03-06-2012, 01:25 AM   #59
Bandrew
Registered User

Bandrew's Avatar

Join Date: Dec 2006
Guitar looks great. Is that a first gen Miata in the background?
__________________
Guitars-
Epiphone Les Paul Custom
Dean Evo XM with EMG 81/85
Epiphone Stratocaster
Eastman AC120 Dreadnought
Martin Backpacker
Squire P-Bass
Kala Mahogany Tenor Ukulele
Bandrew is offline   Reply With Quote
Old 03-06-2012, 01:54 AM   #60
X-plorer88
Unlisted User

X-plorer88's Avatar

Join Date: Nov 2009
Location: Across the Narrow Sea
I love this build!
Aren't you going to put a arm bevel so it's more comfortable to play?
__________________
If you drop tune your guitar, then you're probably the kind of person that thinks it's okay to drop tune their guitar.
X-plorer88 is offline   Reply With Quote
