Unlimited Challenge 2012- The Squid

Hey guys,

this is my first build for Unlimited. (im hoping to get another in) Its i sick shape and i hope ill be able to do it. It is my own design and im proud of it. If not then tough luck 4 me. here's the CARDBOARD template on ply wood:



Crazy. . . Maybe. Epic. . . Definatly!

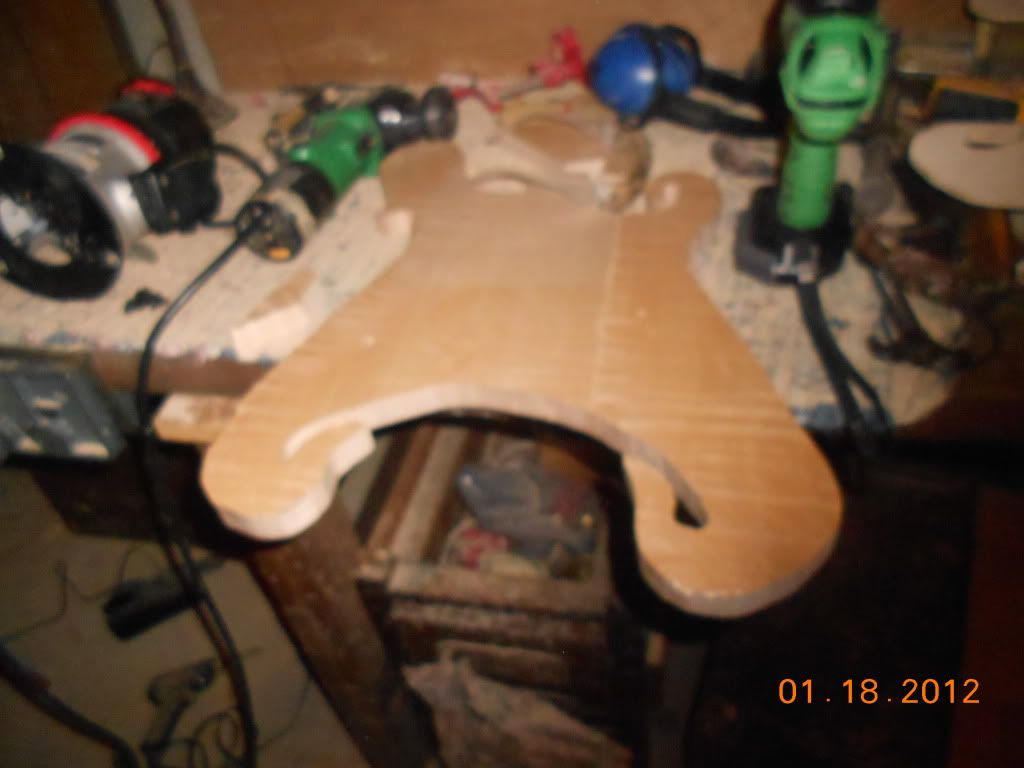

After cut out:

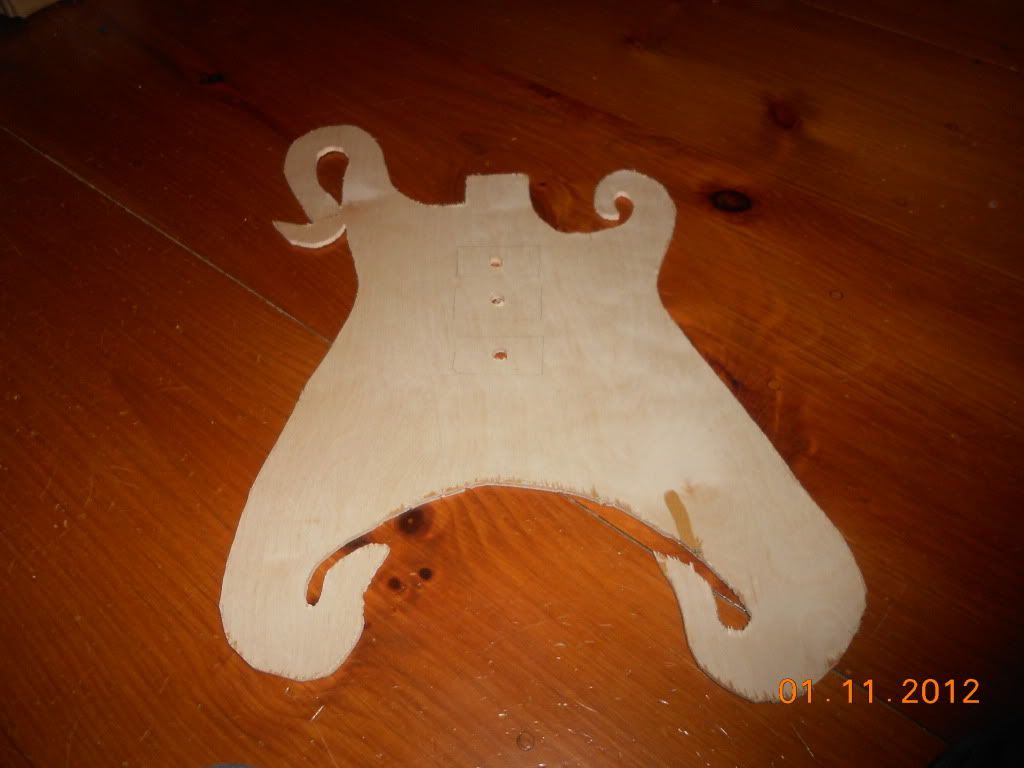

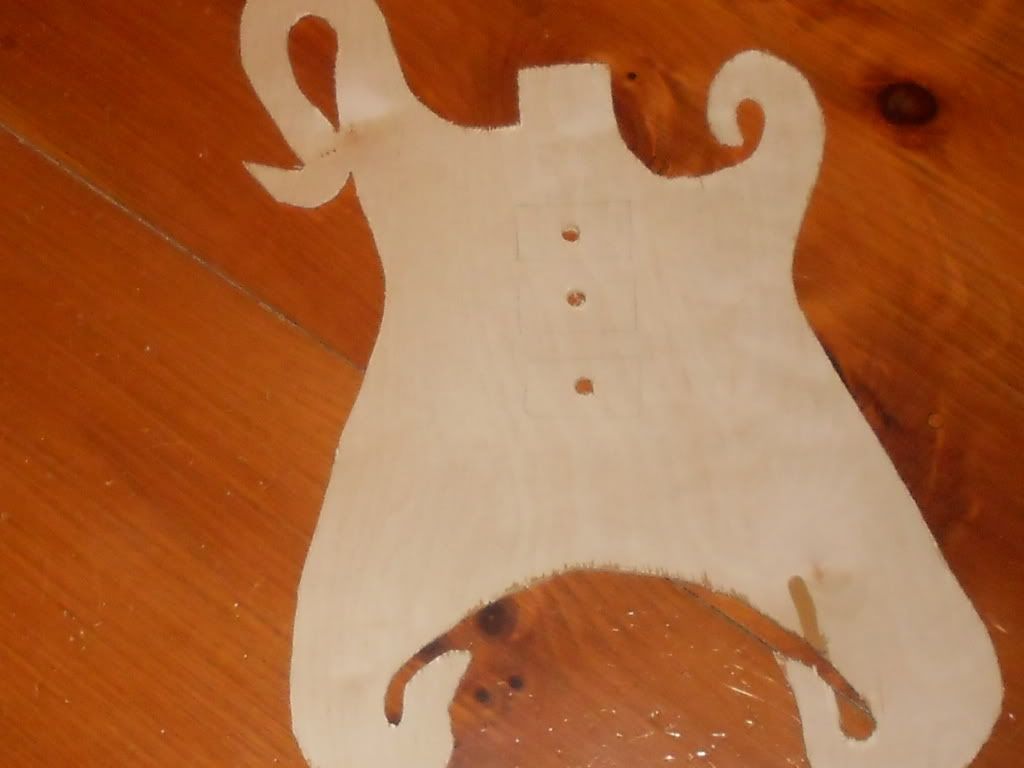

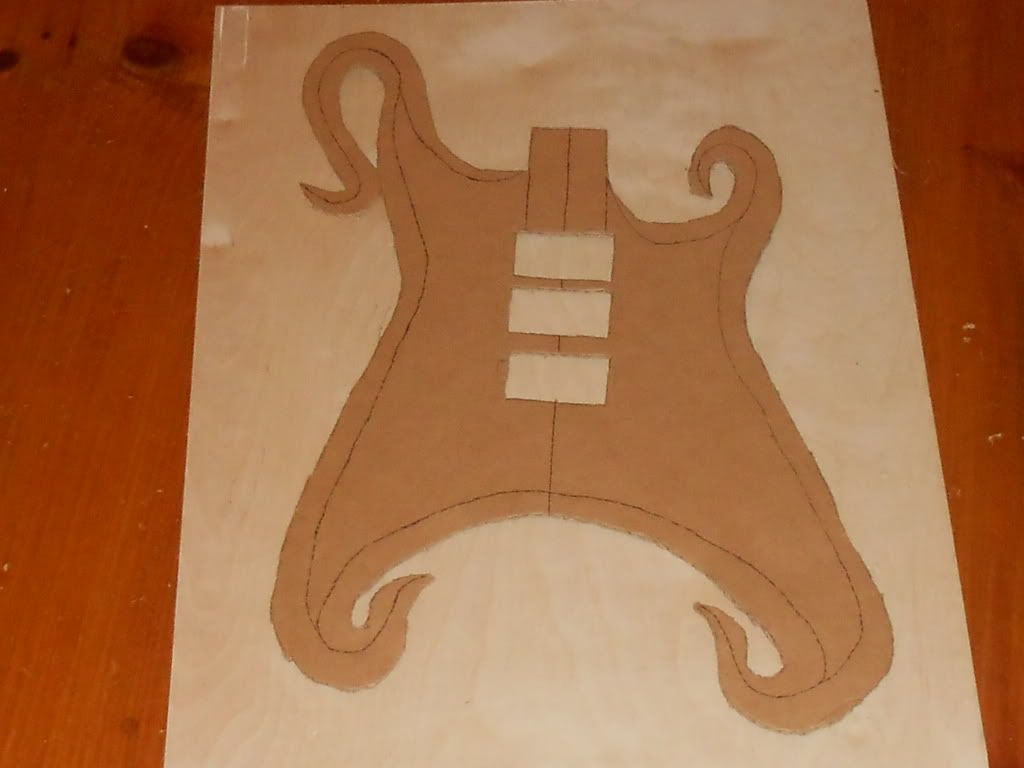

This is my template so far. just got to get the pickups routed out.

Some specs:

Custom Body
24 Fret Neck
6 Strings (i was thinking of doing 7 but to costly )
1 Volume
1 Tone
5 Way Lever Switch
Fixed Bridge
(all black hardware)
Brown and Yellow Dye, or maybe something else, just throwing that out there)

and best of all

3 Humbuckers

Thats all for Now!

__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 01-11-2012, 08:41 PM   #2
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
BTW

Started: 1/10/12
Ended: (In Progress)

Template: Done
Body Wood: Done
Body Rough Cut: Done
Body Cut: Done
Glue Together: Done
Neck Pocket: Done
Pickup Cavities: Done
Carving: Done
Neck: In Process
Finish: Not Done
Electronics: Not Done

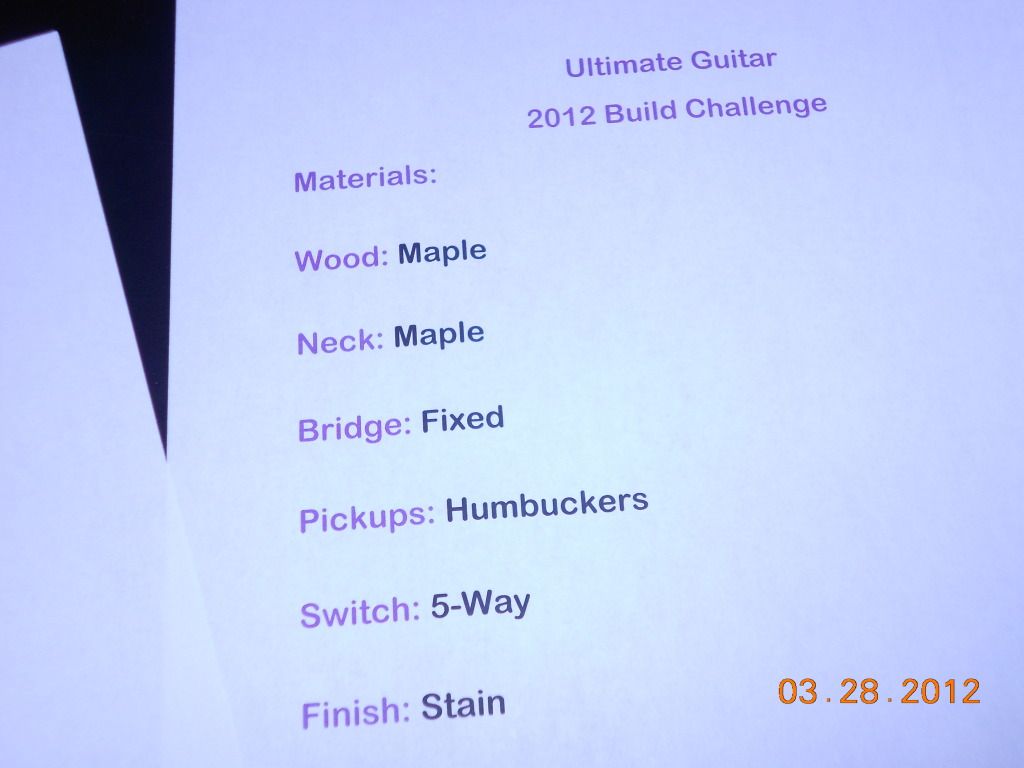

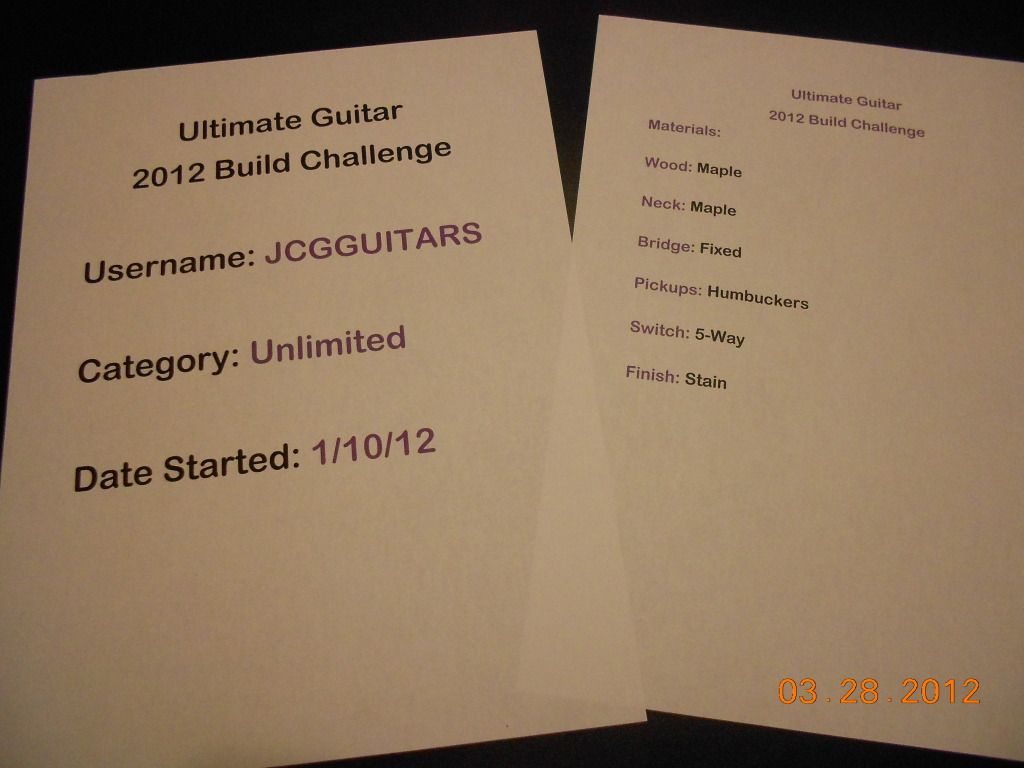

Oh, and a little late:
