Old 01-27-2012, 12:13 PM   #61
Leon987
Registered User

Join Date: Sep 2009
actually better then i expected, good job, okay have to admit the mistakes but its a hard shape so
Leon987 is offline   Reply With Quote
Old 01-27-2012, 12:18 PM   #62
eddiehimself
Call me EH, eh?

eddiehimself's Avatar

Join Date: Jun 2006
Location: Slowly changing my identity, one day at a time
It is an "interesting" body shape, not my sort of thing though. Also you still need to do a lot of work on those edges, they're still pretty wavy and that.
__________________
EH

"Show me war; show me pestilence; show me the blood-red hands of retribution..."
eddiehimself is offline   Reply With Quote
Old 01-27-2012, 01:27 PM   #63
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
ya i know. im waiting until i fix the chips
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 02-03-2012, 06:58 PM   #64
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
I got my stewmac stuff 2day.

so i did a test on the finish. the 1st didn't come out as good as i though (cuz its too dark) so im on test 2

been sick so thats why no updates. but hopefully there will be soon!

__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 02-04-2012, 07:28 PM   #65
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
here's pics of the second test:



that slit is where i cut with the jig saw. i figured it will look a lot better with more grain so i wont worry about how dark it is. i did another test with green and yellow but this one looked better. i have the beltsander from my Dad so ill be fixing the chipped parts. if ur curious ill tell u what im doin. Im sanding where the chips are the gluing a piece on then cut and router again.

thats it for now so
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 02-04-2012, 07:56 PM   #66
-MintSauce-
Time Lord

-MintSauce-'s Avatar

Join Date: May 2006
Location: England
How many applications of stain did you use? It looks like you used one dark black, then sanded back and went straight onto your green. If you want a good transition, you need to vary the concentrations of both and go easy on the sanding between.
-MintSauce- is offline   Reply With Quote
Old 02-04-2012, 08:01 PM   #67
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
Quote:
Originally Posted by -MintSauce-
How many applications of stain did you use? It looks like you used one dark black, then sanded back and went straight onto your green. If you want a good transition, you need to vary the concentrations of both and go easy on the sanding between.


this is my first time doing this so yes i did do that. how should i do it when i do it on the guitar. and all i had for sanding was a sanding belt. next time ill have an orbital sander
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 02-04-2012, 08:06 PM   #68
-MintSauce-
Time Lord

-MintSauce-'s Avatar

Join Date: May 2006
Location: England
Quote:
Originally Posted by JCGGUITARS
this is my first time doing this so yes i did do that. how should i do it when i do it on the guitar. and all i had for sanding was a sanding belt. next time ill have an orbital sander


1. Dilute your green and black separately, so they're pretty light (10-20%).
2. Apply one coat of black,
3. Sand lightly by hand with 240+ grit,
4. Repeat 2-3 until you have a nice gradient of black running the depth of the flame
5. Do the same with your green, but don't sand after the final coat.
-MintSauce- is offline   Reply With Quote
Old 02-04-2012, 08:58 PM   #69
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
Quote:
Originally Posted by -MintSauce-
1. Dilute your green and black separately, so they're pretty light (10-20%).
2. Apply one coat of black,
3. Sand lightly by hand with 240+ grit,
4. Repeat 2-3 until you have a nice gradient of black running the depth of the flame
5. Do the same with your green, but don't sand after the final coat.


ill try probably in a few days or something. maybe not for a while. thanks tho
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 02-04-2012, 09:13 PM   #70
Boysie8
The best kind of spice

Boysie8's Avatar

Join Date: Jul 2008
Location: Taupo, NZ
I'll be storing that one away too MintSauce, cheers. JCG, good plan with the chip repair but I would use the router instead of the belt sander. That way you get a nice square surface to glue your plug into - it's worked for me in the past. Just make sure you use a straight edge to guide the router, or you'll make it even worse.
Boysie8 is offline   Reply With Quote
Old 02-06-2012, 09:25 AM   #71
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
Quote:
Originally Posted by Boysie8
I'll be storing that one away too MintSauce, cheers. JCG, good plan with the chip repair but I would use the router instead of the belt sander. That way you get a nice square surface to glue your plug into - it's worked for me in the past. Just make sure you use a straight edge to guide the router, or you'll make it even worse.


i was thinking that to but my dad seems to think this way will work easier. i cant argue with him since he has a lot more experiance.

EDIT: just finished the top horn (gluing) now for the bottom. . .
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS


Last edited by JCGGUITARS : 02-07-2012 at 11:19 AM.
JCGGUITARS is offline   Reply With Quote
Old 02-15-2012, 07:41 PM   #72
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
well i glued it up and routered around to make it smooth so now ill start routering the guitar out now while its flat then start carving. any way to make a perfect neck pocket jig?
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 02-16-2012, 12:37 AM   #73
Boysie8
The best kind of spice

Boysie8's Avatar

Join Date: Jul 2008
Location: Taupo, NZ
Boysie8 is offline   Reply With Quote
Old 02-16-2012, 09:47 AM   #74
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
ill do that on a piece of plywood so i always have a jig.

BAD NEWS!! i didnt chamber the body!

any ideas to make it lighter without cutting the body in half. the glue is stronger than the guitar.
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 02-16-2012, 10:23 AM   #75
von Layzonfon
UG's Grammar Stickler

von Layzonfon's Avatar

Join Date: Dec 2010
Location: 22 Acacia Avenue
That's why you should have a plan.

Anyway. You could route some cavities in the back and then cover them over like faux control cavities. If you fill the gaps it shouldn't be noticeable under a painted finish. Or were you wanting to stain the whole lot?
__________________

Paddy von Layzonfon! Founder of The Spell it RELICKED Club
von Layzonfon is offline   Reply With Quote
Old 02-16-2012, 10:42 AM   #76
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
Quote:
Originally Posted by von Layzonfon
That's why you should have a plan.

Anyway. You could route some cavities in the back and then cover them over like faux control cavities. If you fill the gaps it shouldn't be noticeable under a painted finish. Or were you wanting to stain the whole lot?


ya i guess i was rushing myself. im planning to do the front green and the back black. mabe ill do a big control cavity or something. i want to get the stewmac control plate and jig.
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 02-16-2012, 11:08 AM   #77
von Layzonfon
UG's Grammar Stickler

von Layzonfon's Avatar

Join Date: Dec 2010
Location: 22 Acacia Avenue
Don't worry. I just goofed up myself. Pride comes before a fall and all that.
__________________

Paddy von Layzonfon! Founder of The Spell it RELICKED Club
von Layzonfon is offline   Reply With Quote
Old 02-16-2012, 11:10 AM   #78
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
Quote:
Originally Posted by von Layzonfon
Don't worry. I just goofed up myself. Pride comes before a fall and all that.


yup
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 02-16-2012, 05:57 PM   #79
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011

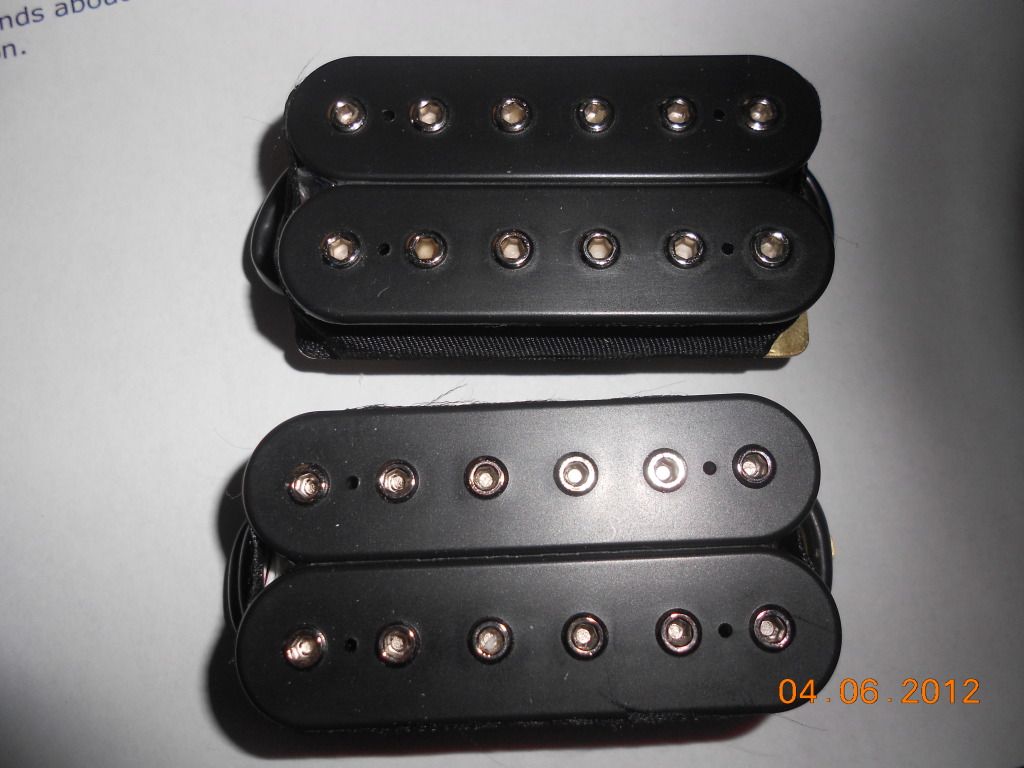

I got the neck pocket jig done. Before i rout it out i was wondering since there's the three humbuckers if i could just rout a long pocket for the humbuckers in stead of doing little spots.

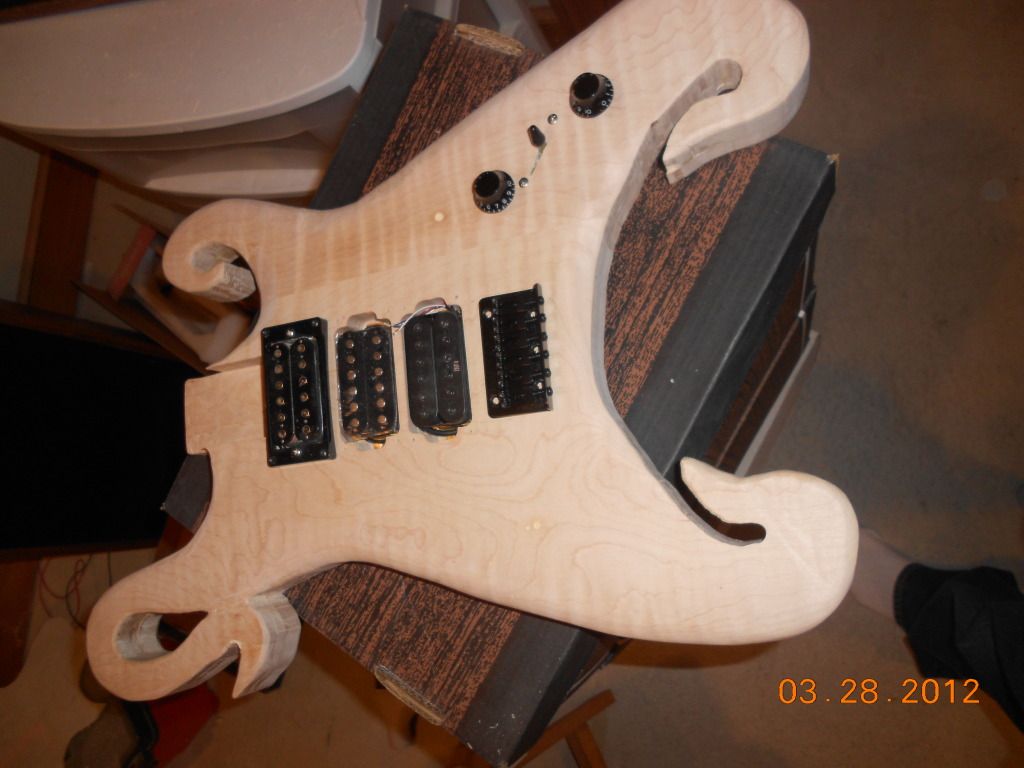

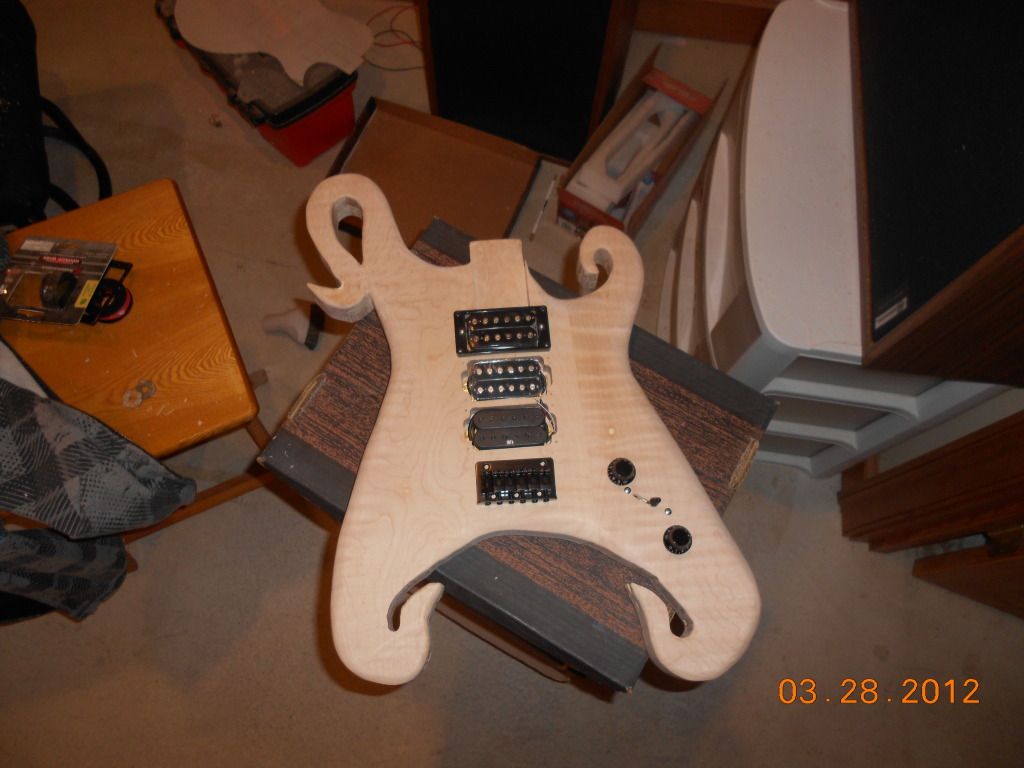

Heres what i mean. as you see here:



that all the pickups are lined up. i want to rout a long cavity. can i do that since the pickup covers will cover it?
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 02-16-2012, 06:29 PM   #80
nowa90
Strike the Earth!

Join Date: Mar 2008
Location: Nova scotia, Canada
not really, because the pickup ears are the same size as the rings, so there wood be no material for the pickup ring screws to be put into.
__________________
Just call me Julius, J, etc.
Taking an Internet break for a while, will come on when I can.
nowa90 is offline   Reply With Quote
