Old 04-05-2012, 10:37 PM   #61
Boysie8
The best kind of spice

Boysie8's Avatar

Join Date: Jul 2008
Location: Taupo, NZ
Looking great man. It may not be your idea, but I'd say you're doing a far better job than others I've seen. It must have taken bloody ages on the bandsaw too - glad to see you're putting it to good use.
Boysie8 is offline   Reply With Quote
Old 04-05-2012, 11:50 PM   #62
Lightbluemk2
New Zealand rep!

Lightbluemk2's Avatar

Join Date: May 2010
Location: Christchurch, New Zealand
Thanks man, and you're dead right about that, a long time spent hunched over the bandsaw and router table
__________________
________________________________________

Chur
Lightbluemk2 is offline   Reply With Quote
Old 04-06-2012, 11:12 PM   #63
Lightbluemk2
New Zealand rep!

Lightbluemk2's Avatar

Join Date: May 2010
Location: Christchurch, New Zealand
Did a little bit today,

Cut out the neck profile, routed for the truss rod, had a bit of wobble on my first pass, had to clean that up with some epoxy and purpleheart dust. Ah well



Sanded down the inlays



My little idea to use the 3 different timbers mixed with epoxy for the dots didn't work out that great, came out reasonably dark which was a shame, but hey you win some and you lose some!

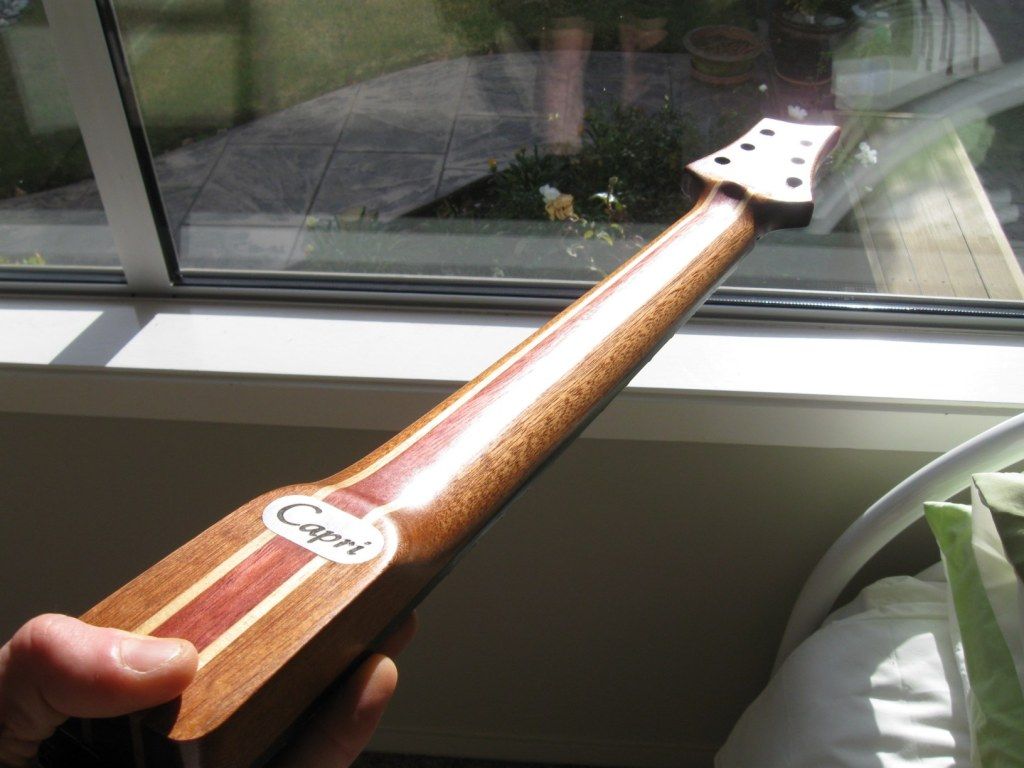

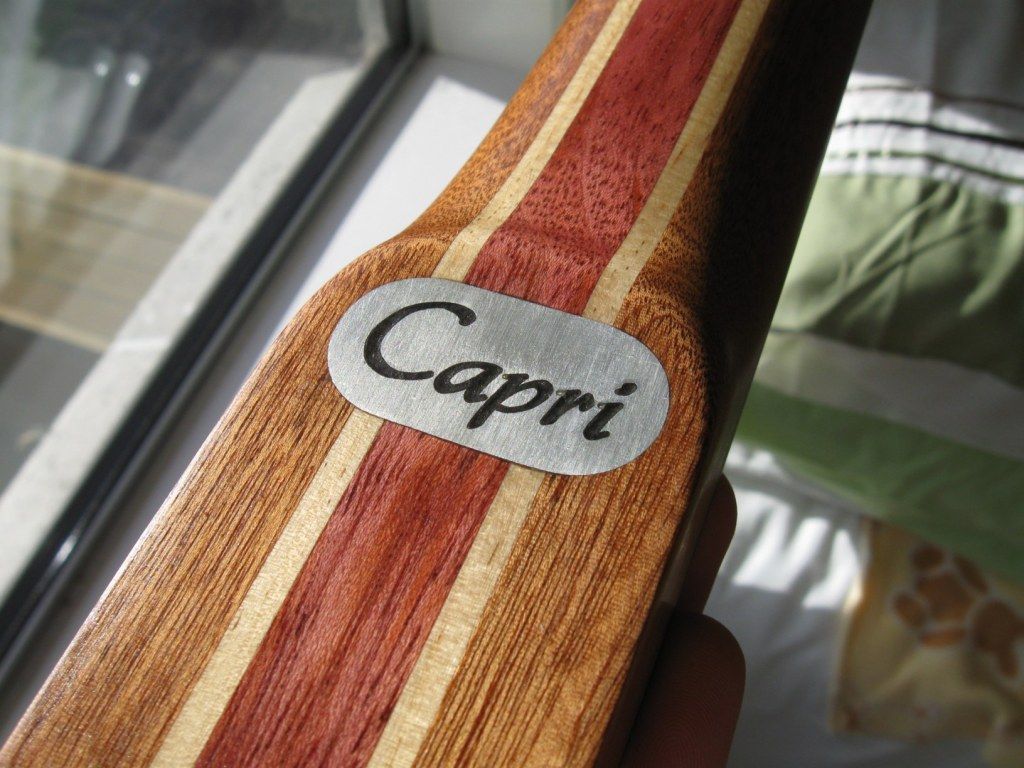

Got out the overhead routing jig and thinned down the back of the headstock and neck

__________________
________________________________________

Chur
Lightbluemk2 is offline   Reply With Quote
Old 04-06-2012, 11:54 PM   #64
dkunick
Waco

dkunick's Avatar

Join Date: Aug 2010
Amazing build! Well done so far, very creative. Looking forward to the next update!
__________________
Ibanez RGT6 EXFX
Fender American Stratocaster
Epiphone Slash Goldtop Les Paul
Carvin DC-135
Washburn G-5V
Taylor 214CEG

EVH 5150 III
Peavey 6505+
Line 6 Flextone III
50s Valco Supro
dkunick is offline   Reply With Quote
Old 04-07-2012, 01:45 AM   #65
Boysie8
The best kind of spice

Boysie8's Avatar

Join Date: Jul 2008
Location: Taupo, NZ
Shame about the inlay dots, at least you can drill them out and start again. I'd go with the same wood as the inset puzzle piece, and a little bigger (6mm or so), but I'm pretty conservative like that.
Boysie8 is offline   Reply With Quote
Old 04-08-2012, 11:53 PM   #66
kiaba94
******

Join Date: Jan 2009
Location: the south
i kinda like the real light dots. its makes the fretboard look a lot simpler from far away but lets you still have markers for yourself.
kiaba94 is offline   Reply With Quote
Old 04-09-2012, 12:35 AM   #67
Lightbluemk2
New Zealand rep!

Lightbluemk2's Avatar

Join Date: May 2010
Location: Christchurch, New Zealand
Exactly my thinking when I saw how they came out!
__________________
________________________________________

Chur
Lightbluemk2 is offline   Reply With Quote
Old 04-09-2012, 02:14 PM   #68
dkunick
Waco

dkunick's Avatar

Join Date: Aug 2010
Tinier (than the 12th fret marker) puzzle pieces in different shapes/colors and all slightly askew and off the center axis would look awesome, IMO. Like you just dumped out a puzzle box and that's how the pieces landed.
__________________
Ibanez RGT6 EXFX
Fender American Stratocaster
Epiphone Slash Goldtop Les Paul
Carvin DC-135
Washburn G-5V
Taylor 214CEG

EVH 5150 III
Peavey 6505+
Line 6 Flextone III
50s Valco Supro
dkunick is offline   Reply With Quote
Old 04-09-2012, 03:33 PM   #69
Lightbluemk2
New Zealand rep!

Lightbluemk2's Avatar

Join Date: May 2010
Location: Christchurch, New Zealand
Quote:
Tinier (than the 12th fret marker) puzzle pieces in different shapes/colors and all slightly askew and off the center axis would look awesome, IMO. Like you just dumped out a puzzle box and that's how the pieces landed.


While I'm sure that'd look nice, I'm leaving the fretboard as it is, simple, and not cluttered.
__________________
________________________________________

Chur
Lightbluemk2 is offline   Reply With Quote
Old 04-09-2012, 07:50 PM   #70
dkunick
Waco

dkunick's Avatar

Join Date: Aug 2010
The minimalist in me likes that concept too. Just trying to throw an idea out there. This is an interesting build and I look forward to your updates!
__________________
Ibanez RGT6 EXFX
Fender American Stratocaster
Epiphone Slash Goldtop Les Paul
Carvin DC-135
Washburn G-5V
Taylor 214CEG

EVH 5150 III
Peavey 6505+
Line 6 Flextone III
50s Valco Supro
dkunick is offline   Reply With Quote
Old 04-09-2012, 08:48 PM   #71
metalhead352
UG's bacon strips

metalhead352's Avatar

Join Date: May 2011
The puzzle piece inlay looks great! And love the neck woods.
__________________
*insert witty statement here*
metalhead352 is offline   Reply With Quote
Old 04-22-2012, 04:12 AM   #72
Lightbluemk2
New Zealand rep!

Lightbluemk2's Avatar

Join Date: May 2010
Location: Christchurch, New Zealand
Did a little bit the last couple of days,

A couple of dabs of silicon on the ends and middle and put in the trussrod, then a merbau filler strip.



Planed down the filler strip, ready to glue the f/b on

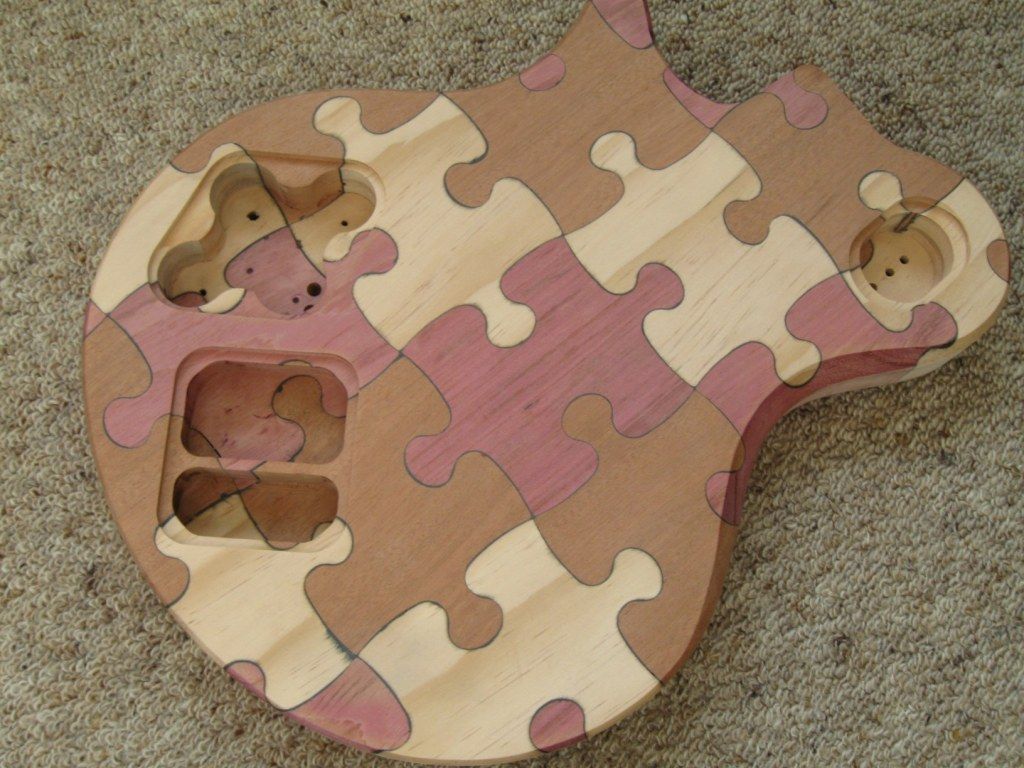

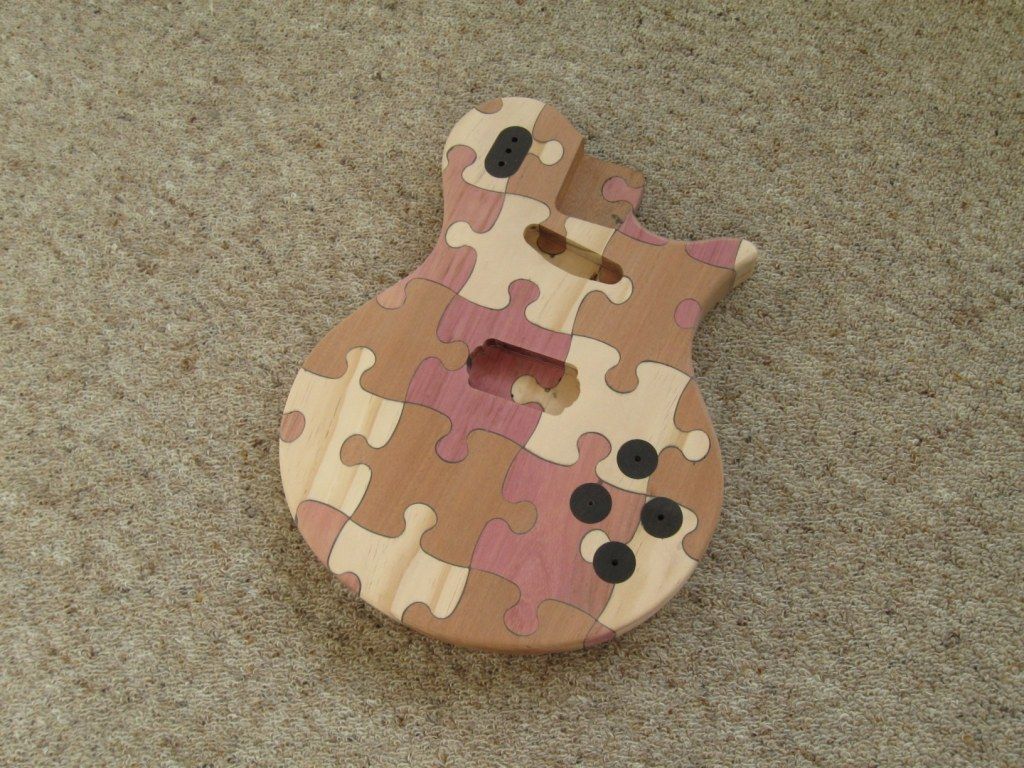

Routed out some cavities and a small roundover



Got the overhead router jig out and double sided taped a angle block underneath the body



Like so



Instant forearm contour



This did however reveal a couple of minor cracks in a pine piece, which pissed me off a bit but hey not much I can do about other than get on with it! So stabilised it with some thin CA, will most likely gouge that out a bit and fill it with some pine dust and glue later.



Did a wee tummy cut, nothing too large





That's all for today folks!
__________________
________________________________________

Chur
Lightbluemk2 is offline   Reply With Quote
Old 04-22-2012, 05:02 AM   #73
Leon987
Registered User

Join Date: Sep 2009
That body looks great, do you think youll redo the inlay dots or just keep them this way?
Leon987 is offline   Reply With Quote
Old 04-22-2012, 05:06 AM   #74
Boysie8
The best kind of spice

Boysie8's Avatar

Join Date: Jul 2008
Location: Taupo, NZ
Looking great dude.
Boysie8 is offline   Reply With Quote
Old 04-22-2012, 06:53 AM   #75
Lightbluemk2
New Zealand rep!

Lightbluemk2's Avatar

Join Date: May 2010
Location: Christchurch, New Zealand
Cheers Boysie, Leon I think I will, they're a lot more noticeable in person, and I kind of like them
__________________
________________________________________

Chur
Lightbluemk2 is offline   Reply With Quote
Old 04-22-2012, 10:59 AM   #76
Don't Panic Ok?
Clive Dunn

Don't Panic Ok?'s Avatar

Join Date: Oct 2007
Location: Walmington-on-Sea
That looks fantastic!
__________________

DON'T PANIC! DON'T PANIC!
THEY DON'T LIKE IT UP 'EM!
Don't Panic Ok? is offline   Reply With Quote
Old 04-22-2012, 01:21 PM   #77
metalhead352
UG's bacon strips

metalhead352's Avatar

Join Date: May 2011
Freakin sweet!
__________________
*insert witty statement here*
metalhead352 is offline   Reply With Quote
Old 04-25-2012, 07:34 PM   #78
Lightbluemk2
New Zealand rep!

Lightbluemk2's Avatar

Join Date: May 2010
Location: Christchurch, New Zealand
Update time, but with no pictures until later.

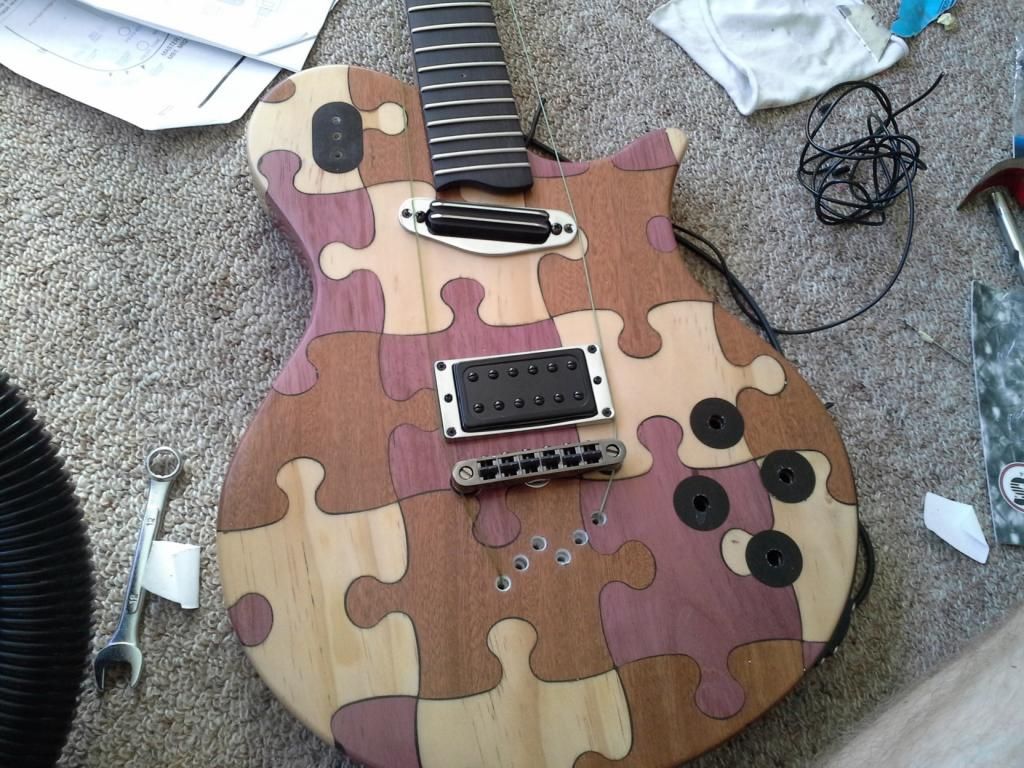

Last time I used gfs pups I was pleasantly surprised, and most of the tone of course comes from the amp, so thought I'd give them another go, bought a black on black dream 180 bridge pos, and a lil killer modern in neck pos.

Planning to have those 2x hums , 1V, 1T, 3way selector, 1 push/pull for coil split.

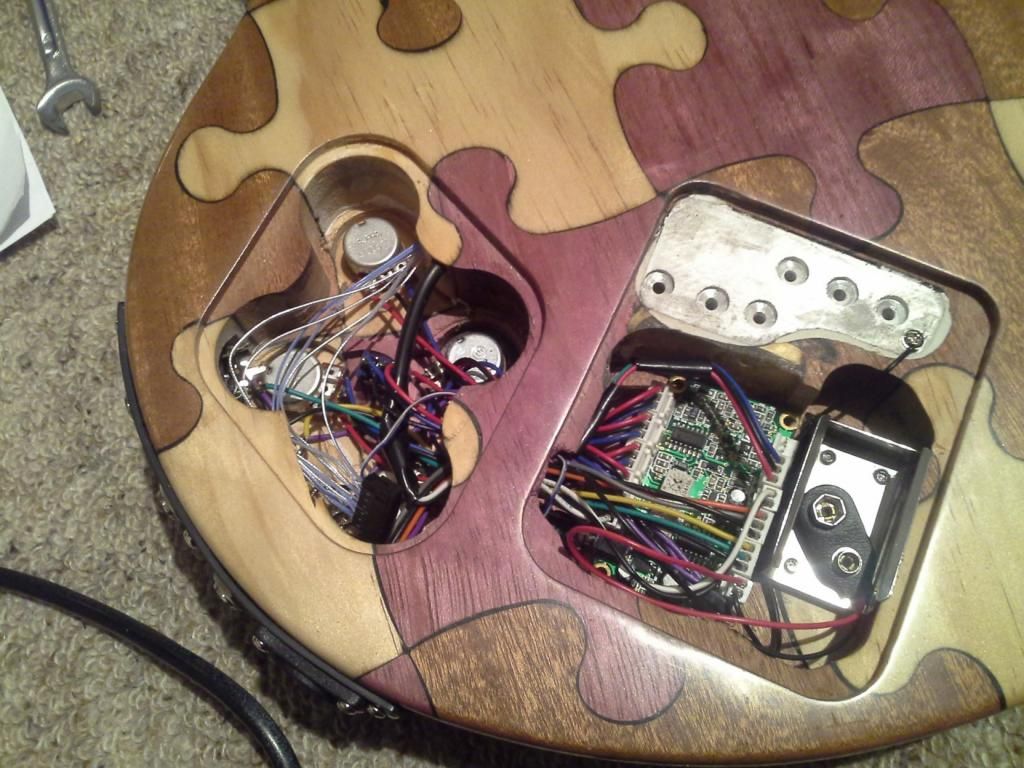

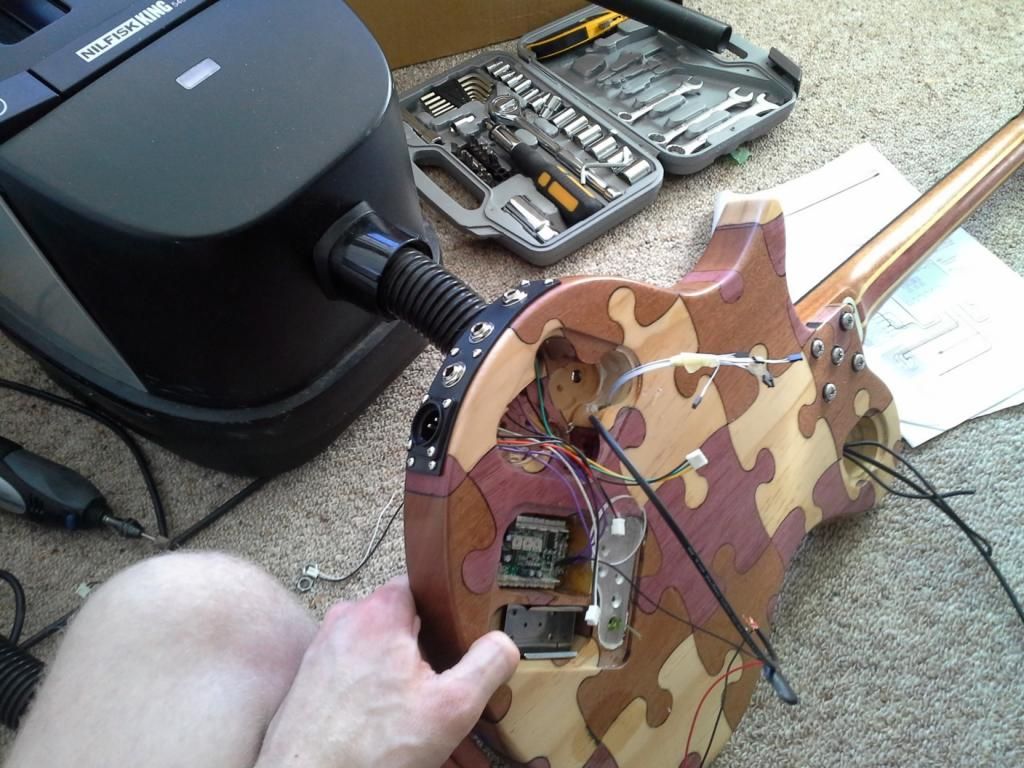

Also ordered something I'm alot more excited about, a graphtech ghost piezo tune o matic, black nickel finish. I'll most likely make my own summing board and wire it into a artec MB-1 which I have lying around. but we'll see.

ALSO made a new 12" gluing block yesterday and glued down the fretboard, so I'll post pictures tonight or tomorrow

Chur
__________________
________________________________________

Chur
Lightbluemk2 is offline   Reply With Quote
Old 04-25-2012, 11:51 PM   #79
dkunick
Waco

dkunick's Avatar

Join Date: Aug 2010
Sounds great, my buddy put GFS burstbucker 3 copies in his LP and they sound great. Looking forward to see how the other electronics work out; sounds very interesting.
__________________
Ibanez RGT6 EXFX
Fender American Stratocaster
Epiphone Slash Goldtop Les Paul
Carvin DC-135
Washburn G-5V
Taylor 214CEG

EVH 5150 III
Peavey 6505+
Line 6 Flextone III
50s Valco Supro
dkunick is offline   Reply With Quote
Old 04-27-2012, 03:51 AM   #80
Lightbluemk2
New Zealand rep!

Lightbluemk2's Avatar

Join Date: May 2010
Location: Christchurch, New Zealand
Got the neck into the clamps



Got it out and rough sawed to shape, then to the router table



Routed to shape



Now I need to stop stalling and figure out what I'm doing for the headstock!
__________________
________________________________________

Chur
Lightbluemk2 is offline   Reply With Quote
