Old 07-19-2012, 02:46 PM   #81
T00DEEPBLUE
Freaky Alien Genotype

T00DEEPBLUE's Avatar

Join Date: Oct 2010
It was only today that i realized that this is whoomit's build.

__________________
Quote:
Originally Posted by Dave Bonta
If you want to follow your gut, you must first acquire a gut.
T00DEEPBLUE is offline   Reply With Quote
Old 07-19-2012, 05:24 PM   #82
von Layzonfon
UG's Grammar Stickler

von Layzonfon's Avatar

Join Date: Dec 2010
Location: 22 Acacia Avenue
Nice.
__________________

Paddy von Layzonfon! Founder of The Spell it RELICKED Club
von Layzonfon is offline   Reply With Quote
Old 07-20-2012, 09:00 AM   #83
whoomit

whoomit's Avatar

Join Date: Jul 2006
Quote:
Originally Posted by T00DEEPBLUE
It was only today that i realized that this is whoomit's build.


Not bad for a stupid Pit-Monkey eh?

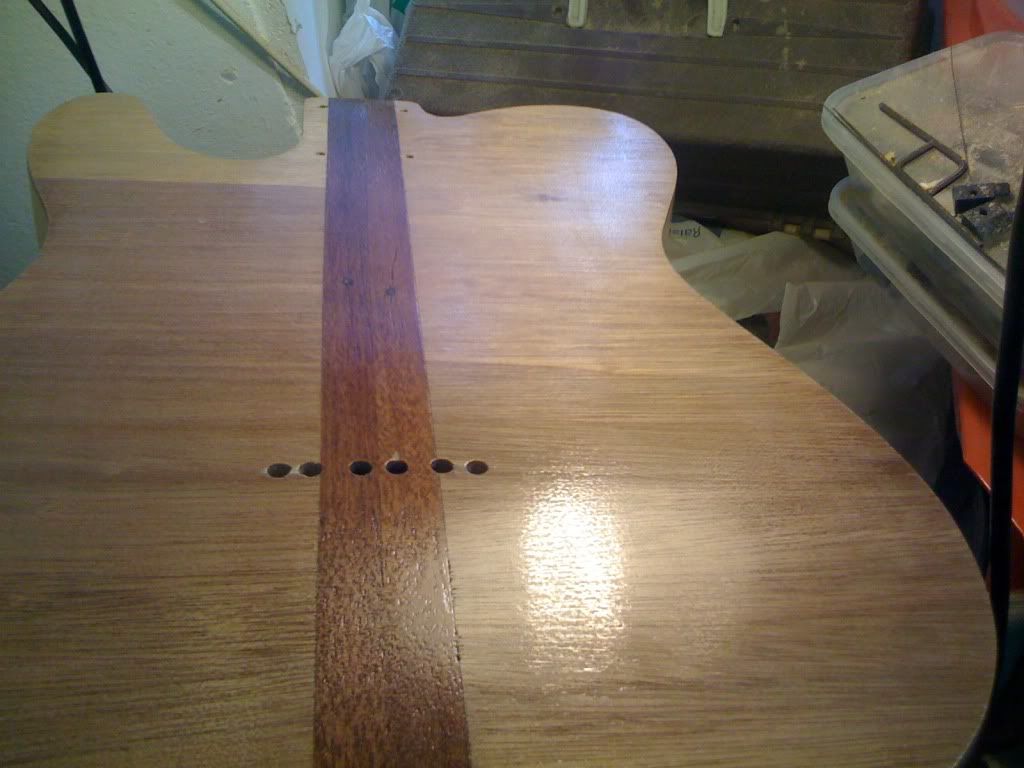

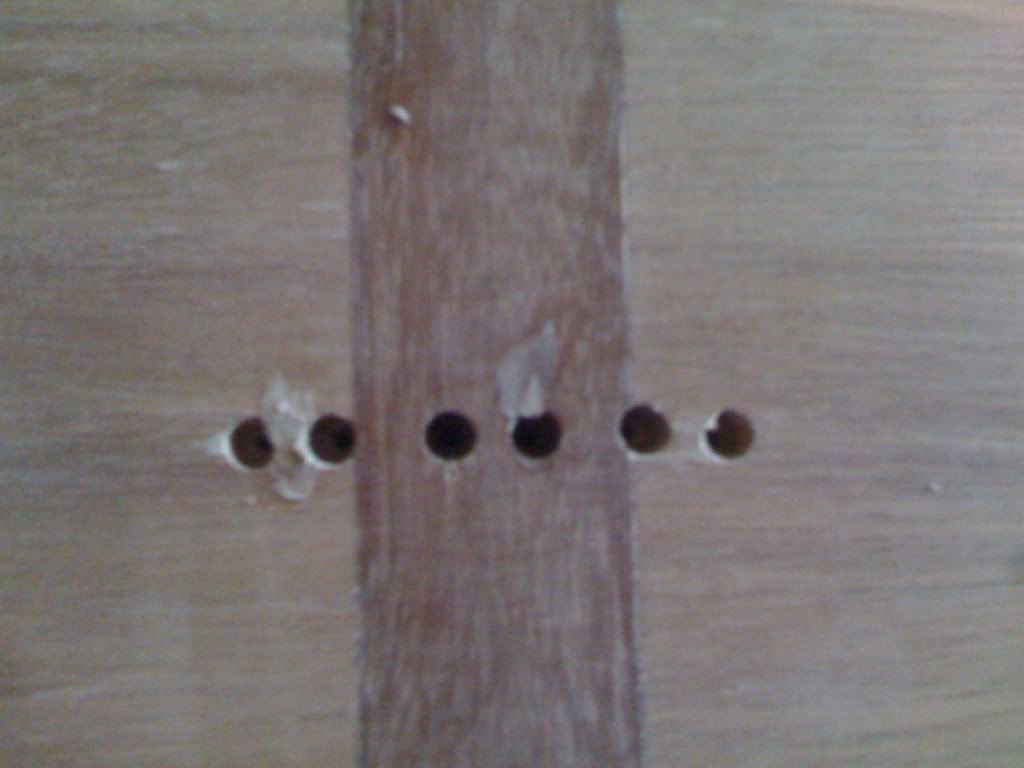

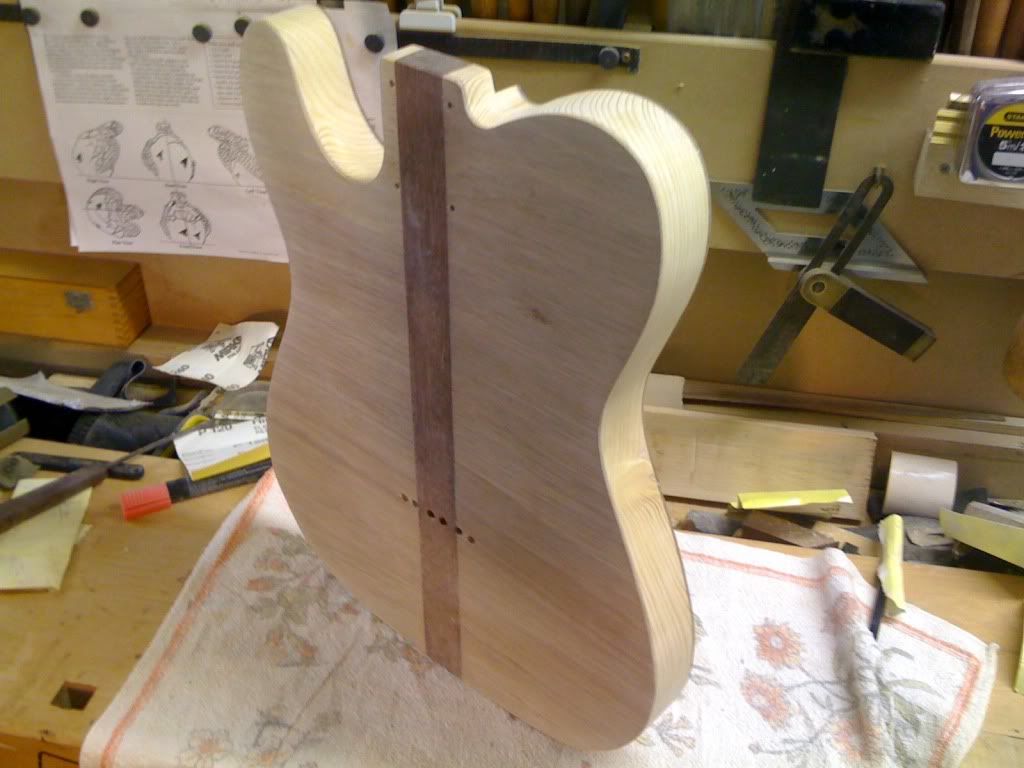

Well my string ferrules arrived today. You can really tell they're cheap. Two of them have grooves that go around the hole, three are perfectly flat, and one's completely off centre

Anyway, time to go see about fretting and radiusing and that lot.

Eep.
__________________
whoomit is offline   Reply With Quote
Old 07-20-2012, 09:04 AM   #84
Telecaster7
Call me Leon

Telecaster7's Avatar

Join Date: Aug 2007
Location: Perth, Australia
This build makes me moist, but I think I made that clear already. Keep at it!
Telecaster7 is offline   Reply With Quote
Old 07-20-2012, 12:25 PM   #85
whoomit

whoomit's Avatar

Join Date: Jul 2006
Quote:
Originally Posted by Telecaster7
This build makes me moist, but I think I made that clear already. Keep at it!

Why thank you

Well here's my method for fret slotting. Firstly, mark on my centre line and tape on an accurate ruler! Make sure your pencil's hella sharp, and have a pencil sharpener on hand. A chair, something to eat, and a drink (usually tea, but in this case it's honey and lemon) also come in handy


Mark the points of the frets along the centre line, and then use a protractor to score the fret slots perpindicular to the centre line with a sharp knife:

Then I go through the slots a few more times with the knife to deepen the slot. This gives my saw something to follow:

Then I drag my Japanese saw through the knife scores, and voil, slots are done! You can see my less than perfect slots here:

I've never been great at slotting. It doesn't tend to matter though because next I'll be radiusing the fretboard, which'll erase any imperfections. That's me all done for today, and I don't think I'll be doing anything tomorrow as I'm going to partake in an airsoft event!
__________________
whoomit is offline   Reply With Quote
Old 07-21-2012, 02:34 PM   #86
Insanity ninja
UG's resident potwash.

Insanity ninja's Avatar

Join Date: Sep 2009
Location: Stockport
You did use a try square for those perpendicular lines right? But that's coming along nicely man... Wish I had the skills and tools to attempt this...
__________________
Silverburst
Insanity ninja is offline   Reply With Quote
Old 07-21-2012, 04:49 PM   #87
whoomit

whoomit's Avatar

Join Date: Jul 2006
Quote:
Originally Posted by Insanity ninja
You did use a try square for those perpendicular lines right? But that's coming along nicely man... Wish I had the skills and tools to attempt this...

No, a protractor. I'm working from a centreline.

A tri-square wouldn't work because the edges of the fretboard are angled.
__________________
whoomit is offline   Reply With Quote
Old 07-21-2012, 05:29 PM   #88
Insanity ninja
UG's resident potwash.

Insanity ninja's Avatar

Join Date: Sep 2009
Location: Stockport
Ahh, I see... That sounds bloody hard to do man. Sweet project!
__________________
Silverburst
Insanity ninja is offline   Reply With Quote
Old 07-22-2012, 05:05 AM   #89
whoomit

whoomit's Avatar

Join Date: Jul 2006
Quote:
Originally Posted by Insanity ninja
Ahh, I see... That sounds bloody hard to do man. Sweet project!

Well it's easier for me to do that then to try and make sure I glue the fretboard on perfectly square
__________________
whoomit is offline   Reply With Quote
Old 07-23-2012, 10:16 AM   #90
Rory Kavanagh
Irish rocker

Rory Kavanagh's Avatar

Join Date: Dec 2004
Location: Dublin
Looks great so far. Stickied!!! Keep up the good work
__________________
Check out my band, Terminal Commuter - Stoner Rock from Ireland

http://soundcloud.com/terminal-commuter/sets
Rory Kavanagh is offline   Reply With Quote
Old 07-25-2012, 06:03 AM   #91
sam b
#SackPardew

sam b's Avatar

Join Date: Nov 2003
Location: Suomi
moar work & pics k thnx
__________________

'Veteran User of the Year' - 2013
(Life = Complete)
Newcastle United Football Club
Lewis Hamilton
Kimi Rikknen
Quite.
sam b is online now   Reply With Quote
Old 07-25-2012, 08:46 AM   #92
whoomit

whoomit's Avatar

Join Date: Jul 2006
So the day before yesterday I started radiusing the fretboard with a plane. Turns out it doesn't like being planed, so I just had to radius it with a sanding block:

Next I marked the centre of my fret markers, and punched the centre:

Holes drilled, inlays glued in and sanded flush:

Next I cleared the slots of all the dust with a knife blade. Unfortunately the tip of the blade snapped off in the slot of the 20th fret which meant I slipped out and cut the nicely sanded board:

To remedy this I sanded the board down some more until the mark was gone, and then cleared the frets VERY carefully I again. Then I cut the slots to final depts. Next I took a small triangular needle file to the slots, this helps to guide the fret into the slot. It also means if it ever gets refretted, the removal of the frets won't chip the surface of the board. You can see the two on the left have been filed, and the two on the right haven't yet:

Sanded to 600 grit, that shine

And some curry that I found in the fridge for lunch:
__________________
whoomit is offline   Reply With Quote
Old 07-25-2012, 08:58 AM   #93
rocknroll93
Aus Army! RAEME!

rocknroll93's Avatar

Join Date: Nov 2007
Location: wodonga.
now that's how a curry should look....
__________________
Quote:
Originally Posted by element4433
One time I watched a dog lick his own dick for twenty minutes.

Quote:
Originally Posted by Roc8995
No.


Well, technically it could be done, but only in the same way that you could change a cat into a hamburger. It's an unpleasant process, and nobody is happy with the result.
rocknroll93 is offline   Reply With Quote
Old 07-25-2012, 09:05 AM   #94
sam b
#SackPardew

sam b's Avatar

Join Date: Nov 2003
Location: Suomi
Yay update! 4 meh 2 <3
__________________

'Veteran User of the Year' - 2013
(Life = Complete)
Newcastle United Football Club
Lewis Hamilton
Kimi Rikknen
Quite.
sam b is online now   Reply With Quote
Old 07-25-2012, 09:43 AM   #95
guitar-tin
Registered User

Join Date: Jun 2009
Quote:
Originally Posted by whoomit
And some curry that I found in the fridge for lunch:


I like this wallet on the left!
guitar-tin is offline   Reply With Quote
Old 07-25-2012, 10:24 AM   #96
Telecaster7
Call me Leon

Telecaster7's Avatar

Join Date: Aug 2007
Location: Perth, Australia
I'm digging this thread.


Also, I made lemon chicken for lunch yesterday. It. Was. Delicious. I suggest you name this The Curry/Lemon Chicken/Bacon Butty Guitar.
Telecaster7 is offline   Reply With Quote
Old 07-26-2012, 03:05 PM   #97
Destinyrider22
Registered User

Join Date: Aug 2009
This should be called "the Lunch Build". The has to be an equal Food:Guitar ratio of pictures.

I love it so far. it looks great.
__________________
Stuff that I bought:

Washburn WM24V
Raven RG100 Amplifier
Zoom G1X Multi-Effects Pedal

Quote:
Originally Posted by jsync
how do you define a guitar for a female?
how about one that whines and has trouble with feedback?
Destinyrider22 is offline   Reply With Quote
Old 07-27-2012, 04:46 AM   #98
whoomit

whoomit's Avatar

Join Date: Jul 2006
Well after I had eaten my lunch I started fretting. I forgot I have awkward fretwire. Too thick to fit in slots cut by a japanese saw, and too thin to fit in slots cut by a gentleman's saw. Anyway, I cut through all my slots again with my gentleman's saw, the filing I'd done with the triangular file helped guide the saw into the centre. I did the slots one at a time, and then hammered in the fret. This way I kept changing jobs and was less likely to lose concentration:

I had a break after 9 frets, my back was killing. Anyway, you might be wondering how the frets stayed in if the slots were too wide? With my homemade fret tang wideners!


So I got it all fretted:

I had to stop there though. My dad moved all my fret files and we can't find them Work will continue once I've found them I guess...
__________________
whoomit is offline   Reply With Quote
Old 07-27-2012, 04:48 AM   #99
Telecaster7
Call me Leon

Telecaster7's Avatar

Join Date: Aug 2007
Location: Perth, Australia
Wohmt, pls cuntinu.
Telecaster7 is offline   Reply With Quote
Old 07-27-2012, 04:49 AM   #100
whoomit

whoomit's Avatar

Join Date: Jul 2006
Quote:
Originally Posted by Telecaster7
Wohmt, pls cuntinu.

That was quick
