Boysie8

Sorry dude, still not following. If your bit looks like the one on the left, then raising it will stop it from cutting a bead. If your bit looks like the one on the right (ie. a bead bit) then it doesn't matter how high you raise it, you're still going to get a lip.



Anyway, what's done is done and I have a new bit on the way which should fix the issue

Routed the fretboard flush with the neck after work today, which meant I could go on to route the neck pocket:





And drilled a couple of holes to join the cavities:

__________________
Ceci n'est pas une sig

Jaguar Ukulele Build
Tele Thinline Build
Les Paul Build 1
Walnut SG Build
100GBP Build
Taylor T5 Build
Les Paul Build 2 (In Progress)

Boysie8

A fair bit of progress this weekend, mainly because the weather looked like this:



I picked up a shiny new 1/2" round over bit to fix the beading on the edge, worked pretty well in the end:





And on the underside:



Then on to the trem routing - this is where I realised an earlier mistake. I accidentally routed the pickup cavities to 28mm (cf. 20mm on a standard strat). Didn't think anything of it at the time, but here I noticed the difference:



It won't be noticeable once the covers are on, but still a bit annoying. Anyway, on to the top bridge routing:



And finally, filling the body:

__________________
Ceci n'est pas une sig

Jaguar Ukulele Build
Tele Thinline Build
Les Paul Build 1
Walnut SG Build
100GBP Build
Taylor T5 Build
Les Paul Build 2 (In Progress)

Boysie8

Then some work on the neck. Profile marked out:



Then roughed for the spokeshave:



Inlay for the twelfth fret marked on some black ABS:



Rough cut (carefully) with a hacksaw:



And filed to shape with a couple of needle files:



Then the fretboard marked:



Recessed:



And set with epoxy:



Bit of filling in required around the edges, but seemed to work well enough.

__________________
Ceci n'est pas une sig

Jaguar Ukulele Build
Tele Thinline Build
Les Paul Build 1
Walnut SG Build
100GBP Build
Taylor T5 Build
Les Paul Build 2 (In Progress)

Boysie8

Not much to report this week unfortunately - it's only in the last day or two we've had any decent weather, a factor which is pretty important when you're working out on the deck
Anyways, got some finishing work done on the body. Filler-primer:



And primer:



I've had a bit of a change of heart regarding the colour - I was initially thinking Candy Apple Red, but then it would just look like any other Fender. So, what better colour for a Jaguar than British Racing Green? A quick test piece, to make sure all the layers are going to play nice together:



I'll be away for the week with work, but hopefully next weekend I'll be able to get a few coats of the green on the body, and finish off the neck.

__________________
Ceci n'est pas une sig

Jaguar Ukulele Build
Tele Thinline Build
Les Paul Build 1
Walnut SG Build
100GBP Build
Taylor T5 Build
Les Paul Build 2 (In Progress)

C_Hart

looking good! I love jags

__________________
My first build - Lagarto
My second build-Lagarto 2 (formerly known as la gaviota)

Boysie8

First pass with the colour this weekend, I think it'll look good once it's got some white hardware on it:





I've got a couple of imperfections to sand smooth, then one more coat should do it.

__________________
Ceci n'est pas une sig

Jaguar Ukulele Build
Tele Thinline Build
Les Paul Build 1
Walnut SG Build
100GBP Build
Taylor T5 Build
Les Paul Build 2 (In Progress)

T00DEEPBLUE

What a beautiful place to live. I live on the Irish seafront, but its not nearly as scenic as where you live.

__________________

LeviMan_2001

Looks like your color coats could be a bit more even. Your metallic isn't laying out quite right. Are you spraying it fairly misty?

__________________
Danelectro Longhorn guitar build: http://www.ultimate-guitar.com/foru...d.php?t=1564392

Boysie8

That's just the first light coat - there's a bit of overlap between passes, which leaves dark stripes. They've been covered now by the second coat, so should come out nice and purrty with a clear coat.

__________________
Ceci n'est pas une sig

Jaguar Ukulele Build
Tele Thinline Build
Les Paul Build 1
Walnut SG Build
100GBP Build
Taylor T5 Build
Les Paul Build 2 (In Progress)

Boysie8

Drilled the side fret markers:



Filled with black-stained filler:



And just couldn't resist a quick mock-up assembly:

__________________
Ceci n'est pas une sig

Jaguar Ukulele Build
Tele Thinline Build
Les Paul Build 1
Walnut SG Build
100GBP Build
Taylor T5 Build
Les Paul Build 2 (In Progress)

Boysie8

Sunny again today, so more progress. Got the fretwire radiused using my high-tech fret roller. I find Watties spaghetti works the best, however at a pinch baked beans could also work:



Frets filed flush and the edges chamfered:



And the neck sprayed:



And just when everything seemed to be going well, I pulled some masking tape off the body:



Time doesn't really allow for a complete strip and repaint unfortunately, so I'll just have to do the best I can to patch it up.

__________________
Ceci n'est pas une sig

Jaguar Ukulele Build
Tele Thinline Build
Les Paul Build 1
Walnut SG Build
100GBP Build
Taylor T5 Build
Les Paul Build 2 (In Progress)

whoomit

This is perhaps the greatest thing I've ever seen

da_

Can you explain how your fret bender works? I need to radius some fret wire soon and can't really be bothered building a proper bender at the moment, and no way is stew mac getting the amount they want for one haha.

Boysie8

I just line the cans up like so, then pull the fretwire through:



Start off fairly shallow, then move the middle can in until you get the radius you're after. You just have to make sure the fret tang stays aligned by hand. And thanks whoomit

__________________
Ceci n'est pas une sig

Jaguar Ukulele Build
Tele Thinline Build
Les Paul Build 1
Walnut SG Build
100GBP Build
Taylor T5 Build
Les Paul Build 2 (In Progress)

W4RP1G

Wow, great idea on the fret wire bender!

Sucks about the masking tape. Did blue tape do that?

__________________
Homemade pickup winder!

da_

Thanks a lot

Boysie8

Green - perhaps that was the issue? Either way, I've managed to cover it alright. As long as I play the guitar in the dark, you'll never know

da_: No worries man, happy to help.

__________________
Ceci n'est pas une sig

Jaguar Ukulele Build
Tele Thinline Build
Les Paul Build 1
Walnut SG Build
100GBP Build
Taylor T5 Build
Les Paul Build 2 (In Progress)

Lightbluemk2

Love the jag, good colour choice too!

__________________
________________________________________

Chur

Boysie8

Cheers man, always been in love with British Racing Green, seemed pretty fitting for a Jaguar.

Some more good weather in Taupo this week:



So naturally I locked myself inside and got some wiring done. The prewiring (it got way more complicated once the pickups were added):

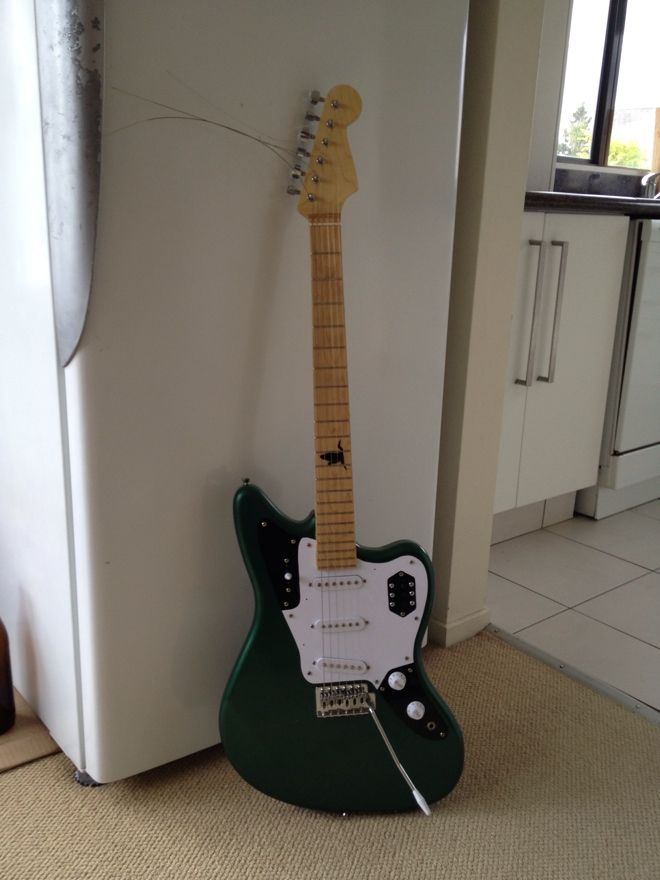

And, finally, the completed article:



Having some slight delays on the strings, so I may not be able to plug the thing in until Monday
