Head Amp Makover! Planning and Building

Hey guys!

Well my last cabinet build was so much fun and soooo easy, i want to do something the same but slightly different. With a head amp. so i've been doing research on which amp to get and how i would do it but ive had trouble deciding which one to do. I've narrowed it down a little:

1. Orange Tiny Terror: Add a frame and tolex it and make matching 1x12 (or 10) cabs
2. Peavey 6505+ combo amp: renovate it into a head amp
3. Peavey Valveking head amp: make a new frame and put electronics in to make a new head.

I'd love to do the 6505+ one but it might be difficult and i dont want to mess it up. I do have a Line 6 Spider 30 watt amp hanging around i could test this on. but this might not happen right away due this can get expensive.

Please give your ideas!
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 10-24-2012, 08:13 AM   #2
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
thank you everyone for your feedback! Well ive decided to attempt to convert my Line 6 into a head and then make a matching cab. I was wondering how i will make the jack that the speaker cable will plug into?
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 10-24-2012, 05:35 PM   #3
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
Bump! anyone?
EDIT:
cheap plan on sketchup:
https://sites.google.com/site/cassi...t=228&width=320
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS


Last edited by JCGGUITARS : 10-24-2012 at 05:47 PM.
JCGGUITARS is offline   Reply With Quote
Old 10-24-2012, 06:55 PM   #4
Robbgnarly
Registered User

Robbgnarly's Avatar

Join Date: Feb 2011
Location: NSB, FL
buy a female 1/4" jack and atach it to the wires going to the speaker.
__________________
2002 PRS CE22
2013 G&L ASAT Deluxe
2009 Epiphone G-400 (SH-4)
Marshall JCM2000 DSL100
Krank 1980 Jr 20watt
Krank Rev 4x12 (eminence V12)
GFS Greenie/Digitech Bad Monkey
Morley Bad Horsie 2
MXR Smart Gate
Robbgnarly is offline   Reply With Quote
Old 10-25-2012, 03:12 PM   #5
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
Ok so i got the electronics out of this thing and i got a good idea of how it will turn out.

The amp:


electronics:


Speaker:

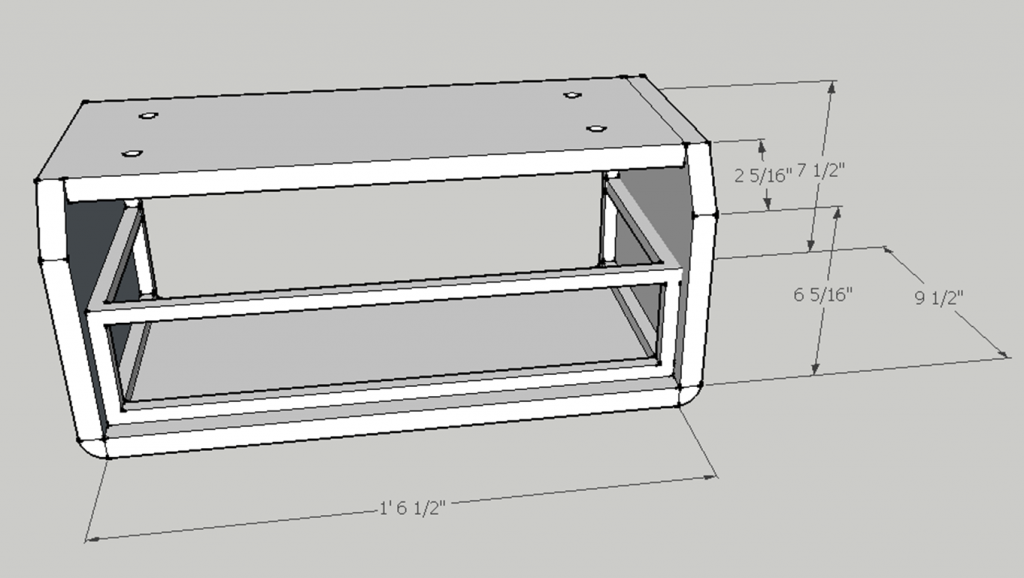

Plan:

the plan dimensions aren't exact but there close
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 10-25-2012, 04:01 PM   #6
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
BUMP! I was wondering about speakers. Since i'm doing either a 2x12 or 2 1x12 cabs, how much ohm's can this take along with watts? thanks guys!
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 10-26-2012, 09:03 AM   #7
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
Either this thread is dead or nobody knows the answer. well my hypothesis is that since there was a four ohm speaker in there i can use two eight ohm's wired in parallel (i think) will get me 4 ohm's am i correct?
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 10-26-2012, 09:08 AM   #8
Culler Amps
Matt Culler

Culler Amps's Avatar

Join Date: Jun 2012
Location: King, NC
Quote:
Originally Posted by JCGGUITARS
Either this thread is dead or nobody knows the answer. well my hypothesis is that since there was a four ohm speaker in there i can use two eight ohm's wired in parallel (i think) will get me 4 ohm's am i correct?



Yes, 2 - 8 ohm speakers in parallel will get you 4 ohms.

As far as watts are concerned just make sure the rating of the speakers combined is equal to or more than the amps output.
Culler Amps is offline   Reply With Quote
Old 10-27-2012, 04:36 PM   #9
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
ok a good day of work done and here's what i have so far:



so far so good and i dont think anything i have to fix at the moment. gee thats a first

Im having trouble deciding what tolex i should get. I have yellow, white, blue sparkle, dark green, or purple. i like doing things no one really does this will have black hardware obviously. and i want to try doing a dimeplate grill
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 10-28-2012, 09:49 AM   #10
whoomit

whoomit's Avatar

Join Date: Jul 2006
Blue sparkle!
__________________
whoomit is offline   Reply With Quote
Old 10-28-2012, 10:17 AM   #11
Telecaster7
Call me Leon

Telecaster7's Avatar

Join Date: Aug 2007
Location: Perth, Australia
Dark green or blue sparkle
Telecaster7 is offline   Reply With Quote
Old 10-28-2012, 12:15 PM   #12
Tim the Rocker
I own a Cabriolet.

Tim the Rocker's Avatar

Join Date: Jul 2008
Shoulds you put the casters on last? after the tolex?
__________________
Guitars:
- Gibson SG Standard
- Lag Roxane 500
- Eastwood Hi-Flyer
- Takamine EG523

Amplifiers:
- Jet City JCA50H
- George Dennis 60Watt The Blue Combo
- Marshall SuperBass 100Watt
Tim the Rocker is offline   Reply With Quote
Old 10-29-2012, 08:55 AM   #13
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011

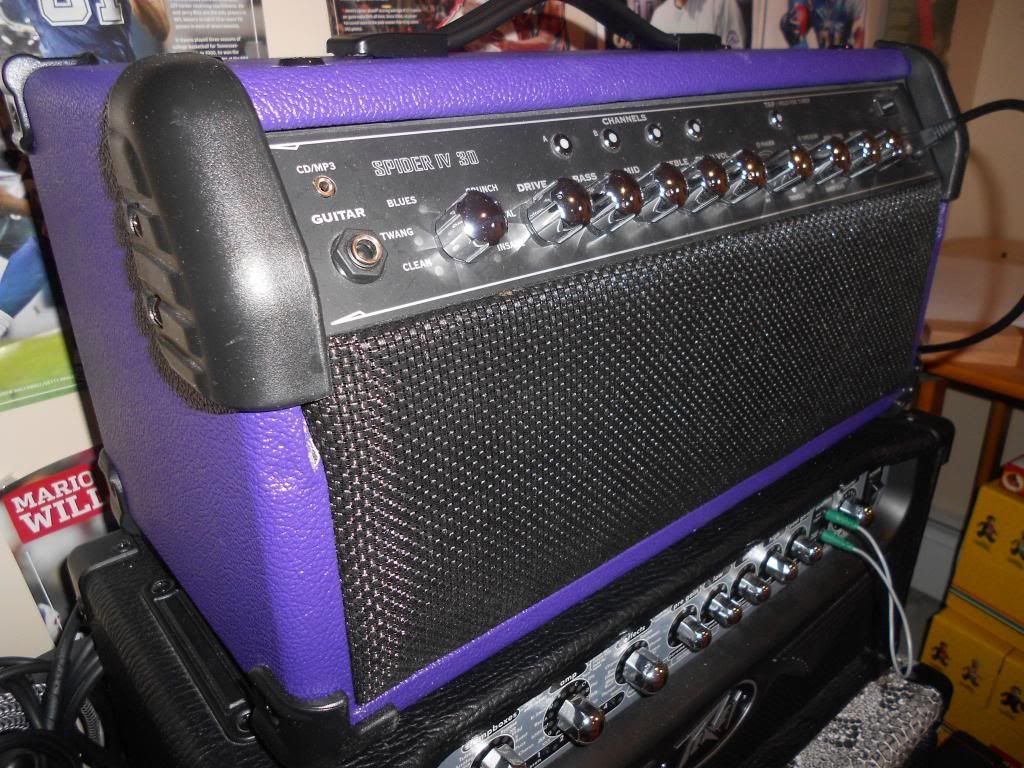

yes i will do it after. this is just a mockup. ok i decided on doing purple because all my friends wont stop saying it im doing 2 1x12 cabinets which will weather willing be done on saturday. picking out hardware hopefully today
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 10-29-2012, 10:49 AM   #14
Kyleisthename
Registered User

Kyleisthename's Avatar

Join Date: Jul 2010
My head and cab have been all of thous colors except blue.

I'd definitely go with some obnoxious
__________________
My band

The Youtubes
Kyleisthename is offline   Reply With Quote
Old 10-31-2012, 09:49 AM   #15
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
sorry for no "posts" power is gone due to the storm. I hope my stuff still works but before all that plugged in the head and it works. ordered Eminece man o war and a Swamp thang
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 10-31-2012, 05:22 PM   #16
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
ordered new hardware:


then

__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 11-01-2012, 04:39 PM   #17
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
alright i got a wiring question. since my amp will take 4 ohm's i can use anything higher than 4 ohms. so that means i will be able to use this as either a full stack or a half stack am i right? also how will i wire this? i havent done full stack before so do i run each speaker cable to the head or can i run one speaker cable to another speaker cable and run both of those to the head?
confusing
Thanks!
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 11-02-2012, 08:18 AM   #18
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
BUMP! anyone? man lots of these
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
Old 11-02-2012, 08:25 AM   #19
OneHappyCamper
Registered User

OneHappyCamper's Avatar

Join Date: Feb 2006
Location: Swamp
Not sure if you can fit two 4 ohm cabinets, if they are both connected to the head that probably connects them in parallel, which makes the impedance of the whole thing 2 ohms and it'll burn out your amp.

If you want a two cab setup, you should make the cabs 8 ohms total. I.E. a two speaker cab with two 4 ohm speakers wired in series.
__________________
Quote:
Originally Posted by SleepTalkinMan
"Ooh! Straight-jackets online! Christmas sorted."
OneHappyCamper is offline   Reply With Quote
Old 11-02-2012, 08:55 AM   #20
JCGGUITARS
Registered User

JCGGUITARS's Avatar

Join Date: Sep 2011
im wiring this with 2 8ohm speakers in parallel getting me 4ohms total. im also asking if i shouldmake each cab's cable go straight to the head or have the bottom vab go to the cab above which will take both to the head?
__________________
call me James

Current Projects: The Squid
Ibanez RG Prototype
2x12 Cab Build (Finished)

Line 6 Full Stack Amp Build (Finished)
FEAR MY EPICNESS

JCGGUITARS is offline   Reply With Quote
