wiring up a pickup.... and nothings happening

I'm wiring up an EMG and the pickup is magnetic, but its not picking up anything, and its making a nasty buzz and I dont know where to start.

EMG 89 if that matters. 500k pot. can anyone help me out?

EDIT: I just read that it requires a 25k pot, so that might be part of the problem. but something was still screwy, sorry for the waste of a post, i will report back when i replace the pot

Last edited by LicketyBritches : 10-25-2012 at 09:55 PM.
LicketyBritches is offline   Reply With Quote
Old 10-25-2012, 10:02 PM   #2
Explorerbuilder
Registered User

Explorerbuilder's Avatar

Join Date: Aug 2010
Location: Corrales, NM
that wont make a difference with the problem that you are having. The only difference that will make is it will be all or nothing volume wise, it wont taper if you turn it down.
I would be willing to be your jack is wired wrong.
__________________
Most of my newer guitars *photobucket, click the tab "libraries" *

http://www.facebook.com/#!/pages/Gu...142725369133117
Explorerbuilder is offline   Reply With Quote
Old 10-25-2012, 10:31 PM   #3
LicketyBritches
Registered User

Join Date: Aug 2012
well i actually started another thread asking about the jack. and it seems to be wired right, but that doesnt mean it is. ill post pictures as soon as i can
LicketyBritches is offline   Reply With Quote
Old 10-25-2012, 10:35 PM   #4
Explorerbuilder
Registered User

Explorerbuilder's Avatar

Join Date: Aug 2010
Location: Corrales, NM
I just saw that you were the one that started that.
you using a switch? Lets see your diagram and your wiring.
__________________
Most of my newer guitars *photobucket, click the tab "libraries" *

http://www.facebook.com/#!/pages/Gu...142725369133117
Explorerbuilder is offline   Reply With Quote
Old 10-26-2012, 05:14 AM   #5
tobycm27
Registered User

Join Date: Aug 2011
if jack wiring is wrong then you wont get the buzz.

The buzz would happen if your wiring is somewhere wrong.. either a loose connection or a wrong connection.... (tone, volume , or switch)

recheck your wiring with the correct wiring diagram....
tobycm27 is offline   Reply With Quote
Old 10-27-2012, 06:38 PM   #6
LicketyBritches
Registered User

Join Date: Aug 2012

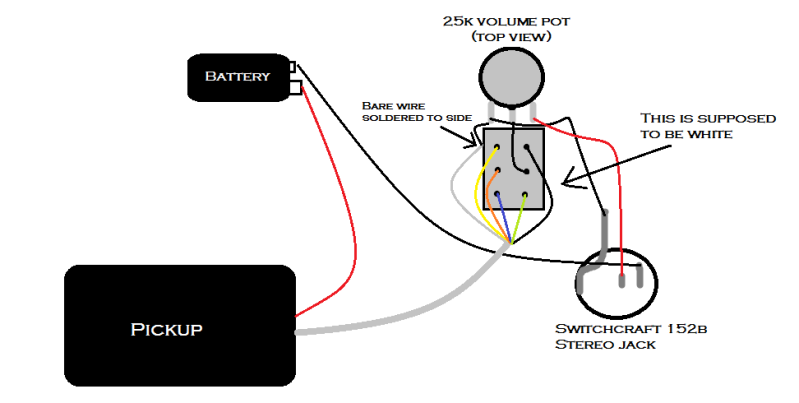

here is the diagram im using:
http://www.sonic.net/~emgman/pdf/1%...20no%20tone.pdf

the only thing that is wee confusing, is apparently the ring is supposed to go to the battery, so i have it going to the negative of the battery, tip goes to the left most prong on the volume pot, and the ground going to the right most prong. if this right? im just wiring one 89 and a volume pot
LicketyBritches is offline   Reply With Quote
Old 10-27-2012, 07:24 PM   #7
LicketyBritches
Registered User

Join Date: Aug 2012
so I redid everything and it's still doing it. below is a shitty quality cell phone recording of the sound. im sorry its of such bad quality but its the best i can do right now. if it means anything, when I touch the right prong (short "hot" prong on the jack) it gets much much louder.
http://soundcloud.com/saferskies/vn00024-20121027-1914
LicketyBritches is offline   Reply With Quote
Old 10-27-2012, 09:33 PM   #8
Explorerbuilder
Registered User

Explorerbuilder's Avatar

Join Date: Aug 2010
Location: Corrales, NM

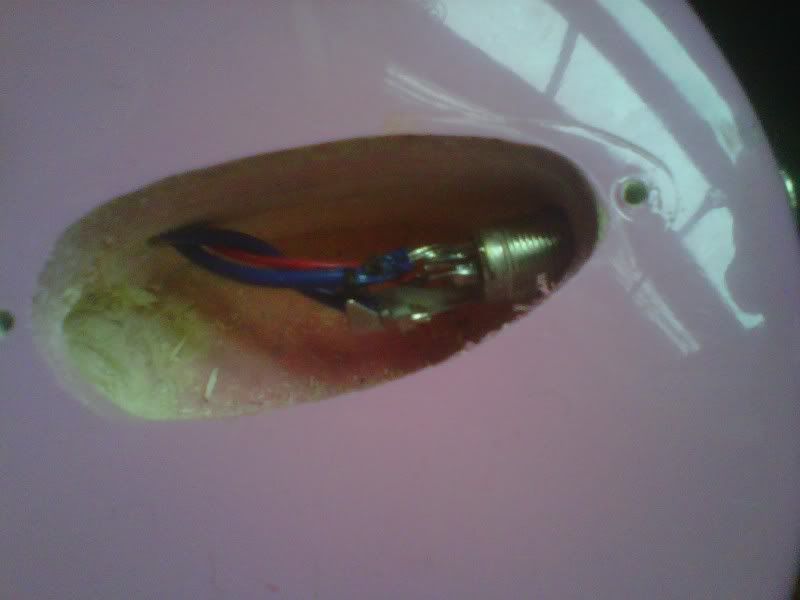

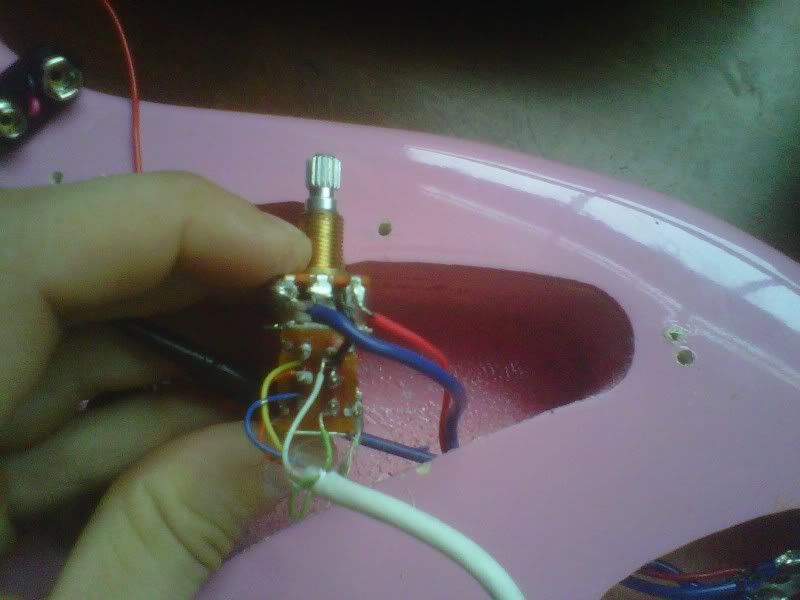

Take a picture of your wiring.
__________________
Most of my newer guitars *photobucket, click the tab "libraries" *

http://www.facebook.com/#!/pages/Gu...142725369133117
Explorerbuilder is offline   Reply With Quote
Old 10-28-2012, 11:18 AM   #9
LicketyBritches
Registered User

Join Date: Aug 2012

LicketyBritches is offline   Reply With Quote
Old 10-28-2012, 12:06 PM   #10
Explorerbuilder
Registered User

Explorerbuilder's Avatar

Join Date: Aug 2010
Location: Corrales, NM
Do you have the red wire connected to the battery wire?
__________________
Most of my newer guitars *photobucket, click the tab "libraries" *

http://www.facebook.com/#!/pages/Gu...142725369133117
Explorerbuilder is offline   Reply With Quote
Old 10-28-2012, 01:24 PM   #11
LicketyBritches
Registered User

Join Date: Aug 2012
the red wire coming off the pickup is going to the battery, and the red wire coming off of the short (hot) prong of the jack is going to the right prong of the pot
LicketyBritches is offline   Reply With Quote
Old 10-30-2012, 02:24 PM   #12
LicketyBritches
Registered User

Join Date: Aug 2012
bump. anyone? the pickup is making sound, so it doesnt seem like its wired totally wrong, just maybe a little improperly. but i went through all my solder joints and they seem good.
LicketyBritches is offline   Reply With Quote
Old 10-31-2012, 01:52 PM   #13
metalhead352
UG's bacon strips

metalhead352's Avatar

Join Date: May 2011
try the red wire on the jack going to the hot wire on the battery instead.
__________________
*insert witty statement here*
metalhead352 is offline   Reply With Quote
Old 10-31-2012, 02:13 PM   #14
NotTheMessiah30
UG Fanatic

Join Date: Sep 2012
Quote:
Originally Posted by metalhead352
try the red wire on the jack going to the hot wire on the battery instead.


Don't do that!!!!
That'll send a horrible 9V DC charge directly to your amp!
NotTheMessiah30 is offline   Reply With Quote
Old 10-31-2012, 09:39 PM   #15
LicketyBritches
Registered User

Join Date: Aug 2012
ok... didnt do that, but the guitar is just chillin because i havent figured out what the deal is, and i dont wanna make any worse. so does anyone have any insight?
LicketyBritches is offline   Reply With Quote
Old 10-31-2012, 10:47 PM   #16
metalhead352
UG's bacon strips

metalhead352's Avatar

Join Date: May 2011
sorry man, confused black and red.
you sure you have the right diagram?/can you post it?
__________________
*insert witty statement here*
metalhead352 is offline   Reply With Quote
Old 11-01-2012, 12:26 AM   #17
LicketyBritches
Registered User

Join Date: Aug 2012
i did post it, check one of my earlier posts
LicketyBritches is offline   Reply With Quote
Old 11-04-2012, 12:32 PM   #18
LicketyBritches
Registered User

Join Date: Aug 2012
bump. still need some help
LicketyBritches is offline   Reply With Quote
Old 11-04-2012, 04:06 PM   #19
LeviMan_2001
Registered User

Join Date: Mar 2008
Do you have the right wires connected to the right places on the jack? You see whats going on in the wiring diagram is that it's a stereo jack, so when you plug in it connects the battery's negitive to ground therefore turning the circuit on.
__________________
Danelectro Longhorn guitar build: http://www.ultimate-guitar.com/foru...d.php?t=1564392
LeviMan_2001 is offline   Reply With Quote
Old 11-04-2012, 05:54 PM   #20
LicketyBritches
Registered User

Join Date: Aug 2012
well i have the long prong on the jack (ground) going to left prong of the volume pot. short prong on jack (hot) going to the right prong of the pot. and middle jack prong going to the negative of the battery.
LicketyBritches is offline   Reply With Quote
