Wiring help!!!

Hi i am just rewiring a bass, it is a Ptype bass, i am taking all of the pots out and replacing everything with just one kill switch/ on off switch, with the wiring that i have attached as a picture, everything works but i am getting alot of noise groundings gone wrong somewhere it seems, but i cant seem to find it, but i have also tried running the grounding not through the kill switch, but this keeps the switch from turning off - in both positions i am still getting output from the guitar. could someone have a look, and see if there is something im not doing right here?
winghamwill is offline   Reply With Quote
Old 11-28-2012, 06:55 PM   #2
winghamwill
Registered User

Join Date: Nov 2010

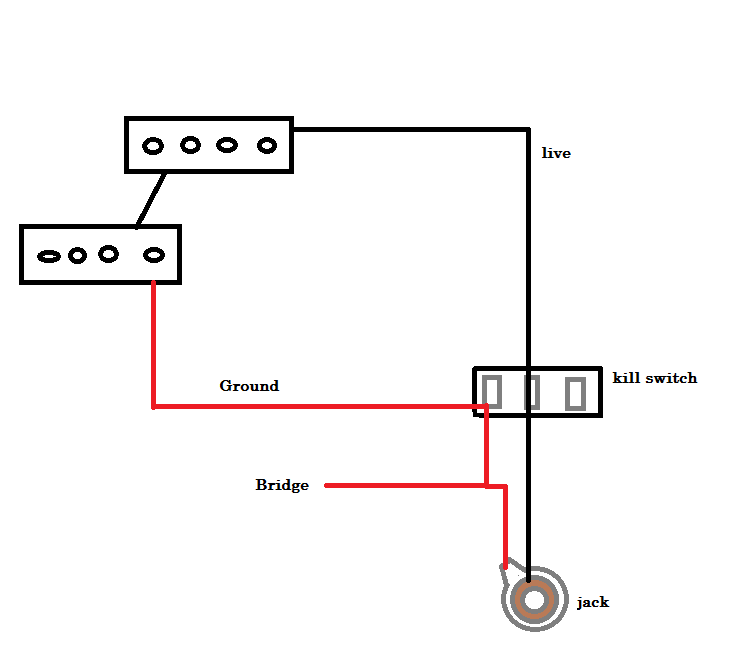

also forgive my crude paint drawing haha
winghamwill is offline   Reply With Quote
Old 11-29-2012, 07:51 AM   #3
winghamwill
Registered User

Join Date: Nov 2010
no one?
winghamwill is offline   Reply With Quote
Old 11-29-2012, 08:41 AM   #4
Telecaster7
Call me Leon

Telecaster7's Avatar

Join Date: Aug 2007
Location: Perth, Australia
You need to run the hot wire going to the jack the the right hand lug of the switch. Right now it's always going to the output no matter what.
Telecaster7 is offline   Reply With Quote
Old 11-29-2012, 11:07 AM   #5
R45VT
Doesn't speak guitar

Join Date: Dec 2009
Location: Traffic Town LA
TS- on top of what the above said it would almost appear the you have the signal wire going to ground on the jack. When you look at your jack it needs to be connected to the part of your jack that contacts the tip of your cable.
__________________
Quote:
Originally Posted by DeathByDestroyr
See, it's important that people clarify when they say "metal", because I pretty much always assume they are a Cannibal Corpse fanboi.

Last edited by R45VT : 11-29-2012 at 11:09 AM.
R45VT is offline   Reply With Quote
Old 11-29-2012, 01:09 PM   #6
W4RP1G
Please, call me Pig.

W4RP1G's Avatar

Join Date: May 2010
Location: USA
Quote:
Originally Posted by Telecaster7
Right now it's always going to the output no matter what.

I believe that's the point. It's supposed to short to ground in one position.

TS, could you describe the noise?
W4RP1G is offline   Reply With Quote
Old 11-29-2012, 06:32 PM   #7
winghamwill
Registered User

Join Date: Nov 2010
Cheers for the replies, i have changed the live from the jack to the other lug on the switch and am running the ground from the pickup straight to the ground on the jack but connecting them to the gound connecting to the bridge. But when the switch is off now i get alot of noise like buzzing i know its that the ground is off somewhere but i dunno where?!
winghamwill is offline   Reply With Quote
Old 11-29-2012, 06:36 PM   #8
winghamwill
Registered User

Join Date: Nov 2010
Also its going to the right bit on the jack and the ground is on the right part of the jack, so im getting sound through, just when the switch is off im not getting silence im getting alot of buzz.
winghamwill is offline   Reply With Quote
Old 11-29-2012, 09:34 PM   #9
Telecaster7
Call me Leon

Telecaster7's Avatar

Join Date: Aug 2007
Location: Perth, Australia
Do you still have the ground on the left hand lug of the switch?
Telecaster7 is offline   Reply With Quote
Old 11-29-2012, 11:49 PM   #10
R45VT
Doesn't speak guitar

Join Date: Dec 2009
Location: Traffic Town LA
Post a pic of the internals, including a shot of the wiring at the jack.
__________________
Quote:
Originally Posted by DeathByDestroyr
See, it's important that people clarify when they say "metal", because I pretty much always assume they are a Cannibal Corpse fanboi.
R45VT is offline   Reply With Quote
Old 11-29-2012, 11:59 PM   #11
W4RP1G
Please, call me Pig.

W4RP1G's Avatar

Join Date: May 2010
Location: USA
I don't know shit about P-bass wiring, but should there be a ground to the bridge as well?
W4RP1G is offline   Reply With Quote
Old 11-30-2012, 12:03 AM   #12
R45VT
Doesn't speak guitar

Join Date: Dec 2009
Location: Traffic Town LA
Quote:
Originally Posted by W4RP1G
I don't know shit about P-bass wiring, but should there be a ground to the bridge as well?


The bridge is grounded in his diagram.




TS did you read through this thread yet?

http://www.ultimate-guitar.com/foru...llswitch+thread

You have the switch wired incorrectly. What type of switch do you have? Essentially what you have described is the fact that your switch is "opening contact" instead of ground the signal wire. That is why you have noise.

What type of switch do you have?
__________________
Quote:
Originally Posted by DeathByDestroyr
See, it's important that people clarify when they say "metal", because I pretty much always assume they are a Cannibal Corpse fanboi.

Last edited by R45VT : 11-30-2012 at 12:12 AM.
R45VT is offline   Reply With Quote
Old 11-30-2012, 12:23 AM   #13
W4RP1G
Please, call me Pig.

W4RP1G's Avatar

Join Date: May 2010
Location: USA
Quote:
Originally Posted by R45VT
The bridge is grounded in his diagram.

derp....I need to pay closer attention
W4RP1G is offline   Reply With Quote
Old 11-30-2012, 12:28 AM   #14
R45VT
Doesn't speak guitar

Join Date: Dec 2009
Location: Traffic Town LA
Quote:
Originally Posted by W4RP1G
derp....I need to pay closer attention


Basically his switch is opening the signal wire instead of grounding it.
__________________
Quote:
Originally Posted by DeathByDestroyr
See, it's important that people clarify when they say "metal", because I pretty much always assume they are a Cannibal Corpse fanboi.
R45VT is offline   Reply With Quote
Old 11-30-2012, 08:02 AM   #15
winghamwill
Registered User

Join Date: Nov 2010
Hi sorry i cant get a picture of the internals, i have no camera! i think its just an on/on type switch, ground is no longer o nthe left hand lug of the switch, i have tried this but it made no differance to the buzz, the jack is wierd up correctly im sure of that, i think i can kind of make sense about the opening contact instead of grounding the signal wire, so does the ground need to be on the switch?
winghamwill is offline   Reply With Quote
Old 11-30-2012, 11:54 AM   #16
R45VT
Doesn't speak guitar

Join Date: Dec 2009
Location: Traffic Town LA
How do you have it wired now?
__________________
Quote:
Originally Posted by DeathByDestroyr
See, it's important that people clarify when they say "metal", because I pretty much always assume they are a Cannibal Corpse fanboi.

Last edited by R45VT : 11-30-2012 at 11:55 AM.
R45VT is offline   Reply With Quote
Old 12-01-2012, 07:37 PM   #17
winghamwill
Registered User

Join Date: Nov 2010
Its wired and it plays, just when the switch is off i get buzz from it, i can bear it but its just a bit annoying!
