Old 02-28-2013, 05:49 PM   #21
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey
I modified my the jig I use to clean up a fret board's radius.


A problem I had was sanding to low on the corners because the sanding block was able to dip off the edge of the board at the ends. This resulted in alot more work to get everything level and perfect. Now I have added a rail which its the final height of the fretboards edge. This acts as a fence and wont let the sanding block go down farther then I want it to. I do trim the sand paper so that wood of the sanding block will hit the rails without cuting them


The top rail is moveable so you can adjust it for different length boards using the hold down clamp. This keeps it nice and snug while you sand.




Cut the string threw holes






necks have been cut
__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
Old 02-28-2013, 05:50 PM   #22
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey


__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
Old 03-01-2013, 12:39 AM   #23
kylendm
Baronboi

kylendm's Avatar

Join Date: Aug 2006
Location: NJ
Winning
kylendm is offline   Reply With Quote
Old 03-11-2013, 04:28 PM   #24
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey
This carving stuff is taking a lot longer then I had originally thought and the maple is tough to work with but I am happy with how they are turning out so its worth the extra time. Still have more carving to do but heres what I have so far.








__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
Old 03-11-2013, 04:29 PM   #25
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey



__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
Old 03-12-2013, 09:13 AM   #26
BirdRiverCustom
Registered User

Join Date: May 2012
These are looking drop dead gorgeous, love the hand carving. Did you use just the little chisel for everything?
BirdRiverCustom is offline   Reply With Quote
Old 03-12-2013, 10:24 AM   #27
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey
I used that chisel, a bastard file, a DA, and rubber spindles from my occulating sander with 80grit on them. Its not the quickest way but it works. I cant imagine doing such in depth carving by hand for every build, vik must have a quicker way to do it or an unlimited supply of patience.
__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
Old 03-12-2013, 03:27 PM   #28
BirdRiverCustom
Registered User

Join Date: May 2012
Also, i just figured out what you meant in a previous build thread about your mdf hack for routing the neck pocket, and may i say its quite genius. I'm totally stealing it for the next build i do.
BirdRiverCustom is offline   Reply With Quote
Old 03-13-2013, 10:30 AM   #29
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey
^Do it man. If something in my posts will make your life easier, then by all mean go for it!
__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
Old 03-14-2013, 03:24 PM   #30
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey








Wanted to make sure the straplock wouldnt just rip out of the thin horn so I burried it a bit





All carves are now roughed in, still needs a bit of clean up but the hard parts done







__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
Old 03-14-2013, 05:19 PM   #31
R_Gallagher_Fan
Not RGallagherFan

R_Gallagher_Fan's Avatar

Join Date: Dec 2011
Location: Watching You From Afar (Ireland)
Nice, I really like the figure on the fretboard and on the back of the body!
__________________
Cort G260
Guyatone Twin Reverb
Like old Japanese amps? http://www.ultimate-guitar.com/foru...d.php?t=1591982
MY BAND-BAGELS
https://www.facebook.com/BagelsBand
R_Gallagher_Fan is offline   Reply With Quote
Old 03-18-2013, 10:28 PM   #32
Kyleisthename
Registered User

Kyleisthename's Avatar

Join Date: Jul 2010
Hey, turns out he does hand carve everything.
http://www.facebook.com/photo.php?f...&type=1&theater
__________________
My band

The Youtubes
Kyleisthename is offline   Reply With Quote
Old 03-19-2013, 10:11 AM   #33
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey
Quote:
Originally Posted by Kyleisthename
Hey, turns out he does hand carve everything.
http://www.facebook.com/photo.php?f...&type=1&theater


Thats crazy, but now that I have sat back and thought about it, its not so bad. yeah it takes awhile but the results you can get from it are beautiful.

Figured out the colors for the seven and duality based guitar on some scrap wood

seven- version of a lagoon burst, blue to natural burst


duality- red/pink to violet burst
__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
Old 03-20-2013, 03:01 AM   #34
AMRINAN
Registered User

AMRINAN's Avatar

Join Date: Feb 2013
WOW!!!!
love it!
AMRINAN is offline   Reply With Quote
Old 03-22-2013, 10:44 AM   #35
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey
I was worried about getting the carve in the quilted maple perfectly smooth because of the grain pattern sanding at different speeds and coming out bumpy. I checked out my dads body work supplies and found he had some stiff durablock foam/rubber sanding blocks. He was nice enough to let me use them for a bit and I gotta say they worked great! The tops are dead flat and the carves are as smooth as can be. I was sad to have to return the blocks so I went on amazon a found a 7 peice set for about $34. This may or may not seem expensive to you but after testing them I think its worth the price. They will last a very long time (my dad has had the same set for years even though hes working and sanding multiple cars/parts daily).

This is the only set I found at this price, the others are $45 and up for the same blocks. Theres 17 left in stock so if youre interested check it out soon!

http://www.amazon.com/Dura-Block-Af...words=durablock
__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
Old 03-22-2013, 04:31 PM   #36
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey

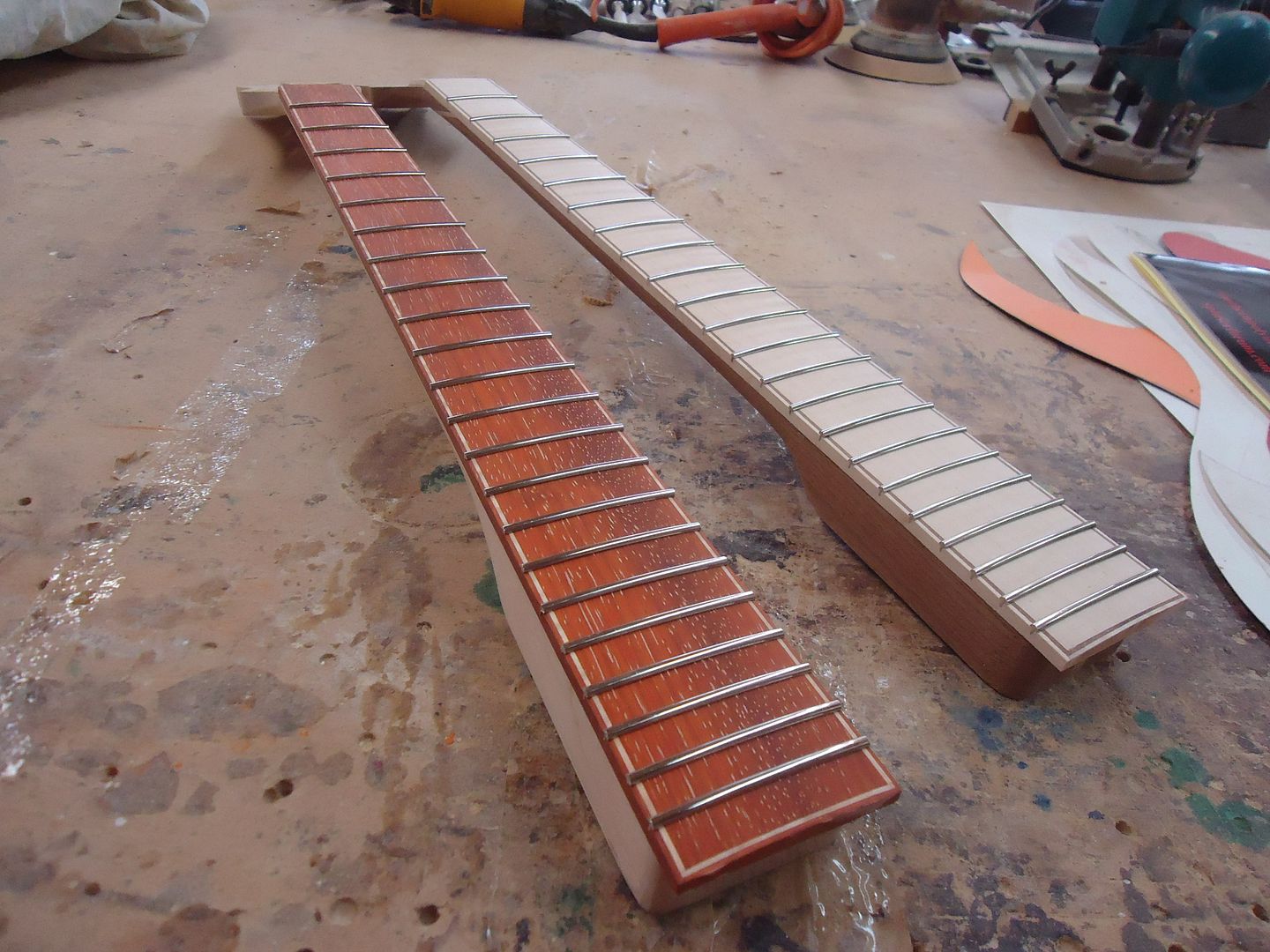

Frets, side dots, truss covers, and rough neck carves








My sig will be on the truss cover on this one because theres not much room else where on the headstock


Ebony raven inlaid to compliment the ebony buckers and other black hardware
__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
Old 03-24-2013, 12:33 PM   #37
kylendm
Baronboi

kylendm's Avatar

Join Date: Aug 2006
Location: NJ
These things are looking ridiculously professional. You're doing a sick job.
__________________
Gear:
Baron Custom Amps K88
Randall RM100 / Blackface, Deluxe, Plexi
Bogner 4x12
H&K 4x12
Guitars:
Ibanez UV7PBK - BKP Warpig
Ibanez RGD7321 - SD Pegasus
Ibanez SA series - JB Bridge
kylendm is offline   Reply With Quote
Old 03-25-2013, 09:52 AM   #38
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey
Thanks dude!^

I just found these cutter heads while looking into wood engraving stuff. If any one does really intricate inlays but dosnt want to pay twenty bucks per bit from stew mac, this sight has a set of 10 very tiny bits for $15. I have not tried them as of yet but I think I will due to how inexpensive they are. Stewmacs smallest bit is 1/32nd (.8mm) while this set includes .7mm and .6mm so you can get even more detailed cuts. Hopefully this can save some one a few bucks!
http://www.profitablehobbiesstore.c...t-bur-set-3/32/
__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
Old 03-25-2013, 04:43 PM   #39
Jason Jillard
Luthier

Join Date: Mar 2009
Location: Brampton Ontario
i dunno, burrs arent exactly designed for removing material. they more are just supposed to grab leftover bits of metal shavings still attached to a previously milled piece, and then fling them off.

you may get a lot of fuzz, broken bits and maybe burning if you try to mill too much with these.

for 15 bucks tho, it wont hurt.



but carbide downcut bits are where its at.
__________________
Handmade Custom Guitars: www.jillardguitars.com
Twitter! https://twitter.com/#!/JillardGuitars
Jason Jillard is offline   Reply With Quote
Old 03-26-2013, 09:28 AM   #40
\m/slipknot\m/
Registered User

\m/slipknot\m/'s Avatar

Join Date: Nov 2005
Location: new jersey
The main draw to these thing for me was the size. I'm trying to get more intricate/exact with inlays and some times the 1/32nd is just too big. I'm hoping they will be able to handle cutting thin lines and cleaning up points so I can do more accurate lettering or stuff like this


I'll giv'em a shot and let you guys know how they do
__________________
I apologize for my username, I was 15

Robbinscustomguitars.com

Robbins Custom Guitars FB Page
\m/slipknot\m/ is offline   Reply With Quote
