NGD - First Build

Off of the success of my Jackson Dinky Refinish , I decided to try my hand at building my own guitar: 1.5" Flame Maple topped Mahogany Telecaster

Wood supplier: http://www.exotic-woods.com/index.html

Tools were borrowed:
Drill Press
Hand Drill
Bosch 1617EVSPK Router
Jigsaw

Specs:
-1.5 inch Body, 10.5 lbs assembled, holy balls it's heavy
-Hondouras Mahogany Body ($70)
-1/4" Flamed Maple Top ($15)

Warmoth strat neck ($167 Off of "Screamin' Deals)
-22 Frets
-Maple with Ebony Fretboard
-6105 Frets
-Standard Thin contour
-Cut my own bone nut ($5)

-Gotoh Tele Humbucker Bridge ($44)
-Planet Waves Locking Tuners ($59)
-Humbucker pickguard that I cut Myself ($5)

-Dimarzio Crunch Lab/Liquifire White F spaced set I found on Kijiji for $100
-Volume/Volume/3-way controls

-Misc Stewmac hardware + electionics: $72

Finishing:

1 Can of Deft nitro sanding sealer: $8
1 tub of timbermate grain filler: $8 (I do forget the exact price)
3 cans of watco lacquer: $24
meguiars ultimate compound: $18
Old T-Shirt for polishing (Priceless)

Final Cost + Estimated Shipping: $595 (+$30 Shipping)



Nice figure hidden by the pickguard

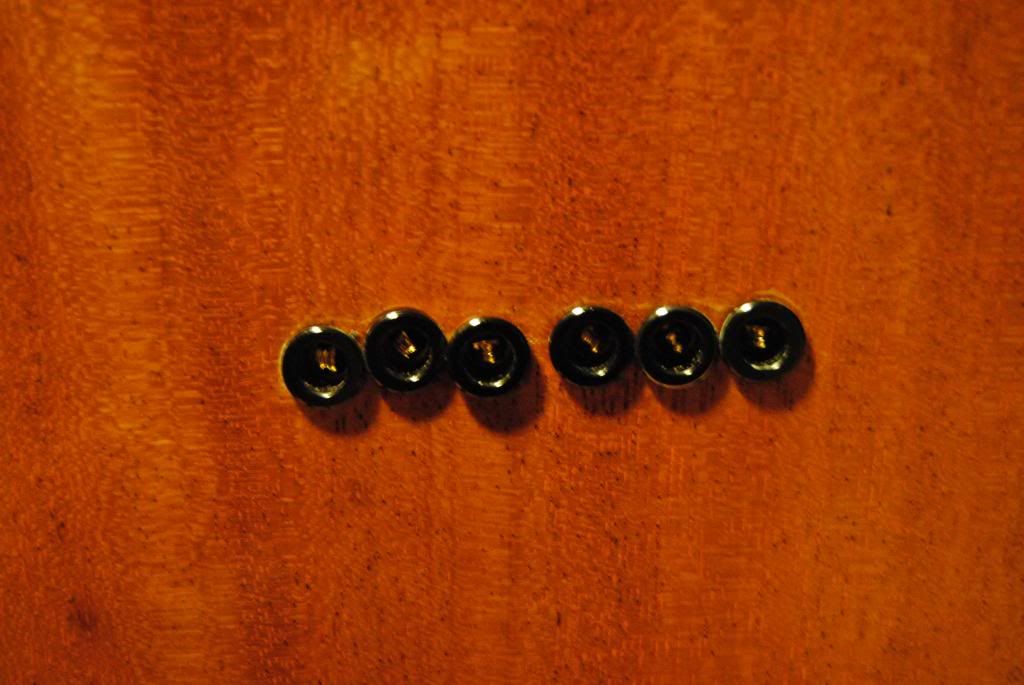

Drill bits broke inside the hole to the left and 3rd to the left ($15 Mastercraft kit - never again. Bought a cobalt bosch kit since then), forcing me to drill holes beside the broken piece and pulling the bit out, thus ruining the alignment.

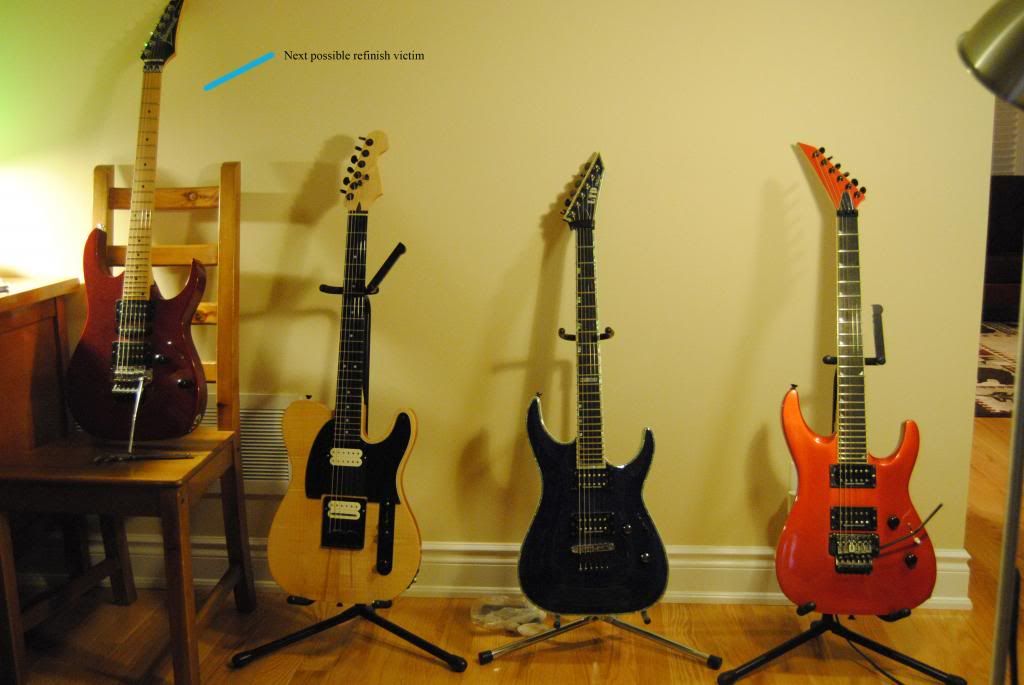

What next? Possible Ibanez RG270 refinish or build my first 7 String: 27" baritone RG style like this

Will probably wait until next summer because I'm a poor ass student. Might spend the year accumulating more building/finishing knowledge.

Many thanks for the help UG.

From a cozy home in Ontario, Canada - Goodnight.
__________________
???

Last edited by solidrane : 09-03-2013 at 09:58 PM.
solidrane is offline   Reply With Quote
Old 09-03-2013, 09:56 PM   #2
gregs1020
Hi mom!

gregs1020's Avatar

Join Date: Dec 2007
damn that looks great.


i'm curious what the final assembled weight is?
gregs1020 is offline   Reply With Quote
Old 09-03-2013, 09:58 PM   #3
solidrane
Wekk Blka

Join Date: Mar 2011
Quote:
Originally Posted by gregs1020
damn that looks great.


i'm curious what the final assembled weight is?


My bad, assembled weight is 10.5 lbs
__________________
???
solidrane is offline   Reply With Quote
Old 09-03-2013, 10:02 PM   #4
gregs1020
Hi mom!

gregs1020's Avatar

Join Date: Dec 2007
that makes more sense.

i've had good luck using watco clear as sealer. it says you can use it for that. i read people had issues with deft drying so i just tried the watco and it worked. just .02.

which grain filler did you use? the reddish mahogany one or black?
gregs1020 is offline   Reply With Quote
Old 09-03-2013, 10:07 PM   #5
solidrane
Wekk Blka

Join Date: Mar 2011
Quote:
Originally Posted by gregs1020
that makes more sense.

i've had good luck using watco clear as sealer. it says you can use it for that. i read people had issues with deft drying so i just tried the watco and it worked. just .02.

which grain filler did you use? the reddish mahogany one or black?


I bought the mahogany and added some dark brown tint/dye. I made the assumption that the darker grain filler would enhance the grain. You can still notice where the filler is up close.
__________________
???
solidrane is offline   Reply With Quote
Old 09-03-2013, 10:23 PM   #6
Nico the Great
Damned Icon

Nico the Great's Avatar

Join Date: Feb 2009
Daaaaaaaamn that's pretty. VERY well done!
__________________
7 STRING LEGION

Damned Icon - Portraits of a Man EP

Quote:
Originally Posted by SYLrules88
im not very good with that harmonic thing. i get them to match perfectly then i play a chord and it sounds like hellen keller singing


Music Man
PRS
Mesa Boogie
Nico the Great is offline   Reply With Quote
Old 09-03-2013, 10:46 PM   #7
dannyalcatraz
Registered User

dannyalcatraz's Avatar

Join Date: Dec 2008
Pretty sharp!
__________________
Sturgeon's 2nd Law, a.k.a. Sturgeon's Revelation: “Ninety percent of everything is crap.”

Why, yes, I am a lawyer- thanks for asking!
dannyalcatraz is offline   Reply With Quote
Old 09-03-2013, 11:42 PM   #8
gregs1020
Hi mom!

gregs1020's Avatar

Join Date: Dec 2007
Quote:
Originally Posted by solidrane
I bought the mahogany and added some dark brown tint/dye. I made the assumption that the darker grain filler would enhance the grain. You can still notice where the filler is up close.

i think it does enhance it a bit. i've heard using white looks really good as well but i haven't tried it.
gregs1020 is offline   Reply With Quote
Old 09-04-2013, 12:03 AM   #9
Tazz3
Registered User

Join Date: Jul 2013
Really nice iam tempted to build one
Tazz3 is offline   Reply With Quote
Old 09-04-2013, 02:17 AM   #10
JustRooster
Organ Donor

JustRooster's Avatar

Join Date: Jan 2005
Location: Madison, Wisconsin
10/10 would play.
__________________

BUCKY
JustRooster is offline   Reply With Quote
Old 09-04-2013, 01:39 PM   #11
baytall79
Registered User

Join Date: Jun 2012
Niiice follow-up man! Loved what you did to the Dinky for sure!
Definitely a shame on the ferrules but beautiful none the less. I approve.
baytall79 is offline   Reply With Quote
Old 09-04-2013, 02:10 PM   #12
Delboyuk_01
Registered User

Delboyuk_01's Avatar

Join Date: May 2008
Location: Essex, England
Great job, love the grain and its nice you didn't use a neck with the awful tele headstock on it.
