Talking Marshall BluesBreaker project

Soundclips are on page 2!

I am building a Marshall BluesBreaker pedal. I have just recieved all of the parts I ordered from Small Bear Electronics. I began the build tonite.

Some parts and the tool box:

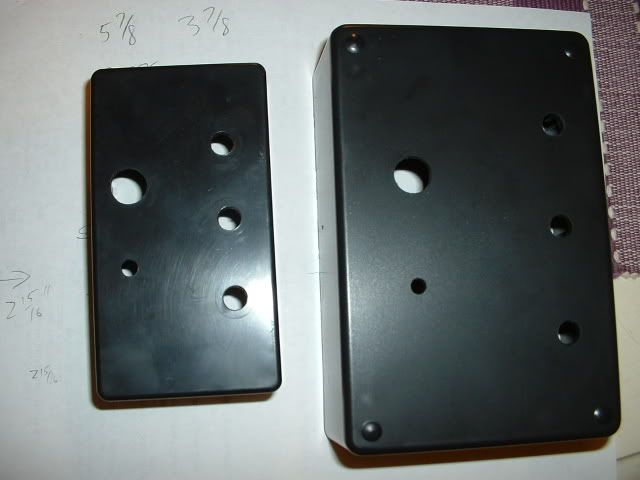

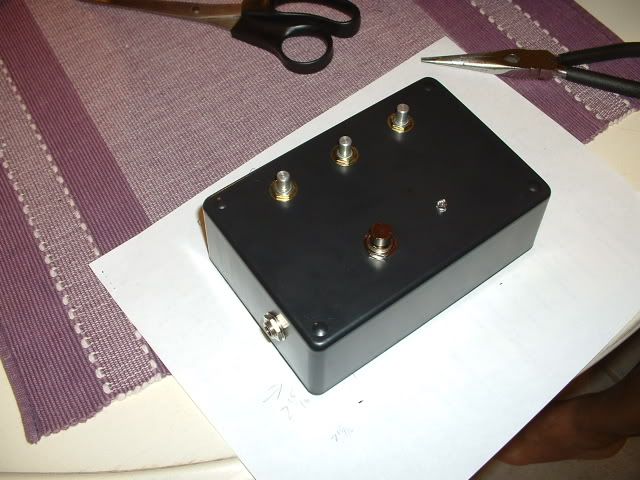

Project box with wholes drilled for 3 pots, a footswitch, a LED, an input, an output:

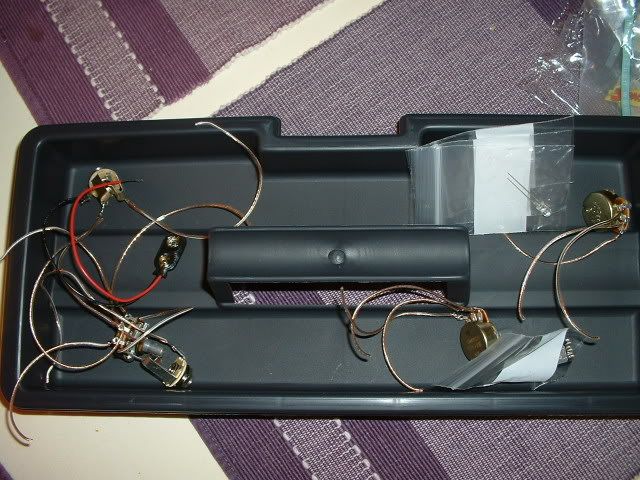

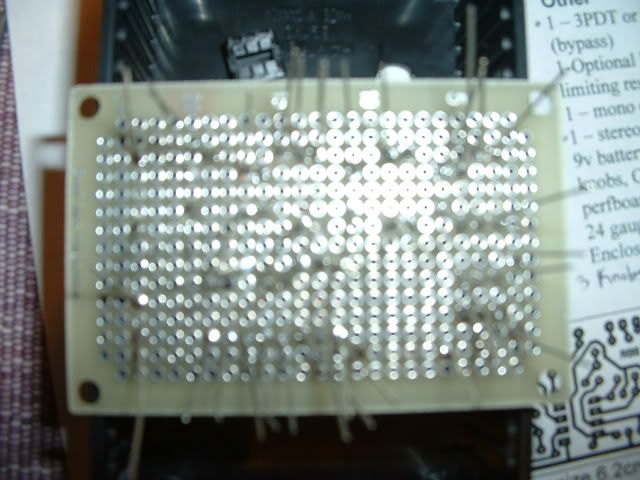

Perfboard with onboard parts, not yet soldered:


Tomarrow I will be tining the parts so they are ready to solder. I will also probably do the offboard wiring. Then I think I might connect it to try it out to make sure everything is good.

Oh yea! and... for you who know of the pedal called the Zendrive, I met the maker of it. I live in Ft. Lauderdale, where he lives and today I went to a guitar shop and he was there. We talked for a little bit and stuff. Hes an awsome guy. He gave a little bit of advice and stuff.
__________________
Marshall BluesBreaker
4uzz Face
ToneBender and SupaFuzz
Bobtavia
Tube Reverb
Phase 45 Univibed
Modded VJ 1
18 Watt Plexi TMB
Modded VJ 2/3
VF-10 Amp
Affectronix

Modder Extraordinaire of the VJ Cult
Über God of the Affectronix Club

Last edited by call1800ksmyazz : 06-29-2006 at 02:57 PM.
call1800ksmyazz is offline   Reply With Quote
Old 06-17-2006, 11:14 PM   #2
The Master Plan
UG's Wah *****

The Master Plan's Avatar

Join Date: Feb 2005
Location: Texas
Nice how much did it run you?
__________________
Amp:
Fender Blues Jr (GH1230 Celestion Speaker)
Pedals
Barber DD
Wilson WH-10 Clone
Ibanez WH10 V2

Pitchblack Tuner
Boss DD-3
Guitars: 06' Custom Fender Strat Lindy Fralin Blues Specials, Callaham Tremolo
09' Olympic White Stratocaster
The Master Plan is offline   Reply With Quote
Old 06-17-2006, 11:27 PM   #3
call1800ksmyazz
Affectronix

call1800ksmyazz's Avatar

Join Date: May 2004
Location: South Florida
About 31$ for parts. But I had to also buy a soldering iron, solder, extra wire, and a tool box in addition to that. (thats not included in the 31$).
__________________
Marshall BluesBreaker
4uzz Face
ToneBender and SupaFuzz
Bobtavia
Tube Reverb
Phase 45 Univibed
Modded VJ 1
18 Watt Plexi TMB
Modded VJ 2/3
VF-10 Amp
Affectronix

Modder Extraordinaire of the VJ Cult
Über God of the Affectronix Club
call1800ksmyazz is offline   Reply With Quote
Old 06-18-2006, 01:06 AM   #4
That_Pink_Queen
My Avatar Kills Fascists!

That_Pink_Queen's Avatar

Join Date: May 2005
Location: Portland, OR
I don't recommend a plastic box, the gain of those amp sims is pretty high, since the FETs need a large signal to actually clip. I'm guessing you'll pick up ****loads of RF.

Good luck!
__________________
I'm not very active here on UG currently.
I'm a retired Supermod off to the greener pastures of the real world.
That_Pink_Queen is offline   Reply With Quote
Old 06-18-2006, 01:18 AM   #5
Mascot
UG Addict

Mascot's Avatar

Join Date: Jul 2004
Location: California [Los Angeles]
You met the creator of the Zendrive? Nice.

Good luck on the project.
Mascot is offline   Reply With Quote
Old 06-18-2006, 02:12 AM   #6
The Master Plan
UG's Wah *****

The Master Plan's Avatar

Join Date: Feb 2005
Location: Texas
Have you sold any of the ones you made before?
__________________
Amp:
Fender Blues Jr (GH1230 Celestion Speaker)
Pedals
Barber DD
Wilson WH-10 Clone
Ibanez WH10 V2

Pitchblack Tuner
Boss DD-3
Guitars: 06' Custom Fender Strat Lindy Fralin Blues Specials, Callaham Tremolo
09' Olympic White Stratocaster
The Master Plan is offline   Reply With Quote
Old 06-18-2006, 08:37 AM   #7
call1800ksmyazz
Affectronix

call1800ksmyazz's Avatar

Join Date: May 2004
Location: South Florida
Thanks everyone.

The Master Plan- This is actually my first project so no I havent sold any before. I expect this to turn out pretty good though so I will continue building probably.

That_Pink_Queen- My dad is thinking that the box might not be big enough and stuff so we might have to get another box anyway. We are going to connect the wires (solder) to make sure it works, and then fix everything up (Bigger box maybe, metal box, paint it, just a few cosmetic things to make sure it will continue to run smooth. And whats RF?

Does anyone know of a website that sells pot knobs? I thought I had ordered them from Small Bear but it turns out that I didnt. Im looking for a cream vintage style knob. Maybe like a fender guitar or amp knob.

And the Zendrive guy, hes pretty cool. He says he used to invent and make parts for NASA. And he has like all kinds of degrees, making him really smart. He said that when he moved down to Florida, even though he had all of those degrees, no one would hire him so he inventer the Zendrive. He had a box of them with him at the guitar store but not for sale, only for some of the people to try. He has a waiting list for the pedal.
__________________
Marshall BluesBreaker
4uzz Face
ToneBender and SupaFuzz
Bobtavia
Tube Reverb
Phase 45 Univibed
Modded VJ 1
18 Watt Plexi TMB
Modded VJ 2/3
VF-10 Amp
Affectronix

Modder Extraordinaire of the VJ Cult
Über God of the Affectronix Club

Last edited by call1800ksmyazz : 06-18-2006 at 08:41 AM.
call1800ksmyazz is offline   Reply With Quote
Old 06-18-2006, 10:01 AM   #8
GuitarBoy-IL
Clapton>you

GuitarBoy-IL's Avatar

Join Date: Aug 2005
Location: Israel
RF is Radio Frequency if im not mistaken
__________________
strat player forever.
GuitarBoy-IL is offline   Reply With Quote
Old 06-18-2006, 10:11 AM   #9
power freak
Counting to infinity...

power freak's Avatar

Join Date: Mar 2002
Location: An Elegant Universe
Quote:
Originally Posted by call1800ksmyazz
And the Zendrive guy, hes pretty cool. He says he used to invent and make parts for NASA. And he has like all kinds of degrees, making him really smart. He said that when he moved down to Florida, even though he had all of those degrees, no one would hire him so he inventer the Zendrive. He had a box of them with him at the guitar store but not for sale, only for some of the people to try. He has a waiting list for the pedal.

Indeed he does, I think it's nearly 6 months now... Because it's the best damn OD of all time..

*is not biased because he owns the pedal at all*

I wish Alf came over to the UK, from what I've read he's an awesome guy...

__________________
For sale: Early 1985 Ibanez AH10 (Allan Holdsworth signature model) PM for details
power freak is offline   Reply With Quote
Old 06-18-2006, 08:12 PM   #10
call1800ksmyazz
Affectronix

call1800ksmyazz's Avatar

Join Date: May 2004
Location: South Florida
Ok guys. I soldered each component to the holes they go through. I will connect the parts together maybe tomarrow or something. I also attached and soldered wires to the offboard parts so they are ready to be connected.
__________________
Marshall BluesBreaker
4uzz Face
ToneBender and SupaFuzz
Bobtavia
Tube Reverb
Phase 45 Univibed
Modded VJ 1
18 Watt Plexi TMB
Modded VJ 2/3
VF-10 Amp
Affectronix

Modder Extraordinaire of the VJ Cult
Über God of the Affectronix Club
call1800ksmyazz is offline   Reply With Quote
Old 06-19-2006, 08:08 AM   #11
call1800ksmyazz
Affectronix

call1800ksmyazz's Avatar

Join Date: May 2004
Location: South Florida

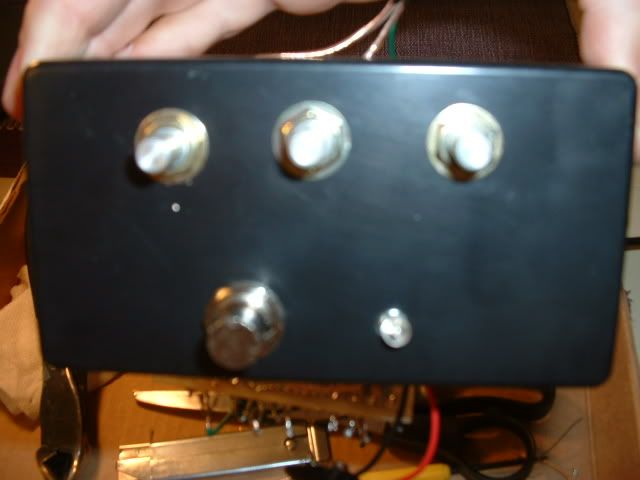

Heres some pictures of what I did last night.

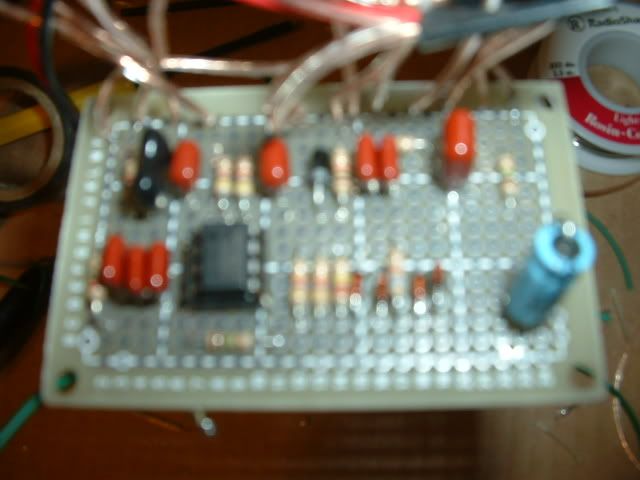

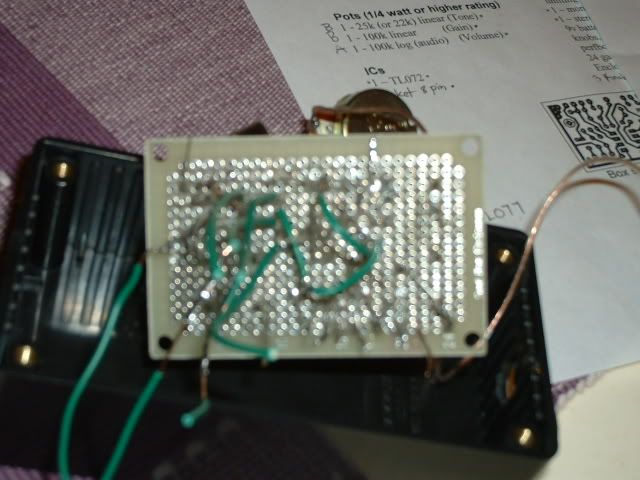

Heres the perfboard with the components soldered to their holes: (Sorry, its veryy hard to see.)

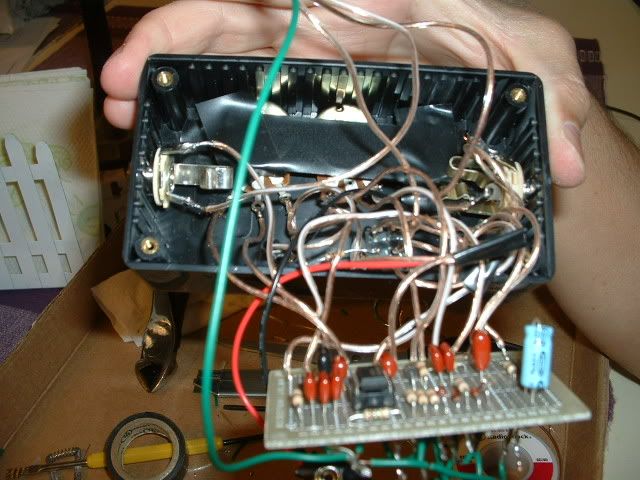

Heres some of the offboard components with wires connect to them so they can me connected:


I decided to make it true bypass so im going to have to go to radioshack to get a 3PDT footswitch instead of my DPDT.
__________________
Marshall BluesBreaker
4uzz Face
ToneBender and SupaFuzz
Bobtavia
Tube Reverb
Phase 45 Univibed
Modded VJ 1
18 Watt Plexi TMB
Modded VJ 2/3
VF-10 Amp
Affectronix

Modder Extraordinaire of the VJ Cult
Über God of the Affectronix Club
call1800ksmyazz is offline   Reply With Quote
Old 06-19-2006, 09:10 AM   #12
fronkpies
UG's Dirty Workman

fronkpies's Avatar

Join Date: Nov 2004
Location: liverpool, england.
Quote:
Originally Posted by call1800ksmyazz

Oh yea! and... for you who know of the pedal called the Zendrive, I met the maker of it. I live in Ft. Lauderdale, where he lives and today I went to a guitar shop and he was there. We talked for a little bit and stuff. Hes an awsome guy. He gave a little bit of advice and stuff.



that is a great pedal.
__________________
Tears in waves, minds on fire
Nights alone by your side
fronkpies is offline   Reply With Quote
Old 06-19-2006, 09:14 AM   #13
call1800ksmyazz
Affectronix

call1800ksmyazz's Avatar

Join Date: May 2004
Location: South Florida
yea it is
__________________
Marshall BluesBreaker
4uzz Face
ToneBender and SupaFuzz
Bobtavia
Tube Reverb
Phase 45 Univibed
Modded VJ 1
18 Watt Plexi TMB
Modded VJ 2/3
VF-10 Amp
Affectronix

Modder Extraordinaire of the VJ Cult
Über God of the Affectronix Club
call1800ksmyazz is offline   Reply With Quote
Old 06-19-2006, 10:16 AM   #14
V12prowler
UG's Pyro Guitarist

V12prowler's Avatar

Join Date: Apr 2005
Location: Pit Ninja #27
you can get knobs at radioshack......and that DPDT switch will work for making it true bypass, you dont need to change it
__________________
Quote:
Originally Posted by R_H_C_P
^Oh my God! You're the first person to actually notice that link! A pringle to you my friend!


My Surf-o-Strat Project
V12prowler is offline   Reply With Quote
Old 06-19-2006, 02:10 PM   #15
call1800ksmyazz
Affectronix

call1800ksmyazz's Avatar

Join Date: May 2004
Location: South Florida
Radioshack doesnt have any good knobs. They only have like 3 different kinds that are really ugly.

DPDT is for Bypass. 3PDT is for True Bypass
__________________
Marshall BluesBreaker
4uzz Face
ToneBender and SupaFuzz
Bobtavia
Tube Reverb
Phase 45 Univibed
Modded VJ 1
18 Watt Plexi TMB
Modded VJ 2/3
VF-10 Amp
Affectronix

Modder Extraordinaire of the VJ Cult
Über God of the Affectronix Club
call1800ksmyazz is offline   Reply With Quote
Old 06-19-2006, 04:31 PM   #16
V12prowler
UG's Pyro Guitarist

V12prowler's Avatar

Join Date: Apr 2005
Location: Pit Ninja #27
^ no.......DPDT is for true bypass, 3PDT is for true bypass WITH an LED wired into the switch. I have modded mamy wah pedals to true bypass and used DPDT switches on some of them that didnt have LEDs and they are still true bypass.

EDIT: if you dont believe me check out this link
__________________
Quote:
Originally Posted by R_H_C_P
^Oh my God! You're the first person to actually notice that link! A pringle to you my friend!


My Surf-o-Strat Project

Last edited by V12prowler : 06-19-2006 at 04:34 PM.
V12prowler is offline   Reply With Quote
Old 06-19-2006, 07:28 PM   #17
call1800ksmyazz
Affectronix

call1800ksmyazz's Avatar

Join Date: May 2004
Location: South Florida
But if you go to the project file of the BluesBreaker, its a DPDT for Original non-true bypass with led and its 3PDT for true bypass with led. look at the project file: http://www.generalguitargadgets.com...luesbreaker.pdf
__________________
Marshall BluesBreaker
4uzz Face
ToneBender and SupaFuzz
Bobtavia
Tube Reverb
Phase 45 Univibed
Modded VJ 1
18 Watt Plexi TMB
Modded VJ 2/3
VF-10 Amp
Affectronix

Modder Extraordinaire of the VJ Cult
Über God of the Affectronix Club
call1800ksmyazz is offline   Reply With Quote
Old 06-20-2006, 08:42 PM   #18
call1800ksmyazz
Affectronix

call1800ksmyazz's Avatar

Join Date: May 2004
Location: South Florida

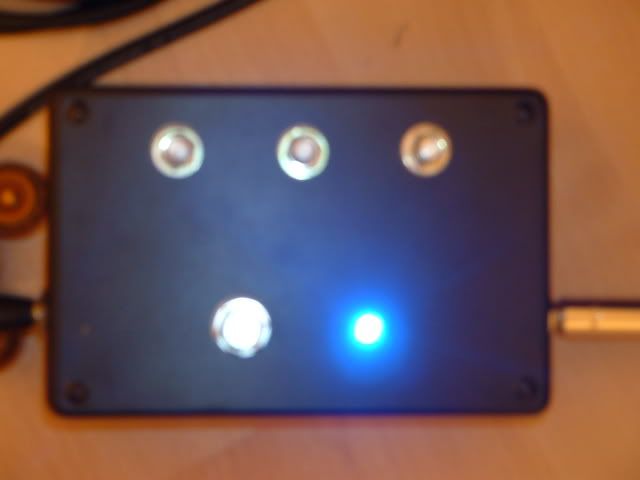

Ok... New UPDATE:

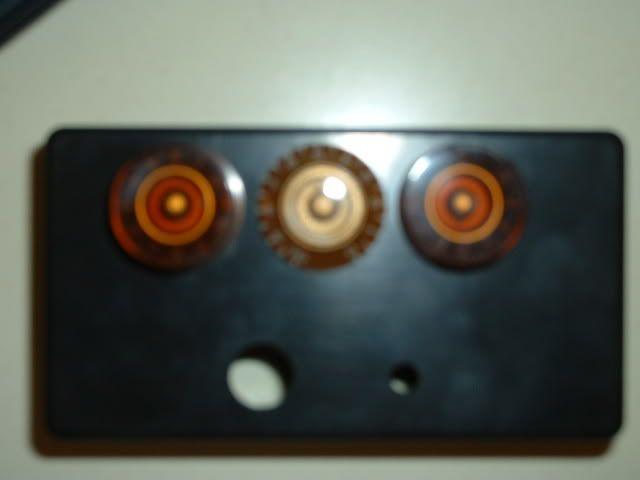

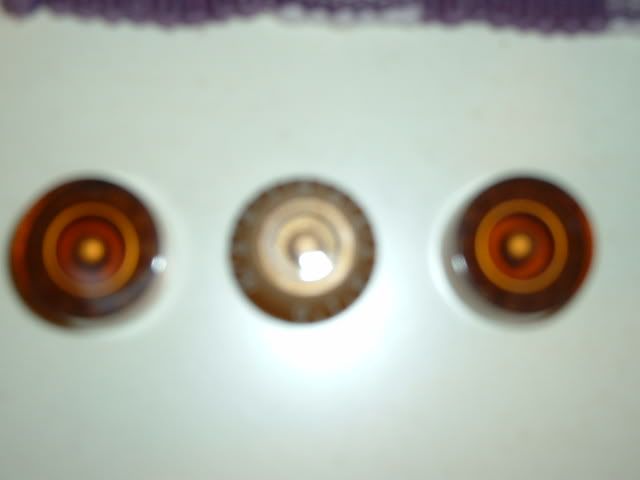

I bought some knobs for the Volume, Gain, and Tone controls. They are Gibson Les Paul style. Here they are seperate and just layed on their place on the box:

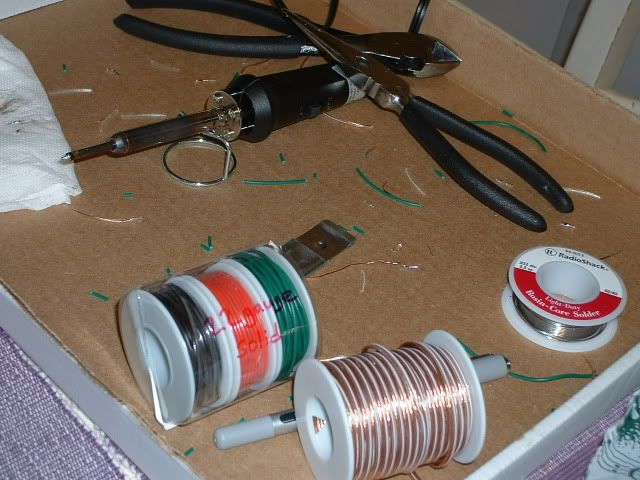

Heres my soldering iron, solder, and extra wire:

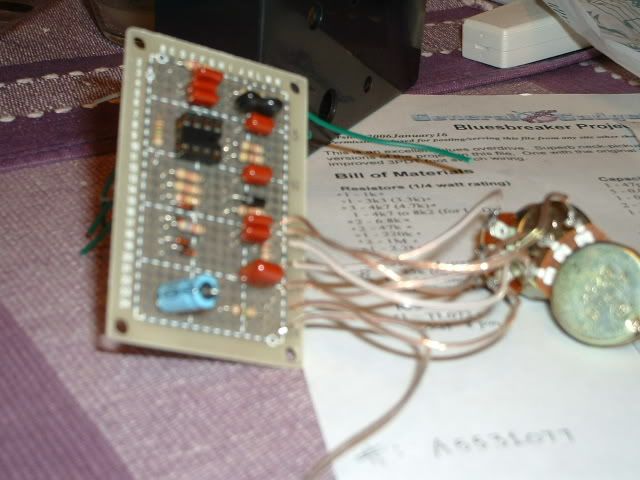

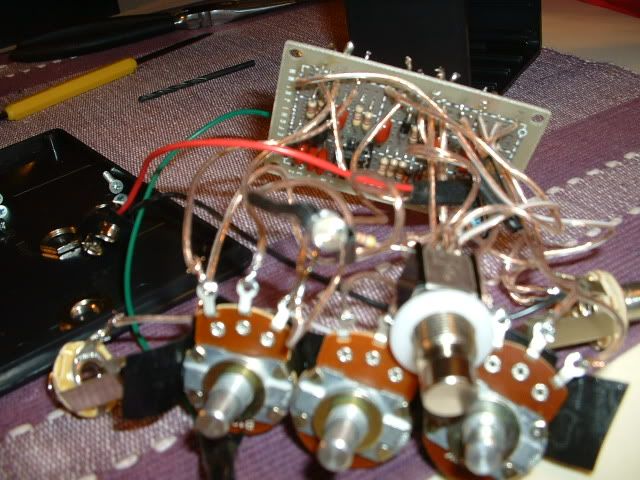

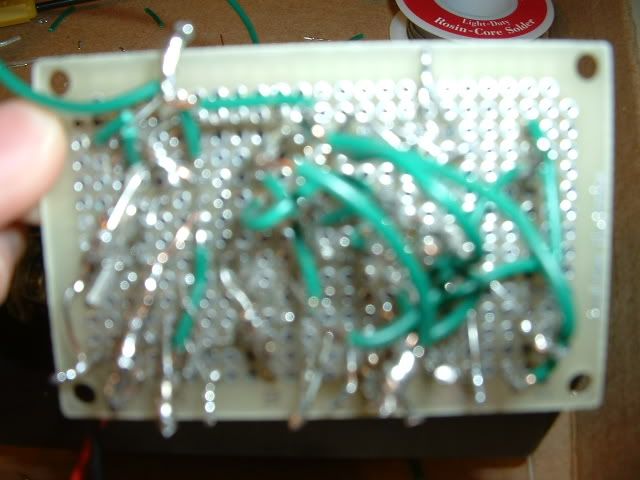

Heres a picture of the board with some of the offboard wiring and onboard soldering done:
