TwoString's Friday Night Strat Mods (PICS!!)

Hello all. I didn't have a damn thing to do tonight, so I figured "as long as I'm changing strings, I might as well bust a mod."

I've had a push/pull laying around for a couple of years just waiting to be put in this guitar. The switch is used to activate the neck pickup no matter what position the 5 way switch is in. All you have to do is connect a wire from the 5 way (neck lug) to the switch (SPDT) and connect the other side of the switch to the incoming signal at the volume pot (the same lug the output from the switch wires to). I did the same mod to my first strat and loved having the bridge/neck and all on pickup choices. Rhythm with the neck/bridge combo is just about the best sound to use on lighter rock/pop songs (Toad The Wet Sprocket, Gin Blossoms, etc...I never thought I would feel this old at age 24 ). Also while I was at it, I removed the neck for cleaning.

Body before


Pickguard removed - I cleaned off the buffing compound since I plan to shield this guitar soon.

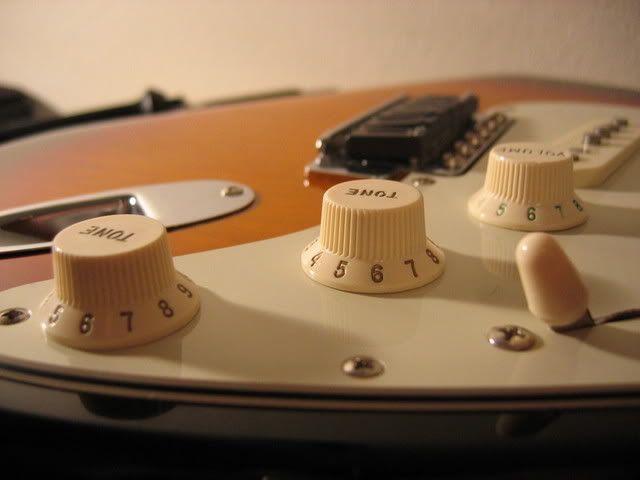

Closeup of the controls before the mod

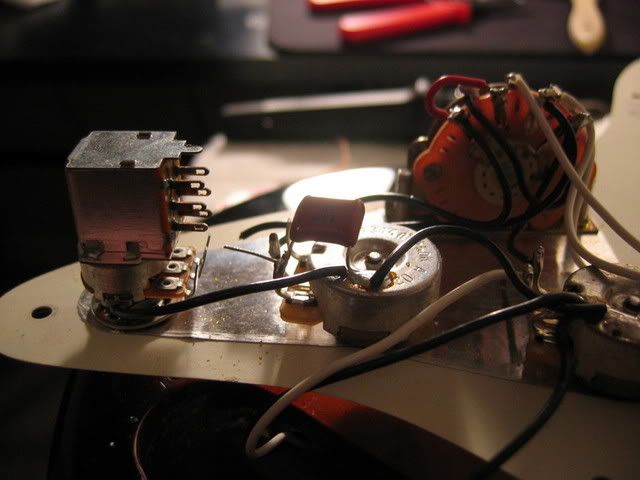

Switch installed

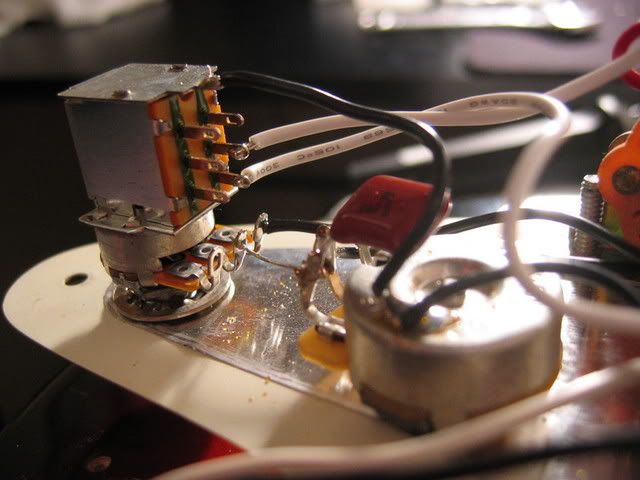

Switch wired
__________________
Gear
My Pedalboard
Pedalboard Tutorial
Pedalboard Build
Patch Cable Tutorial
GT-8 Thread
Slide Clinic
7 Way Strat
LP Intonation Mod
My SRV Rig Thread


I build rigs and custom pedalboards...PM me for help or advice.
TwoString is offline   Reply With Quote
Old 07-14-2007, 01:46 AM   #2
TwoString
AKA Chad

TwoString's Avatar

Join Date: Jul 2006
Location: Houston
Normal


Neck pickup activated

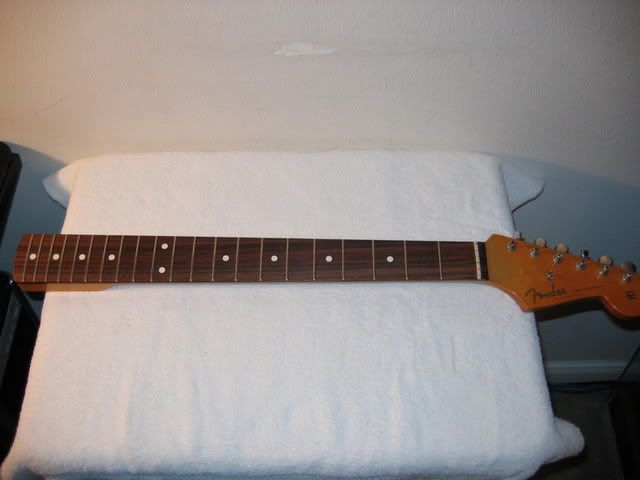

Neck removed

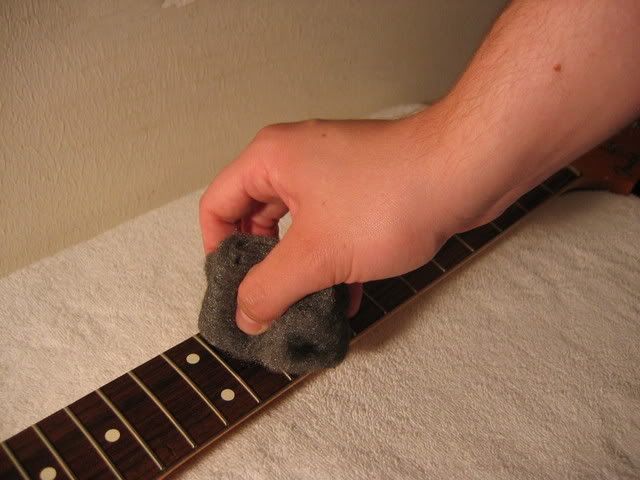

Cleaning with 0000 steel wool

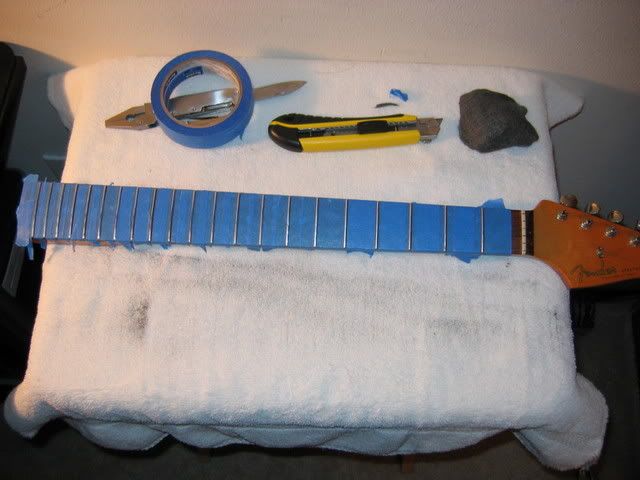

Taped up to polish frets

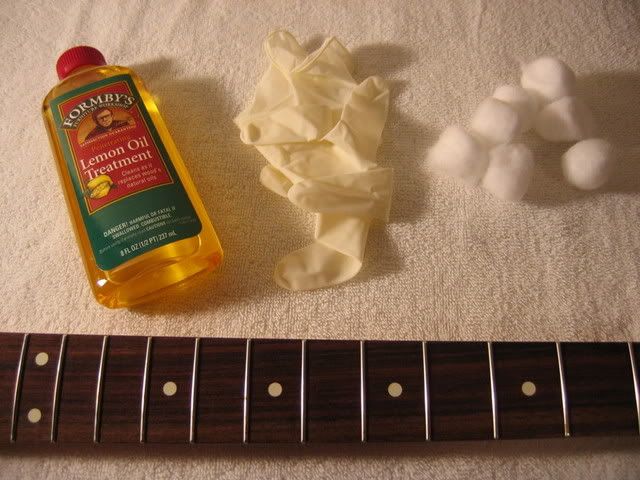

Oil prep
__________________
Gear
My Pedalboard
Pedalboard Tutorial
Pedalboard Build
Patch Cable Tutorial
GT-8 Thread
Slide Clinic
7 Way Strat
LP Intonation Mod
My SRV Rig Thread


I build rigs and custom pedalboards...PM me for help or advice.
TwoString is offline   Reply With Quote
Old 07-14-2007, 01:47 AM   #3
TwoString
AKA Chad

TwoString's Avatar

Join Date: Jul 2006
Location: Houston
Second coat of lemon oil

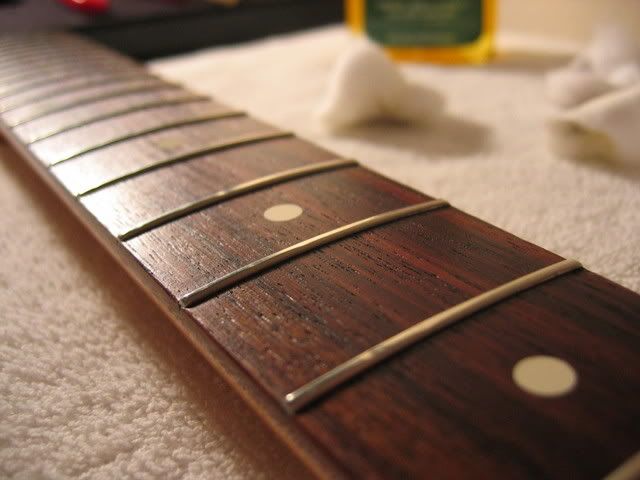

After an hour of soaking and rubbing
