DIY Tap Tempo Switch (tutorial + pix)

So i wanted to get a tap tempo switch for my newly acquired Boss Rc-2 but after looking into the boss ones i decided they were too expensive and i could just make my own. Heres a quick rundown and short tutorial as to how i made a tap tempo switch for my rc-2.

Simple things you'll need are :

-SPST Momentary Switch (normally open)-I got mine from radioshack http://www.radioshack.com/product/i...rentPage=search
-Mono Jack-Again radioshack http://www.radioshack.com/product/i...rentPage=search
-An enclosure (i used this random square piece of plastic that worked perfectly, most anything sturdy will work)
-Simple tools including : Soldering iron/solder/wire cutters/2 small pieces of wire (i used wire from smallbearelec.com)

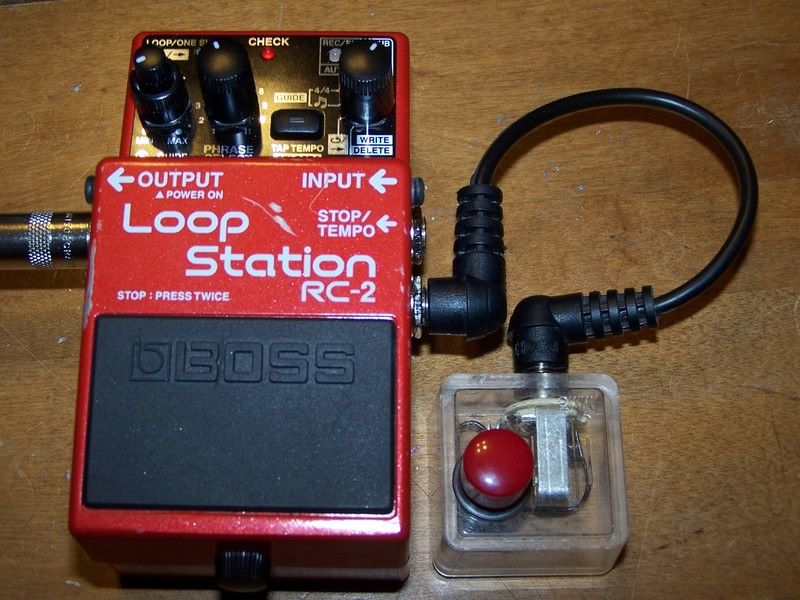

Really all you have to do is solder each lug of the switch to a different lug of the jack. All i did was tin the parts, populate the enclosure and solder them together, it really is that easy. The closing of the signal sets the tempo when you hit the momentary footswitch. Now i know its not rocket science but i figured someone would benefit from this and save upwards of $50 or more on un needed tap tempo switches of which are bulky as well. Heres some pix of mine compeleted. Enjoy :thumb:



Used666 is offline   Reply With Quote
Old 10-03-2007, 02:44 AM   #2
Wyld Stallyn
Davidian Amplifiers

Wyld Stallyn's Avatar

Join Date: Jul 2006
Location: Colchester, England
That's really cool, how small it is and everything. It really needs to be full of red LEDs though...
__________________
GB&C Pedal Builders and Mod Squadron
Quote:
vBulletin Message

Sorry, you can not add yourself to your own buddy list.

Bugger
Wyld Stallyn is offline   Reply With Quote
Old 10-03-2007, 05:12 AM   #3
xifr
Master of the Penguins

xifr's Avatar

Join Date: Aug 2004
Location: Antarctica
Nice one. I may add this to the tutorial thread if you don't mind? It'd help out a lot of new builders.
__________________
"A wise man once said, never discuss philosophy or politics in a disco environment." - Frank Zappa
Quote:
Originally Posted by Jinskee
Don't question the X.
Quote:
<Frenchy> I'm such a failure
xifr is offline   Reply With Quote
Old 10-03-2007, 11:21 AM   #4
MrCarrot
Sup.

MrCarrot's Avatar

Join Date: Aug 2006
Location: Warwickshire, England
Brilliant idea, that'll save loads of money and it looks cool too
__________________
The Laney Thread are big and clever. No exceptions.
MrCarrot is offline   Reply With Quote
Old 10-03-2007, 02:00 PM   #5
Used666
Registered User

Join Date: Sep 2006
Thanks guys, feel free to add it to the tutorial section
Used666 is offline   Reply With Quote
Old 10-03-2007, 02:02 PM   #6
Thewolf_and_man
Gain Addict

Thewolf_and_man's Avatar

Join Date: Aug 2006
Location: Between anode and cathode
I've done a similar footswitch to my amp... saves money as hell
__________________
Quote:
"I never liked those Deep Purples or those sort of things. I always hated it. I always thought it was a poor manís Led Zeppelin"
// Angus Young

+1
Thewolf_and_man is offline   Reply With Quote
Old 09-20-2008, 11:49 PM   #7
hooya
Registered User

Join Date: Sep 2008
I registered so that I could add to this thread. I'm thankful to the OP for the tutorial, but I have one thing to correct.

I made a dual tap tempo and a single based on this design, using the same Radio Shack parts. It turns out that the Boss RC-2 (which I have) and others (like the ME-50) actually operate using a normally closed circuit. When you hit the tempo it breaks the circuit. So you're actually operating these pedals backwards. Radio Shack does make a Normally Closed switch, but it's a tiny little thing, and may not be foot-friendly.

Digikey sells some NC switches:
http://search.digikey.com/scripts/D...ame=360-2302-ND
There are others if you dig on the site. You want a Switch with a function "on-mom" If you search for "on-mom" you'll find things that will work. More expensive than the Radio Shack one listed here, but there's an important difference.

The reason this is a big deal - well, there are a couple of reasons. Take the RC-2 for example. Using a single tap tempo you can set the tempo fine using this switch, but when you stop tapping the device thinks you're holding down the switch. On the RC-2 this means that after two seconds it will erase your temporary loop that you maybe just did. In effect setting the tempo using this switch doesn't really accomplish anything because as soon as you stop tapping it erases what you just did. Then when you go to record your loop it guesses your tempo anyway, as if you never set the tempo in the first place.

If the switch you need has only one function (like the switch to turn off and on the compressor on the ME-50, for instance) either switch will work just fine. But if it's multi-function, with some functions being tap and others hold, the distinction is pretty huge.
hooya is offline   Reply With Quote
Old 09-21-2008, 01:14 AM   #8
Sunburst PR
Solder Soldier

Sunburst PR's Avatar

Join Date: Apr 2007
Location: California
^Very interesting, never would have thought of that.
__________________
Do you like 7-String Progressive Technical Djentcore? Stream or download my album free!
Sunburst PR is offline   Reply With Quote
Old 09-21-2008, 09:49 AM   #9
asfastasdark
UG Addict

asfastasdark's Avatar

Join Date: Mar 2008
Location: GA, USA
Interesting. So basically as soon as the tip is not grounded, it thinks you're done setting the tempo? Cool, I wanna see a schematic of one of these pedals.
__________________
Gear:
Schecter Hellraiser Deluxe
Boss DS-1
Crate GTD65

GAS List:
Mesa Boogie Dual Rectifier Roadster
asfastasdark is offline   Reply With Quote
Old 04-22-2009, 11:51 PM   #10
Jaybird_rocks
Registered User

Join Date: Apr 2009
Mint Tap Tempo

I decided to build a tap tempo using similar parts and a Barkley's Mint Box. Tell me what you think!
Attached Images
File Type: jpg 200904221841.jpg (25.5 KB, 653 views)
File Type: jpg 200904221842.jpg (26.2 KB, 442 views)
File Type: jpg 200904221843.jpg (27.5 KB, 410 views)
File Type: jpg 200904221844.jpg (29.2 KB, 293 views)
Jaybird_rocks is offline   Reply With Quote
Old 04-22-2009, 11:54 PM   #11
Invader Jim
Registered User

Invader Jim's Avatar

Join Date: Aug 2005
Make your own thread.
__________________
The Wiring Thread
Invader Jim is offline   Reply With Quote
Old 04-22-2009, 11:56 PM   #12
james4
Registered User

james4's Avatar

Join Date: Mar 2006
Location: Brampton, Ontario, Canada
^lol @ the mints still in the case

..but you probably could have started your own thread instead of bumping this dead one..

edit: damn you and your quicker typing, jim!
__________________
Wiring your guitar?

Member of the official GB&C "Who to Listen to" list
james4 is offline   Reply With Quote
Old 04-23-2009, 12:00 AM   #13
Invader Jim
Registered User

Invader Jim's Avatar

Join Date: Aug 2005
Holy crap, it is dead. In that case, *REPORTED* for necro bumping.
__________________
The Wiring Thread
Invader Jim is offline   Reply With Quote
Old 04-23-2009, 12:49 AM   #14
mattocaster99
No More Stratocaster

mattocaster99's Avatar

Join Date: Apr 2008
You know, I'm not the end-all authority on the subject, but I dont think he should be reported-- he had something related, useful, and cool that made sense with the original post.
mattocaster99 is offline   Reply With Quote
Old 04-23-2009, 12:51 AM   #15
Invader Jim
Registered User

Invader Jim's Avatar

Join Date: Aug 2005
I already reported him. It was thread jacking anyway. Ah well. The mods are human. They can choose not to warn him.
__________________
The Wiring Thread
Invader Jim is offline   Reply With Quote
Old 04-23-2009, 12:56 AM   #16
mattocaster99
No More Stratocaster

mattocaster99's Avatar

Join Date: Apr 2008
Yeah. Not trying to start a fight or anything, just showin some mercy to the new kids on the block.
mattocaster99 is offline   Reply With Quote
Old 04-23-2009, 01:04 AM   #17
Invader Jim
Registered User

Invader Jim's Avatar

Join Date: Aug 2005
...maybe I should look at join dates, too...
__________________
The Wiring Thread
Invader Jim is offline   Reply With Quote
Old 04-23-2009, 01:13 AM   #18
jof1029
GO HOKIES!

jof1029's Avatar

Join Date: Nov 2003
Location: Atl, GA
Quote:
Originally Posted by Invader Jim
I already reported him. It was thread jacking anyway. Ah well. The mods are human. They can choose not to warn him.

meh, i never really warn people for necro-bumping. usually just close the thread if the post isnt relevant. this seems ok though, its close enough to the original topic and this thread is kinda useful anyway.
__________________
I hope you meet someone your height
So you can see eye-to-eye
With someone as small as you

I have donated 3920 grains of rice!
jof1029 is offline   Reply With Quote
Old 04-23-2009, 04:41 AM   #19
noisefarmer
Registered User

Join Date: Mar 2008
necro-bumping shouldn't be reported solely because the dude obviously used the searchbar to get his info instead of starting a new thread.

good call at keeping the mints in the box!
noisefarmer is offline   Reply With Quote
Old 04-23-2009, 05:46 AM   #20
jimRH7
bringing the thunder

jimRH7's Avatar

Join Date: Jan 2008
Location: under the sea, in an octopus' garden, in the shade.
Quote:
Originally Posted by noisefarmer
necro-bumping shouldn't be reported solely because the dude obviously used the searchbar to get his info instead of starting a new thread.

good call at keeping the mints in the box!


I agree, searchbar & old threads is better than new threads of the same stuff over and over again.
