#42
Well, i got the bridge mounted. This weekends effort was mostly an exercise in frustration other than that though. Mounted the template back up and measured out my bridge placement and drilled out the holes (with the tolerance included for the template thickness). That part was pretty straightforward, just a bunch of double checking for straightness ect.


Then i thought to myself "gee, its just the pickup rout now, how hard can that be?" Wrong, apparently harder than i thought to cut out a square with three 1/2 diameter circles. Naturally i cut right on the original template on my first attempt and the tolerances were too loose. I dont want to use the standard MM pick guard so i want it to be spot on. So after i screwed up the template, i cut a pattern out of 1/2" laminated ply. This one was much better on the vertical tolerance, but now the holes were screwed up. This is a test rout on the off-cut.



Epic fail. So now i need to attempt to either cut a box for the shape and a separate template with the whole placement or try and cut the master again. In other news, i ordered an end tail flush mount input jack (which is technically an output jack on a guitar) so i can avoid having to mount an input jack to the face of the instrument below the knob cluster.
BirdRiverCustom
Registered User
Join date: May 2012
245 IQ
#43
Quick update. I have been tweaking the headstock layout this week trying to make it work using templates. Now, because of the nature of the original build, i went with these squire elephant ear tuners cause they were the cheapest i could get. I much prefer the look of the Gotoh compact tuners, and all my other basses have this option. Just personal preference, but i dont like the look of the huge tuner ears, i feel like its distracting from the instrument. This is letting my anti-fender p-bass bias air i guess (whoops).

I digress, this is my issue:




What does everyone think about modifying the bracket for the tuners? I haven't had this issue before, but due to the scale of the headstock being slightly (like 1/4" all the way around) smaller than intended, the headstock is too crowded to fit all the tuners in line. To do the offset 3+1 layout i need to slightly trim the tuner and could easily re-drill the screw hole.


This shouldnt affect the tuner integrity too much right? I marked the trim line in the tuner close up photo. The overall surface area would probably only be reduced by MAYBE 5-10%
BirdRiverCustom
Registered User
Join date: May 2012
245 IQ
#44
Update time. Had a couple projects come up in the meantime since the last update. Built a false hinged floor into my brothers Scion TC for his custom car computer and audio rig.


Still needs cosmetic finishing (carpet, wiring cleanup) and the vent system installed. Anyway, back to the guitars.

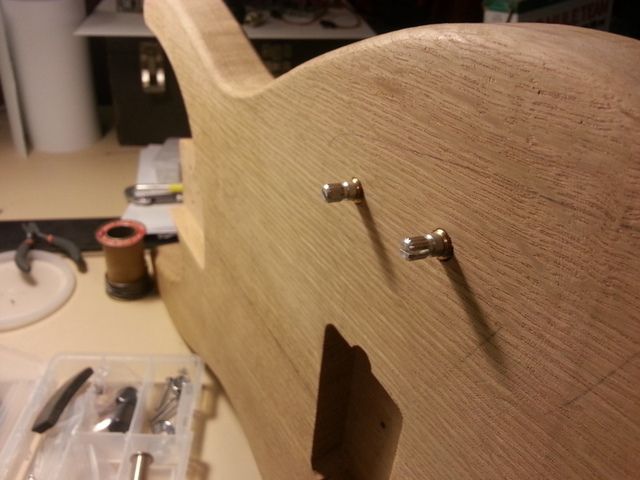

I got a new jack for the body so i could flush mount it as it would have been too complicated for this body style to use a standard 1/4 jack mount. Here we go!
This setup was probably overkill, but i wanted to drill the jack at as close to a 90 degree angle as possible, so i dropped the drill press way down to line everything up.

I realized my tactical error as soon as i had drilled out the 1/2 inch diameter hole for the jack. I should have drilled the 5/8" recess first (to allow the top of the jack to be in line with the body) and then drilled the 1/2" hole. After some debate i decided to go ahead slowly with the forsner bit and pray that nothing blew out. Luckily, it didnt explode as soon as the bit made contact.

Continuing my comedy or errors, i realized that while i had drilled the jack centerlined on the body, there wasnt enough interior clearance for the bolt to spin around. doh! not a huge deal as i just recessed the jack area another 1/4" but more of a cosmetic issue that no one will ever know about

I then decided to square off the interior pocket so the bolt could snug up against something flat with a chisel. Again, nothing major, moreso just a design flaw (i routed the back plate in the shape of the headstock for pure aesthetic purposes) that no one will know other than me. And of course, anyone who reads this.


As you can tell, the amount of time i put into getting the jack situation sorted was entirely too much. I also filled in the blow out spots from routing the body and they sanded up quite nicely


On to the pickup, my last hurdle before i can wire all the electronics. I finally managed to get a template made that seemed pretty satisfactory.


Since nothing comes easy, there was a bit of router tear out. i was able to patch it pretty well with a sliver of wood from the body and then backfilled it with wood filler. Its drying now in my room but seemed to work well.

I also drilled the cableway for the pickup wiring to run to the electronics cavity. Heres the money shot with the bridge in place as well.

I stupidly didnt bring the tuners with me, so that is now the last thing to be completed as far as machining the body is concerned. Its getting very close to prep and paint, which is exciting. Its taken a lot longer than expected, but better late than never.

To do
-drill and mount tuners
-test electronics and tuning
-body sand
-paint
BirdRiverCustom
Registered User
Join date: May 2012
245 IQ
#45
Onwards we go!

As a note to myself, im never using press in tuner busings with rift cut maple ever again. Such a pain to get squared away.

This weekend i remebered the tuners (face palm) and set about mounting them on the neck. THis problem was 3 fold.

First issue was drilling the hole size, the bushings are a weird in between size (something like 11/16) which i dont have a bit size for. After doing some online research i found a guy over at TDPI who had a similar issue. Holes drilled first with a 5/8" bit


He suggested the use of a reamer, which luckily i was able to find one. Prior to that i was kicking myself for not buying an omni bit when i was machining a pedal case a couple months ago. Luckily i found a reamer hiding in the draw full of drill bits (Who put this coat in the closet! ) and a suitably large chisel handle to mount it in so i didnt shred my hands trying to turn it.

I used the good old guess and check method for depth and got it pretty close, than threw it up on the oscillating spindle sander set to a 10 degree angle to get it where it needed to be to accept the bushing.

Went to drill the holes for the tuner screws and realized...I lost the stupid screws! Sometime in the last couple months of moving my kit back and forth i lost the screws. Oh well, i looked around online and the consensus seems to be that #4 screws are a good replacement fit so im going to pick some up on my way home tonight. Heres a shot of it mocked up, but alas, not screwed in.


Speaking of tolerances, i figured i would go ahead and wire all the electronics last night so when i got the screws i would be good to go. *face palm*

(as a side note, the chip in the pickup from the router isn't even visible anymore after filling it and sanding the filler strip to form, so thats something that went right)
My pot depth isnt right so i need to dig that out a little deeper with a forsner bit. Gonna have tons of room in the electronics cavity now though, thats for sure. More misadventures to come soon!

To Do:
-deepen recess for pots so the threads have enough clearance (could have bought long shaft pots in hindsight)
-attach tuners
-wire electronics
-test it out!
-finishing
Last edited by BirdRiverCustom at Dec 10, 2012,
BirdRiverCustom
Registered User
Join date: May 2012
245 IQ
#46
Quick Update!
All the hardware is mounted and i strung it up. Things i discovered: I need a string tree for the D&G strings (should have thought of this earlier). Debating roller trees vs the tradition fender style washer. I also think the bridge may need to be repositioned closer to the tail, but i need to dig out my fretting spec sheet for this build to double check that.

Also routed the control pocket deeper to accommodate the pots and cut the control cavity cover out of a scrap piece from the body. Tuners drilled and mounted, with one accidental drill through, right in the middle naturally. Somewhat annoyed that the screws supplied with the pickup (GFS) dont fit in the predrilled recess' and just sit on top of the pickup ears. Heres a quick shot after i strung it up
