SilmerieJaguar
Registered User
Join date: Dec 2012
21 IQ
#1

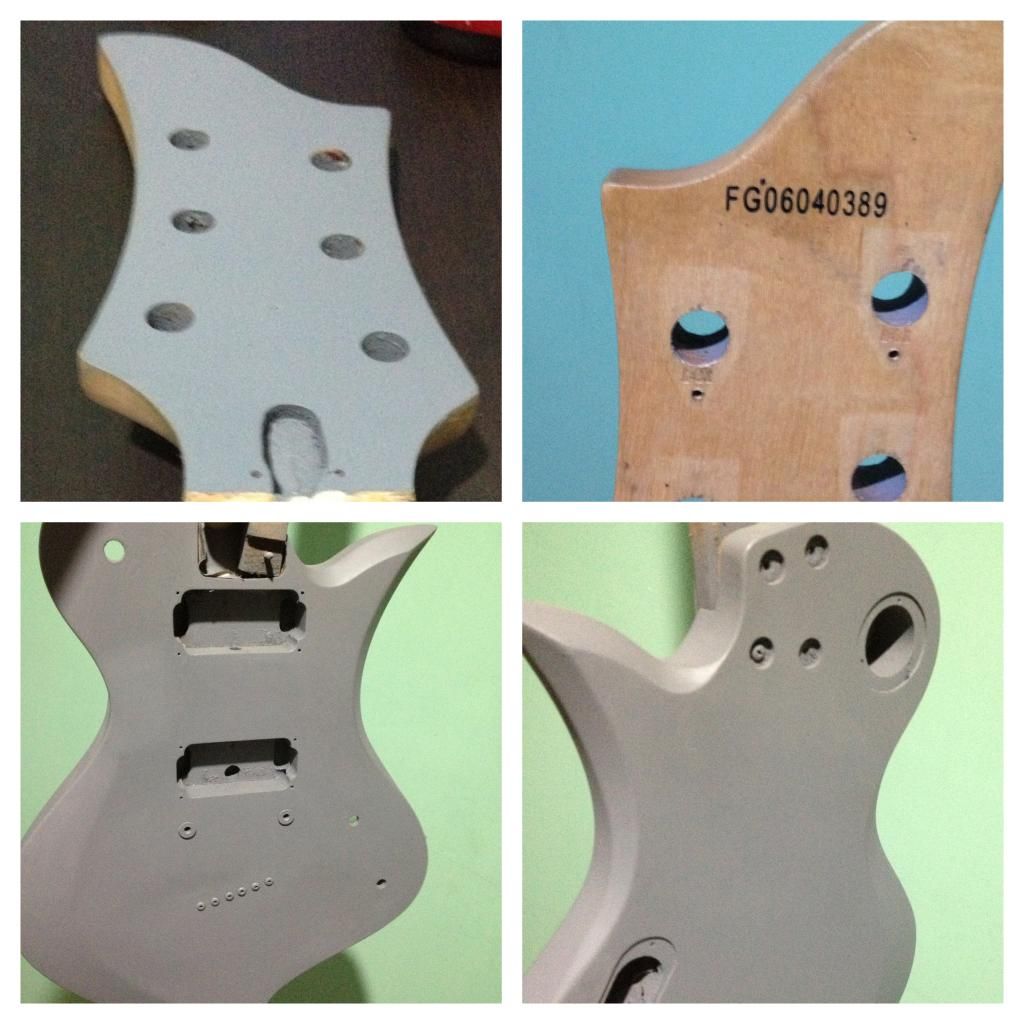

Hi guys this is my first post. Last year I kinda beat the shit out of my Fernandes Ravelle X and I want to re-do the painting and stuff, does anyone knows how to get a good "Pearl White" finish? and also, I want to remove the studs on the TOM bridge, any advices? Here's a picture of the guitar with primer on:




Hope anyone could help.
minieme007
Registered User
Join date: Jul 2009
587 IQ
#2
As far as removing the studs goes, just get a claw hammer, put the claw but under the lip of the studs, and put something between the hammer and guitar (actually this might not apply since you're refinishing) and just pry the studs loose. That's how I did it, worked like a charm.
SilmerieJaguar
Registered User
Join date: Dec 2012
21 IQ
#4
That sounds like a good idea, I need to take those studs out so I can put this sweet roller bridge on it.



Do any of you recommend the Graph Tech Black Tusq nut?
LeviMan_2001
Registered User
Join date: Mar 2008
1,872 IQ
#5
Neither of those methods are great. The method I use is to drop something down the thimble that is shorter than the the depth of the hole. This thing must be sturdy, a screw head first or something works well. I use an old pole piece from a pickup. Then screw in the post and it pulls out the bushing.
Speckled_Hen
Dr Monkey Pants
Join date: Mar 2009
243 IQ
#6
Can't help with the studs, but the tusq nut is great.
Was lacking a decent sig. Still is.
whoomit
Join date: Jul 2006
1,492 IQ
#7
Quote by LeviMan_2001
Neither of those methods are great. The method I use is to drop something down the thimble that is shorter than the the depth of the hole. This thing must be sturdy, a screw head first or something works well. I use an old pole piece from a pickup. Then screw in the post and it pulls out the bushing.

This is the best way.
SilmerieJaguar
Registered User
Join date: Dec 2012
21 IQ
#8
Quote by LeviMan_2001
Neither of those methods are great. The method I use is to drop something down the thimble that is shorter than the the depth of the hole. This thing must be sturdy, a screw head first or something works well. I use an old pole piece from a pickup. Then screw in the post and it pulls out the bushing.


I'm going to try that tomorrow, thank you all, I'll get you the updates as soon I have a few

Any Idea of how to remove the string-thru-body things?
W4RP1G
Please, call me Pig.
Join date: May 2010
2,847 IQ
#9
Quote by SilmerieJaguar
I'm going to try that tomorrow, thank you all, I'll get you the updates as soon I have a few

Any Idea of how to remove the string-thru-body things?

I can't tell how big the holes in the string ferrules are, but if you have a nail or something that will fit in there, you can use it to press out the ferrules on the other side.
sethasaurus
Registered User
Join date: Nov 2012
111 IQ
#10
I did the same job recently - ferrules and bridge bushings. (And a nice black roller bridge too).

You can drop a screw down into the bridge bushing but make sure the point is upwards (With the point down, the screw may just get forced into the wood and split it and not remove the bushing).

The ferrules are pretty easy to get out. I just put a small enough allen key down there and gave them a few taps from either side.

One thing you might want to watch is damage to the finish. If you've sanded back to wood, you're ok. If you still have layers of paint there, under the primer, then it might chip (but then you can fill & sand before painting anyway).

One of my back ferrules came out and took a chip of wood (and nice thick black paint) with it. I managed to superglue that back in so it's not really visible.

Also, when you tap the them back in, use a piece of wood on top of the ferrules. Don't just hit away with the hammer. I cut a piece of paintbrush handle to do the job.

I found the new bridge bushings were a tiny bit big (i.e. not fitting) so I enlarged the hole a little - I was a bit wary of pounding them in and risking a guitar split in half!. They need to be firm but there's no need to be super-tight.
