#1
i have 3 speakers I want to use for a cab.

1 is 4ohm
2 are 8ohm

if I wire the 2 8ohm speakers parallel to get 4ohms - then I connect that in series with the 4ohm speaker, in theory I should get 8ohms right?


I just can't see the configuration and how it would work as far as wiring........

anybody got (or want to draw up) a diagram of how this would be configured?

I know its a weird configuration, but I'm trying to use what I already have. (btw, I have 2 of the 4ohm speakers - but they are both 10". The 2 8ohm speakers are 12")
Decaptivated

Ibanez S370 (all custom)
Mesa Boogie Studio Pre
Fender Champ 25se (used to power Mesa pre)
Custom 2x12 cab w/ Eminence Texas Heats
#2

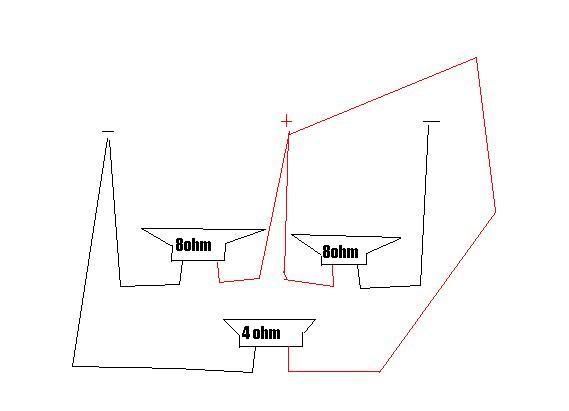

here's what I had in mind. but I don't want to do something stupid so I need confirmation on whether this will work or not.
Decaptivated

Ibanez S370 (all custom)
Mesa Boogie Studio Pre
Fender Champ 25se (used to power Mesa pre)
Custom 2x12 cab w/ Eminence Texas Heats
#3
It looks like yr 4ohm is in parallel with your left 8ohm. You need the 8ohms to join at the same point then from + or - to 4 ohm then the two spare leads to amp.



Paint on a laptop = not for winners...

Hope that helps (and is what you were after!)
Last edited by bellerophon at Nov 16, 2008,
#4
Quote by bellerophon
It looks like yr 4ohm is in parallel with your left 8ohm. You need the 8ohms to join at the same point then from + or - to 4 ohm then the two spare leads to amp.


Hope that helps (and is what you were after!)



thank you!
