Okay, so im gonna convert my Valveking 112 to a head. I got my wood today. The cabinet will be made out of pine. My dimensions will be 21"L x 10"W x 8 1/2"H.

My plan is to build this in woodshop over the next couple weeks. I will cover it with tolex, once i get money haha.

Pictures will be up soon.

For those interested in doing this:

What you need:
Wood, enough to make the the enclosure, panels, and supports.
An amp
Hardware (handle(s), corners, and rubber feet)
Access to some sort of saw.
Stain or tolex.
Black Paint.
Wood Screws.
Drill bit slightly smaller than your wood screws.
Wood filer or putty. (if preferred)

First, Take the amp out of it's original enclosure. Measure, measure again, and measure again. You want to give it enough room to be able to slide in easily but you don't want any bad gaps. You want enough room to be able to remove the tubes, so make sure the height you choose will allow for this.

Second, Make all the pieces.

Third, This is very important for making it right. Take the two sides, and glue them to the Top piece. Leave the bottom piece out for now.

Fourth, Once you've glued the sides to the top, it's time to mount the amp. All amps are different how they are mounted, depending on if they are top mount or bottom mount. Mine was top mount so that is why i glued the sides to the top. Now place the amp in the enclosure, and line it up how you want it. Now some people will have enough room just to drill through, I didn't. What i did, was take four nails, and tap them in the wood a little bit through the other side of the amp. Then i removed the nails and the amp, and drilled a hole where the puncture was made from the nail.

Fifth, Glue the bottom to the sides. Line it up and glue.

Sixth, Sand, Sand everything flush and nice. IF YOU WANT TO ROUND THE CORNERS, OR EDGES, HERE IS THE TIME. Round your corners either by hand, or with a palm sander.

Seventh, Screw the wood screws in. Pre drill the holes (not to close to the side because this will affect your edges.) Use a counter sink bit to counter sink the screws a little. Then place your Screws in, If you don't want your screws to show, get some wood filler or putty and put it over the screw.

Eighth, Tolex or stain. Tolex is quite expensive, but if you go to joann fabric and get vinyl it's only about 12 bucks a yard. If you don't have experience with tolexing, research it and practice on pieces. For Staining, use 220 sandpaper to get it nice and smooth, then stain.

Ninth, Paint the inside black. You do this so if you do have any gaps, they won't show through.

Tenth, Install the handle and rubber feet.

Eleventh, Put the amp in, and the panels.

If you Choose to you can cover the panel with grill cloth.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


Last edited by gtr_101 at Jan 18, 2009,
gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#4
Quote by LP Addict
i would build that out of a hard wood, pine is real weak to carry such a heavy load, and also a fragile one.


Well, I got the wood for 5 bucks, so i can't really complain. And I will be putting supports in made of much better wood (scraps from my schools wood shop.)

Also the amp doesnt really weigh that much so it should be fine.

Thanks for the input though.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


Raijouta
Actually called Dylan
Join date: Mar 2008
991 IQ
#5
Good luck, man. I wonder how much it'll weigh when it's done? I might consider this mod for the future...
Quote by DeathByDestroyr
What the hell is a G&L.



Quote by Flux'D
Gay & Lesbian I think, the box smelled funny
Greg what did you send me??
conor1148
Rhythm and jump.
Join date: Nov 2008
1,356 IQ
#6
i would love to start a cab build once i had the money,


anyways, good luck with yours!


is it just me or do we never see finished cabs posted?
Official Aspie member

ANOUNCEMENT: Weird misspellings or words that make no sense? there was a good chance this was sent from my Droid 2 phone.
Quote by SinisterStrieth
.. You are the man.

RIP Dime RIP Michael Jackson
oneblackened
Better Than You At Mixing
Join date: Oct 2007
3,210 IQ
#7
Um... Lp, cabs are usually made of either MDF or Plywood (Birch or otherwise).
Current Gear:
LTD MH-400
PRS SE Custom 24 (BKP C-Bomb/VHII)
ESP Horizon NT-7 (SD Full Shreds)
UA Apollo Twin Duo
Peavey Revalver 4, UAD Friedman BE100/DS40
Focal Alpha 65 monitors
Quote by Anonden
You CAN play anything with anything....but some guitars sound right for some things, and not for others. Single coils sound retarded for metal, though those who are apeshit about harpsichord probably beg to differ.
420 FREAK
Registered User
Join date: Jan 2007
3,342 IQ
#8
Pine is fine it's not too weak, don't worry about it.
gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#10
Quote by guitar-godfrey
sorry to hijack thread but if i have a combo then take the output wires and wired them to a jack correctly could it then connect to a cab? like converting a combo into a small cab and head?


yes you can.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#11
Quote by Raijouta
Good luck, man. I wonder how much it'll weigh when it's done? I might consider this mod for the future...


Probably Around 30 pounds, considering the VK by itself is about 42 pounds, minus the speaker and like 11 inches of wood on both sides.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


ethan_hanus
The BKP Guy
Join date: Nov 2008
5,267 IQ
#12
Quote by gtr_101
Well, I got the wood for 5 bucks, so i can't really complain. And I will be putting supports in made of much better wood (scraps from my schools wood shop.)

Also the amp doesnt really weigh that much so it should be fine.

Thanks for the input though.



well considering the amount of money your going to put into the speakers i would just buy better quality wood to build it with, trust me, you will appreaciate it in the long run.

what type of speakers are you using, and how many?2-4, possibly 6, 6 would be cool.

wait you can only put one in there, nvm. but mdf would be better wood.
Last edited by ethan_hanus at Jan 4, 2009,
gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#13
Quote by ethan_hanus
well considering the amount of money your going to put into the speakers i would just buy better quality wood to build it with, trust me, you will appreaciate it in the long run.

what type of speakers are you using, and how many?2-4, possibly 6, 6 would be cool.

wait you can only put one in there, nvm. but mdf would be better wood.


Im not making a speaker cabinet, im making an enclosure to hold the valveking as a head...

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


420 FREAK
Registered User
Join date: Jan 2007
3,342 IQ
#14
Quote by ethan_hanus
well considering the amount of money your going to put into the speakers i would just buy better quality wood to build it with, trust me, you will appreaciate it in the long run.

what type of speakers are you using, and how many?2-4, possibly 6, 6 would be cool.

wait you can only put one in there, nvm. but mdf would be better wood.

He's not doing a speaker cab and if he was pine is the better wood to use. Pine is great for guitars and speaker cabs the problem is it dents easy so guitars are rarely made out of it and fender uses it for cabs.
jimRH7
bringing the thunder
Join date: Jan 2008
1,065 IQ
#17
pine should be fine, they make beds and chairs and **** out of it.

how will you join it? If it was me I'd use finger joints, but I've never built anything like this before. is there any danger heat from valves can melt glue I wonder...?
ethan_hanus
The BKP Guy
Join date: Nov 2008
5,267 IQ
#18
Quote by gtr_101
Im not making a speaker cabinet, im making an enclosure to hold the valveking as a head...


ohhhh, my bad, i totally read it wrong. you said cabinet so i thought speaker cabiniet, if your just going to enclose the valveking then pine is a very good choice.
hope it works out. building a halfstack speaker cabiniet would be a cool project though. i might build one, and use your idea as a valveking as a head.
gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#19
Okay guys, i cut the top and bottom to size today. No pics because some stupid kid in my woodshop class hit my arm while i was taking a pic and broke my camera... so hopefully i can borrow my brothers and get you guys pics tomorrow.

But for now, I built a pedalboard today.

https://www.ultimate-guitar.com/forum/showthread.php?p=18002668#post18002668

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#21
anyone know where to get cheap tolex? im just looking for black, marshall style.

Also need cheap grill cloth, again black.... help?

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#22
Got all the peices cut today, took it home to glue the sides and mount the amp

PICS!

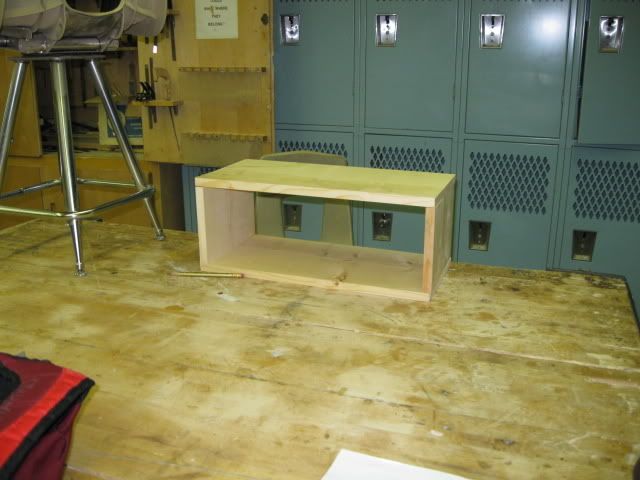

Just put everything together to see if it all lined up.

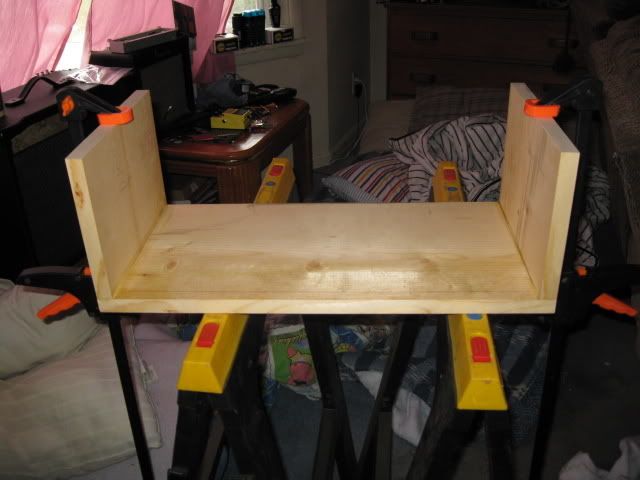

The Sides glued to the top.

Should have the amp mounted later tonight, then i will glue the bottom on, and sand.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


SVStee
Registered User
Join date: Jan 2008
1,562 IQ
#23
Looking good, keep it up!
And I'm sorry to you have to suffer with the same clamps I have...
Epiphone Valve Junior
Peavy Windsor Head
Ampeg J-12T
1959 Harmony H400A
Randall Pro-Tube 2000

Gibson Faded Special SG
Homemade superstrat with EMG 81
Peavy Tracer
Washburn XB600 6-string bass
Enough pedals to crush a rhino
gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#24
Thanks man, Those are just clamps my school let me borrow, their not that bad, just really sensitive haha.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#25

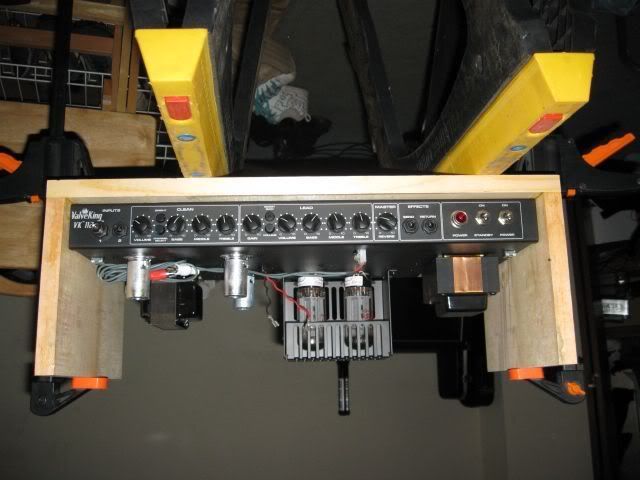

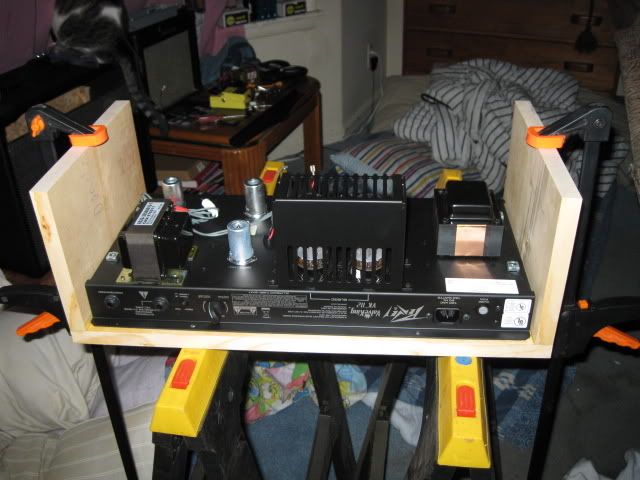

Amp set in, ready to mount, just have to find a bit long enough to go through the valveking and the wood.



Tried to get the best shot, and then rotated it.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#29
311- Thanks man! And i got some sites on tolex and im pretty sure i can do it.

Guitar godfred- I know! LOL, The speaker is still in the original combo, and that will be turned in to a 1x12 cab.

Update!:

So last night when mounting the amp i messed up a litttle, and drilled 2 of the holes wrong, nothing wood filler can't fix, but still very frustrating.

Today:

Glue bottom to sides/top.
Make panels for front grill, and for back.
Cut the middle out of the front grill to allow airflow.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


guitar-godfrey
Registered User
Join date: Apr 2008
311 IQ
#30
i think im doing the same thing as you lol a few days ago i thought about turning my jixing piece of s**thole amp into a half stack now the "head" is encased by lego and the original casing is gonna get sawed down good luck with the rest of yours
gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#31

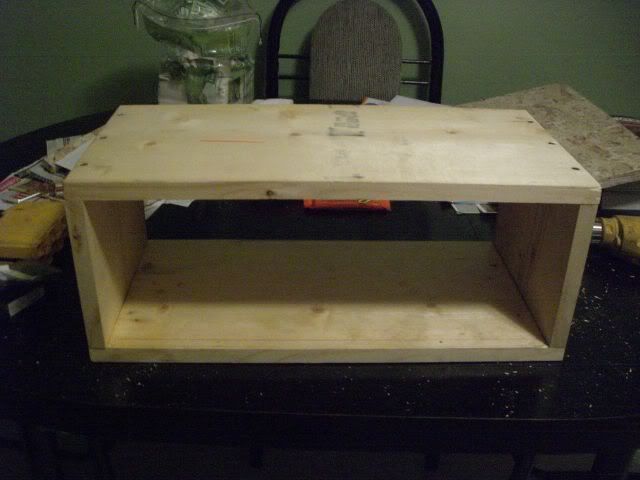

Got the enclosure glued and screwed together, next step sanding.

Also, didn't make the panels today, ran out of time.

Tomorrow hopefully.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


hans the lefty
UGs resident Dislexic
Join date: Jul 2006
213 IQ
#32
that is some week ass joint i would have done rebaits or through housings

EDIT: SORRY didnt see the screws but put some glue block in side it
jackson dk2 2008
hamer xt sunburst qt
epiphone g400
peavey vk212
morley p wah
behringer pb1000
dige bm
big muff ny
behringer dc 9 comp
member of the Jackson/Charvel Owners Club

£8.50/58fund for a ROCKTRON HUSH SUPER C PEDAL
Last edited by hans the lefty at Jan 7, 2009,
gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#33
They will work just fine for what im doing, plus, theirs no room in the corners because the amp takes up all the room.

EDIT: Haha, yeah after i mount the amp i will place a peice of wood on the sidewall that the amp will "sit" on.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


Last edited by gtr_101 at Jan 7, 2009,
gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#35

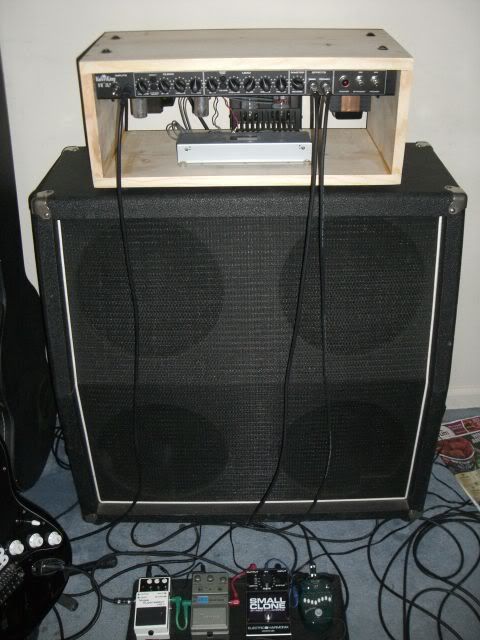

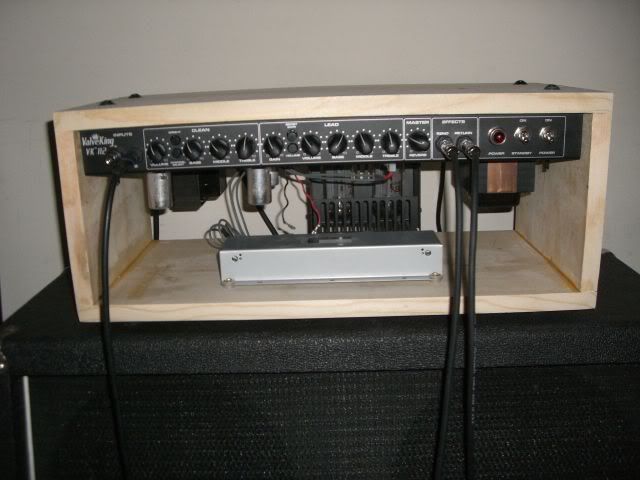

Got it sanded, and mounted, tomorrow i will make the panels, and stuff. I have to wait until i get money to get tolex, a handle, corners, and grill cloth.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


Raijouta
Actually called Dylan
Join date: Mar 2008
991 IQ
#36
Very nice man, although I'm sure the actual VK looks kinda weird with the amp missing.
Quote by DeathByDestroyr
What the hell is a G&L.



Quote by Flux'D
Gay & Lesbian I think, the box smelled funny
Greg what did you send me??
gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#37
thanks Raijouta, yeah they vk looks a bit odd, but im going to seal it off and it will be a 1x12 cabinet.

Epiphone Les Paul Standard
Coming soon: Egnater Tweaker


gtr_101
VK Enthusiast
Join date: Feb 2008
2,097 IQ
#40
311- When i dis assemble it to put tolex on i'll get some mor pics of the chassis, and when i close off the back of the 1x12, i'll show you guys how i do that to.

guitar-godfrey- It is a fender mexican strat
