I'm making a new footswitch for my Peavey ValveKing, and have all the components I need. I'm pretty confident on most aspects, but I'm not so sure on the wiring for the stereo jack.

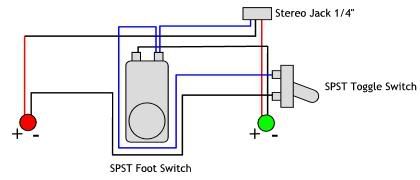

Here's a diagram of the curcuit I'm building - I basically copied the circuit from the current VK switch. I know this seems pointless, but I have my reasons!



Can anyone identify which leads should attach to the Tip, Ring and Sleeve on the jack socket?
