I've already got a frankenstrat and I painted my bass like the bumblebee and then reliced it to hell and back twice.

So now I'm gonna try my hand at building a guitar.

I love van halen so the next choice for a guitar came to the shark or the 5150. The 5150 won because it's alot simpler than the shark.


So today I went to the hardwood store(no lumber yards around here carry thicker than 1 inch) and I bought a 1 3/4 thick 8 inches wide and about 2 feet long board of poplar for 15 bucks.
What would be the best way to glue it?

Part of the guitar plan hangs over the side.



I'm going to cut off the chunk at the end and glue it onto the side where the body hangs off the piece of wood. Should I face the grain the same way or does it matter seeing as the piece is not under tension?
Last edited by pk1802 at Feb 11, 2009,
#2
Personally, a Shark-esque wouldv been awesome. Like same shape and paint and everything, just not with all the extras he put on it, like the eye screws and stuff. And what about the Zebra, the guitar on the first VH album cover? I havent seen too many, if anyone, do that one.
#4
There is a book also called : Make your own 5150.
Its about the same guitar you are making. It goes thru everything starting with the paint. Does not show how to cut wood and all that, but its excellent for painting tips and things...

I can get it for u....pm me if interested
#5
Thanks for the response guys.

I was thinking about doing a black and white vh1 guitar, but I wanted to do a pretty close to realistic replica and the vh1 doesn't have a floyd rose and that's one thing I really want with my next guitar.

Thanks for letting me know about the pics, I have a lot too.

As for the book, i've seen it but i'm a member of a vanhalen fan site and the amount of replicas on that forum is amazing. I'm getting all my tips and tricks from there. But if you have the book from cheap to free i'd be interested.
Last edited by pk1802 at Feb 11, 2009,
#6
Progress

I've cut and glued the pieces together to make a blank big enough for the plans.

I took some pics of the glueing process so you guys can give my constructive criticism on all the things I did wrong.

Here is a pic of me tracing the plans onto the wood.

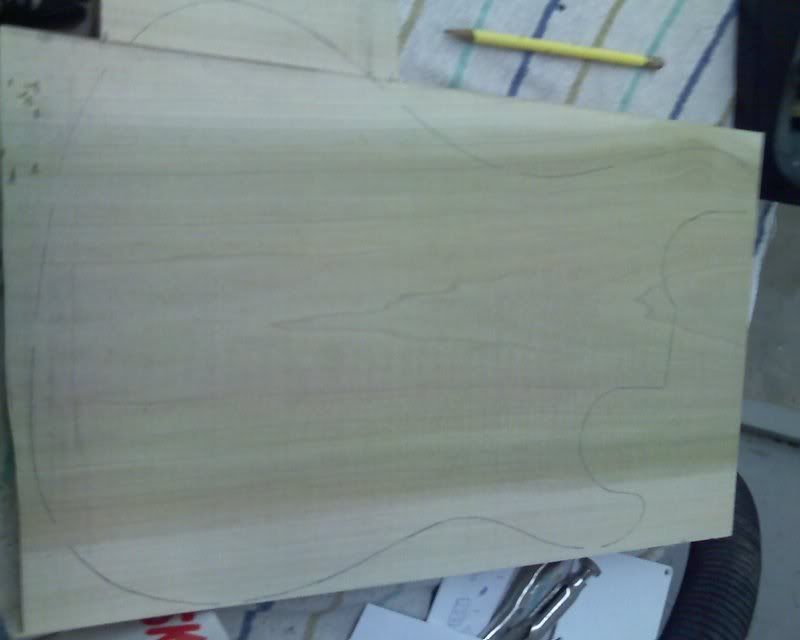

Then plans on the wood, you can see the pencil if you look hard enough.

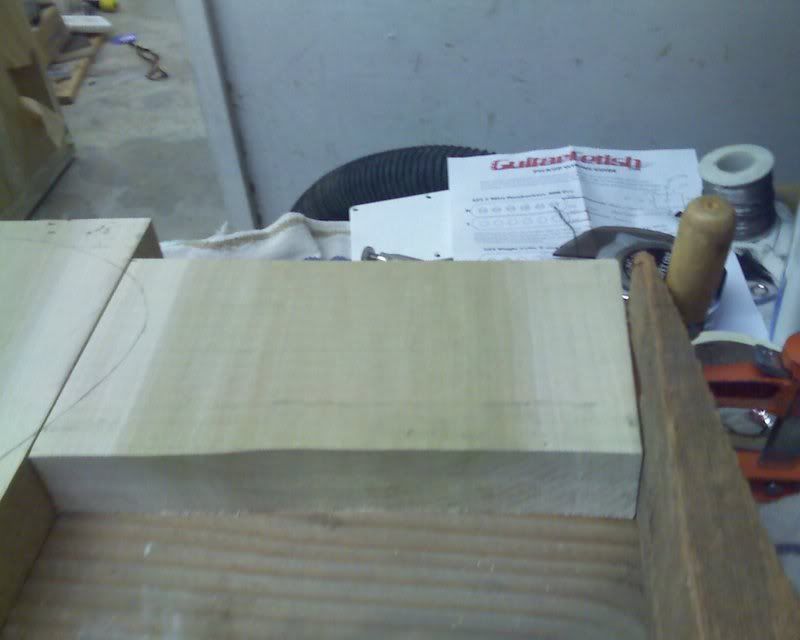

A demo run of my brilliant clamping system. (stick the wood between clamps and then jam a wedge in there to keep everything tight)


Spreading the glue: Tightbond II. I'd like to thank starbucks for my spreading tool.


I made an oops, I realised shortly after this pic that the excess glue on the bottom is going to glue all 3 pieces of wood together.


So I stuck some wax paper between the bottom piece of wood and my guitar body wood. I know that it will stick but I hope that it will just be wax paper that I have to sand away.



That's it for today, tomorrow when the glue is dry i'm going to start cutting the body out.
