#1
THIS PROJECT IS A WORK IN PROGRESS
and as so ill be updated as i get the parts for the build

-UPDATES-
changed parts list

well to start out im begining my first guitar project

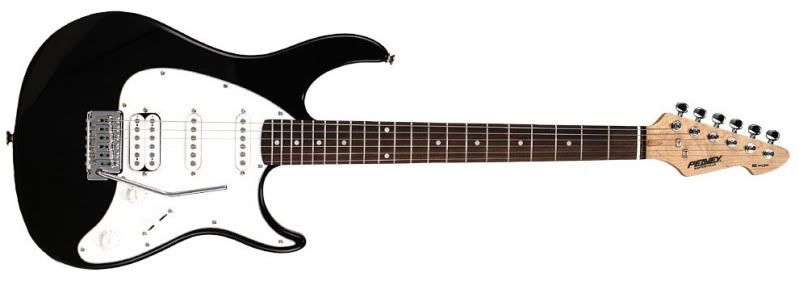

the guitar im using is an old peavey raptor plus exp


planed design / parts list
Cross Fret Markers(Red) - 7.62 http://inlaystickers.ocnk.net/product/278

EMG Select Pickup for Strat – 22.05

Dream 90 Humbucker Sized P90 – 32.95

Schaller Strap Locks, Pair, Black - 17.25 -+ 1.00

Electrosocket with Switchcraft Jack, Black - 12.00 +- 1.00

Ball-End Hex Keys metric - 8.58

Sprague Orange Drop Tone Caps- .047uf for Strat/Tele 3.95

Full Sized 250K Audio Pot – x2 – 2.45

Black Tophat Real Pearl( set of two ) – 12.95

Double Pole ON/ON/ON Mini Toggle Switch w/ Flat Handle-Black – 12.95

"Made in Mexico" Import UPGRADE Trem Black complete kit – 39.95

Upgrade Stainless Steel Saddles- Fits Trems- Set of Six – 11.95

Metal Mounting Rings for Single-coil Pickups black – 13.52

Flat Metal Mounting Ring for humbucker black – 10.95

213.57


Design
for the body a dark metallic orange
and possibly the headstock as well
custom vinyl inlays http://inlaystickers.ocnk.net/product/278
w/ frets 18 to 21 scalloped ( for those of you that don't know what i mean by " scalloped" go here https://www.ultimate-guitar.com/forum/showthread.php?t=1059109 )

BUILD PROGRESS


sanded down the body, took about 30ish hours to do (by Hand) <-- total pain in the a$$

*pics* (the first two are from before i sanded down the sides)

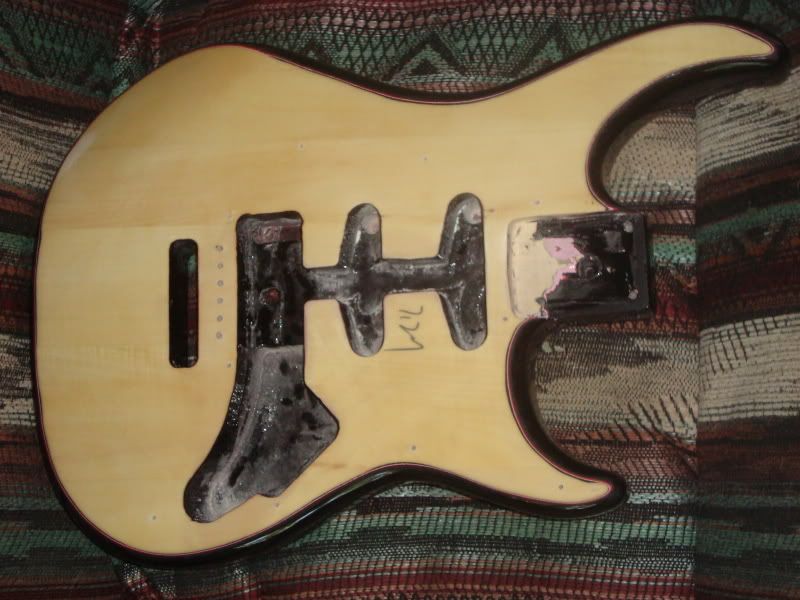

the front

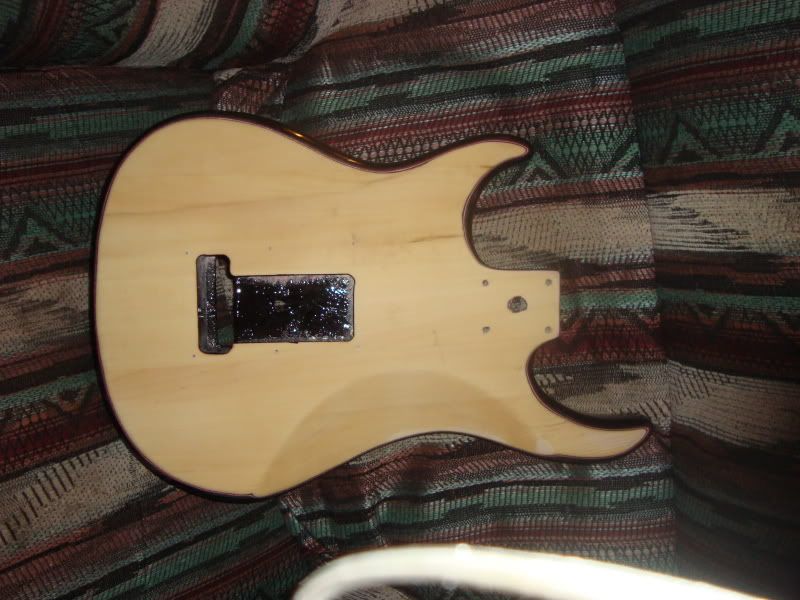

the back

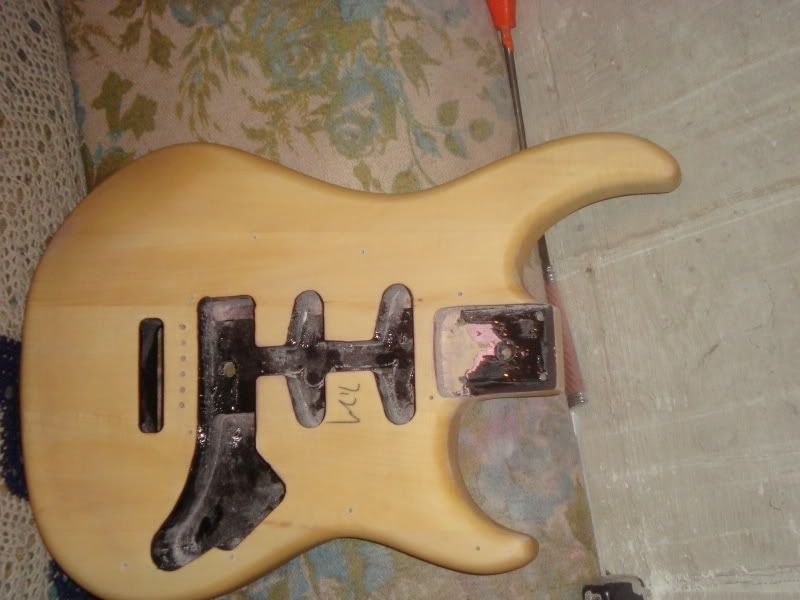

the entire thing sanded to the wood
That’s how we’ll know. This is not a test, oh no
This is cardiac arrest


Of a world too proud to admit our mistakes
We're crashing into the ground as all fall from grace
Last edited by Demonic82 at Aug 18, 2009,
#2
so ur not done yet?

You love me.
Accept it.

Another "My Gear Sig":
Guitars
'07 Fender Strat Highway One Model
Taylor 214ce
Amps
Egnater Rebel 20
Egnater Rebel 112X
Fender Frontman 15 Watt
Other Stuff
Like 6 Monster Cables
Digitech RP350
#4
wow good wood. looks nice.

i wonder how that select pup sounds. If it's at least ok, say so. I might buy one or two.
Jackson RR5 ivory w/ EMG 81/85
Jackson DX6 w/ SD Distortion & Dimarzio Super Distortion
Fender Starcaster Sunburst
Mesa/Boogie DC-3
Johnson JT50 Mirage
Ibanez TS-9
Morley Bad Horsie 2
Boss CE-5

ISP Decimator
Boss DD-6
Korg Pitchblack
#5
Quote by GuitarGod9876
so ur not done yet?


How'd you figure?


Looks good TS.
Quote by letsgocoyote
No I'm not Jesus. I would aspire to be though. I think under circumstances he would let you pay less if you needed to.
#6
I like the plan so far, plus I'm curious about that Super Vee. They look pretty solid, but I don't want to shill out that much just to try one.
R.I.P. Les Paul, 1915-2009

A man chooses, a slave obeys.
#7
Quote by bv310
I like the plan so far, plus I'm curious about that Super Vee. They look pretty solid, but I don't want to shill out that much just to try one.

hm it's basically just a floyd type thing for people who don't want to route for a floyd or for people who don't like the looks of a floyd. interesting. so expensive though. OFR's are cheaper.
Jackson RR5 ivory w/ EMG 81/85
Jackson DX6 w/ SD Distortion & Dimarzio Super Distortion
Fender Starcaster Sunburst
Mesa/Boogie DC-3
Johnson JT50 Mirage
Ibanez TS-9
Morley Bad Horsie 2
Boss CE-5

ISP Decimator
Boss DD-6
Korg Pitchblack
#8
Quote by apak
hm it's basically just a floyd type thing for people who don't want to route for a floyd or for people who don't like the looks of a floyd. interesting. so expensive though. OFR's are cheaper.

yea OFR's are cheaper but i don't have / have access to the tools to route out the space for an OFR
That’s how we’ll know. This is not a test, oh no
This is cardiac arrest


Of a world too proud to admit our mistakes
We're crashing into the ground as all fall from grace
#9
Quote by bv310
I like the plan so far, plus I'm curious about that Super Vee. They look pretty solid, but I don't want to shill out that much just to try one.

if you look i think they might have a few videos of the super Vee on their website
http://www.super-vee.com/videos.html
That’s how we’ll know. This is not a test, oh no
This is cardiac arrest


Of a world too proud to admit our mistakes
We're crashing into the ground as all fall from grace
#10
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
#11
Quote by BGSM
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.
thirty Hours To Sand The Body.


only because i did it by hand
That’s how we’ll know. This is not a test, oh no
This is cardiac arrest


Of a world too proud to admit our mistakes
We're crashing into the ground as all fall from grace
#13
Quote by R74NOGRADY
That's what she said!

sorry... i had to! Anyways, it's looking awesome, i'll keep an eye on this.
I used to have the sunburst version of that guitar.

i wish i had that guitar the finish would of been easier to strip
mine was like 5 layers instead of like 2 that are on the sunburst model
That’s how we’ll know. This is not a test, oh no
This is cardiac arrest


Of a world too proud to admit our mistakes
We're crashing into the ground as all fall from grace
#14
The Super Vees are quite nice. Maybe not worth the coin, but if you don't want to go full on Floyd, it seems like a nice option.

I've only seen one in use once, and the guy wasn't even using the trem. I asked him about it, and he said he just liked it because it gave him that "zero fret" sound, and he really likes the fine tuners at the bridge. He had it blocked.
#15
Quote by Rutch
The Super Vees are quite nice. Maybe not worth the coin, but if you don't want to go full on Floyd, it seems like a nice option.

I've only seen one in use once, and the guy wasn't even using the trem. I asked him about it, and he said he just liked it because it gave him that "zero fret" sound, and he really likes the fine tuners at the bridge. He had it blocked.

when i finish the project I'll post links to some vids of me testing out the trem although that wont be for like 3-5 months
That’s how we’ll know. This is not a test, oh no
This is cardiac arrest


Of a world too proud to admit our mistakes
We're crashing into the ground as all fall from grace
#16
Your using an active EMG and a passive one?
Also, please don't get EMG selects... they are bad.
Quote by brandooon
Buy both pickups. Rub icyhot on both of them. Sandwich your penis between them and walk to the nearest homeless shelter with your brand new icyhot penis sandwich.
#17
Quote by Woogles
Your using an active EMG and a passive one?
Also, please don't get EMG selects... they are bad.

1) what are you talking about im not using any active pickups?
2) dont ' diss my pickup choices. ill test the emg select pup myself
That’s how we’ll know. This is not a test, oh no
This is cardiac arrest


Of a world too proud to admit our mistakes
We're crashing into the ground as all fall from grace
#18
Quote by Woogles
Your using an active EMG and a passive one?
Also, please don't get EMG selects... they are bad.


"Please don't get EMG selects"?

Jesus, man, he's not building that guitar for YOU. He can choose whatever pickups he wants. You could have said you didn't recommend them - not "please don't use them".

Gaah, it p*sses me off when people do that...

Anyway. Peavey Raptor, eh? I like the way it looks... I like it a lot. In Surf Green, that stock one up there would be orgasmic. Although I'm sure your modded one will be better

Will be keeping an eye on this build
#19
well i finally got around to drawing up a wiring diagram
btw can anybody tell me if it looks like the wiring will work
That’s how we’ll know. This is not a test, oh no
This is cardiac arrest


Of a world too proud to admit our mistakes
We're crashing into the ground as all fall from grace
#20
Jesus, my head kind of exploded trying to figure out that diagram. and I still don't quite understand it.

So I'm guessing it won't work. =S

Try this instead of that diagram:

The NF and SF wires, solder them together.
The NS feed into lug 1 of the switch.
The SS feed into lug 3 of the switch.
The HB Ground, ground to pot case.
Lug 2 of the switch feed into the lug 6 of the pot.
Lug 6 of the pot, feed into Lug 1 of the pot.
Lug 4 of the pot, ground to pot case.
Lug 2 of the pot, feed into cap and then ground to pot case.
Lug 5 of the pot, feed into the output jack - hot.
Output jack - ground, ground to pot case.
Pot case, ground to bridge.

That makes more sense to me, but I'd wait for someone more experianced to confirm/correct what I've said before doing it.
GENERATION 11: The first time you see this, copy it into your sig on any forum and add 1 to the generation. Social experiment.
#21

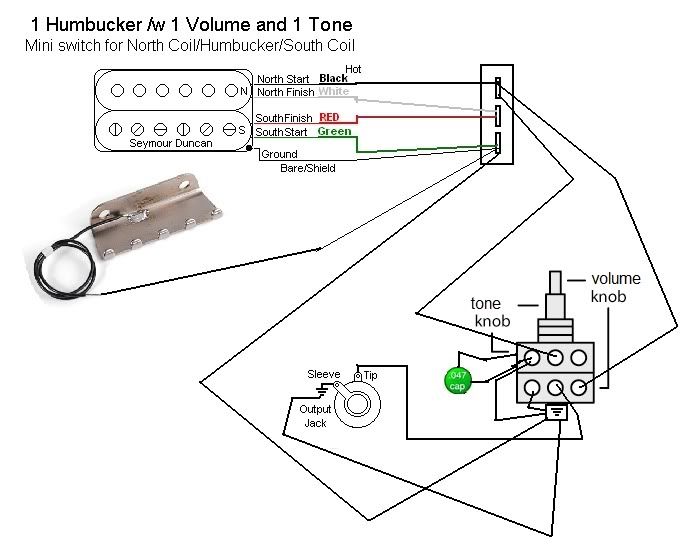

its based off of this but i had to rearranged it to be on the concentric pot

That’s how we’ll know. This is not a test, oh no
This is cardiac arrest


Of a world too proud to admit our mistakes
We're crashing into the ground as all fall from grace
#22
Wait, I thought you were using two pickups?
Gear:
Schecter Hellraiser Deluxe
Boss DS-1
Crate GTD65

GAS List:
Mesa Boogie Dual Rectifier Roadster
#23
Quote by asfastasdark
Wait, I thought you were using two pickups?

actually since i posted this that parts list has had a major over haul
