Hey there!




This is my Telecaster Customization thread, I'm going to upload a selection of pictures and explain my thinking behind my modifications I'm making to my Telecaster. There wont be any sick new paint jobs or chaos pads being installed, also there wont be any top quality work being undertaken... after all this is me!

This is my 2002 Mexican Fender Telecaster with the limited run lake placid blue finish. This guitar really is "Ole Reliable". It's scratched, dented and dirty but it always keeps going and for a Mexican it doesn't sound bad either!

Pre-project Stats:
Bridge pickup - Fender Standard Pickup.
Neck pickup - Seymour Duncan Quarter Pounder.
Standard Hardware, pickguard, switches, pots and everything else.



Post-project Stats
Bridge pickup - Iron Gear Steel Twin
Neck pickup - Iron Gear Steam Hammer
Graphite nut
All New Electronics
New pickguard

My basic design brief for this small project was:

1. New bridge pickup to be installed.

2. New Scratch plate.

3. Install a Humbucker in the middle position, including routing.

4. New Nut.

5. Do all of this for as little money as possible yet create an awesome finished product that sounds great!



1. New Bridge Pickup.

As of today I have Completed stage one of my design brief. I have purchased a stacked single coil pickup made by IronGear called an "Iron Twin". - Click Here.

The installation didn't take long, the only problem I encountered was that the pickup was a different polarity to my current neck pickup which is a Seymour Duncan Quarter Pounder. After a quick switch around with the earth and live wires it was working fine and sounding great. This pickup has some serious hot balls!
DC Resistance: 16.1kOhm

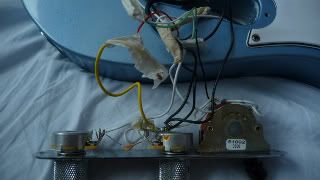

As I aforementioned don't expect any high quality work to be carried out! I'm one of those people who can bodge anything given enough tape and a soldering iron. Usually because they're the only things I have to hand and yet it still works fine and I get no more buzz, etc. than anyone else. Example this is my wiring job -

Yeah, now you're gonna die wearing that stupid little hat. How does it feel?

Help me to live.


I make custom guitar wiring harnesses and I'm pretty damn good at it!
Last edited by flyingmarlin at Nov 23, 2009,
#2
2. This is my new electronics plan:





The Humbucker has Arrived!
- Iron Gear Steam Hammer





I've also drawn roughly where the recess is going:



The Cavity has been routed. I'm just waiting for the Pick guard now!



A new pickguard was needed due to the crappy job that The Aurora project did with my order. So I ordered a new, different one from the folks at www.axesrus.com (They are brilliant, free postage on anything in UK).

UPDATE
All of my electrical components and the new pickguard have arrived!

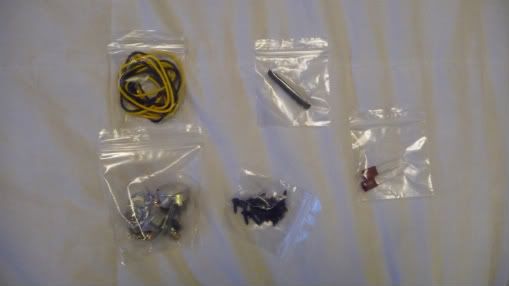

From left to right: Wax-Cloth Wire, Graphite Nut, New CTS 500k Pots, Pickguard Screws, Capacitors.
Yeah, now you're gonna die wearing that stupid little hat. How does it feel?

Help me to live.


I make custom guitar wiring harnesses and I'm pretty damn good at it!
Last edited by flyingmarlin at Nov 25, 2009,
#3
It's Finished!

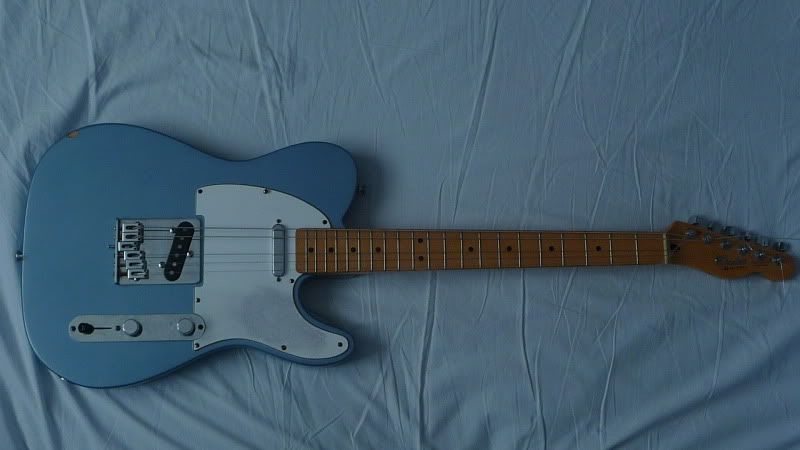

The original plan:

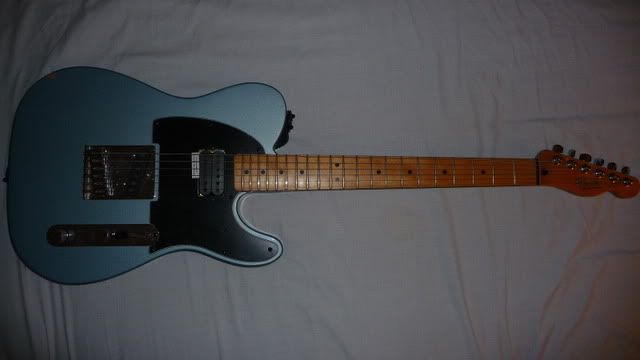

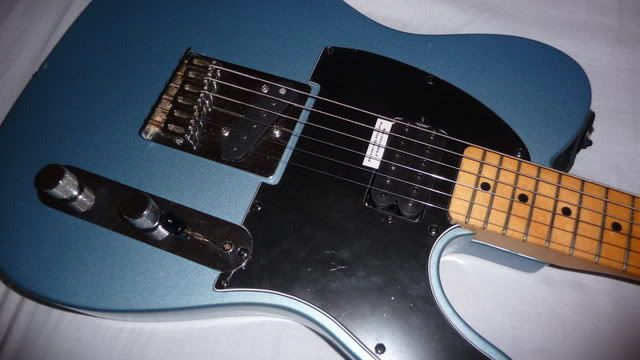

The finished product:
