I've got several new guitars on the bench, one of which is the Space Invaders themed guitar (which I'm covering in a different thread). In this thread I'll be posting progress pics of a new quilt top C6 neck thru that's going to get a bright orange dye job and a gloss nitro finish.

Specs:

Maple / mahogany / wenge / mahogany / maple thru neck
Mahogany body wings
Quilt maple top & headstock cap
Seymour Duncan P-Rails pickups (cream)
Hipshot Hardtail bridge (chrome)
Sperzel locking tuners (chrome)

Here is the neck blank about to be glued up (the one in the middle)

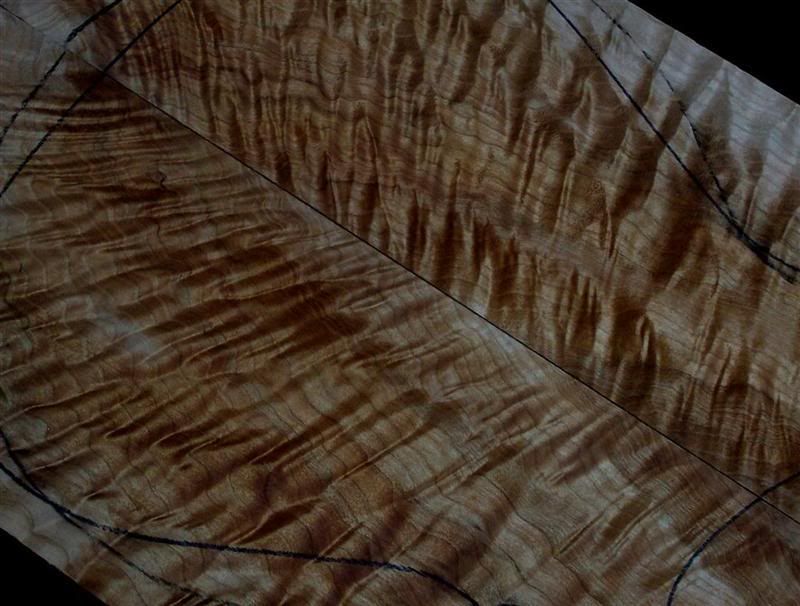

And the top, dampened with mineral spirits in this shot:

#4
I like it, now you are doing it so you can still see the grain, but it would look orange and be glossy, how are you doing that, because I'd like to do that in green. I ask because I've heard of people doing a tinted lacquer to "preserve the grain" or something like that, which I don't know what it is exactly.


████████████
████████████








RBY CYOA
#5
I came all over the place as soon my wood saw your wood....
Quote by EchoxOath
SG has officially won this thread.
Quote by RazorTheAwesome
there are no words to describe how truly epic this is.


Quote by SGstriker
I think you win the award for the coolest member of '08
#6
Quote by MonkeyLink07
I like it, now you are doing it so you can still see the grain, but it would look orange and be glossy, how are you doing that, because I'd like to do that in green. I ask because I've heard of people doing a tinted lacquer to "preserve the grain" or something like that, which I don't know what it is exactly.



I'm using a wipe on dye. It brings out the figuring, it doesn't obscure it.
#7
Very nice so far. Awesome top wood.

I'm assuming your usual body shape?
build 1, finished 1/15/11

Every time I try to pick it up like falling sand,
As fast as I pick it up,
it runs away through my clutching hands.
There's nothing else I can really do...
#8
That is some sexy maple.

Can't wait to see progress

EDIT: ^ Will has the models on his website.
This is the one:
Last edited by guitarcam123 at Jan 10, 2010,
#9
I nearly nutted when I saw the prices for these. A custom guitar that is affordable. You are teh shizz Will.
#10
I jizzed.

Wil, whats the difference between dampening the wood with mineral spirits to show the grain as opposed to water?
And what is mineral spirits?


Quote by Saint78
Jackal is like 90.

Quote by Jackal58
Buy stock in Viagra. Imma gonna fuck you in the ass.
#12
Water will raise the grain, and warp thin wood.

Cant wait for this guitar, your stuff is awesome!




Quote by dogismycopilot
Absent Mind, words cant express how much i love you. Id bone you, oh yea.

Quote by lumberjack
Absent Mind is, as usual, completely correct.

Quote by littlemurph7976
Id like to make my love for Neil public knowledge as he is a beautiful man
#13
Quote by guitarcam123
That is some sexy maple.

Can't wait to see progress

EDIT: ^ Will has the models on his website....


Thanks!


And actually, it's a C6 Signature based on the website info, and of course it's going to be a carve top. It's a 5/8" slab of maple.
#14
Quote by Scowmoo
I jizzed.

Wil, whats the difference between dampening the wood with mineral spirits to show the grain as opposed to water?
And what is mineral spirits?



Absent Mind said it, mineral spirits is a solvent and doesn't raise the grain. It evaporates almost instantly.

You can't be too careful with your wood.
#15
Oh sht.
That would explain why my flamed top got all bumpy when I dampened it.
I just evaporated that shit with a blow dryer

Need to get me some mineral spirits now.. how much does it cost about?


Quote by Saint78
Jackal is like 90.

Quote by Jackal58
Buy stock in Viagra. Imma gonna fuck you in the ass.
#16
A couple bucks for a bottle.
Just call me Bobby
Member of the official GB&C "Who to Listen to" list
Quote by mikeyElite
you build guitars worthy of sexual favors

Quote by Invader Jim
if this party gets any livelier a funeral is gonna break out.
#17

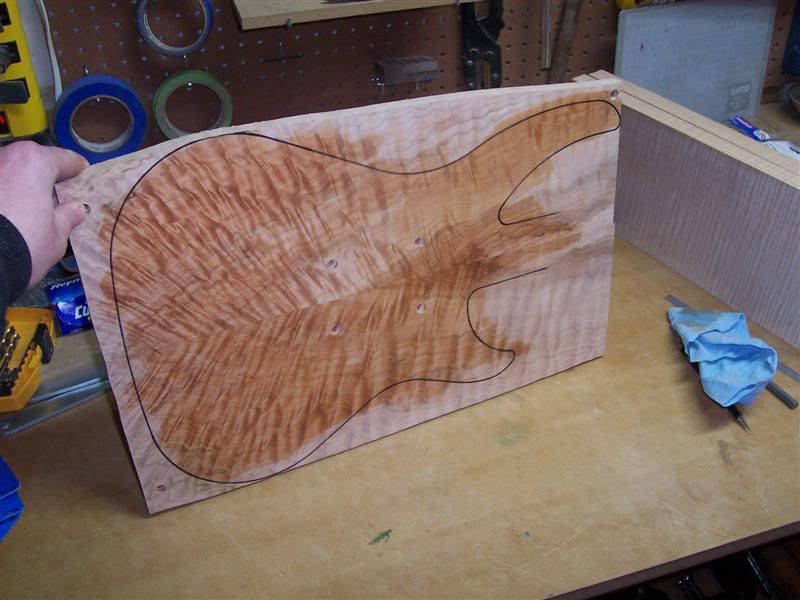

The top after flattening it out, gluing it up and machining it smooth. It's 5/8" final thickness.

Looks a little blotchy because I just wiped some mineral spirits across it real fast.

#18
Looks good... I like how the quilt is angled backwards, not just straight like it usually is, if that makes sense
Impossible is Nothing
#19
I wish there was a way to have all your threads automatically stickied for me. Looking forward to the build, that figure is intense!
Chain:
Fingers -> Schecter Damien FR -> Fulltone OCD -> ABY Box -> Bugera V22 / Peavey 6505+
#21
^I think he meant that he wants all Will's threads to be automatically stickied upon creation. I'd lean towards that too...
#23
i believe i saw in one of his previous threads, that he uses those to screw it into the main piece of the body when gluing the top on. Then of course he takes the screws out, and the holes are where the pups will be routed out anyway.
Douglas Spad with EMG 81x's
Epiphone LP jr. with EMG 89 split coil, alot of upgrades
Rig:
Power conditioner, Hush, ART Quadra/FX Reverb (all 3 in a rack), Peavey XXX, 2 Mesa 4x12 cabs.
#24
Quote by sk8freakrt
i believe i saw in one of his previous threads, that he uses those to screw it into the main piece of the body when gluing the top on. Then of course he takes the screws out, and the holes are where the pups will be routed out anyway.


that's plain genius
#25
Quote by sk8freakrt
i believe i saw in one of his previous threads, that he uses those to screw it into the main piece of the body when gluing the top on. Then of course he takes the screws out, and the holes are where the pups will be routed out anyway.



Yeah, that's it.

I also use the holes to fix the top to my router levelling jig to flatten boards that are a little warped. This was one of those tops.
#26
This one is in line after the space invaders guitar - but most of the parts are shaped up. I hope to be a lot further along in the next couple weeks.

#27

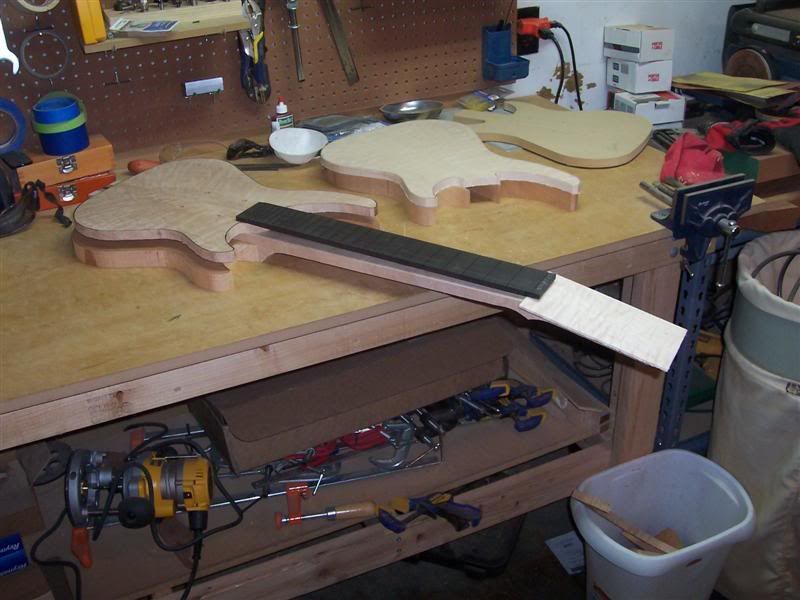

I'm actually building 2 very similar guitars right now, and since I'm working on them at the same time, I guess I'll post pics of them both.

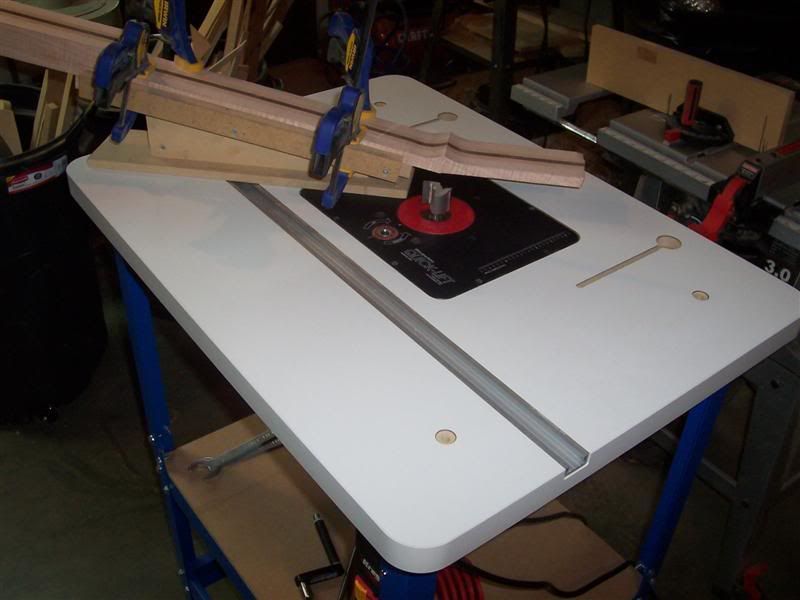

Here's my headstock flattening jig:

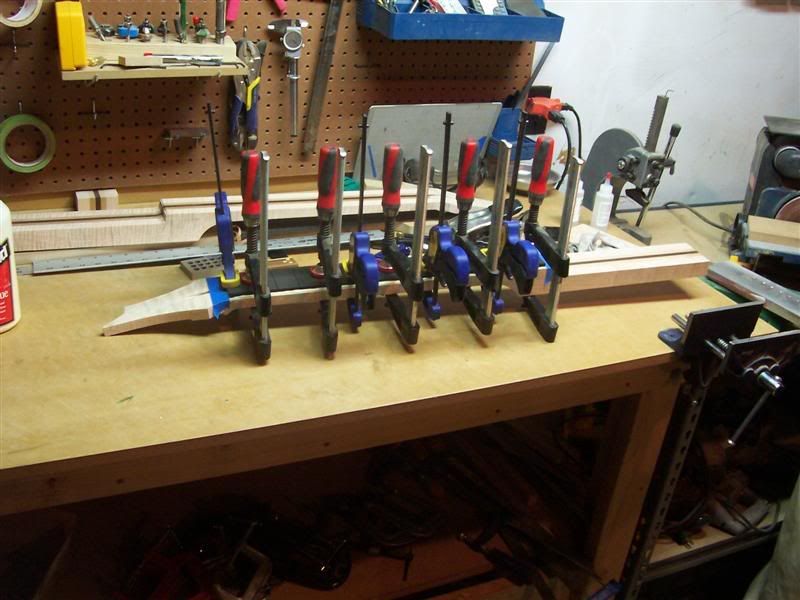

Gluing on the headstock caps:

#28
I swear I've never seen this before, but now I'm super glad I have.
Keep pumping out the guitars Will, you do it brilliantly, and it's candy to my eyes.
superman is killing himself tonight
#30
Been busy this weekend, and I just snapped a picture here and there, missing a lot of steps, but I think you guys know what's going on!

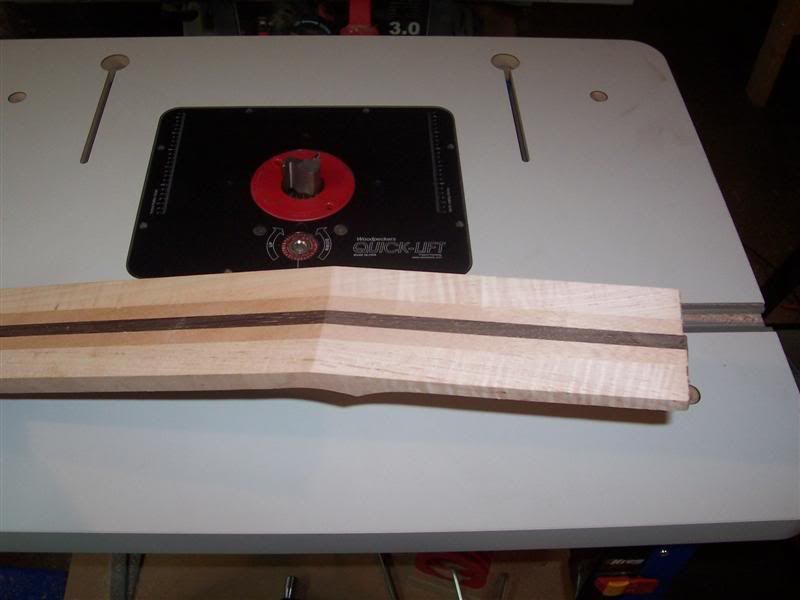

Planing off the truss rod filler strip:

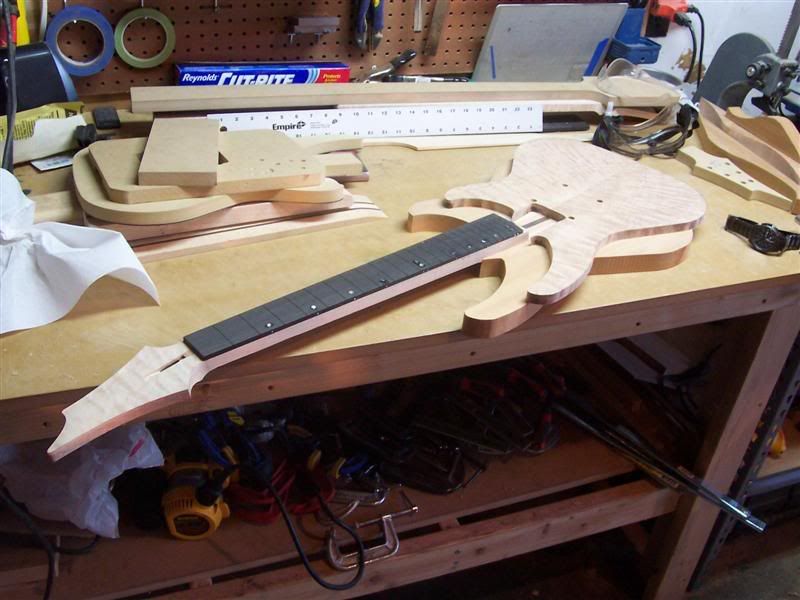

Fretboard attached:
