#1
So last week i made a thread about modding my amp. Well i was told to post pictures when i was done. so i will do that and more, i have pictures and a video. so without further a due

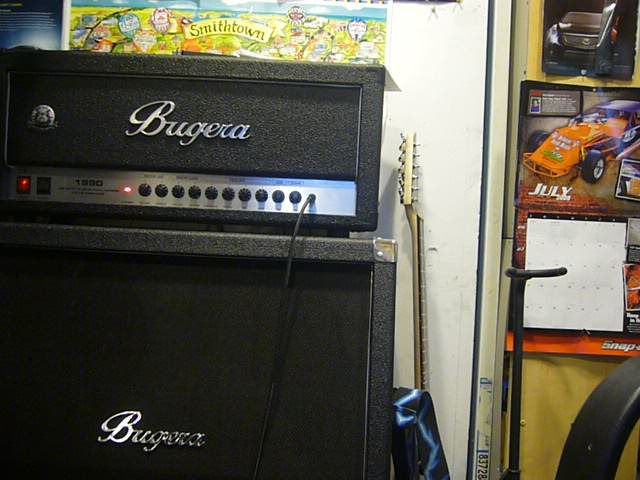

for those of you that don't know what this amp originally looked like here's a picture

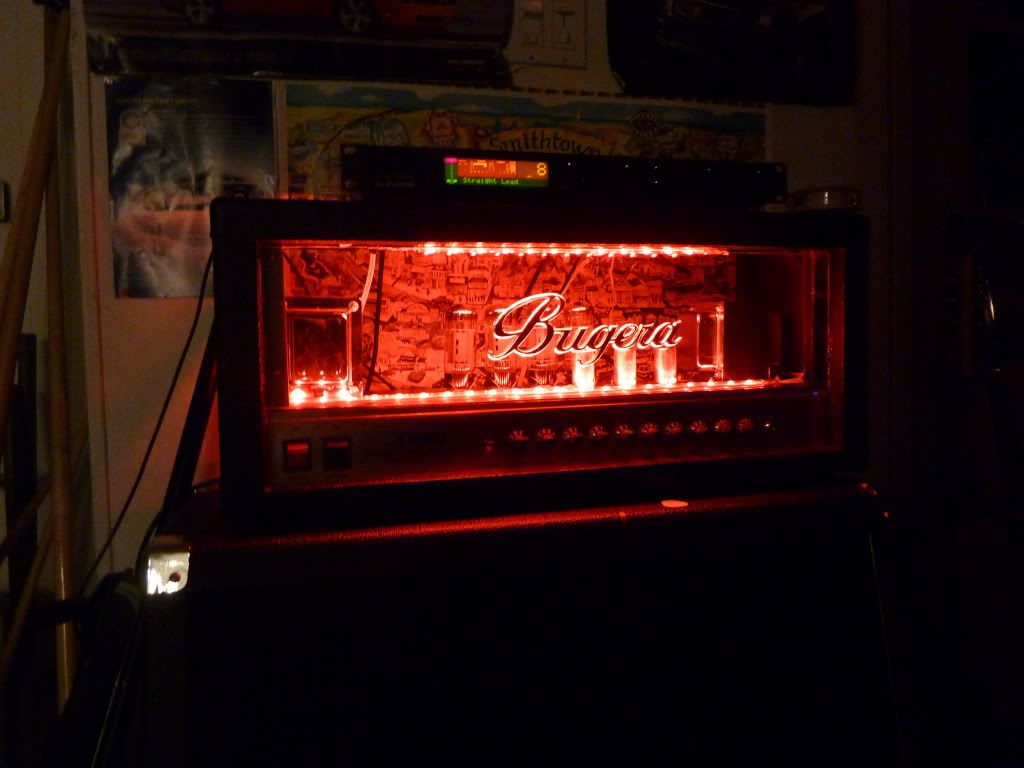

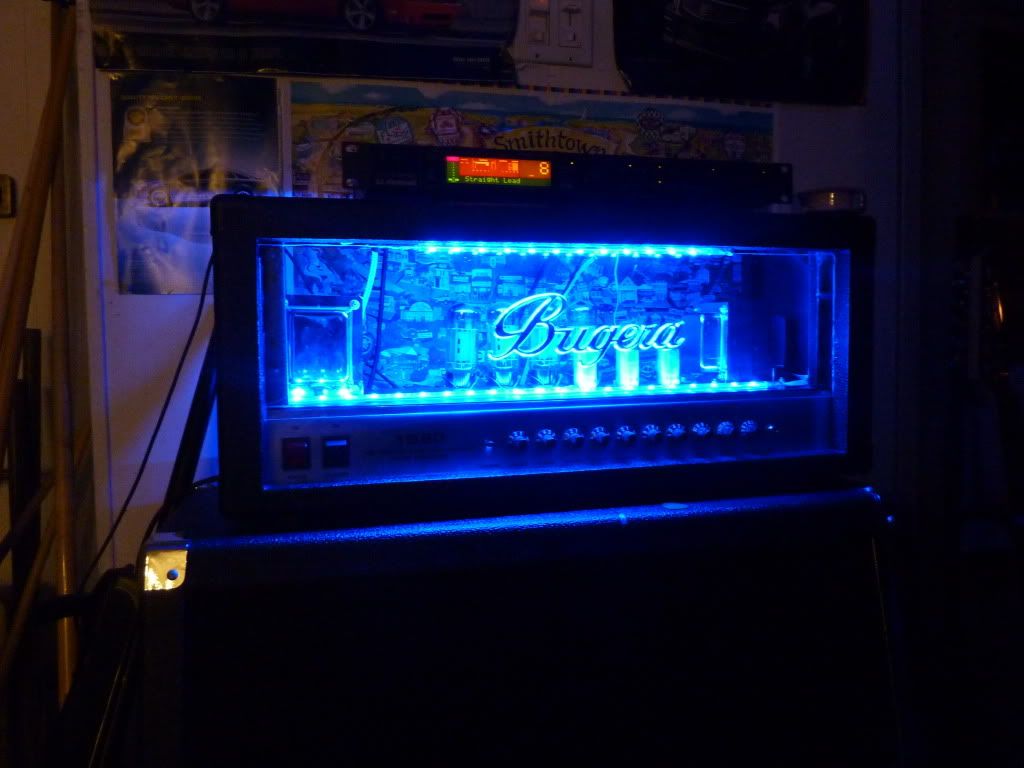

Also a video of the lights in action and some other gear and stuff

link to my youtube vid


so pretty much it was nice easy simple and cheap. All in all cost me about $80 u.s. and 2 1/2 hours of my time

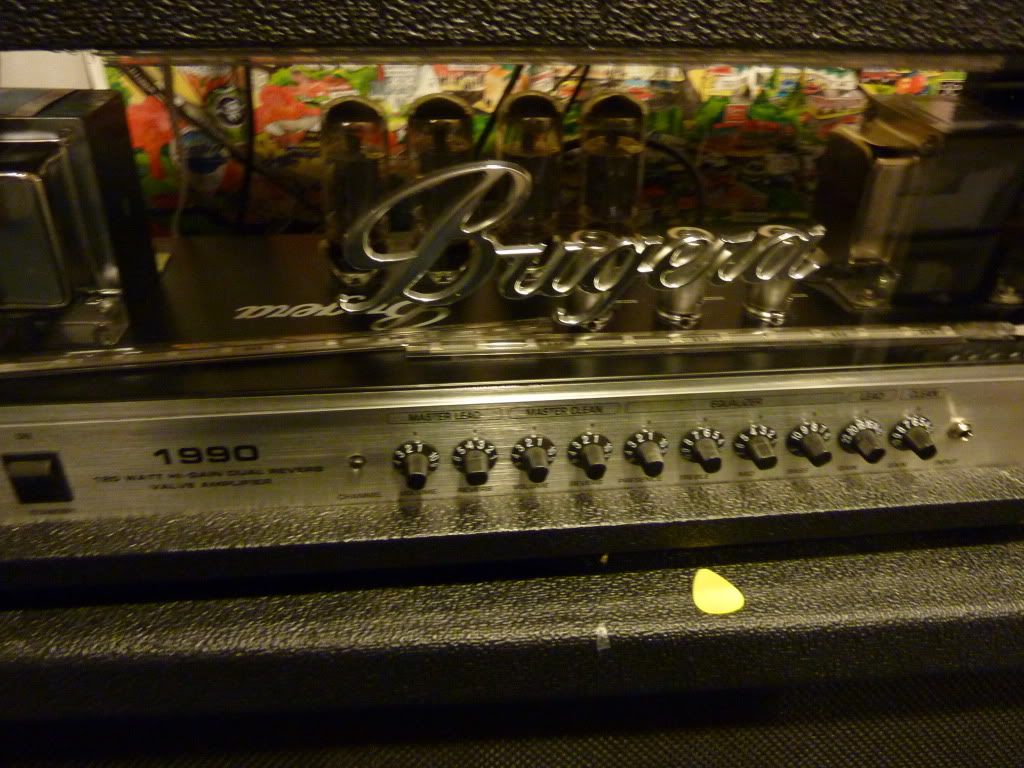

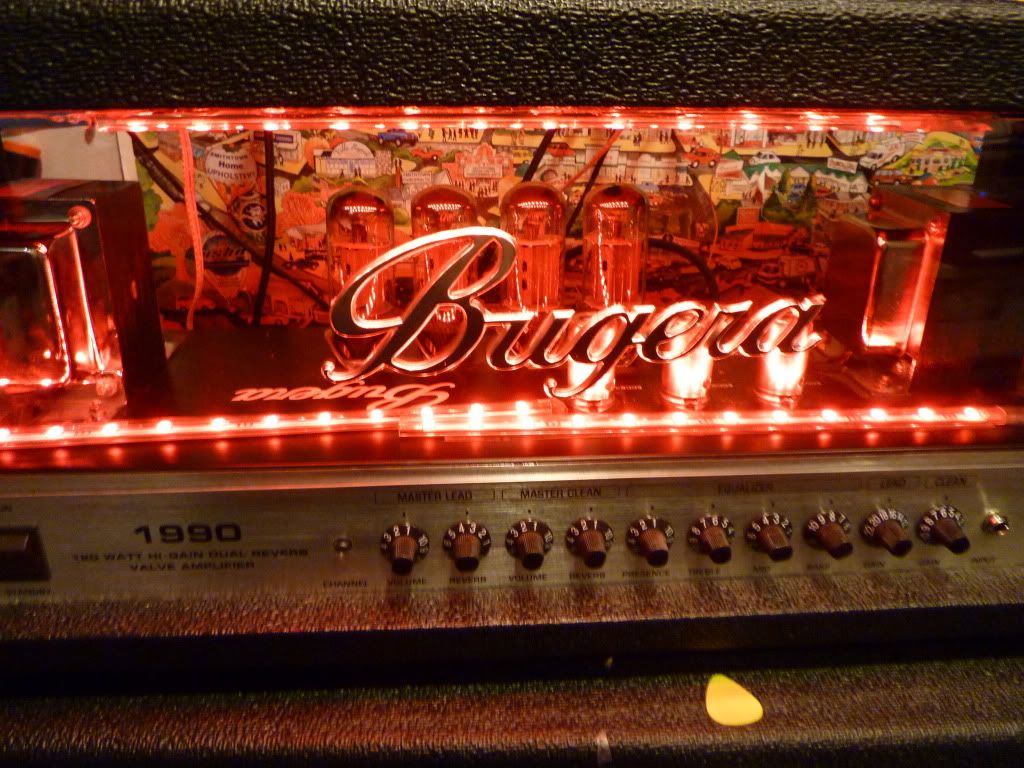

I just took the front piece out, put the lights in, wired em up. Put the plexiglass on, put the badge on and there you go.
1 screw was poorly placed and took a while to get out, but other then that pretty easy.

I always envied the hughes and kettner triamp (the one alex lifeson from rush uses) and i wanted that look, so i went out and got it...it's not perfect but it's pretty damn good (for those of you that have tried to cut plexiglass with a blade cleanly....it's not easy.


So anyway i hope you like it, as far as i know i'm the first person to do that a bugera...i've seen one guy put led's in a 333, but no plexiglass.


If anyone has questions about where i got the materials or how i did it or anything feel free to ask and i will get back to you as soon as possible

and a couple of these for good measure
http://www.youtube.com/user/heavymetal1110
My youtube channel

Epiphone Korina explorer, Fender MIM Strat, Ibanez GSA60, Ibanez AEG25
The amp: Bugera 1990
Pedals: Ibanez Tubescreamer,wylde od, wylde wah, Tc electronic g major,
#2
I like that. Especially the blue and the red. You've convinced me to use clear (or at least opaque) plexiglass or its ilk on my next amp.

Gilchrist custom
Yamaha SBG500
Telecasters
Randall RM100 & RM20
Marshall JTM45 clone
Marshall JCM900 4102 (modded)
Marshall 18W clone
Fender 5F1 Champ clone
Atomic Amplifire
Marshall 1960A
Boss GT-100


Cathbard Amplification
My band
#3
Where did you get those LED's? I want to buy a kit for my Mesa.
-Gear-
Mesa Triple Rectifier---Bogner/Line6 SpiderValve---Orange PPC 4x12

-Pedalboard/Rackmount-
Alesis MidiVerb4--BBE SonicMaximizer 442--Ibanez TS9
Boss DD-3--Morley Mark Tremonti Wah

-Guitars-
Ibanez ART-100
Ibanez S-470
#4
im definately doing this to my 6262 when i get it, you thing ill have to put plexiglass in? its got the metal grill that you can see through

where did you get the led's?
#5
http://www.ledlightingkit.com/ledstripkitremote.html

nice and simple, no messy wiring, just plug and play...so easy a caveman can do it :p

fast shipping too, from florida to ny in 3 days.
http://www.youtube.com/user/heavymetal1110
My youtube channel

Epiphone Korina explorer, Fender MIM Strat, Ibanez GSA60, Ibanez AEG25
The amp: Bugera 1990
Pedals: Ibanez Tubescreamer,wylde od, wylde wah, Tc electronic g major,
#6
Quote by rickyj
im definately doing this to my 6262 when i get it, you thing ill have to put plexiglass in? its got the metal grill that you can see through

where did you get the led's?


it's up to you, i've seen them with the grill and it looks cool too...depends what look your going for.
http://www.youtube.com/user/heavymetal1110
My youtube channel

Epiphone Korina explorer, Fender MIM Strat, Ibanez GSA60, Ibanez AEG25
The amp: Bugera 1990
Pedals: Ibanez Tubescreamer,wylde od, wylde wah, Tc electronic g major,
#8
Quote by rickyj
how did you put them in, glue or what?

clear plastic double sided scotch tape. they come with things to mount them, but they're annoying to deal with if you have big hands. just get the roll of tape, it will be enough and it's much easier...and pretty strong too
http://www.youtube.com/user/heavymetal1110
My youtube channel

Epiphone Korina explorer, Fender MIM Strat, Ibanez GSA60, Ibanez AEG25
The amp: Bugera 1990
Pedals: Ibanez Tubescreamer,wylde od, wylde wah, Tc electronic g major,
Last edited by camaross427 at May 25, 2010,
#10
I wonder what I could do to the faceplate of my Mesa Triple Rec.
-Gear-
Mesa Triple Rectifier---Bogner/Line6 SpiderValve---Orange PPC 4x12

-Pedalboard/Rackmount-
Alesis MidiVerb4--BBE SonicMaximizer 442--Ibanez TS9
Boss DD-3--Morley Mark Tremonti Wah

-Guitars-
Ibanez ART-100
Ibanez S-470
#12
Quote by camaross427
clear plastic double sided scotch tape



o ok. ill probably do something more permanent. something that wont fall off if i shak it a little bit. maybe velcro
#13
Quote by rickyj
o ok. ill probably do something more permanent. something that wont fall off if i shak it a little bit. maybe velcro


it's pretty strong...i dont' move it around much, i have a smaller combo i use when i'm going somewhere...and i don't do large gigs....at least not yet. The velcro sounds like a great idea though
http://www.youtube.com/user/heavymetal1110
My youtube channel

Epiphone Korina explorer, Fender MIM Strat, Ibanez GSA60, Ibanez AEG25
The amp: Bugera 1990
Pedals: Ibanez Tubescreamer,wylde od, wylde wah, Tc electronic g major,
#14
Quote by rickyj
o ok. ill probably do something more permanent. something that wont fall off if i shak it a little bit. maybe velcro


rubber bands and some macgyver-ing?

or packing tape instead of Scotch
'87 Fender Strat
Oscar Schmidt Archtop
Laney LC15R
#15
actually another good idea would be staples, if you could get one that's a little taller and wider then your average staple
http://www.youtube.com/user/heavymetal1110
My youtube channel

Epiphone Korina explorer, Fender MIM Strat, Ibanez GSA60, Ibanez AEG25
The amp: Bugera 1990
Pedals: Ibanez Tubescreamer,wylde od, wylde wah, Tc electronic g major,
#16
does it run off its own power source or do you have it in with the amps wiring, and if its wired into the amp, did you use a fusible link? =p
Jackson DK2M Dinky Pro W/ EMG 81/85 18v Black
ESP LTD EC-1000 W/ EMG 81/60 See Thru Blue
Schecter C-1 HellRaiser W/ EMG 81TW/89 Black Cherry
Peavey 6505 W/ 2x12 V30
#17
You haven't blocked off the ventilation in the back there have you?
Gilchrist custom
Yamaha SBG500
Telecasters
Randall RM100 & RM20
Marshall JTM45 clone
Marshall JCM900 4102 (modded)
Marshall 18W clone
Fender 5F1 Champ clone
Atomic Amplifire
Marshall 1960A
Boss GT-100


Cathbard Amplification
My band
#19
That looks fooking sweet!!
Quote by Kensai
You'll find whisky very different, but try it and you'll grow into it, soon you and whisky are one, but still two, lovers dancing across a frozen lake under moonlight, wrapped in honey and warmth.


Sums up whisky perfectly
#20
Quote by ash_attack
does it run off its own power source or do you have it in with the amps wiring, and if its wired into the amp, did you use a fusible link? =p

no it has it's own wiring with a ac converter that plugs into a normal outlet.
http://www.youtube.com/user/heavymetal1110
My youtube channel

Epiphone Korina explorer, Fender MIM Strat, Ibanez GSA60, Ibanez AEG25
The amp: Bugera 1990
Pedals: Ibanez Tubescreamer,wylde od, wylde wah, Tc electronic g major,
#21
Quote by Cathbard
You haven't blocked off the ventilation in the back there have you?

nope it's just the same as it was
http://www.youtube.com/user/heavymetal1110
My youtube channel

Epiphone Korina explorer, Fender MIM Strat, Ibanez GSA60, Ibanez AEG25
The amp: Bugera 1990
Pedals: Ibanez Tubescreamer,wylde od, wylde wah, Tc electronic g major,
#24
Quote by SwampAshSpecial
very, very cool... especially in green

I was thinking of sticking some lights around the outsides of my speakers so the grille cloth glows :p

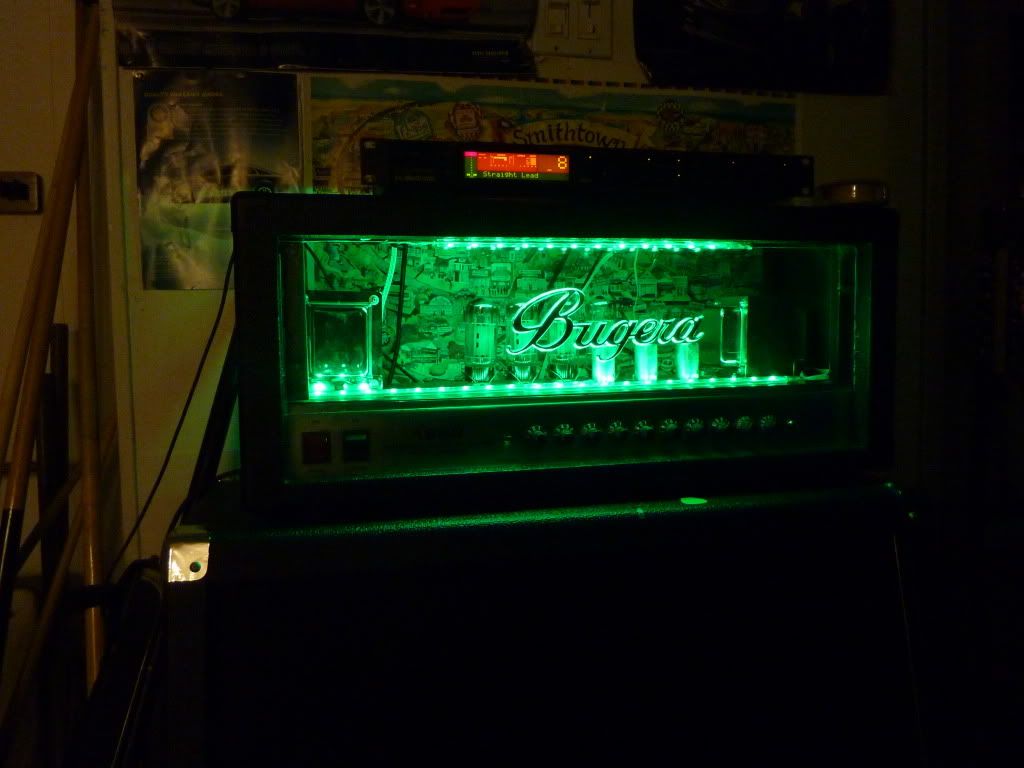

Ya originally i wanted blue, but after seeing the green i really like that. I have it set to fade in and out and change between a few different colors right now which is cool.


That sounds cool, maybe i'll have to do that someday too to match the rest of my amp
http://www.youtube.com/user/heavymetal1110
My youtube channel

Epiphone Korina explorer, Fender MIM Strat, Ibanez GSA60, Ibanez AEG25
The amp: Bugera 1990
Pedals: Ibanez Tubescreamer,wylde od, wylde wah, Tc electronic g major,
#25
Quote by Cathbard
You haven't blocked off the ventilation in the back there have you?


I think that is just a poster

I did the same thing tho at first, I was like is that plywood


Congrats Camaross427 - looks sick! I would taken pics with something blank behind it - or a mirror. Those things put off 0 heat and 0 noise. I have two of them. I would also take off the preamp tube covers. I've never needed mine.
#26
Looks awsome man, especially the green, good job!
"In modern music, a lot of people are really stuck on the example, asif it were the idea. It takes millions of examples to articulate an idea, so don't get stuck on the f*cking example." - Joshua Homme, 2008.
#27
**** me, thats hot! Nice job, dude!
Gear:
ESP Horizon II
LTD EC-1000
Ibanez MDB1

Morgan BC40
Koch Twintone II

Quote by -xCaMRocKx-

YouTube: more morons than Yahoo Answers and more hate than 4chan. It's the Internet's premier breeding ground of complete idiocy.
#28
Quote by 311ZOSOVHJH
I think that is just a poster

I did the same thing tho at first, I was like is that plywood


Congrats Camaross427 - looks sick! I would taken pics with something blank behind it - or a mirror. Those things put off 0 heat and 0 noise. I have two of them. I would also take off the preamp tube covers. I've never needed mine.



ya that's just a poster, i would have moved it but i didn't think about it at the time. plus that would require me moving my head and cab up stairs, and i don't want to do that lol


And thanks to everyone for all the kind words! it was something i really wanted to do and i'm glad it turned out pretty well
