#1
Hi everybodies. I'e been working on this build for a little bit and I've decided to start up a little thread about it since all the parts are slowly coming in.

So a while ago I bought a used fuchs ods modded fender super showman.

Basically Fuchs takes a donner amp, in this case a tweed era fender showman, takes out the guts, and puts the pcb board and all the wiring for the Fuchs ODS 2 channel amp in its place.

It's been my go to cleans amp for a while. Probably one of the best purchases I ever made.

However, I've got the bug. The building bug and I like to kick it old school.

I figured I'd break down the amp, figured out how it worked and rebuild it.

i've never built a reverb circuit or an effects loop circuit before. So, here goes nothing. Hopefully we'll all have fun on my mis-adventures?!?!

Here's patient Zero. He's loaded down with a whole bunch of parts I didn't end up using for size reasons.



Alright, so of course I'd have to tear out the board and do all that stuff.

But first, stuff porn.

This is the first batch of stuffs I was prototyping with.



welbourne labs was having a big sale a few months ago and I picked up a stack of resistors. One of my favorites right now the Dale/Vishay RN55s. I actually like the RN70/CMF70 better because it's got thicker leads.

Alrighty then.

So the first thing I did was tear down and read the power amp/power supply. I've never wired up a pentode/triode switch or a half/power/full power switch before so I poked at them to see how they worked.



The wiring was a little bit messy to me so I cleaned it up a little bit, twisted all the transformer connections etc etc. I'm eventually going to redo this whole section. I'm just waiting on my hook up wire to arrive.



Next up! metal work. Fact: Metal work is hard.



I went crooked on a lot of those holes.

But it's totally cool since if you cover it up with parts you can barely even tell.



Off to the left is my layout placement for my bias supply. Picked up some NOS Clarostat trim pots for that section. I still need to figure out how to do bias for each tube.

Sometimes it's a good idea to cram a section full of parts to see what's going to fit.

Measure twice cut once and all that.



Also doing some layout testing for my terminal strip.



Ba-da-bING!



First stage wired. A couple of old carbon comp resistors, a sprague vitamin q, and a trw cap in the back.
Prs se Holcomb is the answer
#2
That was the last few days.

Tonight I spent the entire night figuring out this thing.



There's a lot of crazy switching going on.

But I totally got it.



Tomorrow! Wire up the tone stack, wire up the pots, hope the postman brings me mah shiznit.
Prs se Holcomb is the answer
#3
Nice work man!
Jackson SLS MG(EMG 81/85)
ENGL Sovereign 100 watt 1x12"
Boss gt-8
Vox AD50VT
Next: Custom Explorer
#5
redid the power supply and wired up the bias supply today. i kinda like the job i did on the transformer wiring. nice and neat. more parts coming tomorrow glee.

Prs se Holcomb is the answer
#6
update. broke down the tone stack and rebuilt.

This was a bitch to wire.

Still need to do clean up and wire management.

Prs se Holcomb is the answer
#7
sexy. so gross that its sexy.


u should mount those anti bug blocks to cut down on the spider webs... rat poison as well while ur at it
Call me "Shot".

ShotRod Guitar Works

Custom Hand-wired Amplifiers and Effect Pedals.

Est. 2007


Source to everything I say about Guitars, Pedals, and Amplifiers: I make them.


UG's Best DIY PedalBoard
#8
Quote by ECistheBest
sexy. so gross that its sexy.


u should mount those anti bug blocks to cut down on the spider webs... rat poison as well while ur at it


you'd prefer



?
Prs se Holcomb is the answer
#9
Ahhhhhhhhhh To Many Electronics!!!!!!!!!!!!
Quote by mcraddict81592
If you need to kill a man with a 9v adapter? I say strangulate. Or swing the heavy end around and aim for the temple, all depends on your style.


FrankenBee Build
#11
whew. got my wire in today.

power amp and heaters done.





man I really need to buy a hairdryer and shrink all that tubing. buuut

POWER AMP DONE....

except the bias...doh.
Prs se Holcomb is the answer
#12
I have no idea what i'm looking at, but I like it.
Quote by SimplyBen
That's the advantage of being such a distance from Yianni. I can continue to live my life without fear of stumbling upon his dark terror.


Quote by Toppscore
NakedInTheRain aka "Naked with shriveled pencil sized bacon In The Rain"
#13

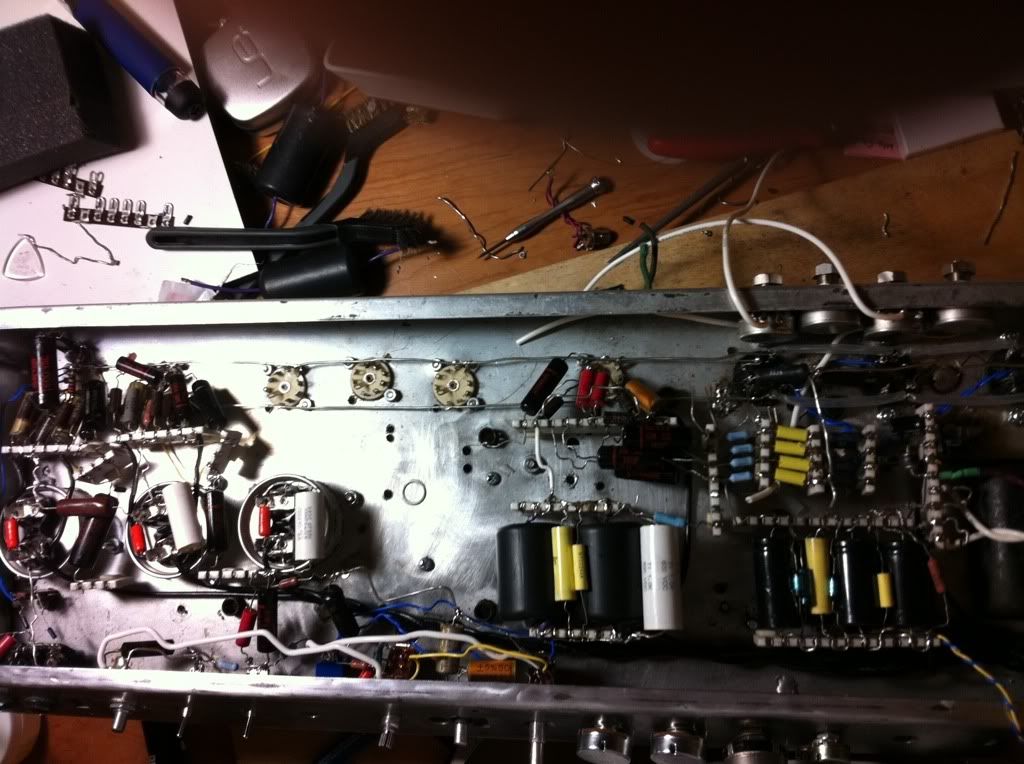

chugging along. placing parts for the od stage



phase inverter completes



power amp filtering complete.

Prs se Holcomb is the answer
#14
haha nice. i like it! a bit dirty tho. dont burn ur fingers!!! -we kno we all do-


i just need time... i wanna make my amp PTP because working with eyelet boards is such a waste of space. no freedom putting new components in. no freedom trying a new topology haha.
Call me "Shot".

ShotRod Guitar Works

Custom Hand-wired Amplifiers and Effect Pedals.

Est. 2007


Source to everything I say about Guitars, Pedals, and Amplifiers: I make them.


UG's Best DIY PedalBoard
#17
oh ya. terminals are great.

next try a longer screw and a spacer. makes it way easier.
Prs se Holcomb is the answer
#18
i love looking at these pics, but i think i'd find it much more fascinating if i had any idea what was going on. ahh well, one day i guess. seems its coming along nicely
