Wassup yo. Fellow forum-troll and glam rocker lbj commissioned me to do some work for him.

Step 1: We go looking for a chassis and some transformers.

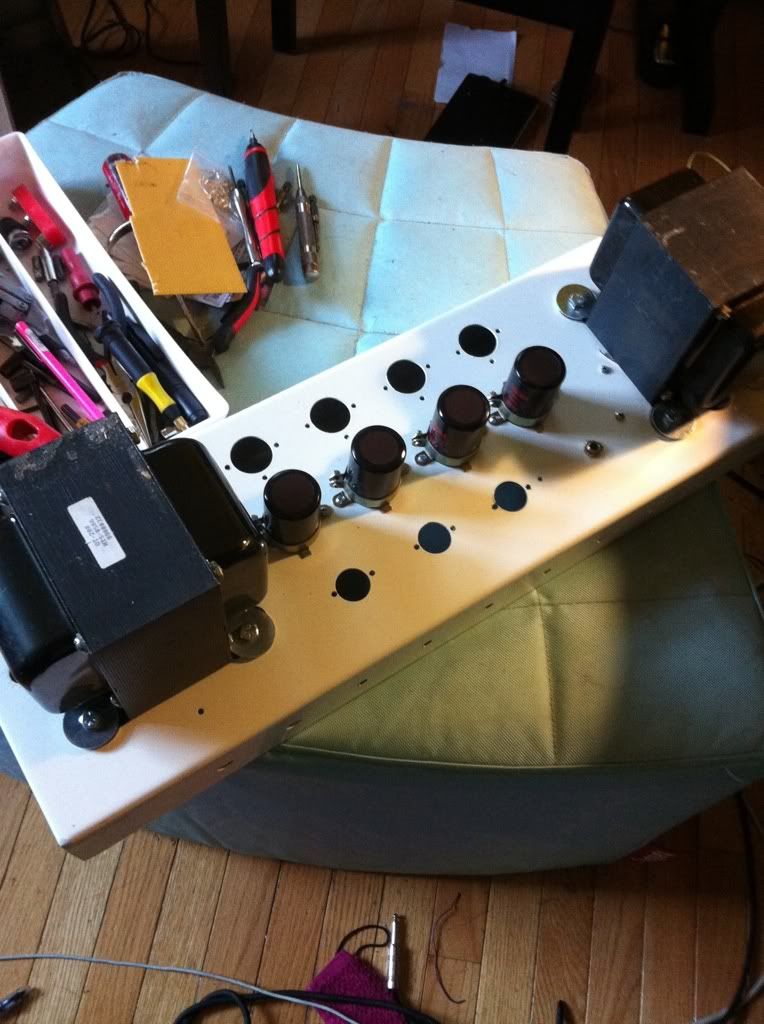

We find this guy on ebay. 200watt specced output transformer with a 500+vdc power transformer. Some holes drilled and stuff.



BAM!

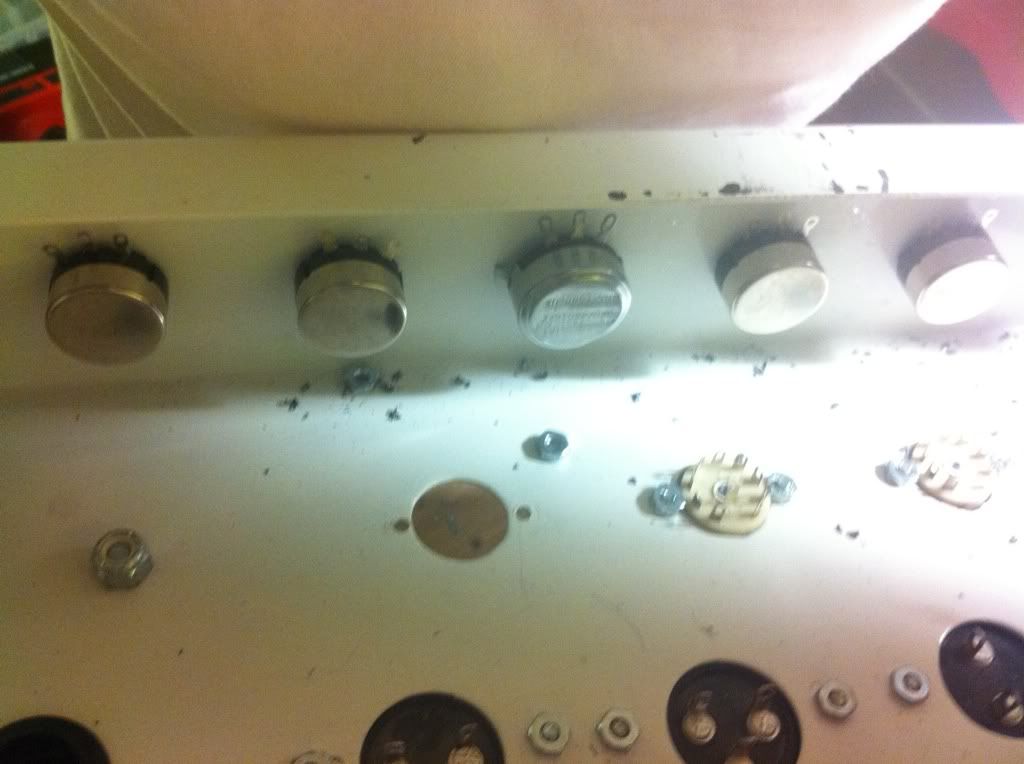

Step 2: screws and some sockets

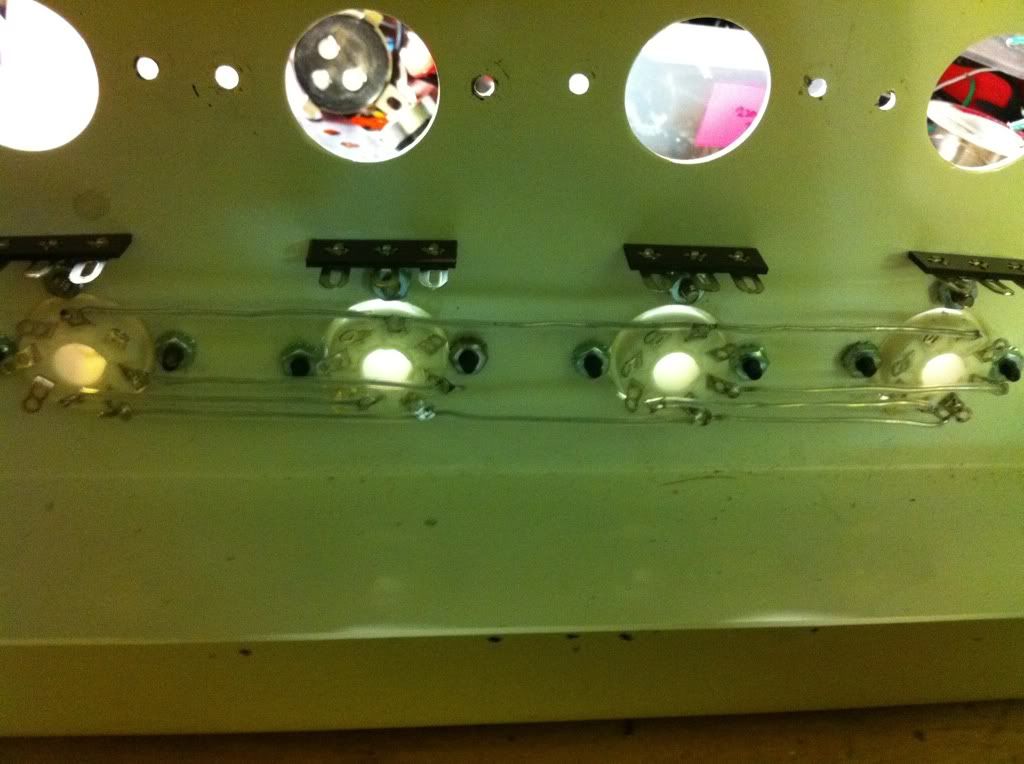

I PUT IN THE SCREWS. BUT I PUT IN THE SOCKETS FIRST. THE SCREWS GO INTO THE SOCKETS.

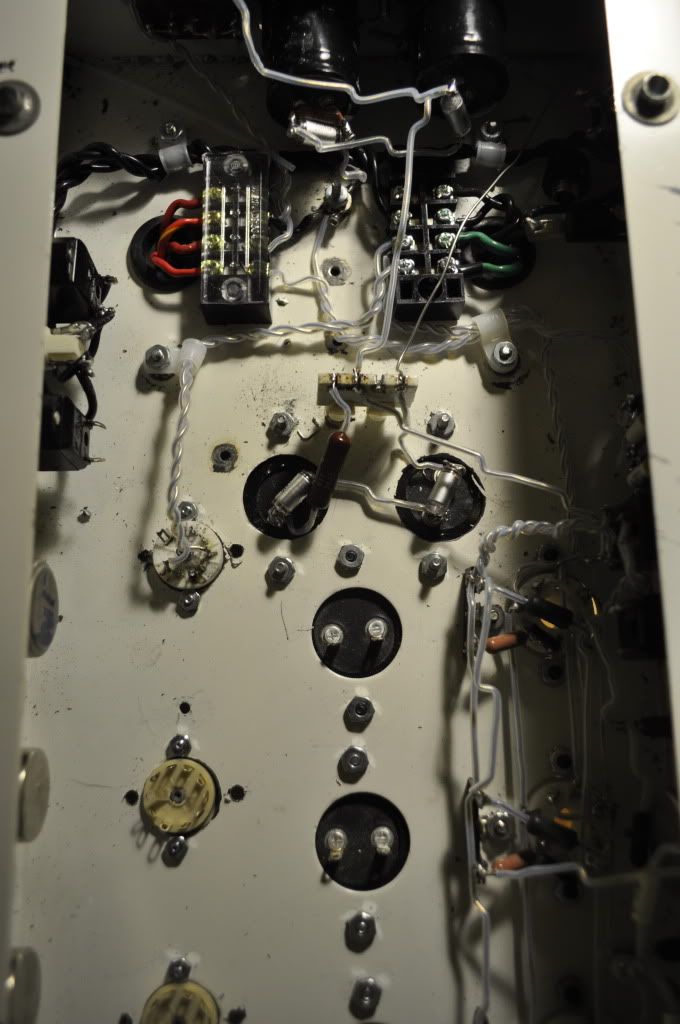

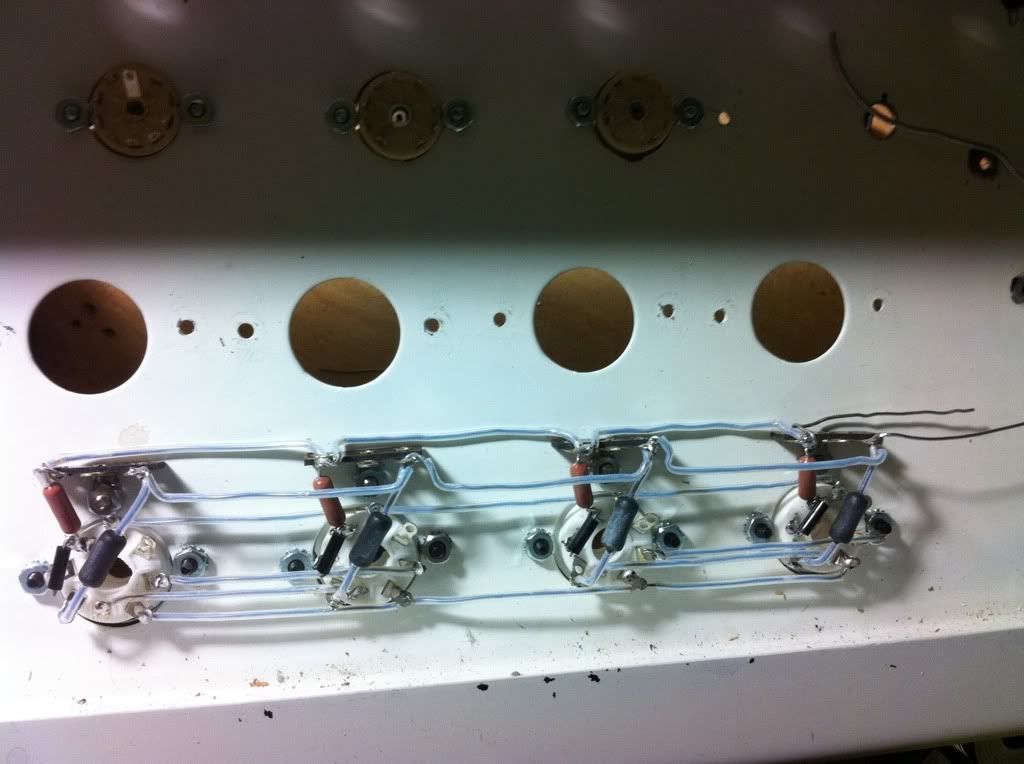

oh ya and then some shit got wired.

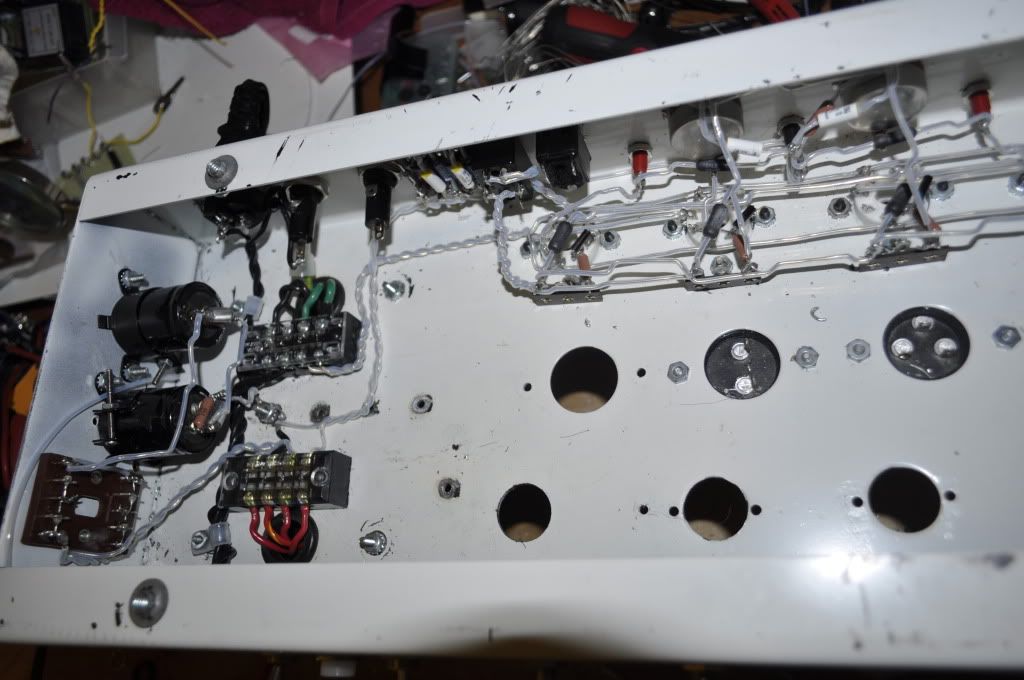

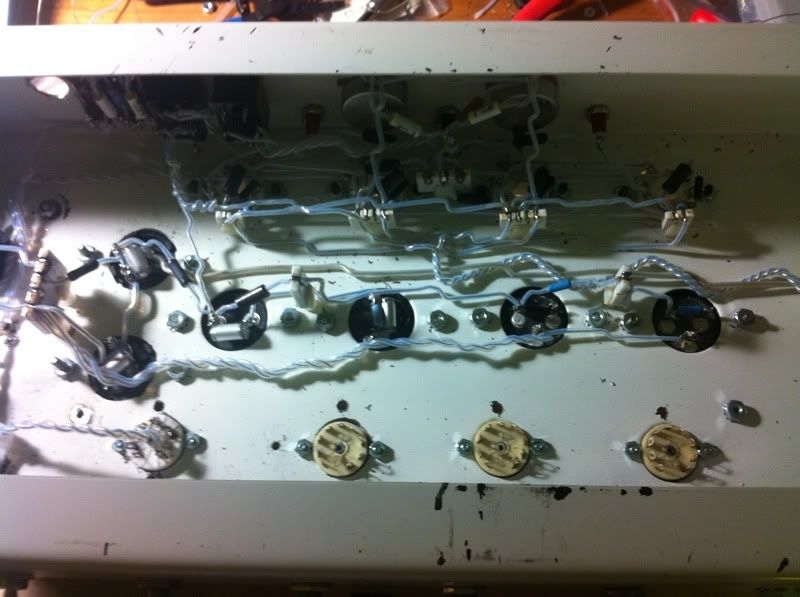

OVERHEAD SHOTZ



What's next...

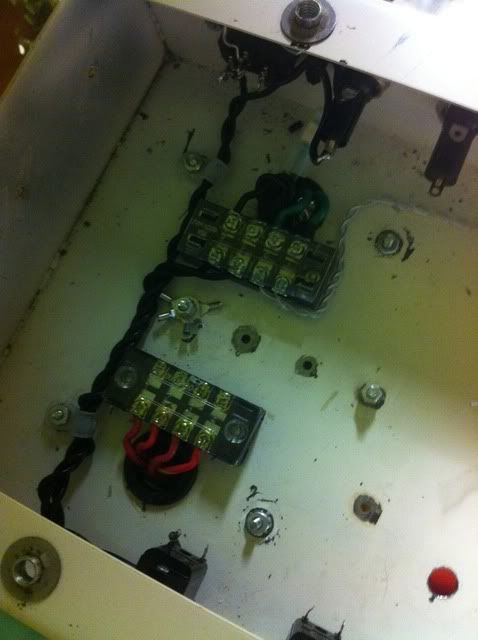

step 3: power transformer

oh ya!



Then like magically all this stuff happened.

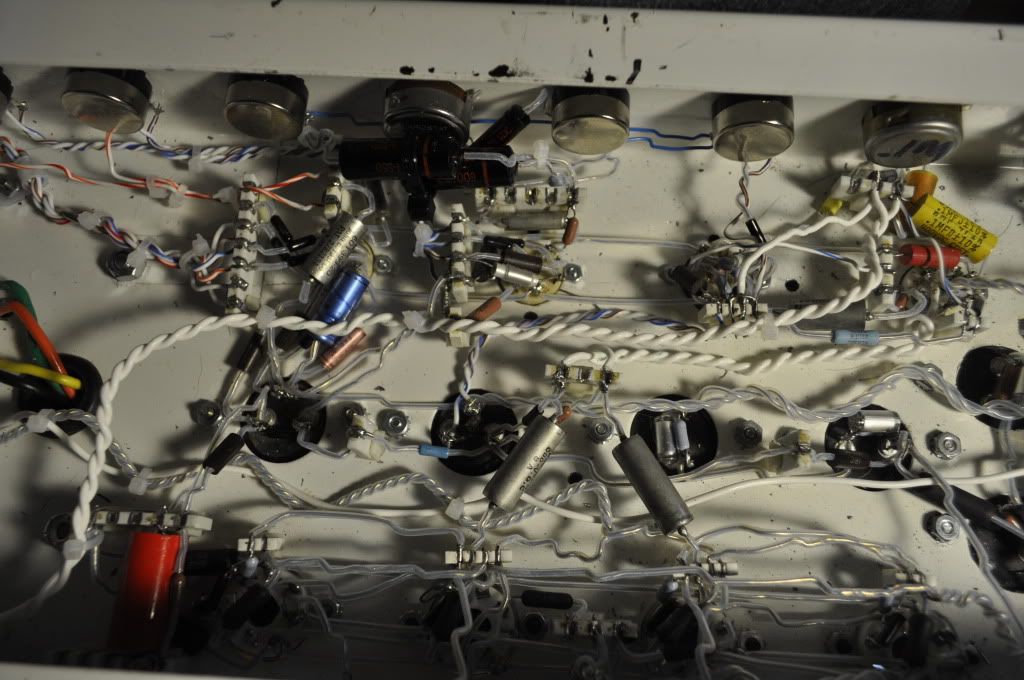

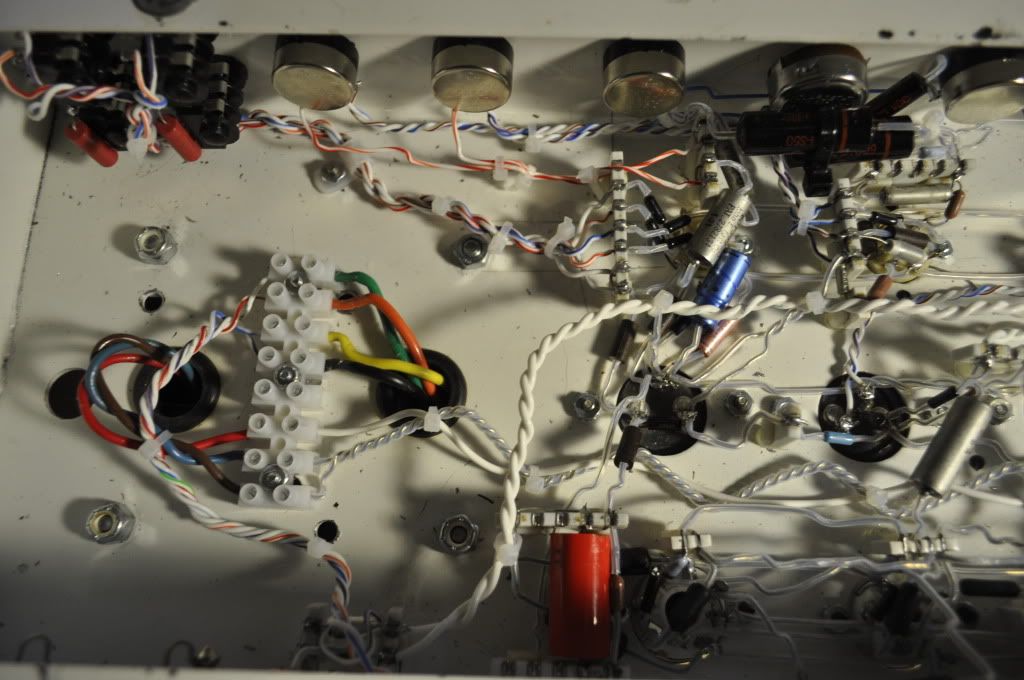

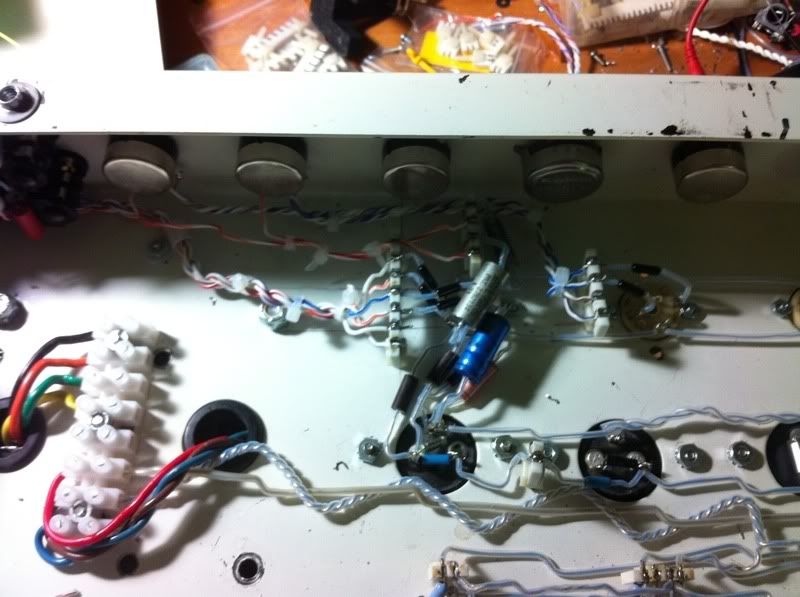

That's the rectifier and the first filter cap stage. Low esr capz. yum! bypassed with even better capz. double yum!

Then I took a nap.

zzzzzzzzz

zzzzzzzz


zzzzzzz


zzzzzzz

snooooreee

Wake up time !

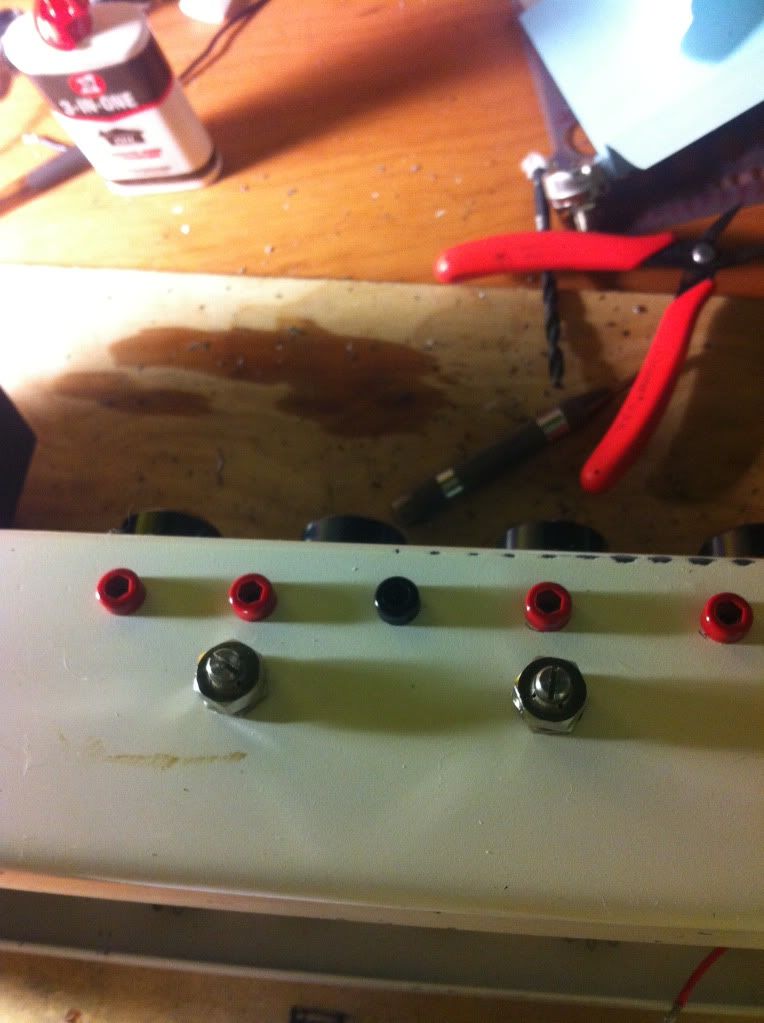

Step 5: Potz! Step 5a: Holes!





Step 5B: Cheesecake!

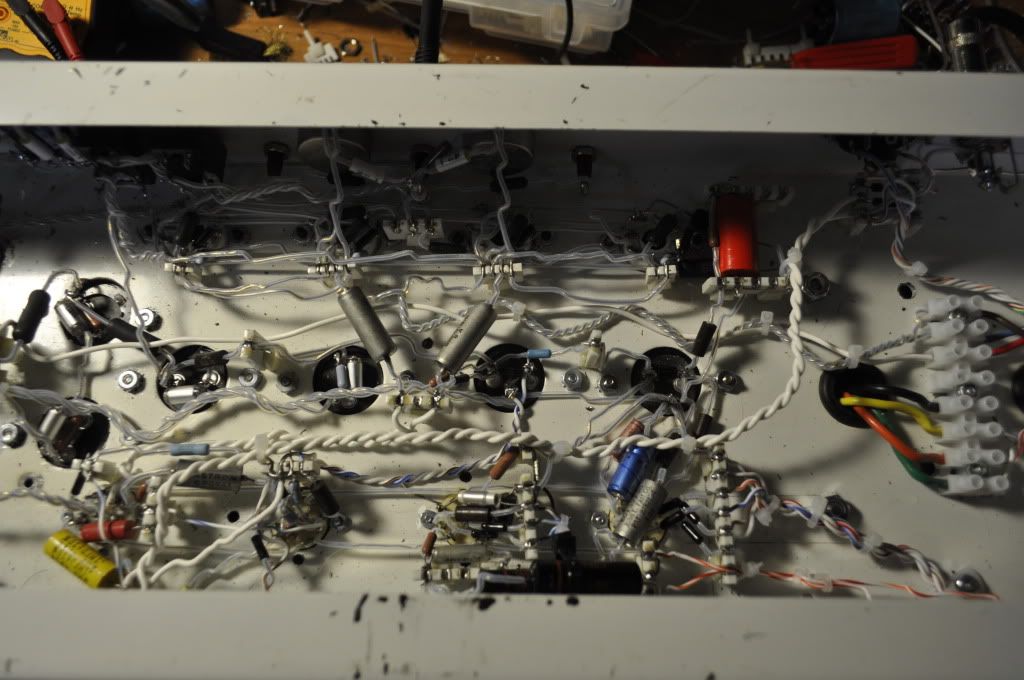

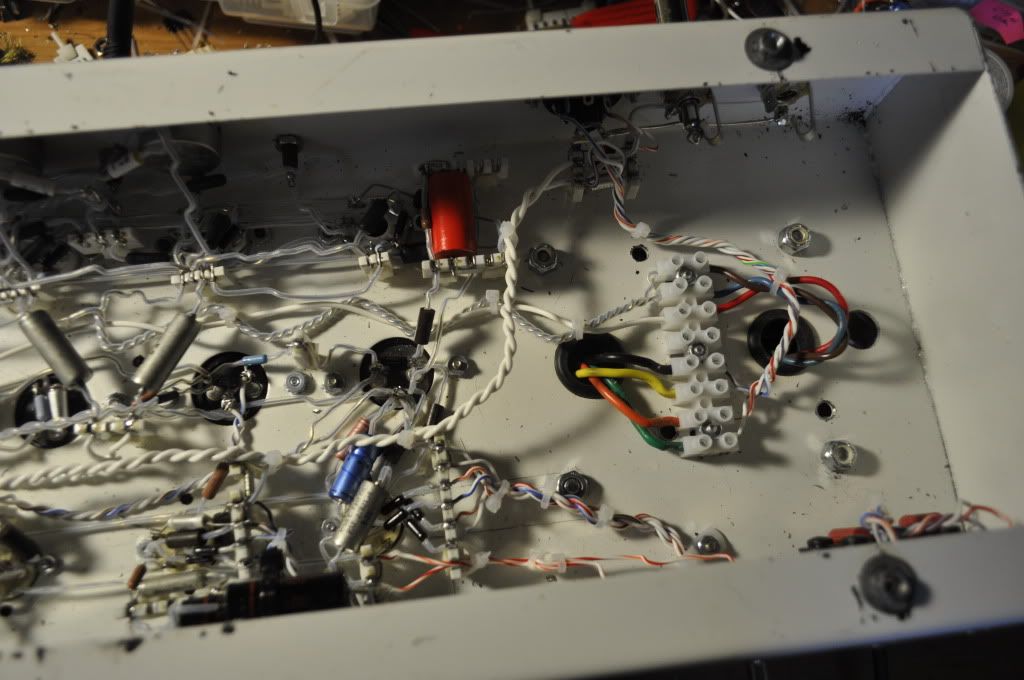

Bias supply, filter caps, all of the power amp stage, Half power switch, pentode triode switch, individual bias adjust for each pair of tubes and 4 test points, yadda yadda yadda.

more napz.

napz.

snort. snore.

WAKE.
Prs se Holcomb is the answer
Last edited by AcousticMirror at Aug 25, 2011,
#2
Step 6: GLAMOUR SHOT!



Step 6 (for real):

PREAMP!



Step 7: all done.





specs: All coupling caps NOS paper in oil. All bypass caps Polystyrene
all bare wire 16 or 18awg silver plated.
All insulated wire 18 or 20awg silver plated teflon insulated
All resistors RN60 or better. All wirewound resistors CW-5 or better.
Tone stack main caps NOS sprague black beauties.

Based on Mark Huss's Hiwatt DR504 schematic.

Low volume clips.

http://dl.dropbox.com/u/7394209/whoopsslo.mp3
http://dl.dropbox.com/u/7394209/clean.mp3

ok bai.
