#1

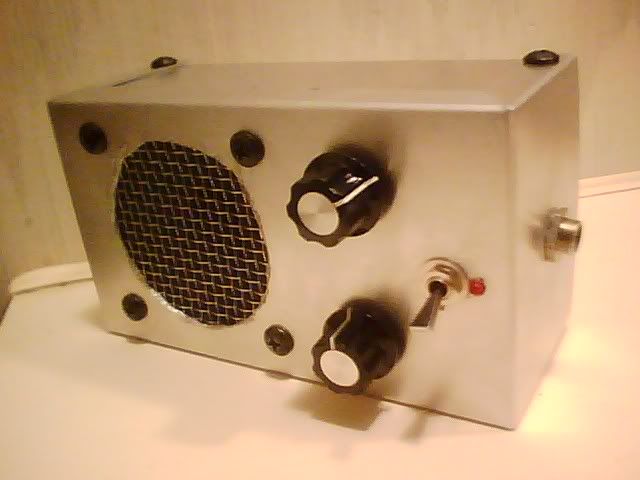

This is the Little Gem circuit used for a 9V mini portable amp, I made all of it by hand, including the metal grill, and set up from a blank aluminum box.
It mostly sounds clean, but i only had 500k pots for the controls, later on i'll get the proper pots and it should work even better.

Cusp of Magic
#2
Looks sweet. Its probably more durable than most of the other tiny portable amps out there. (and probably sounds better too)
Quote by FEngHLyan

She will join the prom.

She insists to wear this lights.

I don't think so.

How can I persuade her?
#3
That looks really awesome! Congrats, and have fun.
Quote by dullsilver_mike
Life is indeed a broken image.



Last.fm
PSN: BlindNematode
#4
sweet! did you base this on any circuit in particular or is it entirely your own design?
Gear
Highway One Tele (w/Custom Shop 51 Nocaster pickups)
Standard Tele (modded to Nashville specs)
Reverend Roundhouse

Orange Rockerverb 50 MKI
Vox AC4c1
Jet City JCA20H

And pedals!



"Shiva opens her arms now..
...to make sure I don't get too far"
#6
It's the Little Gem circuit. i just need to get the right potentiometers for it, and it'll be identical to it, other than the on/off switch and LED I added. I'm fairly impressed with how it turned out as far as looks.
Cusp of Magic
#8
Quote by Chaos-Serenade
It's the Little Gem circuit. i just need to get the right potentiometers for it, and it'll be identical to it, other than the on/off switch and LED I added. I'm fairly impressed with how it turned out as far as looks.

I guess if I'd read your OP better I'd know that. Sorry... It looks fantastic!
Gear
Highway One Tele (w/Custom Shop 51 Nocaster pickups)
Standard Tele (modded to Nashville specs)
Reverend Roundhouse

Orange Rockerverb 50 MKI
Vox AC4c1
Jet City JCA20H

And pedals!



"Shiva opens her arms now..
...to make sure I don't get too far"
#9
It would be awesome if you could throw the chip from a Tubescreamer in there.
OBEY THE MIGHTY SHITKICKER
#10
Quote by JustRooster
It would be awesome if you could throw the chip from a Tubescreamer in there.

And a Dumble ODS, while he's at it.
Where's Waldo?
#11
It would be cool to add a 4558 chip or diode clipping distortion, but i have no idea how to modify the circuit that way.
Cusp of Magic
