#1
Wassup YO!

Greetings from my workshop in space.

A few months ago I built this amp for Jarred!



Aww how cute not a hair out of place.

Anyhow, Jarred got a peavey windsor and didn't need a high gain practice amp anymore!

So he sent it back to me!

and I got to work! in space!



Then I watched the movie Thor! it was kickasss!



It's hard to drill in space!



BLUE IS BEAUTIFUL



Ya i only took like 4 pictures. whatever whatever.

So basically I had to get rid of that pcb because pcb's give you cancer of the balls.

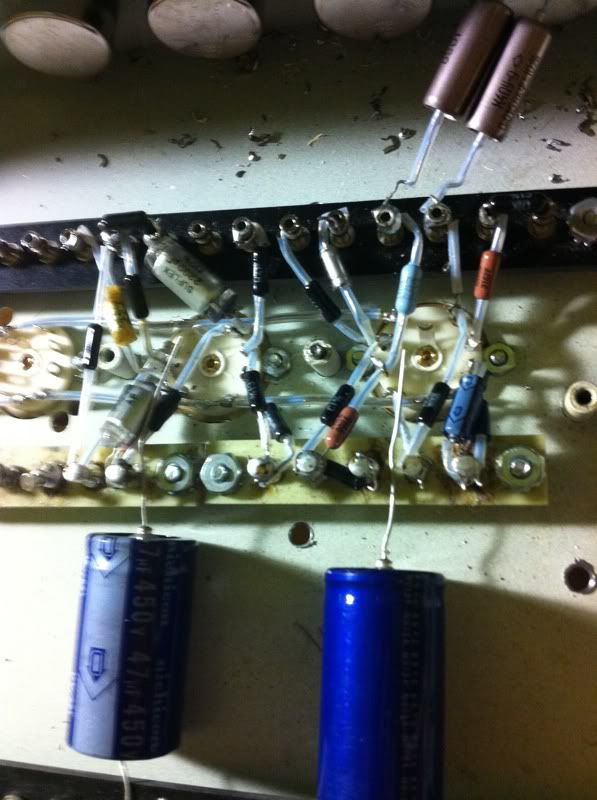

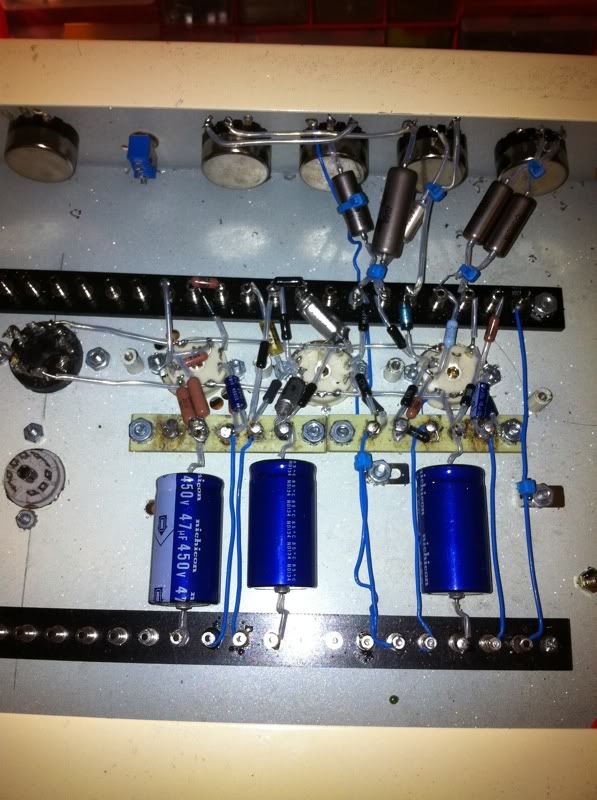

Then I drilled some holes. Then I started soldering some stuff.

I had the schematic for the class 5 and even though it's a silly amp I wanted to see how the preamp sounded so I built it.

Then I had this extra hole and some extra knobs so I built a matchless spitfire preamp on the other channel only using a pentode connected 12ax7 (which uses both sides of a 12ax7 to emulate an ef86).

then I had another hole so I made it so you can switch between a 6v6 and an el84.

After that it was time to go to bed.

the end.

ps: it is hard to drill straight lines in space. while sitting. so whatever.

pps: specs ya! standard acousticmirrorisbest things. mil-spec resistors, paper in oil caps, nichicon electros. blah blah blah blah blah.
Prs se Holcomb is the answer
Last edited by AcousticMirror at Oct 17, 2011,
#2
Jesus H. Tapdancing Christ that was funny.
Telecasters are like very artistic bricks-Johnny Marr
#8
yes phil has teh good kungfu.

have learned lots from matchless.

will avenge his death when he is killed by ninjas from a rival clan.

SASUKE!!!
Prs se Holcomb is the answer
#10
But what if he wanted cancer of the balls? Kind of inconsiderate to just toss out the pcb
