#1
here is my goal

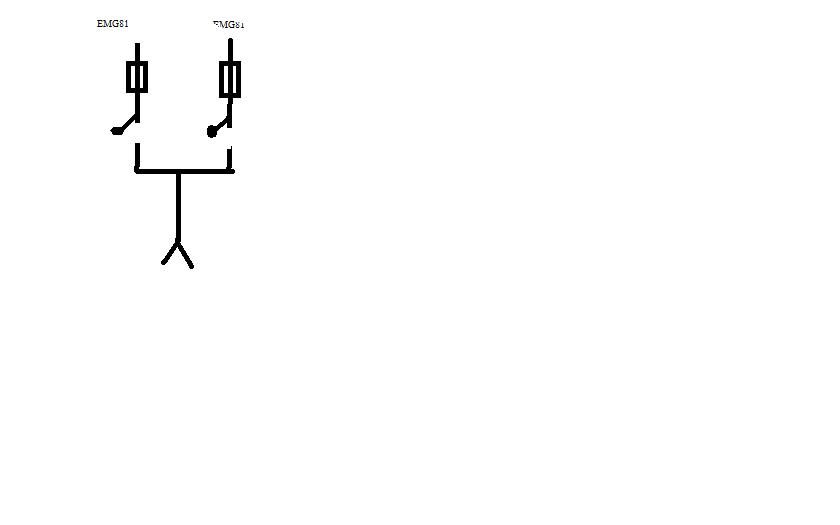

this is over simplified, i will hook up with a battery and all per EMG's wiring.

i want each pickup to a switch and only a switch (no pots at all), i am assuming and how if have it now, is i ran a 22k resistor, but the output isn't quite right. i dont have any nor could find any 25k resistors, so i figured i would go a little bit darker.

please dont respond with "you want a volume control in there" because i don't. two switches.

but this is what is confusing me, if i switched both pickups to the on position wouldn't there be a problem with the output going both ways (up and down) a pickup, so i am think i would need some thing, maybe a diode?

okay in a nutshell.

two pickups individually switched on/off with two switches and an output jack. the pickups are EMG 81's and this is going into a gibson SG tuned to C# standard, or drop B.
