Here a couple of gear project that I have worked on in the past year or two.

Cajon

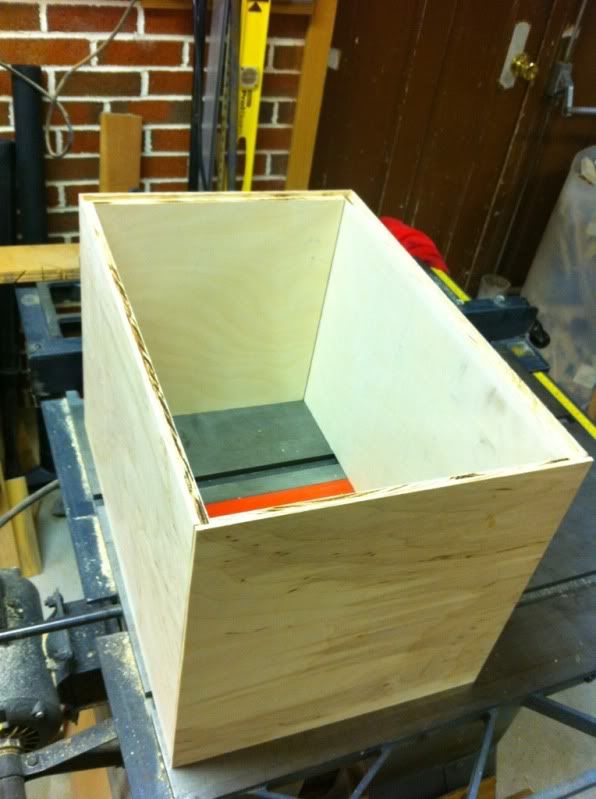

Started out with a Birch Plywood box that is the same size as a Meinl Cajon from dimension that I found online.


The outside of the box stained, the back panel is made out of 1/4" plywood. The hole was cut out with a jig saw.

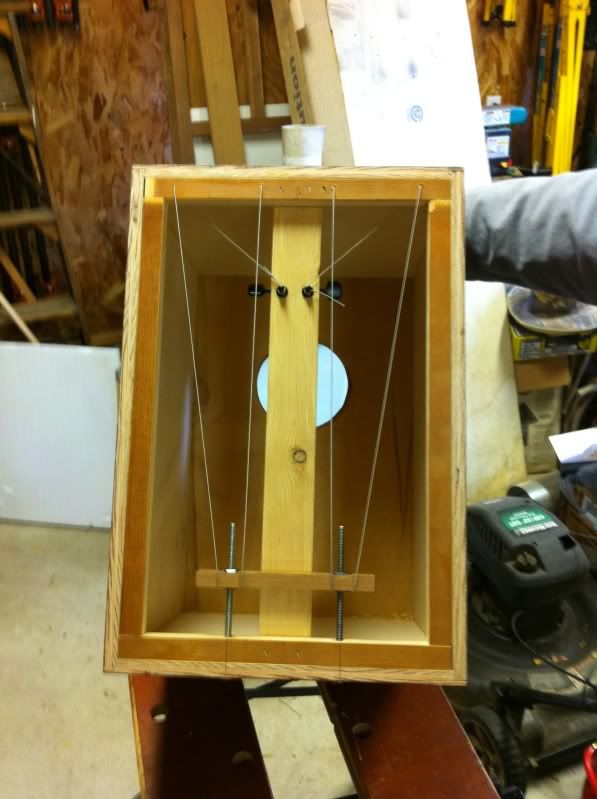

The inside snare design was also based roughly off of a Meinl Cajon. The strings used are low E acoustic strings.

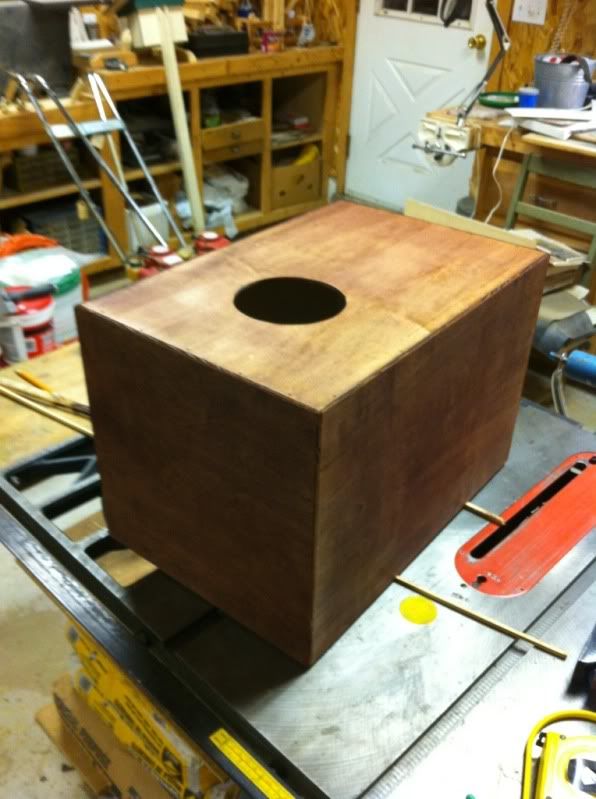

The finished Cajon. The outside is finished with lin seed oil.
Guitars-
Epiphone Les Paul Custom
Dean Evo XM with EMG 81/85
Epiphone Stratocaster
Eastman AC120 Dreadnought
Martin Backpacker
Squire P-Bass
Kala Mahogany Tenor Ukulele
#2
Bongo Cajon

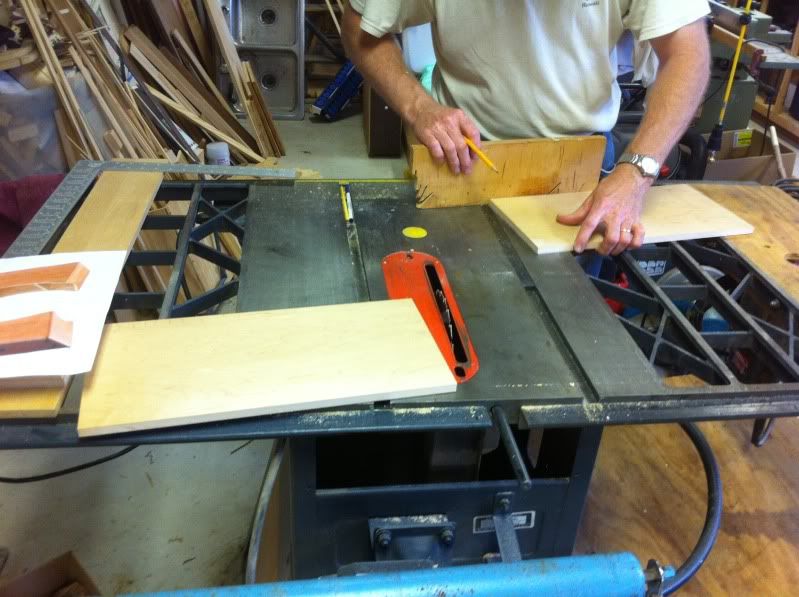

The sides cut out of solid maple, the work being done by my dad.

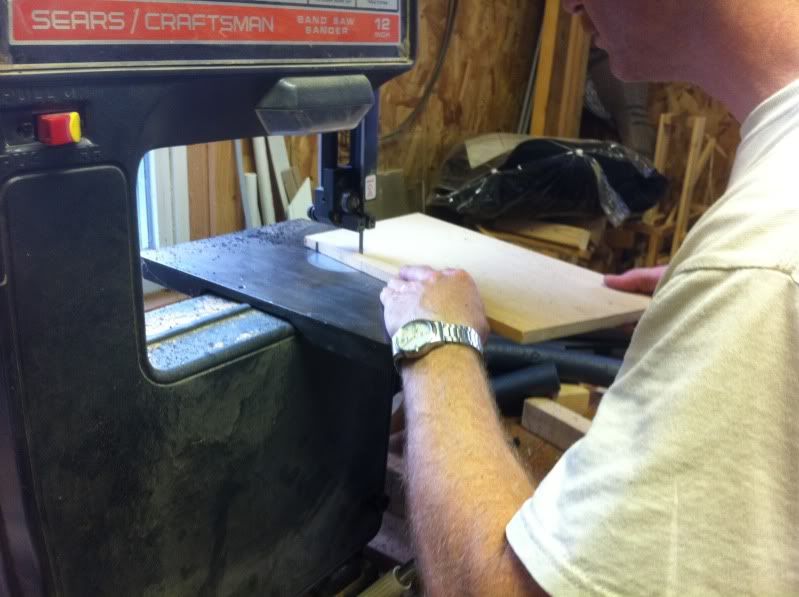

Cut outs for the bottom cut on the band saw.

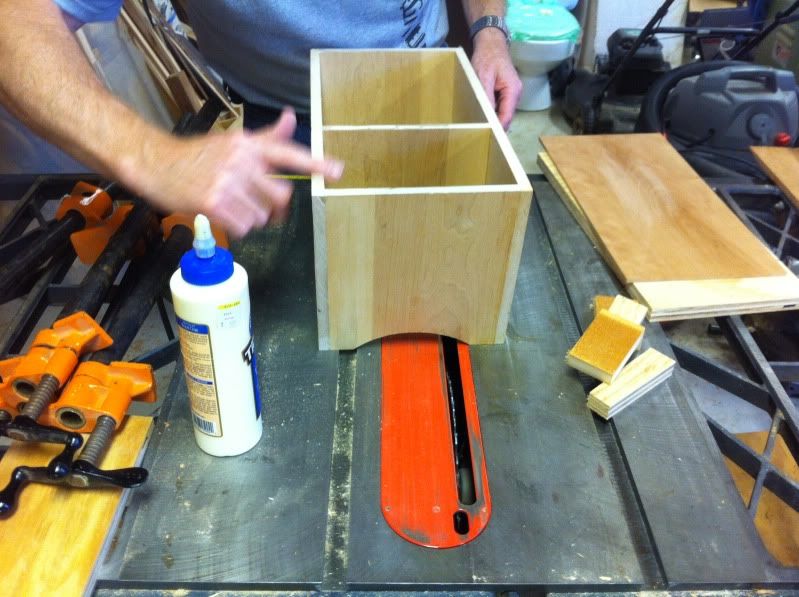

The sides taped together and sanded so that they are identical.

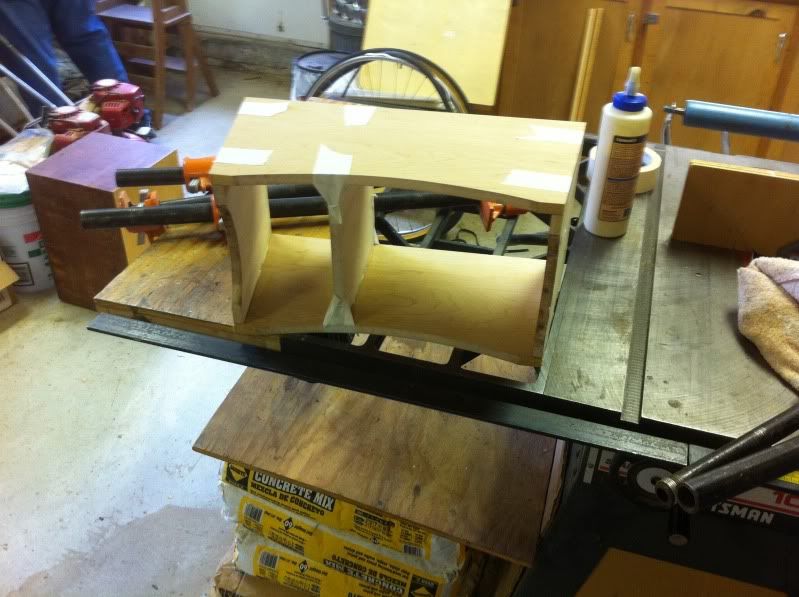

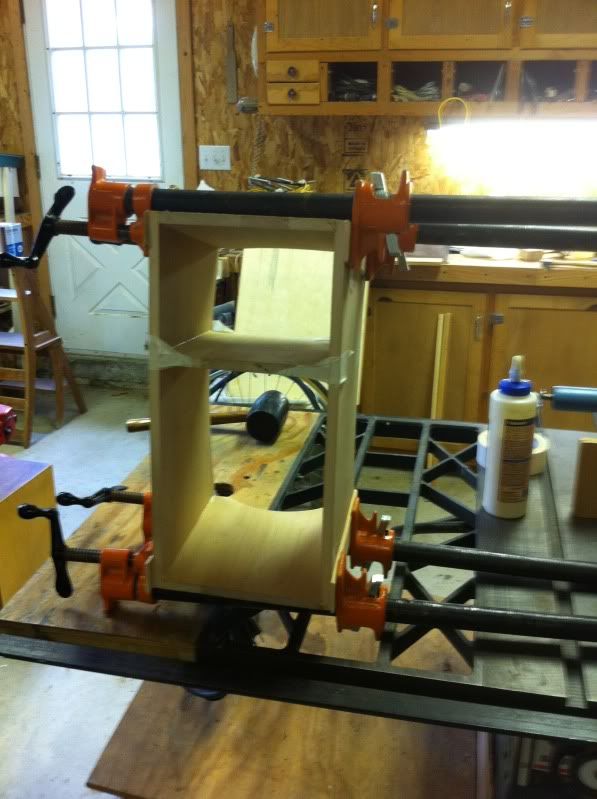

The Cajon glued, taped, clamped and left over night.

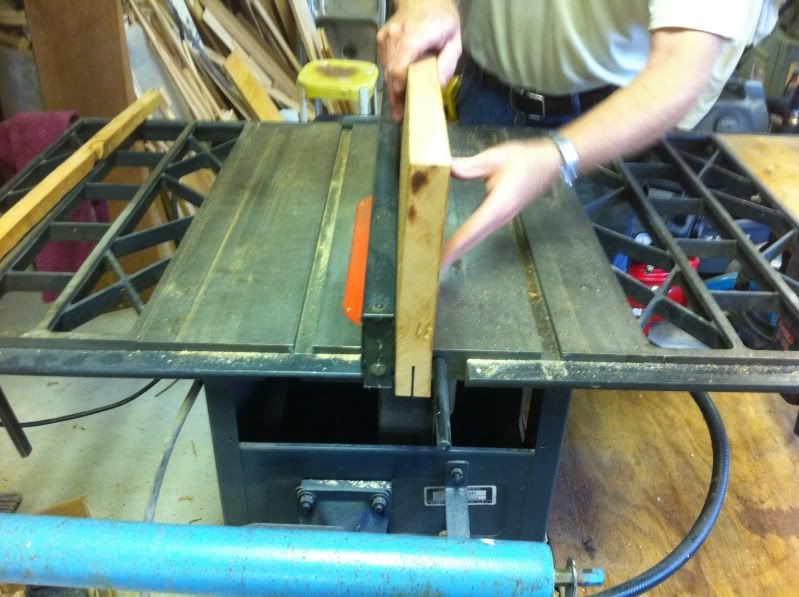

The cherry for the top being cut in two so it can then be planed down
Guitars-
Epiphone Les Paul Custom
Dean Evo XM with EMG 81/85
Epiphone Stratocaster
Eastman AC120 Dreadnought
Martin Backpacker
Squire P-Bass
Kala Mahogany Tenor Ukulele
#3

The top being planed down to 3/16".


The top being glued on.


The top being sanded down to a bit less than 1/8".

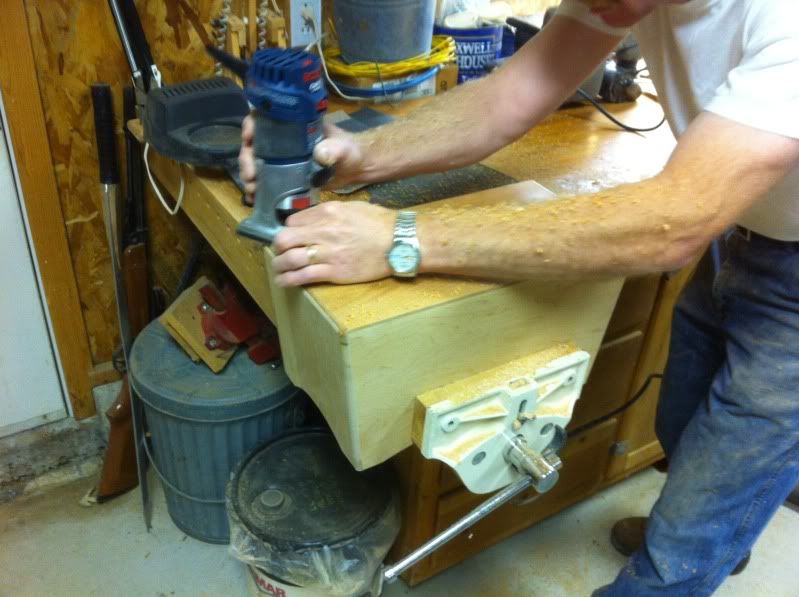

Sides being routed by to a 3/8" round.

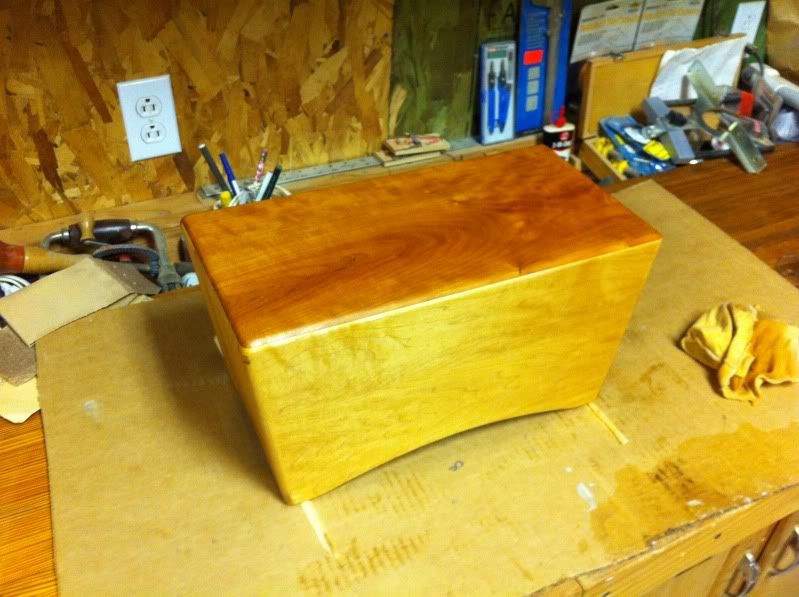

Finished product after lin seed oil.
Guitars-
Epiphone Les Paul Custom
Dean Evo XM with EMG 81/85
Epiphone Stratocaster
Eastman AC120 Dreadnought
Martin Backpacker
Squire P-Bass
Kala Mahogany Tenor Ukulele
#4

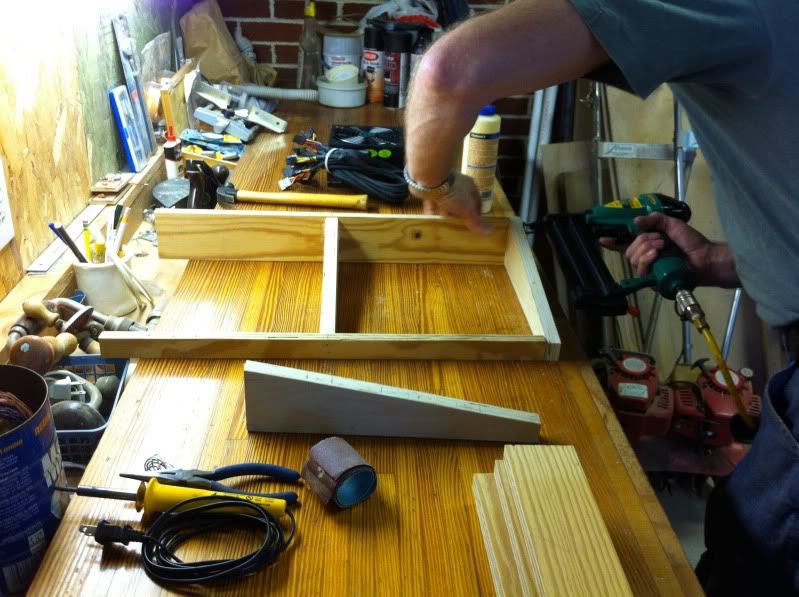

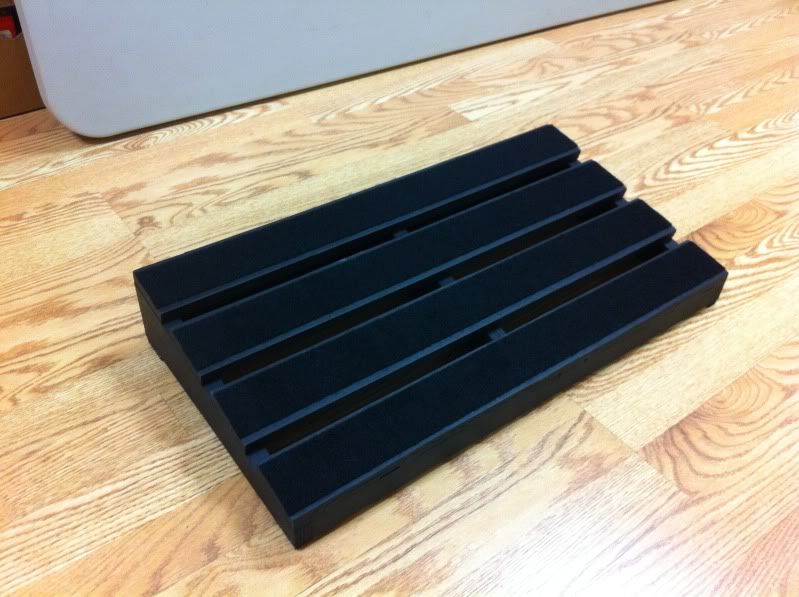

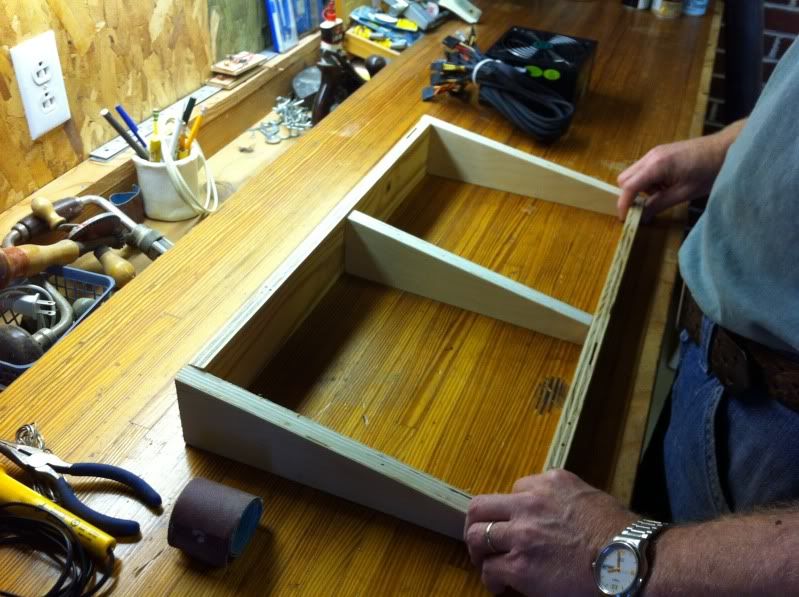

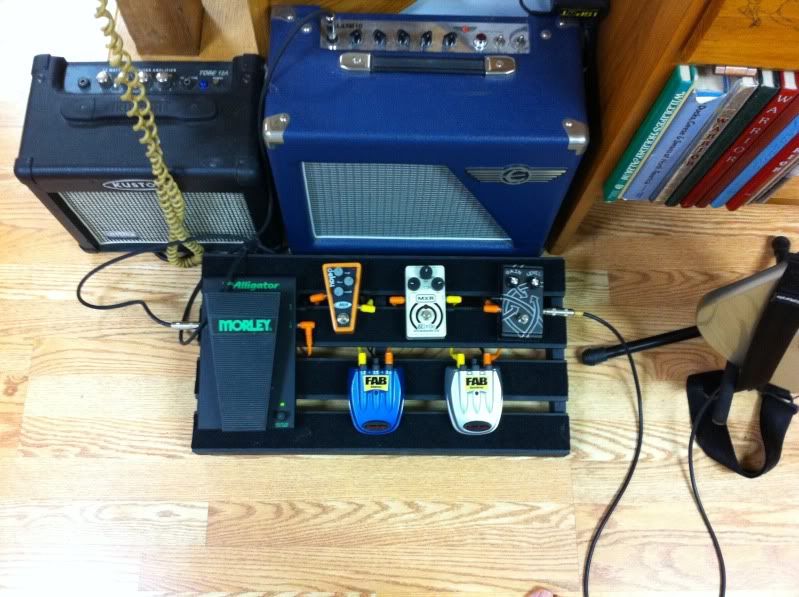

Pedal Board









Guitars-
Epiphone Les Paul Custom
Dean Evo XM with EMG 81/85
Epiphone Stratocaster
Eastman AC120 Dreadnought
Martin Backpacker
Squire P-Bass
Kala Mahogany Tenor Ukulele
#6
your workshop makes me jealous
Epiphone Les Paul Plus Top
Jet City JCA5212RC (SLO Modded)
Ibanez WD7 Wah
Mad Professor Sweet Honey Overdrive
TC Electronic Flashback Triple Delay
TC Electronic Trinity Reverb
#7
Quote by Leon987
That pedalboard is just awesome, very clean

Thanks, I was pretty happy with how it turned out.

Quote by GABarrie
your workshop makes me jealous

Ha, yeah it is my dads. Its a bit cluttered at the moment, but its really nice to have some place that I can work on stuff.
