Specs:
body - walnut
neck - 3 piece laminated walnut
fretboard - either rosewood or ebony
scale length - 675mm (27")
frets - 22
strings - 6
electrics - bridge humbucker, neck single coil, 1 volume control, 1 tone control, 3 way toggle switch
bridge - tune-o-matic

The shape will be a double cutaway, rather like a solid body ES-335

I intend to do a relief carving on the top based on the Norse carvings on the walls of Urnes Stave church in Norway.

I am aware that walnut is not an ideal neck wood. I had some left over from the body so, to keep the cost down I decided to see if it will work in a neck.

So here is what I have got done over the last few weeks

The body wood


Wood and the body template


The body glued together and roughly cut out and the neck pocket routed


The body shaped and the bridge pickup routed


Control cavity routed

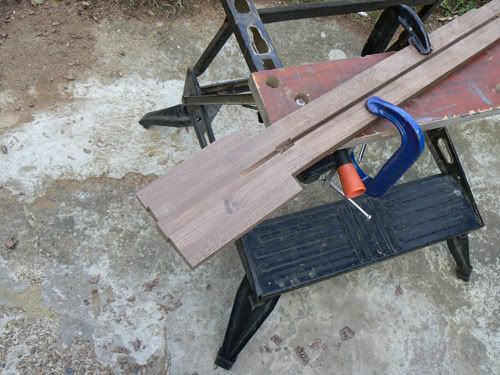

Neck blank assembled and truss rod channel routed
barden1069
UG's ONLY Guitarist
Join date: Mar 2008
90 IQ
#2
That looks sweet! A solid-body ES-335 style guitar has always interested me, but I can never find a production model. I'll be keeping an eye on this. What kind of finish are you thinking of?
Le Gear
Standard Tele (modded to Nashville specs)
Ibanez AM93
Reverend Roundhouse

Orange AD30
Vox AC4c1
Jet City JCA20H
'72 Fender Vibrosonic Reverb

And pedals!



"Shiva opens her arms now..
...to make sure I don't get too far"
captivity
Registered User
Join date: Mar 2008
20 IQ
#4
Here is the original that I am using as a reference for the carving style

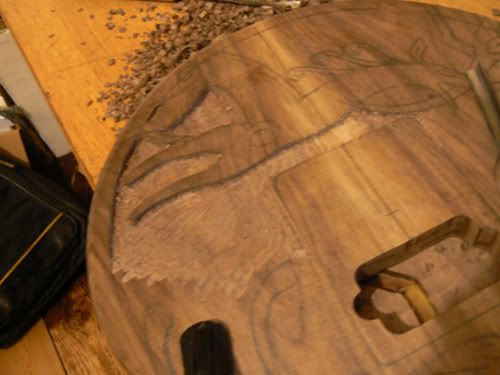

Carving begins...


Lightbluemk2
New Zealand rep!
Join date: May 2010
80 IQ
#7
Man big job ahead of you there, great work!
________________________________________

Chur
IronMaiden76
UG's Krabby Patty
Join date: May 2009
170 IQ
#9
that looks awesome!
Call me Chris
Quote by jimihendrix6699
had a blast until the person in front of me whipped out his dick and started pissing all over the floor..

Ducks and guitars or fish and guitars. I lead a simple existence
nowa90
Strike the Earth!
Join date: Mar 2008
341 IQ
#10
damn, if that carving idea turns out I may have to try it on my next build.
Just call me Julius, J, etc.
Taking an Internet break for a while, will come on when I can.
Flux'D
Plays a pitchfork
Join date: May 2006
493 IQ
#11
Quote by captivity

The body shaped and the bridge pickup routed

That bridge pickup looks really high up on the guitar

Interesting build, Walnut was a good choice for carving like that. And a walnut neck is totally fine, its plenty strong for such things. I wouldn't use it for a fretboard as its not super hard though. Your walnut looks a lot lighter than what comes from around here, where are you located out of curiosity?
Endorsed by Dean Guitars 07-10
2003 Gibson Flying V w/ Moon Inlay
2006 Fender All-American Partscaster
SVK ELP-C500 Custom

1964 Fender Vibro Champ
1989 Peavey VTM60

[thread="1166208"]Gibsons Historic Designs[/thread]
Last edited by Flux'D at Mar 19, 2012,
nowa90
Strike the Earth!
Join date: Mar 2008
341 IQ
#12
it shouldn't matter, its more of where his lumber is from
Looks like nogal or peruvian walnut, while more people in the states seem to get black walnut.
Just call me Julius, J, etc.
Taking an Internet break for a while, will come on when I can.
LeviMan_2001
Registered User
Join date: Mar 2008
191 IQ
#13
Quote by Flux'D
That bridge pickup looks really high up on the guitar

Interesting build, Walnut was a good choice for carving like that. And a walnut neck is totally fine, its plenty strong for such things. I wouldn't use it for a fretboard as its not super hard though. Your walnut looks a lot lighter than what comes from around here, where are you located out of curiosity?


I don't think the pickup is high, it's just the body is large. It's a 335 style shape. This is looking really cool, the carving will be quite the task!
captivity
Registered User
Join date: Mar 2008
20 IQ
#14
Quote by Flux'D
That bridge pickup looks really high up on the guitar

Interesting build, Walnut was a good choice for carving like that. And a walnut neck is totally fine, its plenty strong for such things. I wouldn't use it for a fretboard as its not super hard though. Your walnut looks a lot lighter than what comes from around here, where are you located out of curiosity?



The photo angle makes the pickup look further forward than it is. The edge of it is about 21cm from the back of the body, which is about the same distance as on a les paul.

I am based in London. The wood is American walnut, though I agree that it is a bit lighter than some other pieces I've seen.
captivity
Registered User
Join date: Mar 2008
20 IQ
#17
Wiring question:

I will be buying electrics for this soon and was wondering whether it is best to use 500k or 250k volume/tone potentiometers for a humbucker and single coil on the same circuit. Do any of you have any suggestions about this?

Some progress updates:

Neck roughly cut out

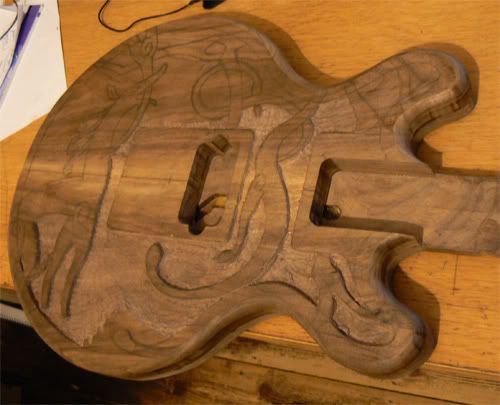

Carving continues
nowa90
Strike the Earth!
Join date: Mar 2008
341 IQ
#20
I used a 500k on both of my humbucker/single coil tele's, it's probably the best idea. 250k would be pretty muddy on a humbucker.
Just call me Julius, J, etc.
Taking an Internet break for a while, will come on when I can.
Last edited by nowa90 at Mar 24, 2012,
eddiehimself
Call me EH, eh?
Join date: Jun 2006
361 IQ
#21
Quote by nowa90
I used a 500k on both of my humbucker/single coil tele's, it's probably the best idea. 250k would be pretty shrill on a humbucker.


Wrong way round. Higher impedance pots give you more treble. Humbuckers don't have as much treble as single coil pickups. I would go with 500k pots though.
EH


"Show me war; show me pestilence; show me the blood-red hands of retribution..."
nowa90
Strike the Earth!
Join date: Mar 2008
341 IQ
#22
I thought i may have had it the other way around. Fixed now
Just call me Julius, J, etc.
Taking an Internet break for a while, will come on when I can.
captivity
Registered User
Join date: Mar 2008
20 IQ
#23
Thanks for the pot suggestions, I will order 500ks. If I decide that I don't like them I can always change them latter on.
captivity
Registered User
Join date: Mar 2008
20 IQ
#24
I have been rather busy working over the last 2 weeks so carving progress has been slow.
Some parts I ordered turned up today.

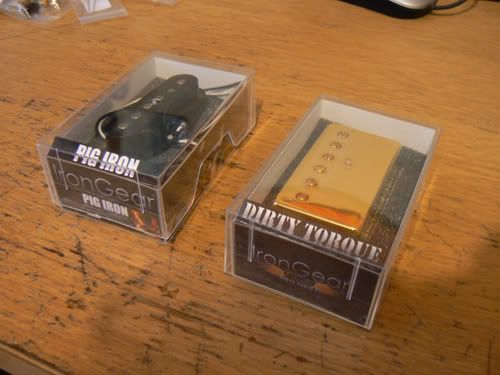

The pickups are relatively cheap ones by Iron Gear, I'm interested to see how they compare to the more expensive brands.

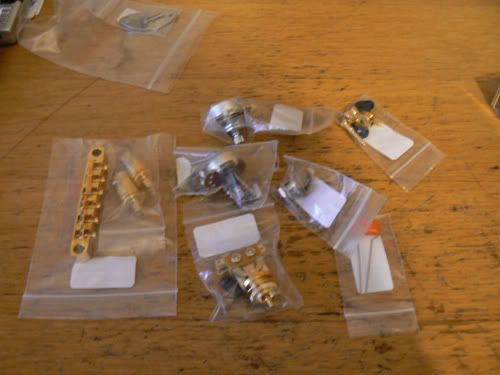

The bridge and some electrical bits
Controlpanel
qɐuuǝp
Join date: Feb 2011
60 IQ
#25
looking good...that carving looks awesome alreayd, and I'm sure your not done..
Quote by Pan-Tallica
Quote by jrcsgtpeppers
But theres no reason why i cant be free like a raspberry stuck to the back of a horny elephants ass.

This is maybe the worst comparison in the history of comparisons.
captivity
Registered User
Join date: Mar 2008
20 IQ
#26
I got some more work done on this over the last few days

Neck tennon shaped

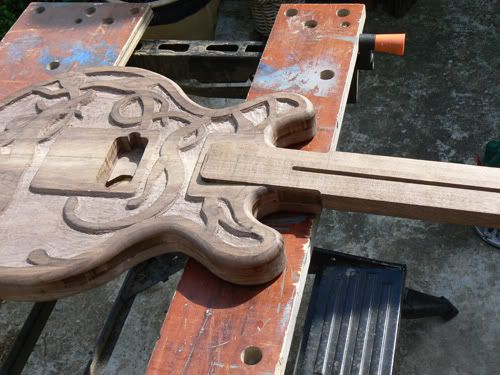

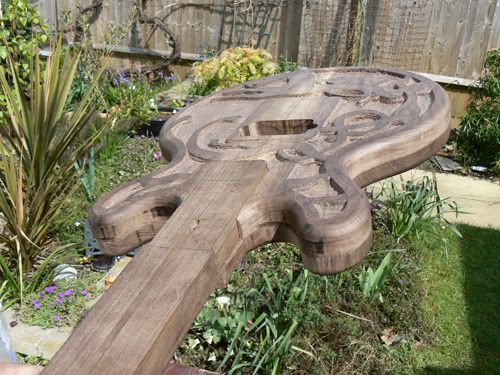

Neck test fitted


Ormsby test passed

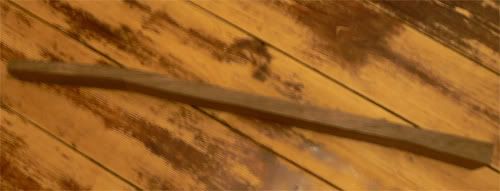

Truss rod test fitted

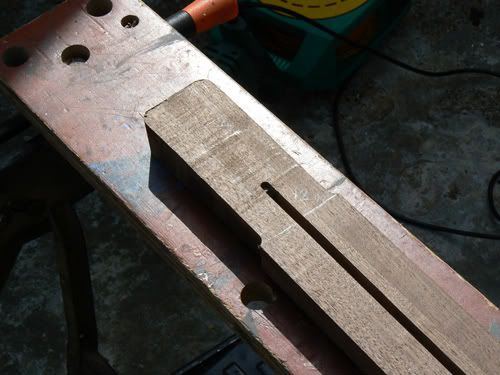

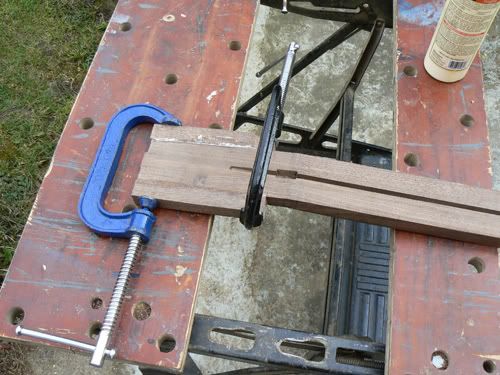

Headstock ears glued


Headstock face planed/sanded

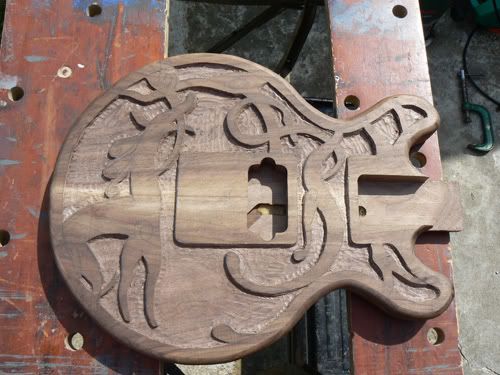

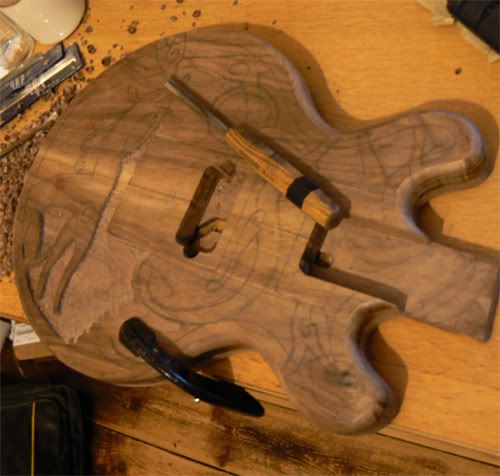

A progress update on the body carving
Last edited by captivity at Apr 14, 2012,
captivity
Registered User
Join date: Mar 2008
20 IQ
#31
Quote by michaelbot9000
the carving is looking really good! is it going to be a little more 3d(rounded?) like the one you posted in the OP?


It will be rounded once I get all the lowered areas to a consistent depth.
captivity
Registered User
Join date: Mar 2008
20 IQ
#33
Its been slow progress over the last few weeks due to bad weather but I have managed to get some work done.

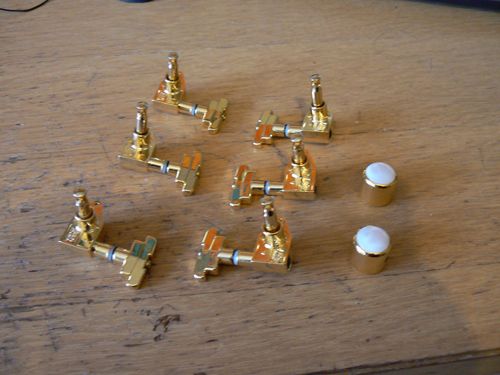

Some parts arrived

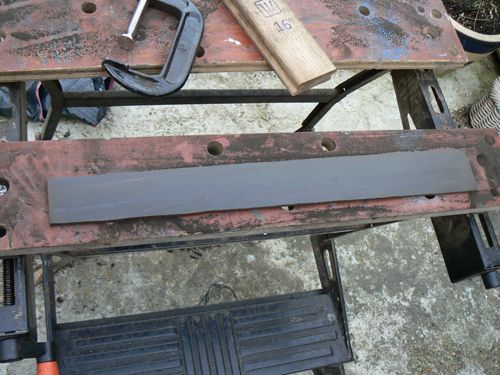

and some ebony for the fretboard

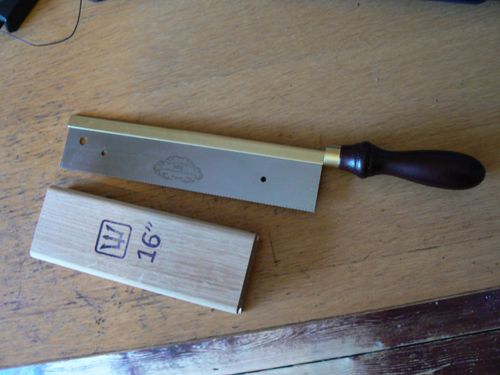

and a fret slotting saw and radius sanding block

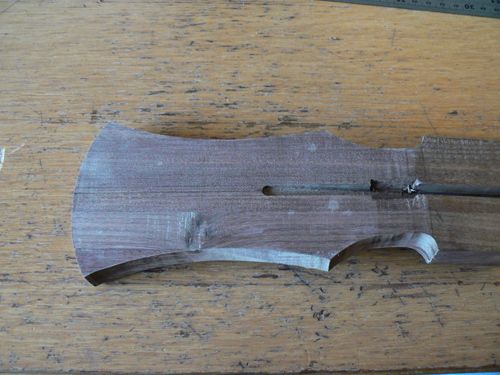

Headstock shape cut out

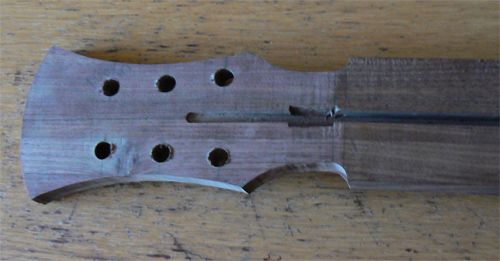

Tuner holes drilled

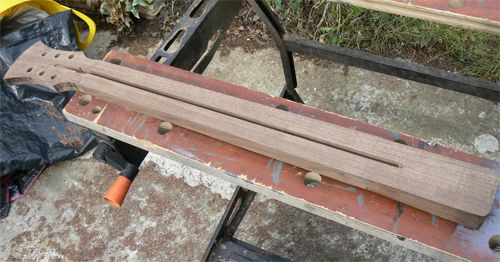

Neck sides roughly cut to shape


Fretboard surface leveled and radiused
Ninja0King
Registered User
Join date: Feb 2010
60 IQ
#34

Fretboard surface leveled and radiused

You radius before you slot? Regardless, looking good! I've been lurking this thread a while now.
Custom Built Soloist w/ Invader & Sustainiac - Douglas Scope 725 - Douglas Grendle 727 - Squier Affinity Series Fat Strat Electric Guitar - Dean Vendetta XM
Bugera 333 Infinium - Kustom 120 Watt Cab - POD HD500 - Ibanez V70 Acoustic
captivity
Registered User
Join date: Mar 2008
20 IQ
#35
More updates

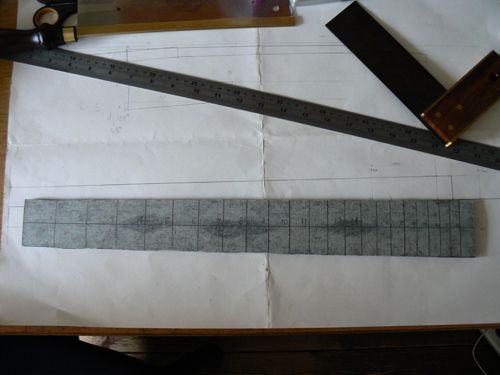

Fretboard marked out and cut to the right length

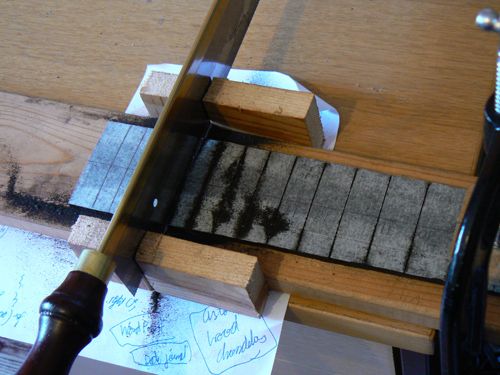

I put together a slotting jig

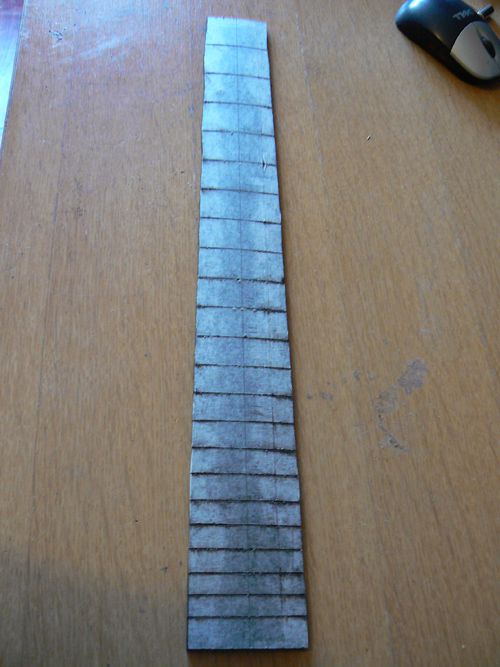

Board slotted

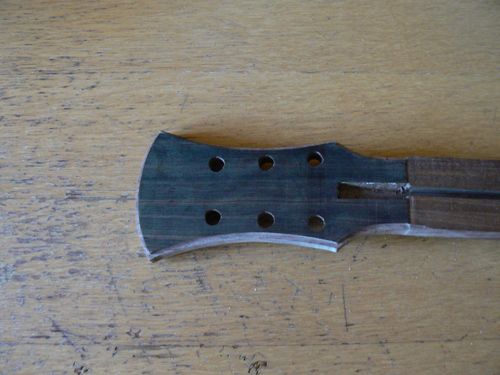

Ebony veneer put on the headstock and binding channels cut


Many hours of messing around with tiny pieces of veneer

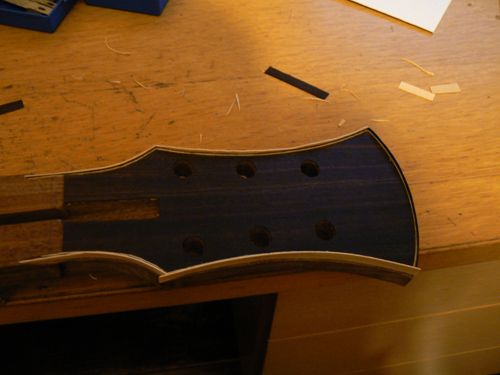

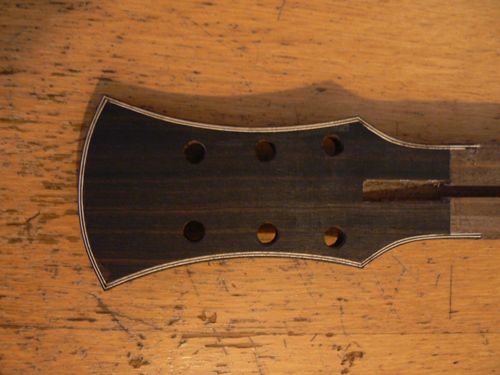

Headstock binding done (though it still needs sanding/some tidying up)
BornToLooze
Leda fanboy
Join date: Jan 2010
112 IQ
#36
That looks awesome. And I was thinking of doing something like this on an Explorer, and was wondering what are you using for the carving, just a chisel?
captivity
Registered User
Join date: Mar 2008
20 IQ
#37
Quote by BornToLooze
That looks awesome. And I was thinking of doing something like this on an Explorer, and was wondering what are you using for the carving, just a chisel?


Yes, I have just been using a few gouges and chisels for the relief carving.
captivity
Registered User
Join date: Mar 2008
20 IQ
#39
Progress:

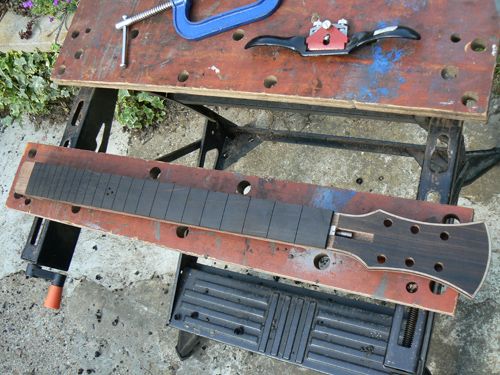

Fretboard glued on, sides trimmed down and inlay holes drilled

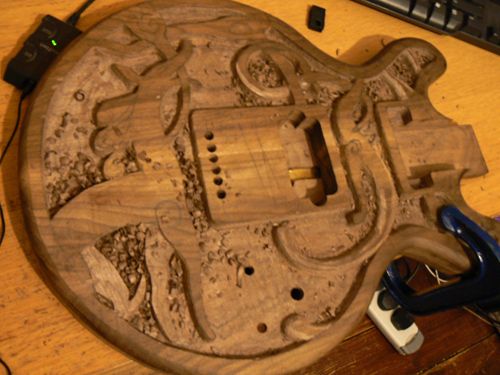

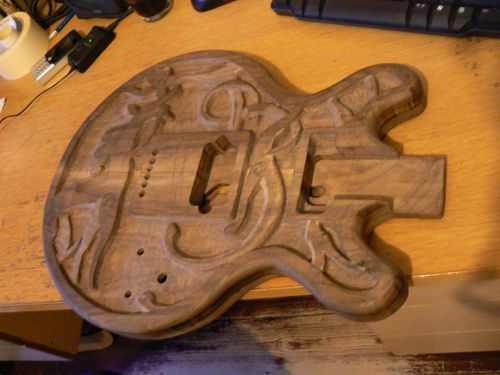

The main recessed areas on the body carving are now roughly at their final depth so I have started rounding over the edges of the carving / sorting out the details. The holes for the controls are also now drilled.


-MintSauce-
Time Lord
Join date: May 2006
190 IQ
#40
Quote by captivity
I have been rather busy working over the last 2 weeks so carving progress has been slow.
Some parts I ordered turned up today.

The pickups are relatively cheap ones by Iron Gear, I'm interested to see how they compare to the more expensive brands.



Those are the same pickups I've got lined up for my next build. I have a Pig Iron in the cupboard, and I need to order the Dirty Torque. IronGear pickups are very good for the money.
