#8
Quote by Explorerbuilder
Yes... Almost every electric guitar made is more than 1 piece. Very rarely will you find a 1 piece body.


Especially for an explorer of all things :-P

This is going to be very cool, I have always admired your work. Hopefully I can pick a few things up along the way.
#10
Quote by Explorerbuilder
I have just always loved explorers, and there is a very good market for them.

Let me know if you guys see any pictures that need explaining or something. I will be more than happy to explain my methods.

Damn straight there is. I want one and would totally get one.....shame i'm a lefty. Explorers and Gibson V's are the only things i would ever want if i was a normal guitarist

Also, How did you start out building guitars? i want to get into bit but dunno how
Last edited by PeaveyPredatorX at Apr 5, 2012,
#12
Great threat! Looking forward to seeing the whole build.

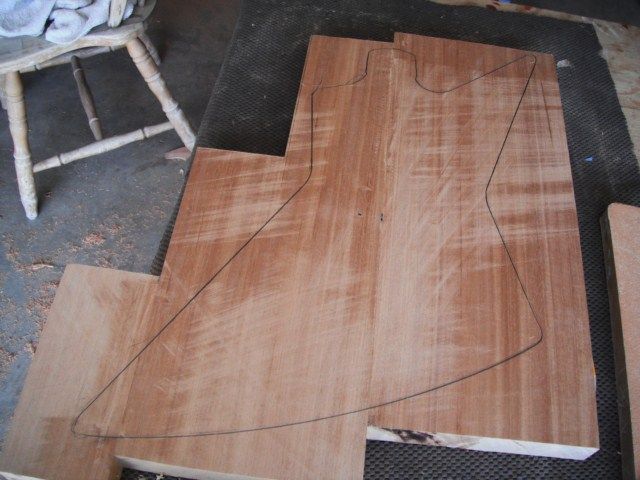

Quote by BlitzkriegAir
is that a good idea having more than one piece of wood for the body?

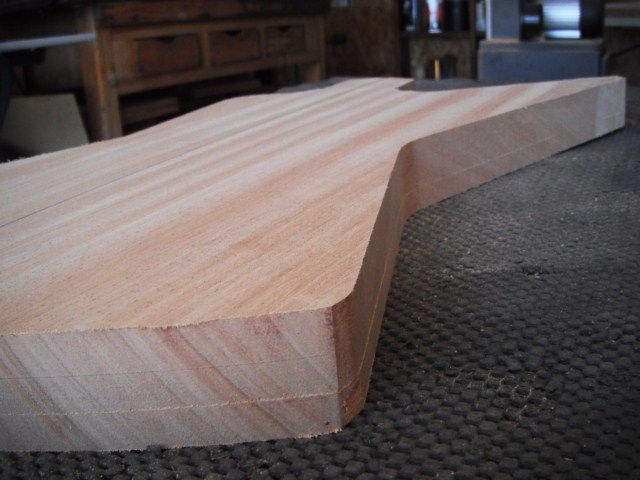

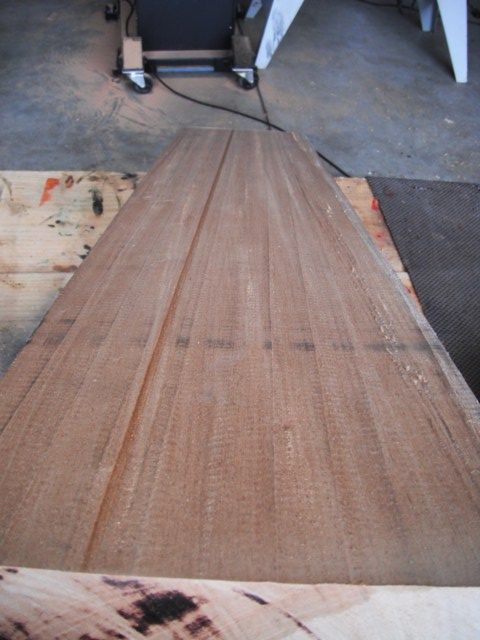

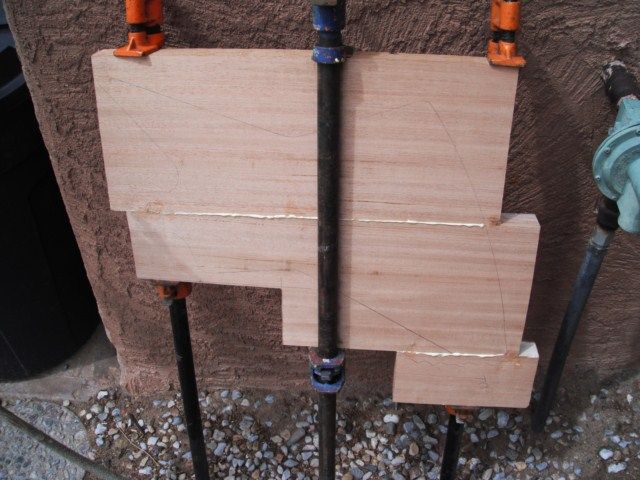

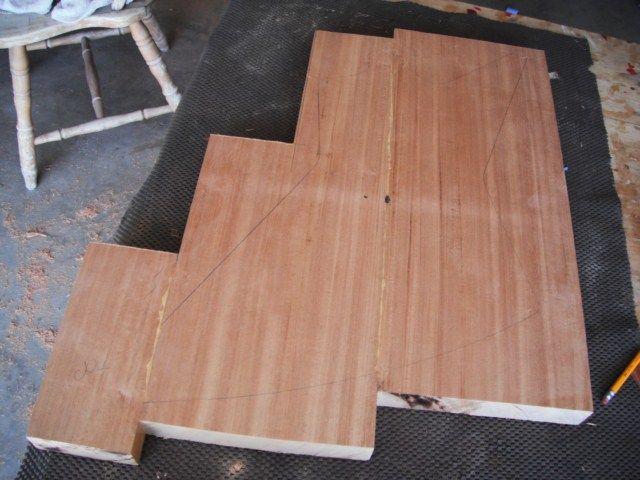

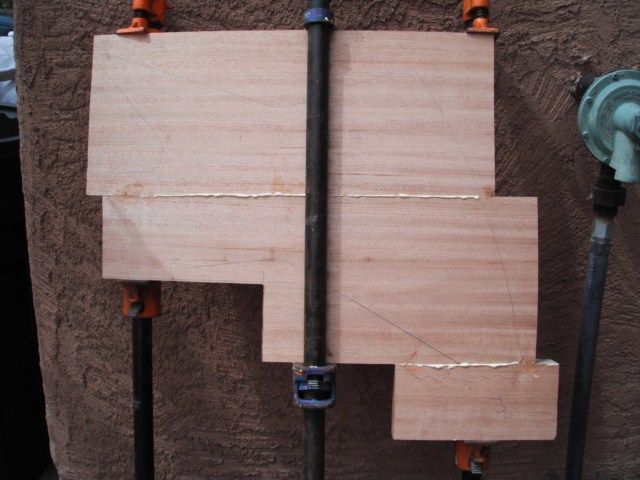

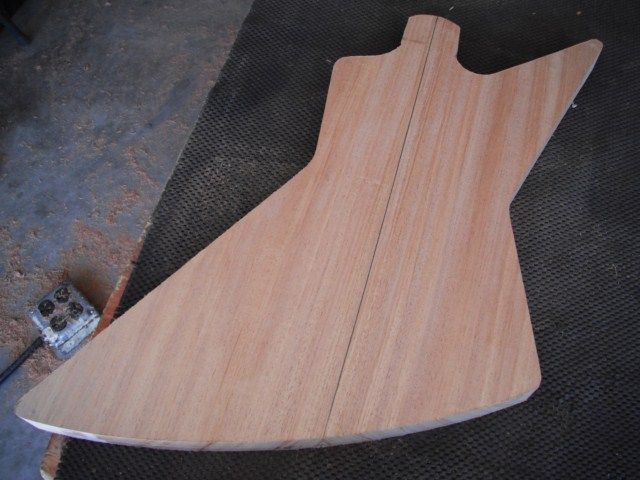

Pretty much any solid finish guitar will be made of 3 pieces, cheap guitars will be made of even more.




Quote by dogismycopilot
Absent Mind, words cant express how much i love you. Id bone you, oh yea.

Quote by lumberjack
Absent Mind is, as usual, completely correct.

Quote by littlemurph7976
Id like to make my love for Neil public knowledge as he is a beautiful man
#13
Quote by Absent Mind
Great threat! Looking forward to seeing the whole build.

Pretty much any solid finish guitar will be made of 3 pieces, cheap guitars will be made of even more.


And maybe some not so cheap! On my Gibson faded SG I can count 5 pieces, all of seemingly random widths, and that is under a transparent finish!

Good thing it sounds so damn good...
#15
Quote by Absent Mind
Great threat! Looking forward to seeing the whole build.

Pretty much any solid finish guitar will be made of 3 pieces, cheap guitars will be made of even more.


I thought it was most common for them to be made of 2 pieces? I dunno.
Guitars
LTD EC-1000 vb
Ibanez RG7321

Amp/Modeler
Line 6 POD HD500

Headphones
Audio-Technica ATH-M50
#18
Quote by Explorerbuilder
I just decided to try to make one after i had been playing for a few months. My dad already had all the tools, since he is a woodworker.

I'm kinda in that position, i could quite easily get access to tools(mother and her father were into woodwork and DIY so there are loadsa tools at my disposal, mum would probably be willing to help me(she did carpentry in college, weird right).
there is just so much about guitar building that confuses me....
#21

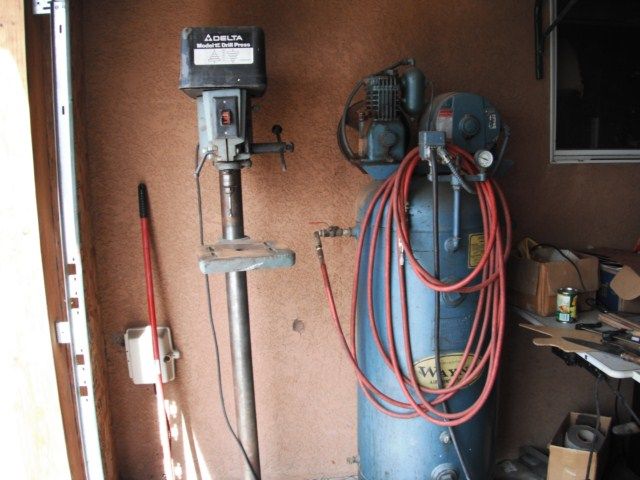

Awesome workshop man. Got everything you could ever need.

Puts my man cave to shame.
'It takes 100 guitar players to change a light. One to change the light and 99 to stand around pointing, saying..."Yeah man, look...I can do that too"...'

My gear is in my Profile

Builds & Refurbs
Hondo 780 Deluxe
Gibson Studio
Epi LP100
#23
Quote by R45VT
Nice job. You reall do a great job with grain.


+1. I wouldn't worry about how many pieces this body is made of, because this man could make 10 pieces of mahogany look like a one piece!
#25
I would love to build a guitar from scratch but it is such a time commitment and so many specialty tools I dont have ( basicly neck making tools, radius sanding blocks, fretting tools etc... ). I am winding my own pickups but that is fast and easy once you find your own combination of materials and technique.
#27
Quote by Explorerbuilder
neck making/fretting tools are probably the cheapest out of all guitar building tools needed...

Already feeling the lack of interest coming back. As soon as i get done with the initial planing/cutting lumber, I start not liking the rest of the process.



I get the same exact way. Today, I should have done alot more to my build, but I was just too lazy and not in the mood. I could have had it ready for finishing by now, but I put it off.
#28
Alright, got around to some work on this.

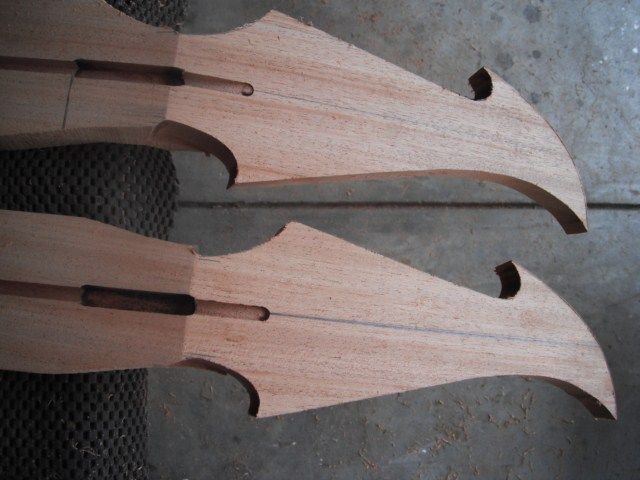

I am building 2 side by side, at the same rate.

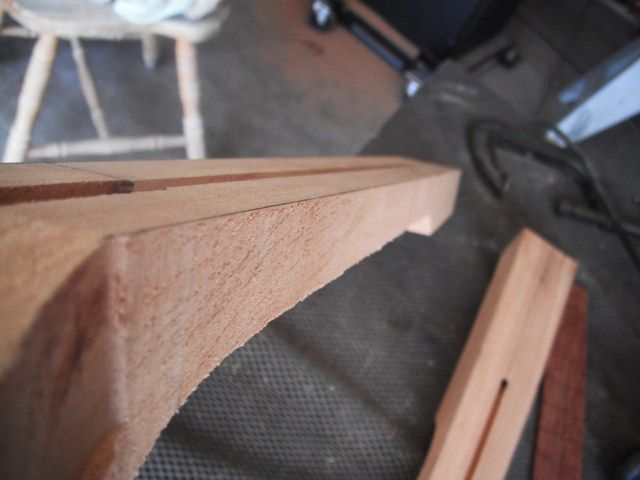

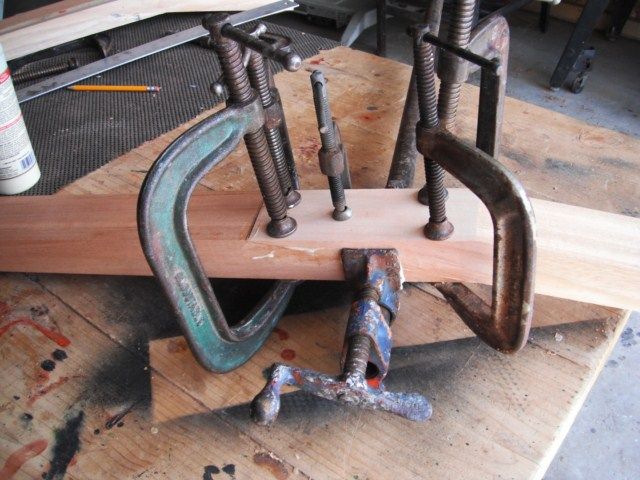

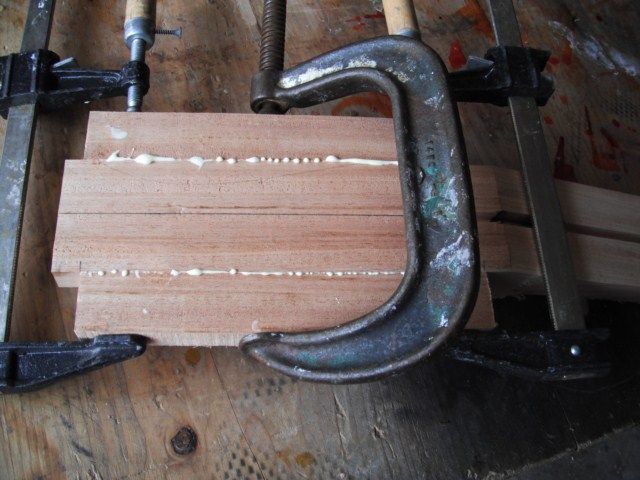

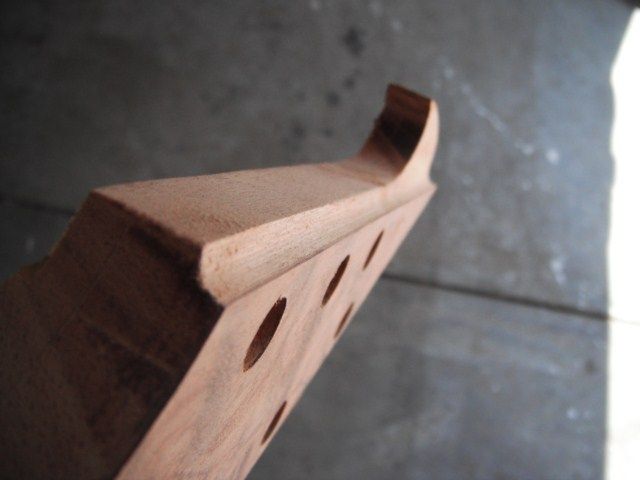

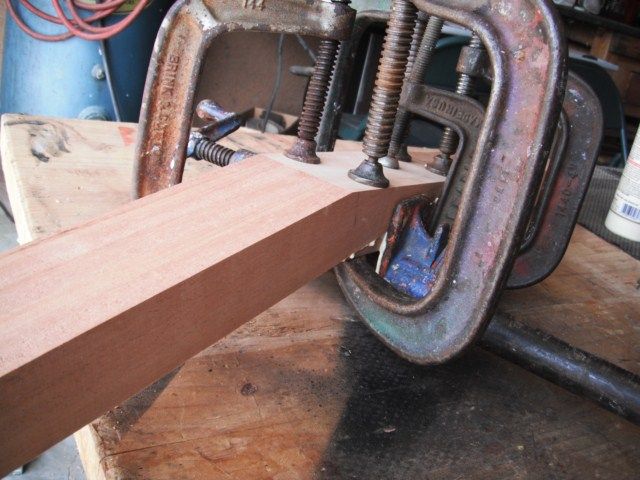

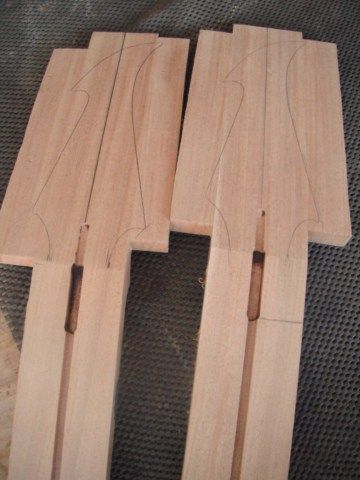

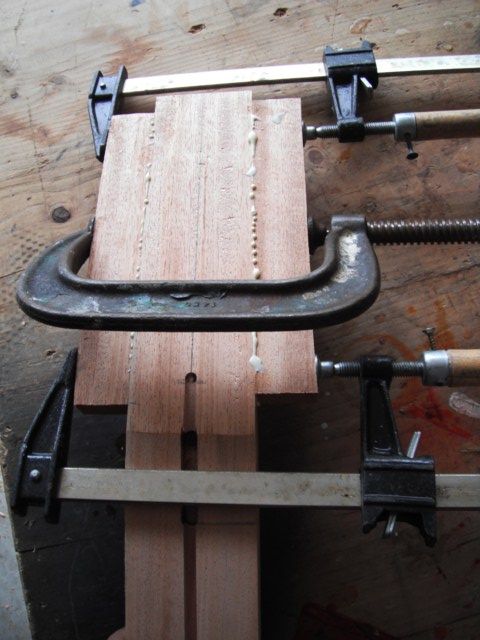

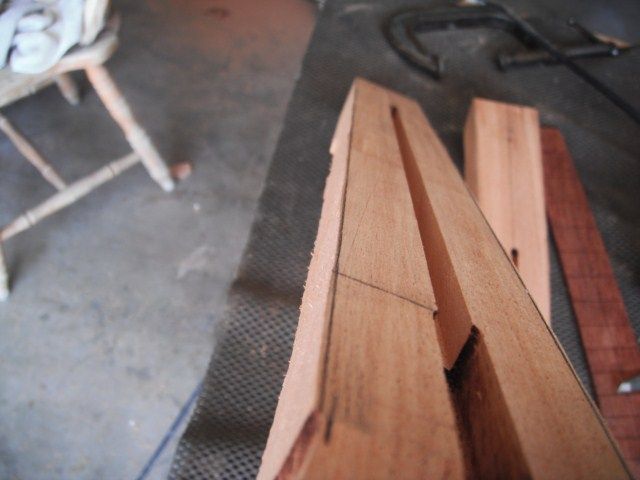

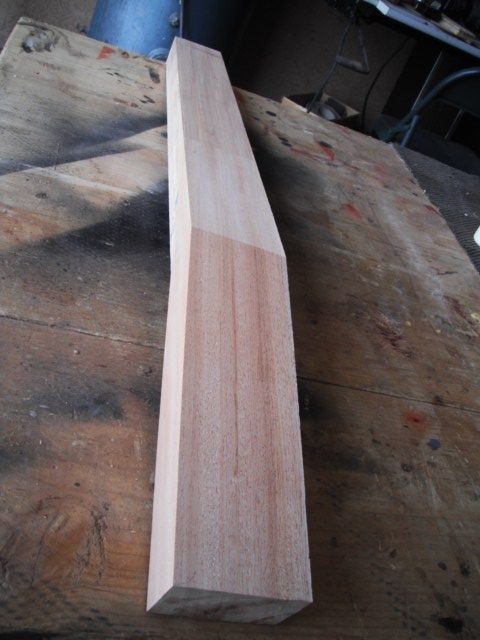

So here is where i left off. Headstock ears glued and leveled

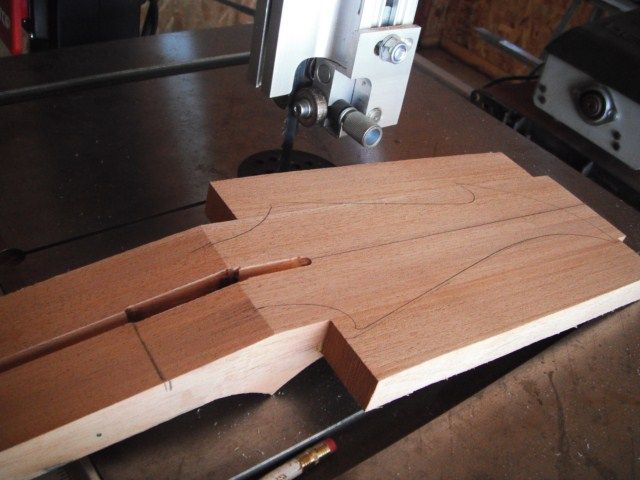

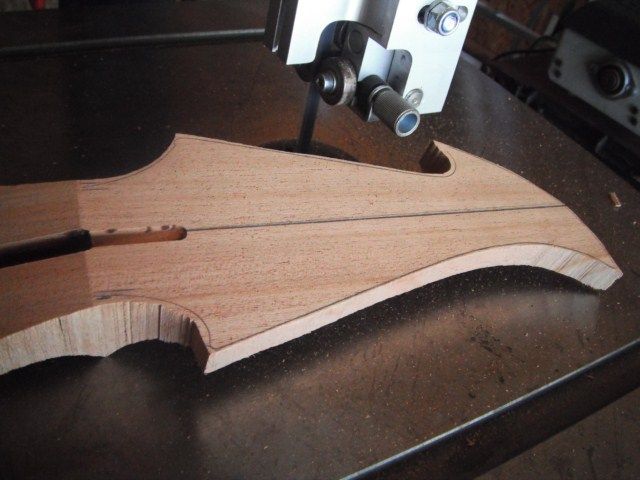

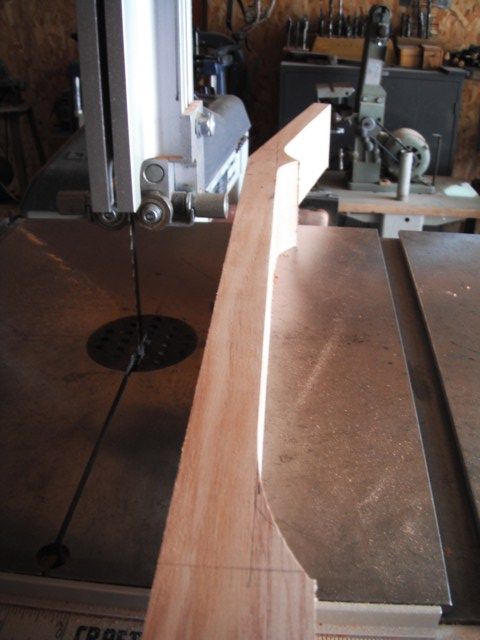

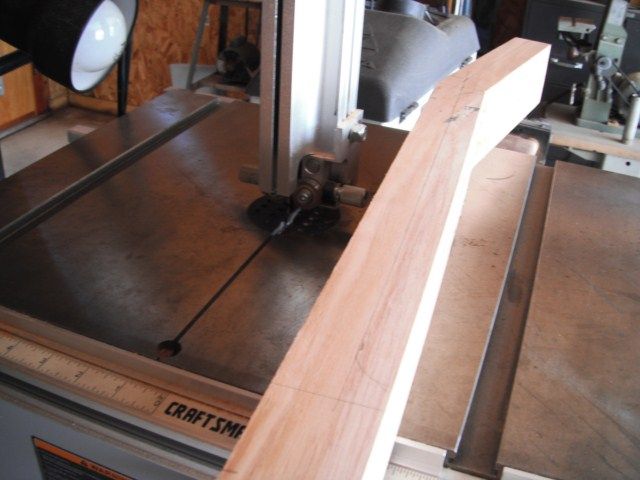

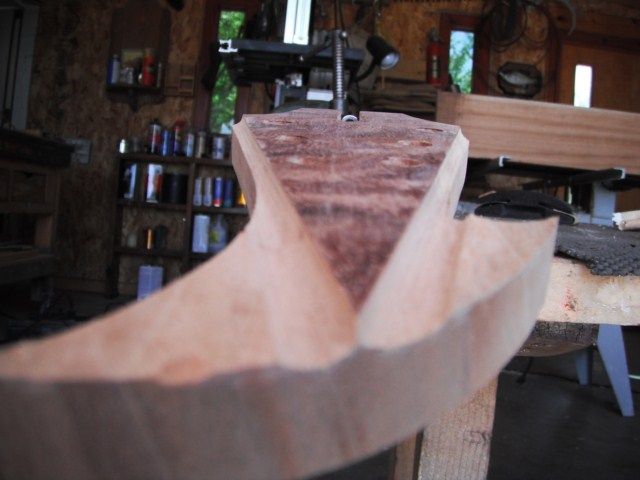

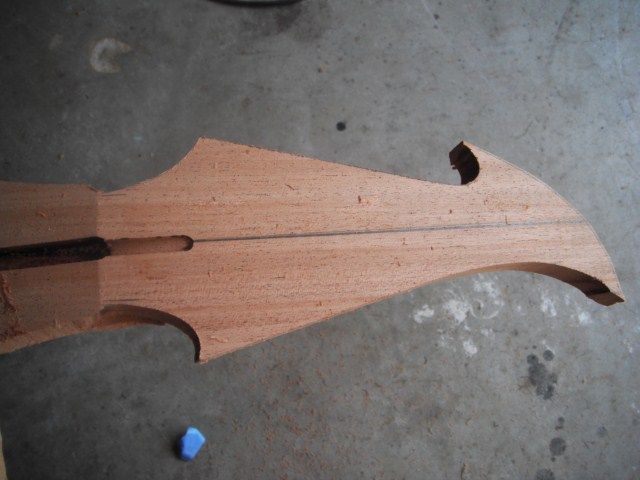

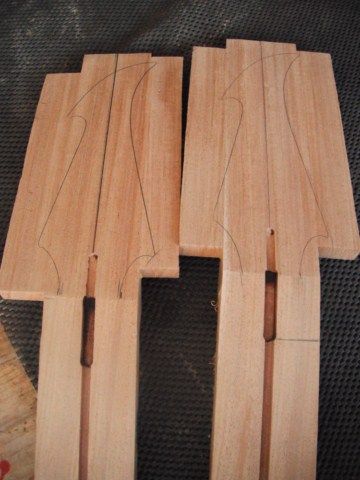

Cutting headstock rough shape

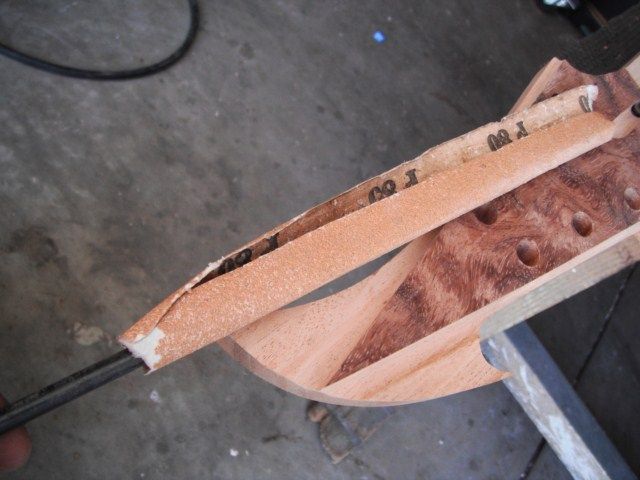

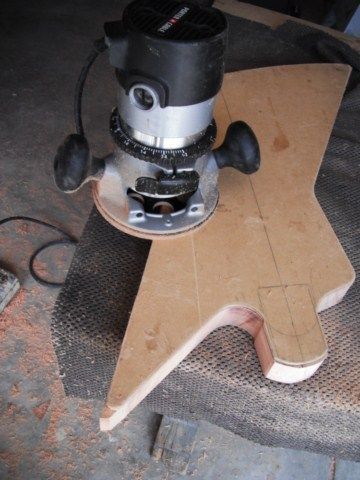

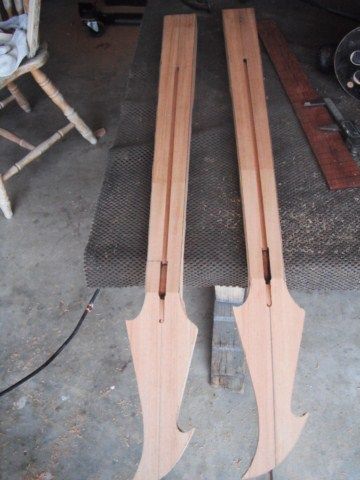

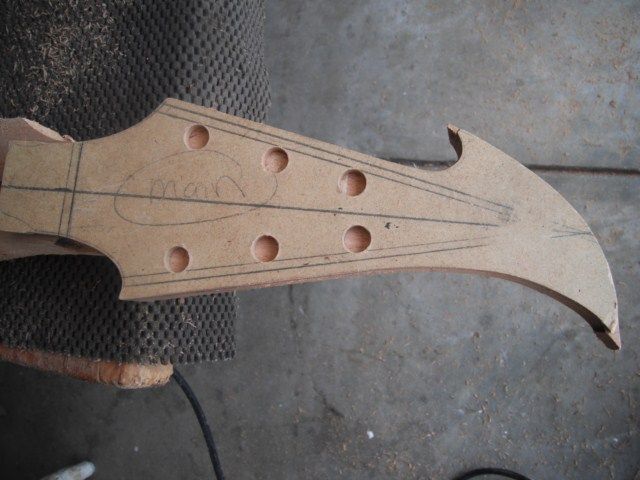

Routing Headstock to exact shape with router and template


Last edited by Explorerbuilder at Apr 10, 2012,
#33
Just a heads up: You posted the wrong pictures for routing the headstock to shape.

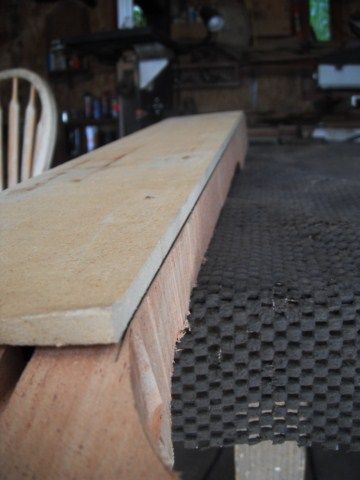

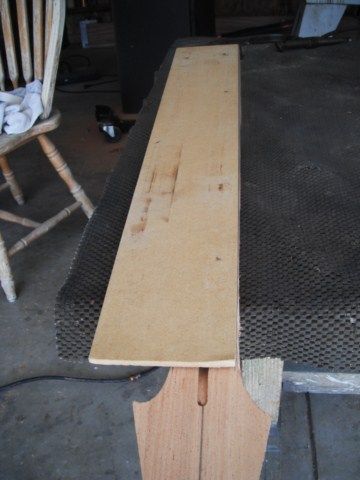

I like the MDF straight-edge + template bit for the neck taper. I'm definitely going to use that in the future
#35
Quote by Explorerbuilder

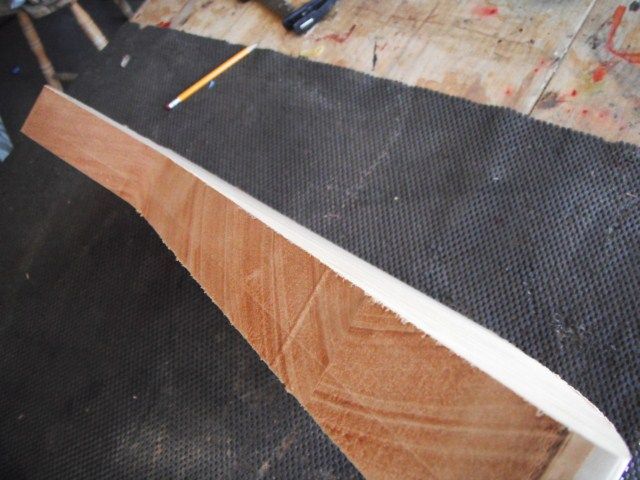

Yeah, i have found it to be the most simple way to do it. Just measure the nut and heel widths out, then connect them with a straight edge to get the taper.

Seems like a great way of doing it if your ears are already attatched.

Hell of a lot easier than planing the bulk of it, and then getting the wee bit left at the nut with a bullnose plane!
#37
This is looking really good so far. I dig the headstock.
Custom Built Soloist w/ Invader & Sustainiac - Douglas Scope 725 - Douglas Grendle 727 - Squier Affinity Series Fat Strat Electric Guitar - Dean Vendetta XM
Bugera 333 Infinium - Kustom 120 Watt Cab - POD HD500 - Ibanez V70 Acoustic
#38
Alright, so i fogot to take pics of a few things, and I had some pics and accidentally deleted them from my camera. So i will just throw in what i have.

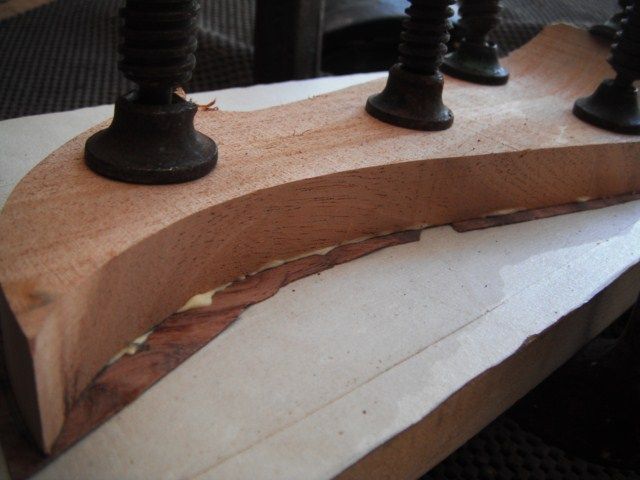

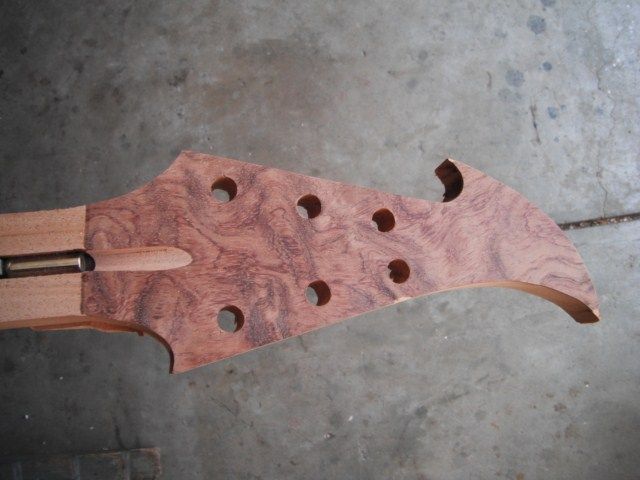

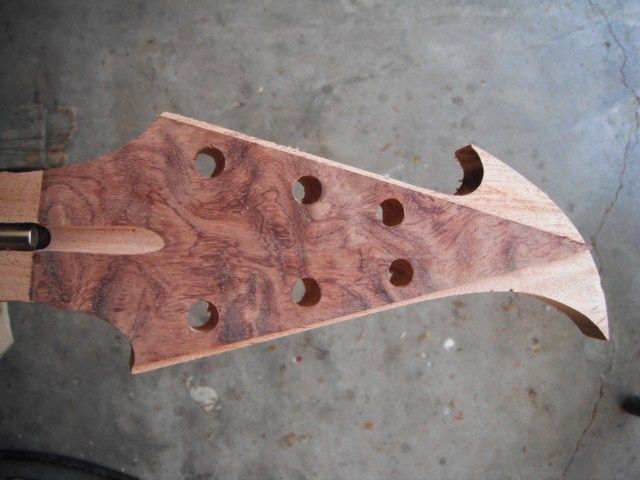

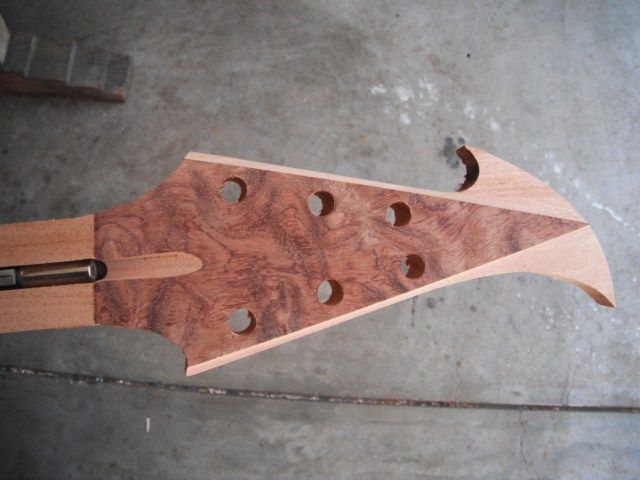

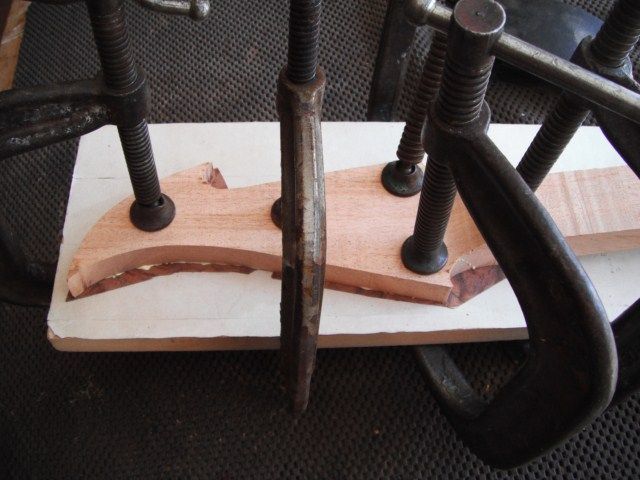

Glued the veneer to the headstock

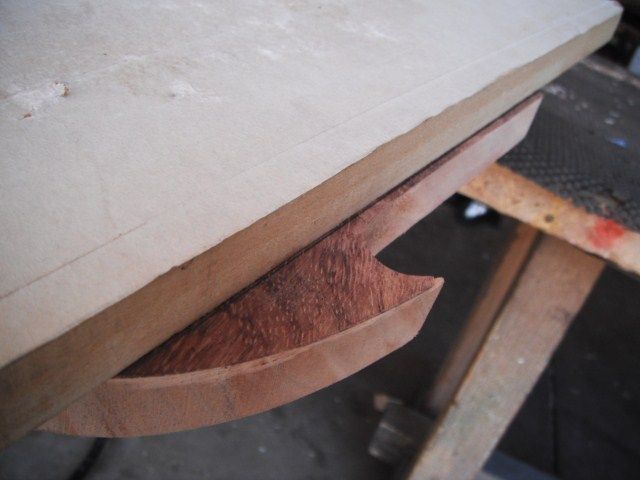

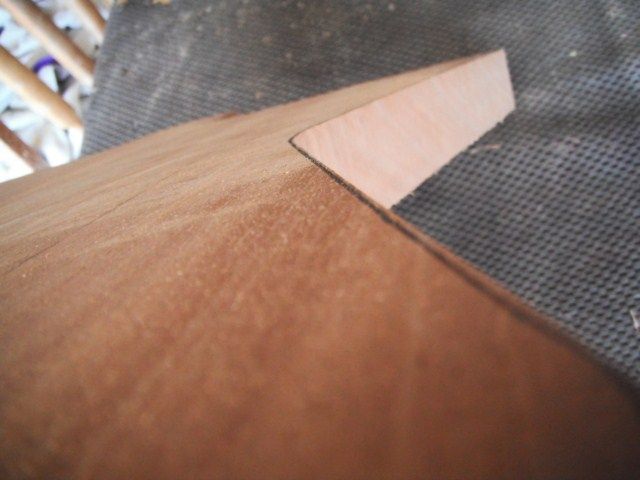

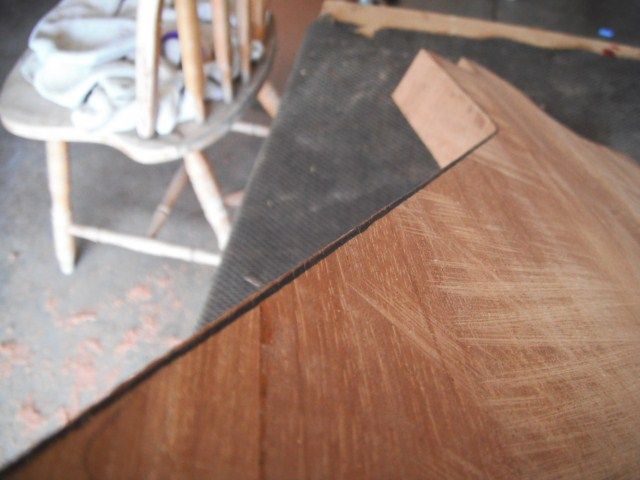

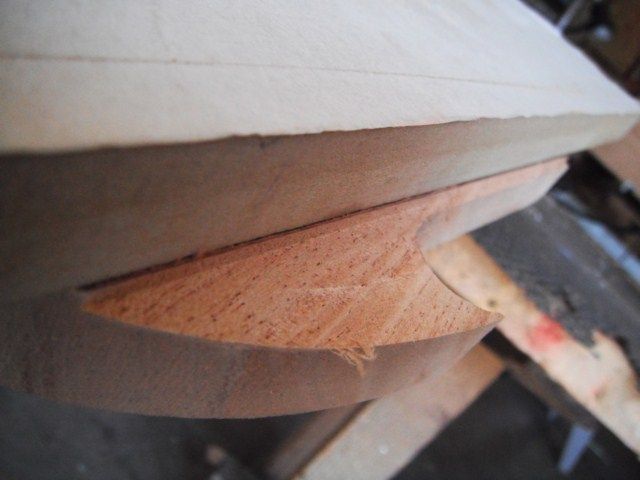

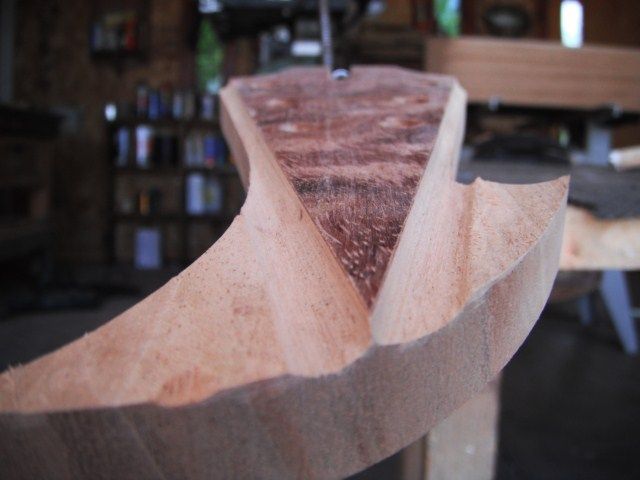

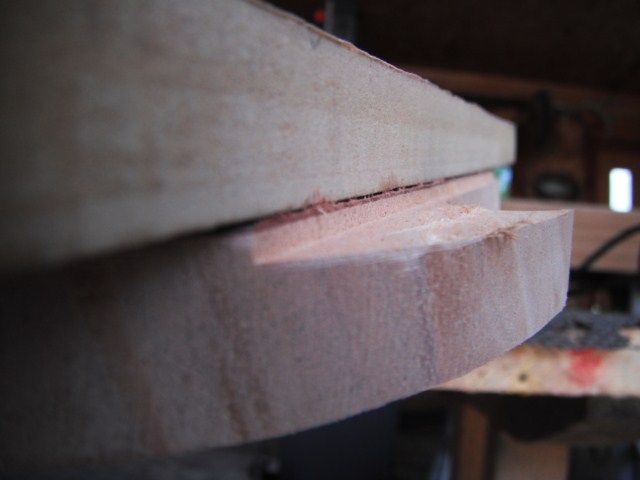

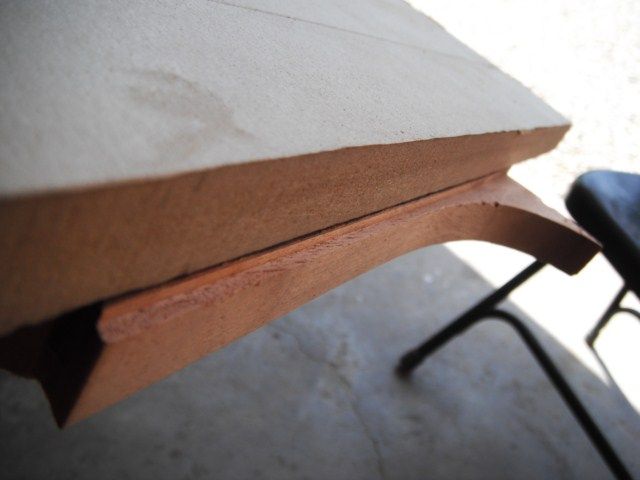

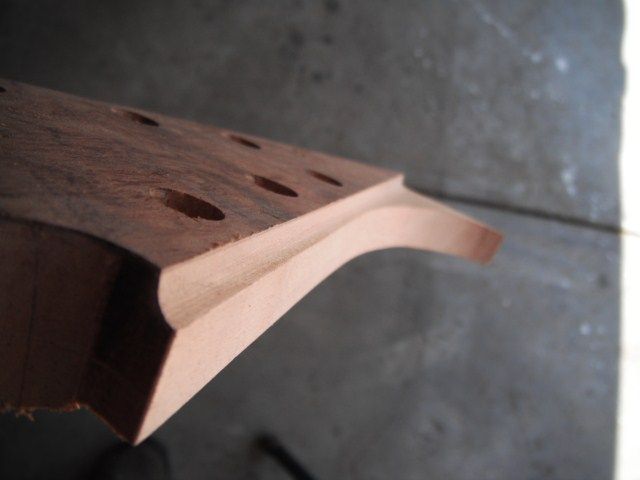

Then to make it layered, I put a straight edge 3/4" MDF piece on the headstock, and use a bearing bit to cut the layer.






#40

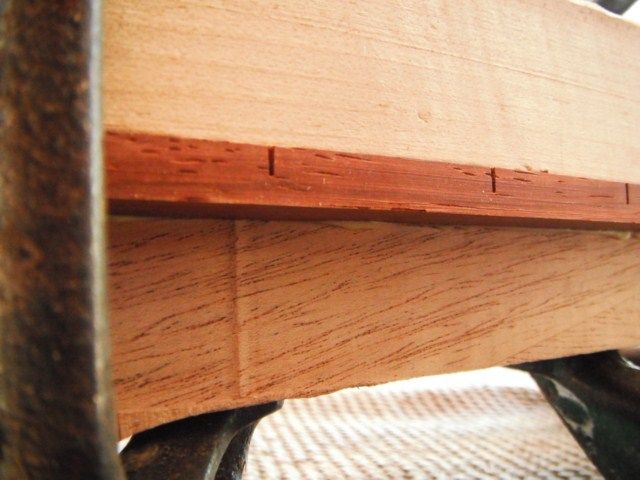

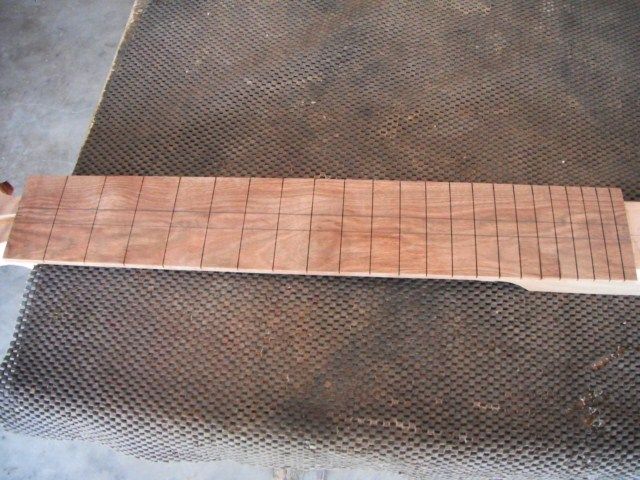

Then its time to glue the fretboard on.

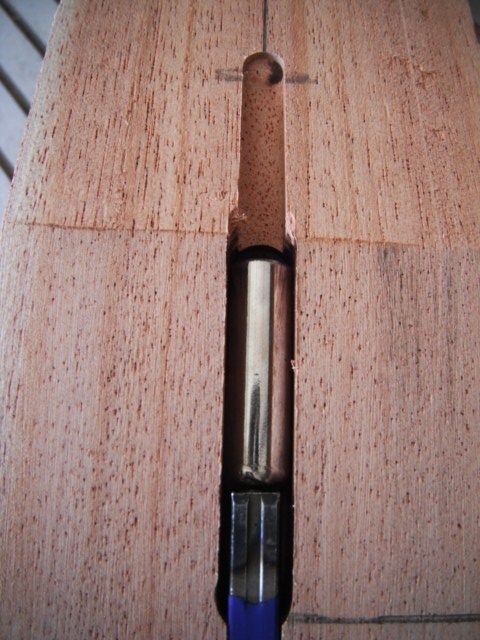

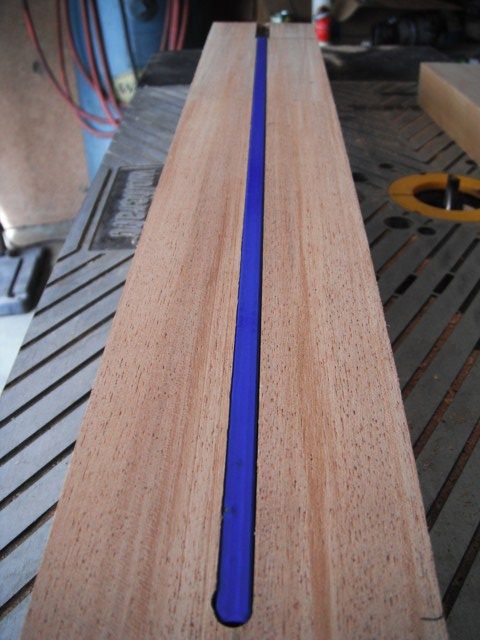

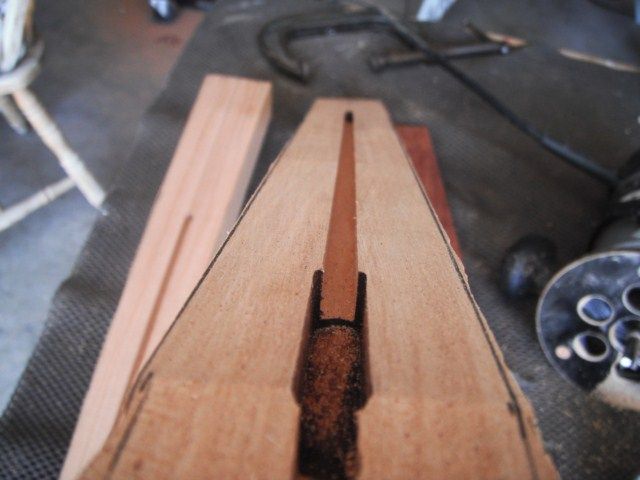

I tape off the truss rod, then add glue. Take off the tape, then add a little bit close to the truss rod channel.

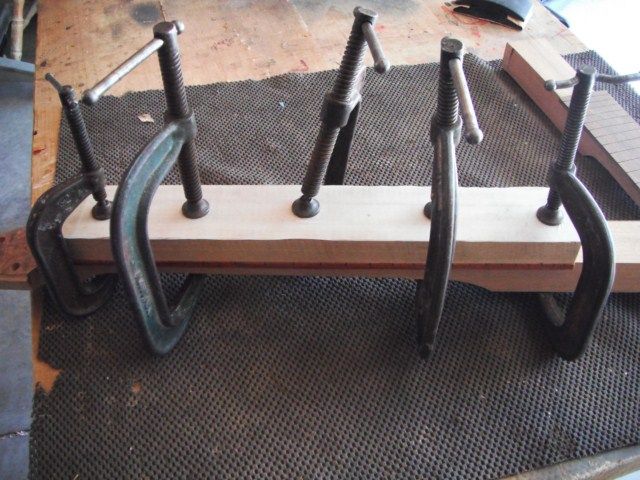

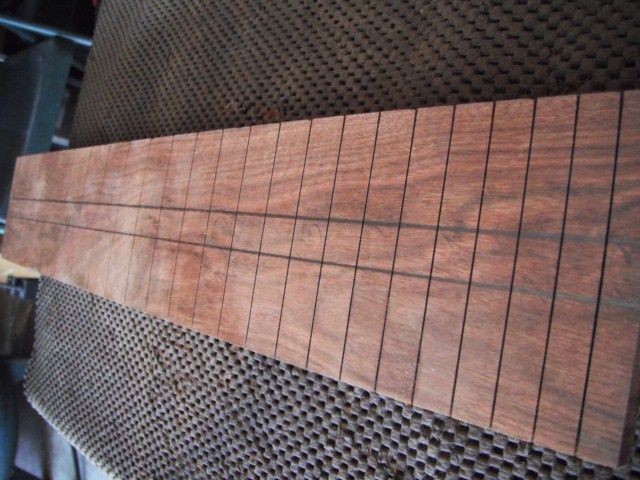

I have a thick block of wood the same exact lenth as a 25" 22 fret fretboard. This is what i use as a caul so the pressure is evenly applied.
