The Crate Blue Voodoo series is an all tube american made entry level guitar amplifier.

The Blue Voodoo models: BV60, BV60H, BV120H, BV150H, B300H.

I would recommend JJs in all spot for the BV series. You will thank me later.

BV-60/BV-6212
Lowest wattage BV at 50watts RMS, fixed bias. Two channels, separate reverb controls, effects loop. The BV60 can run either 6L6 or EL34 without adjustment(combo only). Two 4 ohm and 2 8ohm speaker outs

BV-60H
Identified by 2 speaker outputs main and extension. (impedance selector switch added)

BV-120
100watts- 4 6L6 power tubes, 4 12AX7 preamp tubes including the phase inverter. It's a two channel amp, clean and distortion, along with built in reverb with separate controls for each channel. It also has an effects loop with with a -12db button to help with volume drop off. It's an adjustable bias amp- if you replace the power tubes you will need to check it. Speaker cab impedance is only 8 or 16 ohms, selectable by a switch.

There are 2 versions of this amp, the blue tolex with gold logos and the later black tolex. The older Blue/Gold has potentiometers with plastic shafts, the newer Black/Chrome has metal potentiometers, they also have a built in turning resistance to give a higher quality feel.

Be forewarned- the shafts of the potentiometers can(and probably will) pull out partially or fully resulting in a bad potentiometer. No fun as you may not discover until you have put the chassis back in. Leave the knobs off until you have fully tested everything including pushing/pulling on the potentiometer shafts.

BV-150h
150watts, 3 channels. Lots of tubes! Clean, rhythm, lead.

BV-300H
3 channels and a mother load of tubes.
8 12AX7, 2 12AU7, and 6 6550A's. !!!!!!!
Has a mid frequency selector, high and low frequency pots, rear bias pots and test ports.

Owners Manual
http://www.crateamps.com/pdf/manuals/BV60H_OM.pdf
http://www.crateamps.com/pdf/manuals/BV60H_OM.pdf
http://www2.standardaudio.se/pdf/DATABLAD/CRATE/BV150HB_man.pdf
http://www.crateamps.com/pdf/manuals/BV300HS_OM.pdf

Tube kits:
https://ssl.eurotubes.com/cart/index.php?page=view_products&category_id=81&sub_category_id=87

Schematics
BV60
https://dl.dropbox.com/u/77904849/BV60.pdf

BV60H
https://dl.dropbox.com/u/77904849/BV60H%20Schem.pdf
https://dl.dropbox.com/u/77904849/BV60H%20PT%20schem.pdf

BV120
https://dl.dropbox.com/u/77904849/105XXH1.pdf
https://dl.dropbox.com/u/77904849/How%20to%20use%20the%20Public%20folder.txt

Component list, part numbers and layout

BV60
https://dl.dropbox.com/u/77904849/BV60%20layout.pdf

BV120
http://dl.dropbox.com/u/77904849/105xxp2.pdf

Mods:
http://triodeamplification.com/Tone.html

http://www.voodooamps.com/home/Modifications/AMPMODIFICATIONS/CrateMods1/BlueVoodoo120/tabid/144/Default.aspx

Here are my personal favorite modifications for the BV120 from ECistheBest:
Clip C8, C17,R101.
Bridge R25
Change C14 to 390pF, change R28 to 1K, change C16 to .047uF, R24 to 100k.
Replace the treble and mid pots(P6&P7) to 250K audio taper (must be obtained form crate, part numbers 70-254-22(for the cheap potentiometer) or 70-254-70(for the original style pot that has an extra feel to it), you will need 2). ****Pots are 16mm alpha. Mojotone has a pretty good selection of them.

Also check and make sure R26 is 47ohms, both of mine had 1k resistors instead.

Peek over this thread if you are interested:
https://www.ultimate-guitar.com/forum/showthread.php?p=30887645#post30887645

Last edited by R45VT at May 10, 2013,
#2
Common issues

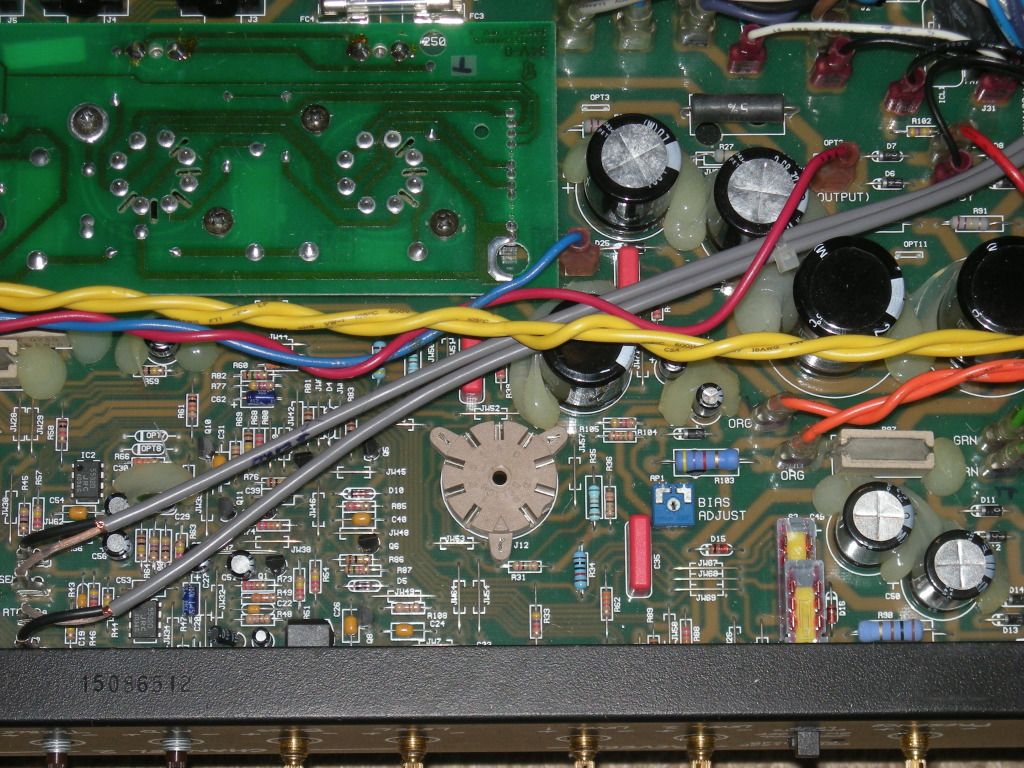

Bias trim pot- you must remove the lower cover for access- also you can see the two PCB's- the small one is the power tube board, if you find a socket is higher or lower during bias you probably have a bad 5w resistor- they are 470ohm +- 5%, even within spec they can cause a few mA difference


For dead tube sockets check your solder joints


Other problems:

Crackling from speakers
Like all tube amps the socket connections need to be cleaned to prevent poor contact. You can tap on the tubes, if an audible noise comes through the speakers you need to clean or replace the socket. It uses Belton power tube sockets, 20mm PCB mount ones for the power tubes.

Channel select inop on head
If your channel switch doesn't work from the head but works from the foot switch than the contacts for the foot switch jack are not touching. This is an easy fix once the chassis has been removed. Plug the foot switch(or any 1/4 inch cable) into the jack and than press on the contact to bend it slightly. Once you remove the cable it will now contact.

Reverb acts like a tone adjustment
If your reverb acts like a tone knob then see if the reverb tank can move around on it's screws- It's supposed to be a little loose to isolate if from the vibrations of the amp. If its too tight or cocked in place it won't function as it should.

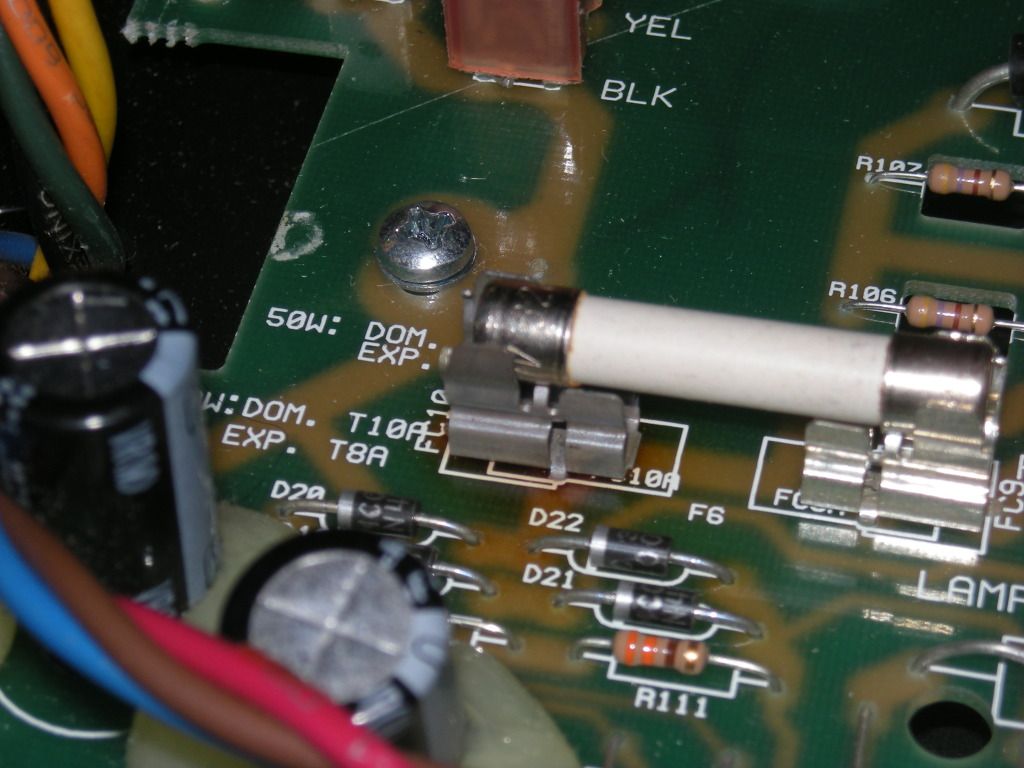

Inoperative- no lights behind the tubes and no sound
Another problem that can develop is the fuse holder overloading. Symptoms of this would be no lights turning on behind the tubes, along with no sound output.

See the fuse holder on the left? Look at the PCB as well.


FAQ:

Where do I find replacement knobs? Call Crate.

Where do I find replacement potentiometers? Call crate.

If I need to replace my input jack what style do I needs?
JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, METAL BUSHING.
Both tip and ring conductors are switched (normally closed).

What the phone number for Crate parts/service? 1-866-858-8532 (Loud Technologies)
Last edited by R45VT at Nov 26, 2012,
#3
What's so different about Crate pots?
Gilchrist custom
Yamaha SBG500
Telecasters
Randall RM100 & RM20
Marshall JTM45 clone
Marshall JCM900 4102 (modded)
Marshall 18W clone
Fender 5F1 Champ clone
Atomic Amplifire
Marshall 1960A
Boss GT-100


Cathbard Amplification
My band
#5
Got any measurements? I wonder if some of my small ones would fit. That sort of info is handy to know.
Gilchrist custom
Yamaha SBG500
Telecasters
Randall RM100 & RM20
Marshall JTM45 clone
Marshall JCM900 4102 (modded)
Marshall 18W clone
Fender 5F1 Champ clone
Atomic Amplifire
Marshall 1960A
Boss GT-100


Cathbard Amplification
My band
#6

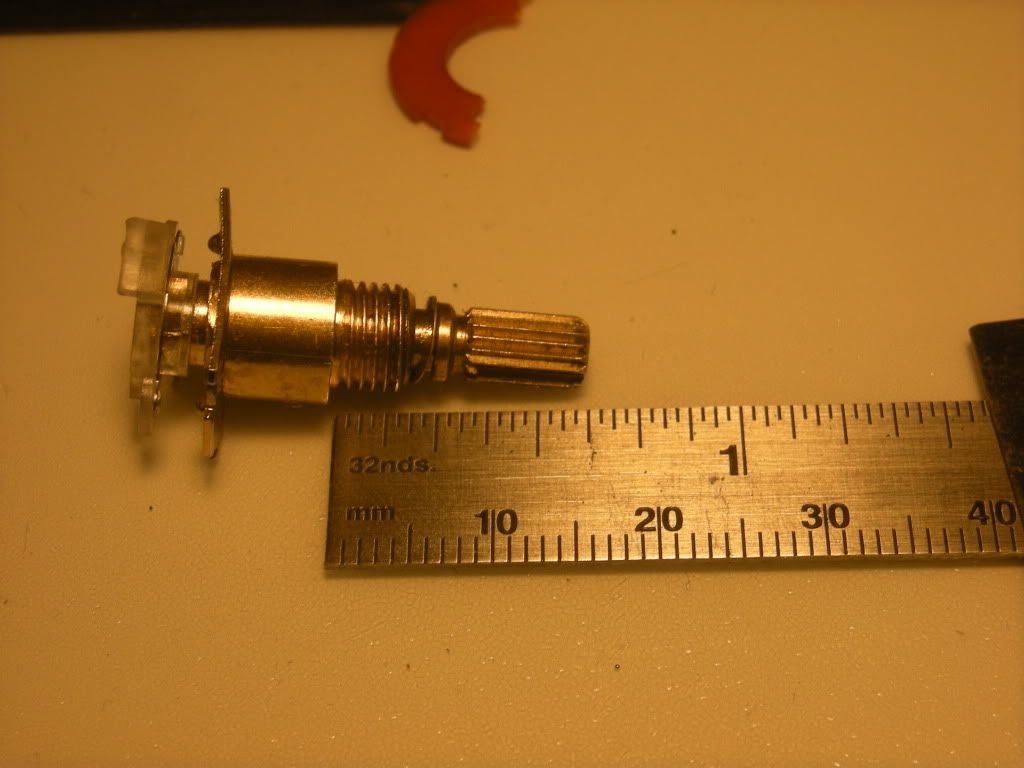

The shaft pulled out with the knob... thats why the case was removed.

4mm shaft diameter, 29mm total length, 15mm case width.



Any other measurements you need?

Last edited by R45VT at Apr 22, 2012,
#8
I dunno Cath- the shaft is pretty different. The presence pot is a bitch- it's a 20KRA pot- 20Kohm reverse audio taper .

Good news is that crate is very easy to work with and they have the pots in stock, plus they are under $3.

Alpha is the OE supplier.

Last edited by R45VT at Apr 22, 2012,
#9
If ones from Crate are that cheap then you may as well go direct.
The ones I linked to are sealed jobbies though.

Here's the dimensions anyway:

Gilchrist custom
Yamaha SBG500
Telecasters
Randall RM100 & RM20
Marshall JTM45 clone
Marshall JCM900 4102 (modded)
Marshall 18W clone
Fender 5F1 Champ clone
Atomic Amplifire
Marshall 1960A
Boss GT-100


Cathbard Amplification
My band
#10
It's the shaft that doesn't work. There is no stand off between the case and the shaft that turns. The Crate one has a 6mm standoff before the threads.

Thanks for posting the link, worse comes to worse someone could get creative.
#11
YES! thanks for making the BV thread! ill be hanging out here from now on. lol

quick question tho. i thought there were 3 versions of this head. the blue with gold and then there are 2 black and silver. the made in america black in silver (the one i own) versions have all control markings on the amp in a hand written looking writing and the last one so i have been told is made in china with standard print writing on them and these ones crap out more often.

oh and what exactly do those mods do?
Live Rig
Michael Kelly Custom Shop Plum Telecaster
Michael Kelly Custom Shop Plum Patriot


EVH 5153 50w
Jet City 2x12
Custom Board

It is NOT trash metal it is tHrash metal...get it right
#12
I have never seen or heard of the chinese version? That would be news to me.

The mods I listed are for the channel 2, gets rid of the mud and improves the sound of the distortion. After it was completed you have to work to get the EQ in the wrong spot. The mid control has a huge impact on overall volume.

If you post any info that you have I would gladly add it. It's still in progress and hopefully I will have the rest of the info up later this week.
#13
hmmm that sounds like a good idea to try. if i had a second BV id def. give it a go

ill do some looking because there are two different styles of the black tolex BV amps. the shop that i sent mine to had the other one there. its more than likely the same internally but the outside is a bit different.

oh and i would LOVE to get ahold of the bv300. i think esptro has one.
Live Rig
Michael Kelly Custom Shop Plum Telecaster
Michael Kelly Custom Shop Plum Patriot


EVH 5153 50w
Jet City 2x12
Custom Board

It is NOT trash metal it is tHrash metal...get it right
#16
Quote by 311ZOSOVHJH
cool thread



Thanks for the bump! Still re-working to make it more clear and easy to read.

If anyone has any information to add please post up!
#17
Quote by iheartgun
hmmm that sounds like a good idea to try. if i had a second BV id def. give it a go

ill do some looking because there are two different styles of the black tolex BV amps. the shop that i sent mine to had the other one there. its more than likely the same internally but the outside is a bit different.

oh and i would LOVE to get ahold of the bv300. i think esptro has one.


actually its the 150

but damn, i dont really see the need for mods on my amp. the only thing i would want to fix is for some god awfull reason my guitar sounds...."out of tune" ever so slightly out of my amp and not my marshall.....

i also notice this on some blackstar HT heads.
Quote by kangaxxter
The only real answer to the SG vs Les Paul debate is to get a Flying V and laugh at all the suckers who don't have one.


Quote by Blompcube

if you embrace inaccurate intonation it can be quite arousing.


I <3 TWEED
#19
triode took down the link. i live 45 away from that guy. he is the guy i got my sovtek mig from. maybe he will make another kit.

he is a nice guy, noticed a slight issue with something fixed it on the spot immediately and knocked a few bucks off because i had to wait 20 mins for him to get it straightened out.
WTLT 2014 GG&A

Quote by andersondb7
alright "king of the guitar forum"


Quote by trashedlostfdup
nope i am "GOD of the guitar forum" i think that fits me better.


Quote by andersondb7
youre just being a jerk man.


***9V BATTERIES ARE FROM HELL!*** (updated 2016-11-27)
Resentments and Rambling from a Guitar Junkie
---> http://trashedengineering.blogspot.com/
#20
you asked!


with my light mod xD

Quote by kangaxxter
The only real answer to the SG vs Les Paul debate is to get a Flying V and laugh at all the suckers who don't have one.


Quote by Blompcube

if you embrace inaccurate intonation it can be quite arousing.


I <3 TWEED
#21
i don't understand the whole 150 watts, you have plenty of headroom with 120, its just that needing to buy a sextet of power tubes really sucks.

i have the 100 (blue model) and am running it half power/ohms so i am at 60 watts and just need a pair.

i think these are some amps where a meticulous EQing can really get it to sound a lot better. mine sounds pretty good where its at.

i was watching a show that a friend was playing, and the band before him had an MG +4x12, and a black blue voodoo. the kid with the blue voodoo sounded worse than the MG on the other side of the stage. i waked back and fourth a few times. some people just don't know how to EQ for shit. every king of the blues i have played (4 years now i think) i have gotten complaments by the judges for having the best tone of the night. i won once on the first level, i lost in a tie for second in a play off type thing, and last year didn't get anything becuause one guy won was a teacher and had played for like 30 years or something, and the other one just played better than i did. he much deserved it.

but i can get good tone out of most anything and next time i gig i will bring the blue voodoo to watch people's expression after they hear how it sounds.

but again its just a mediocre high gain amp, paid $200 and traded a DS1... lol

/sorry for the drunken rambling. i wasn't this bad until the last hour... lol. just bought a bigass bottle of wild turkey and can't seem to set it down.
WTLT 2014 GG&A

Quote by andersondb7
alright "king of the guitar forum"


Quote by trashedlostfdup
nope i am "GOD of the guitar forum" i think that fits me better.


Quote by andersondb7
youre just being a jerk man.


***9V BATTERIES ARE FROM HELL!*** (updated 2016-11-27)
Resentments and Rambling from a Guitar Junkie
---> http://trashedengineering.blogspot.com/
Last edited by trashedlostfdup at May 7, 2012,
#22
Quote by trashedlostfdup
triode took down the link. i live 45 away from that guy. he is the guy i got my sovtek mig from. maybe he will make another kit.

he is a nice guy, noticed a slight issue with something fixed it on the spot immediately and knocked a few bucks off because i had to wait 20 mins for him to get it straightened out.


The link has been broken for a while. Send him an E-mail. I told him last time but he still hasn't fixed it.

I have 2 black ones and I think it is ok, but you can really hear the mud in it. EQ will make or break these amps. I bought one for $200 that is in perfect shape and the other I bought for $50 bucks broken. Easy fix.
Last edited by R45VT at May 7, 2012,
#24
i would gladly accept a free donation of your unused bv.
Live Rig
Michael Kelly Custom Shop Plum Telecaster
Michael Kelly Custom Shop Plum Patriot


EVH 5153 50w
Jet City 2x12
Custom Board

It is NOT trash metal it is tHrash metal...get it right
#25
this is a newb question, but what do you mean by bridge R25? I would like to try this mod, but not sure how to bridge a resistor. thanks
#26
Basically you short te resistor with buss wire.

I will post a link to buss wire in a few.
#28
Here is a link to tube depot. Great site and customer service:
http://tubedepot.com/bw.html

You can find buss wire at your local Radio-Shack as well.

Keep in mind lethal voltage is present in tube amps, and can be stored for a period of time after an amp is shut off. If you are not comfortable with high voltages please leave it to the techs. We don't need a dead UG'er.

Any questions please ask.


Also iheartgun- could you please post a pic of your amp with the lights on and give a little wright up on how you did it? I am sure someone would find it useful.
#29
Crate BV150......The next new wave of Space Heaters!
Quote by kangaxxter
The only real answer to the SG vs Les Paul debate is to get a Flying V and laugh at all the suckers who don't have one.


Quote by Blompcube

if you embrace inaccurate intonation it can be quite arousing.


I <3 TWEED
#30
Quote by R45VT
Also iheartgun- could you please post a pic of your amp with the lights on and give a little wright up on how you did it? I am sure someone would find it useful.


id be glad to. ill post pics tomorrow where i put them in the amp and all that. im currently at work.

i got the led lights from oznium.com. i ordered 2, 6inch strips of blue lights one for each side of the tubes. they come with double sided tape already on them so they can be taped to anyplace. the lights are powered by a wall wart from oznium as well. they have a help section for figuring out the power rating of wall wart u will need for powering these lights. its a really simple thing that turns heads. i would have liked to wire it to the amps power but the wall wart works fine and the cord on it is at least 5 ft long. also i will note that the lights cause absolutely NO interferance with the tubes at all. they dont get hot and i have left them on for hours with no issues.
the lights for the back of the tubes originaly are yellow but mine are blue i had to do some searching for them but they are blue rubber pushbutton switch covers for freight trucks.

http://www.oznium.com/led-ribbon
Live Rig
Michael Kelly Custom Shop Plum Telecaster
Michael Kelly Custom Shop Plum Patriot


EVH 5153 50w
Jet City 2x12
Custom Board

It is NOT trash metal it is tHrash metal...get it right
#32
never even seen the 150. all the ones ive seen have a blue label too.

i think every time i go into a GC, there is a 50% chance there is a used blue voodoo head there.

about 75% chance there is a crate tube amp of some sort there used.

about 95% chance there is a used crate amp of any type there.
#34
Quote by EspTro
Crate BV150......The next new wave of Space Heaters!


I can only imagine...



With any luck I will have one of mine sold. I'm keeping the modded one and hopefully get back to finishing it in a few weeks. (More like months with how busy work has been)
#35
Quote by iheartgun
id be glad to. ill post pics tomorrow where i put them in the amp and all that. im currently at work.

i got the led lights from oznium.com. i ordered 2, 6inch strips of blue lights one for each side of the tubes. they come with double sided tape already on them so they can be taped to anyplace. the lights are powered by a wall wart from oznium as well. they have a help section for figuring out the power rating of wall wart u will need for powering these lights. its a really simple thing that turns heads. i would have liked to wire it to the amps power but the wall wart works fine and the cord on it is at least 5 ft long. also i will note that the lights cause absolutely NO interferance with the tubes at all. they dont get hot and i have left them on for hours with no issues.
the lights for the back of the tubes originaly are yellow but mine are blue i had to do some searching for them but they are blue rubber pushbutton switch covers for freight trucks.

http://www.oznium.com/led-ribbon


So where exactly in the amp do you put the lights?
YOU LIE... AND YO BREATH STANK!


Quote by Nirvana_RATM2
Jack White's evil Mexican brother? Juan Negro?


Quote by AmirT
I puke on my dick while I fart in president Rosevelt's ear


POT IS NICE
#36
The tubes are back lit with bulbs. Stock they come with an orange cover. You can find different cap colors on-line. Also some people, as the guy above did - he added LED strips. He did it without hooking anything up to his amp electrically. He has to use an extra plug.

Also EspTro added a 3rd brake light to his. I can't remember how he hooked it up, most likely he ran a 12v dc power supply.

You can do what ever you like to your amp. There are no rules. Obviously you don't want to cause extra noise and complexity/lower value of your amp. Which is why the guys above didn't tap into the amps existing electronics.
Last edited by R45VT at Jul 11, 2012,
#37
Quote by R45VT
The tubes are back lit with bulbs. Stock they come with an orange cover. You can find different cap colors on-line. Also some people, as the guy above did - he added LED strips. He did it without hooking anything up to his amp electrically. He has to use an extra plug.

Also EspTro added a 3rd brake light to his. I can't remember how he hooked it up, most likely he ran a 12v dc power supply.

You can do what ever you like to your amp. There are no rules. Obviously you don't want to cause extra noise and complexity/lower value of your amp. Which is why the guys above didn't tap into the amps existing electronics.


Ah, okay, that makes sense. I'll open the head up tomorrow and take a look-see, and then I'll order green caps and those green led strips, gotta keep up the green image for the stoner doom scene
YOU LIE... AND YO BREATH STANK!


Quote by Nirvana_RATM2
Jack White's evil Mexican brother? Juan Negro?


Quote by AmirT
I puke on my dick while I fart in president Rosevelt's ear


POT IS NICE
#38
You don't even have to open it up. Worst case you have to pull the back cover off. Easy enough. I will post a picture in a few.
#39
Quote by R45VT
You don't even have to open it up. Worst case you have to pull the back cover off. Easy enough. I will post a picture in a few.

That would be much appreciated
YOU LIE... AND YO BREATH STANK!


Quote by Nirvana_RATM2
Jack White's evil Mexican brother? Juan Negro?


Quote by AmirT
I puke on my dick while I fart in president Rosevelt's ear


POT IS NICE
#40
I will post the pictures when I get home. Which model 60 are you getting? I think I have some schematics for one of those models as well. If I can find it again on my computer I will update the first page to include it as well.
