#161
Power tube board comes out first. Pull the tube retainer clips from the top and them remove the screws from inside the chassis. There are 2 hidden screws under the powertube PCB.

Grab a sharpie and scribble the junction number on the plastic cover over wire terminal.
Quote by DeathByDestroyr
See, it's important that people clarify when they say "metal", because I pretty much always assume they are a Cannibal Corpse fanboi.
Last edited by R45VT at Feb 6, 2013,
#162
Quote by R45VT
Power tube board comes out first. Pull the tube retainer clips from the top and them remove the screws from inside the chassis. There are 2 hidden screws under the powertube PCB.


sneaky bastards. thanks
WTLT 2014 GG&A

Quote by andersondb7
alright "king of the guitar forum"


Quote by trashedlostfdup
nope i am "GOD of the guitar forum" i think that fits me better.


Quote by andersondb7
youre just being a jerk man.



****** NEW NEW NEW!
2017-07-07 2017-07-07 Update and a Chat On Noise Constraints *** NEW FRIDAY 7/7
2017-04-13 RUN AWAY from COMPUTERS!!! TCE? RANT ALERT!!!
2017-03-02 - Guitar Philosophy 1001- Be Prepared For the Situation (Thursday 2017-03-02)
2017-02-21 How to Hot-Rod the Hell of your Stratocaster for $50! (Tuesday 2017-2-21)
Resentments and Rambling from a Guitar Junkie
---> http://trashedengineering.blogspot.com/
#163
I would mark each wire. No need for confusion later.
Quote by DeathByDestroyr
See, it's important that people clarify when they say "metal", because I pretty much always assume they are a Cannibal Corpse fanboi.
#164
Quote by R45VT
I would mark each wire. No need for confusion later.


i did. of each set one got a sharpie dot the other a tiny tiny drop of white out.

i cannot get the plugs off the switches, they just aren't budging. any suggestions for that?

at current state the board is completely free minus the power stand by switches. i am done for tonight. i will be at it tomorrow likely.

thanks.
WTLT 2014 GG&A

Quote by andersondb7
alright "king of the guitar forum"


Quote by trashedlostfdup
nope i am "GOD of the guitar forum" i think that fits me better.


Quote by andersondb7
youre just being a jerk man.



****** NEW NEW NEW!
2017-07-07 2017-07-07 Update and a Chat On Noise Constraints *** NEW FRIDAY 7/7
2017-04-13 RUN AWAY from COMPUTERS!!! TCE? RANT ALERT!!!
2017-03-02 - Guitar Philosophy 1001- Be Prepared For the Situation (Thursday 2017-03-02)
2017-02-21 How to Hot-Rod the Hell of your Stratocaster for $50! (Tuesday 2017-2-21)
Resentments and Rambling from a Guitar Junkie
---> http://trashedengineering.blogspot.com/
#165
Leave the wiring on the switches. If you pull the connections off the PCB there is no need to disconnect them.
Quote by DeathByDestroyr
See, it's important that people clarify when they say "metal", because I pretty much always assume they are a Cannibal Corpse fanboi.
#166

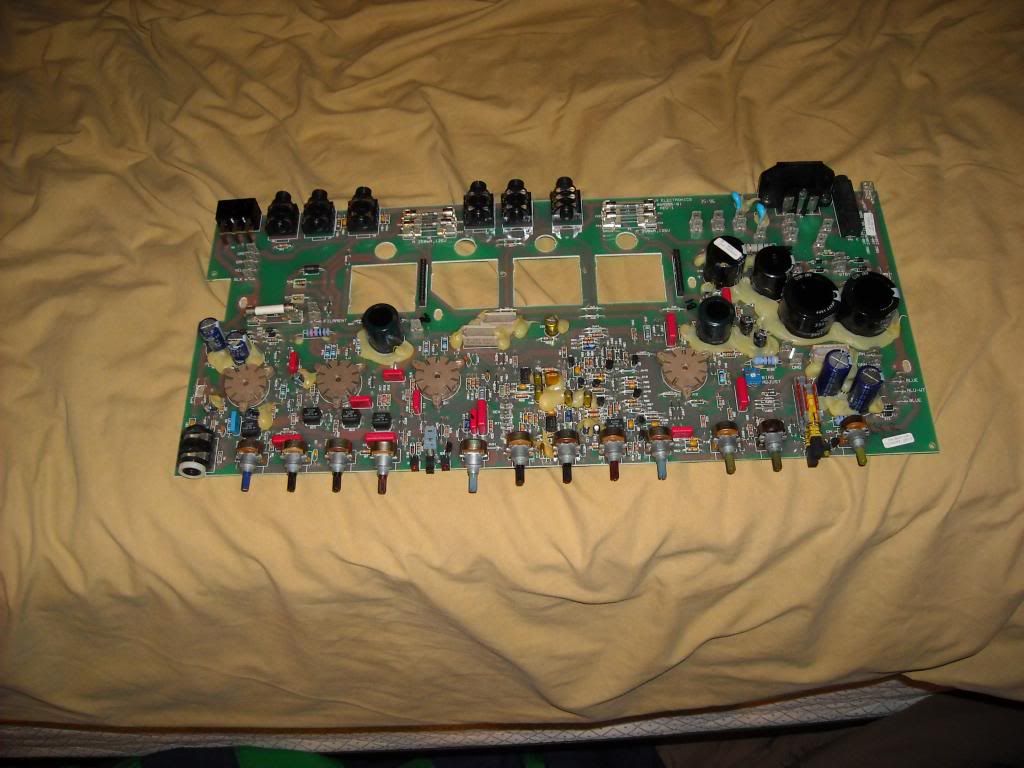

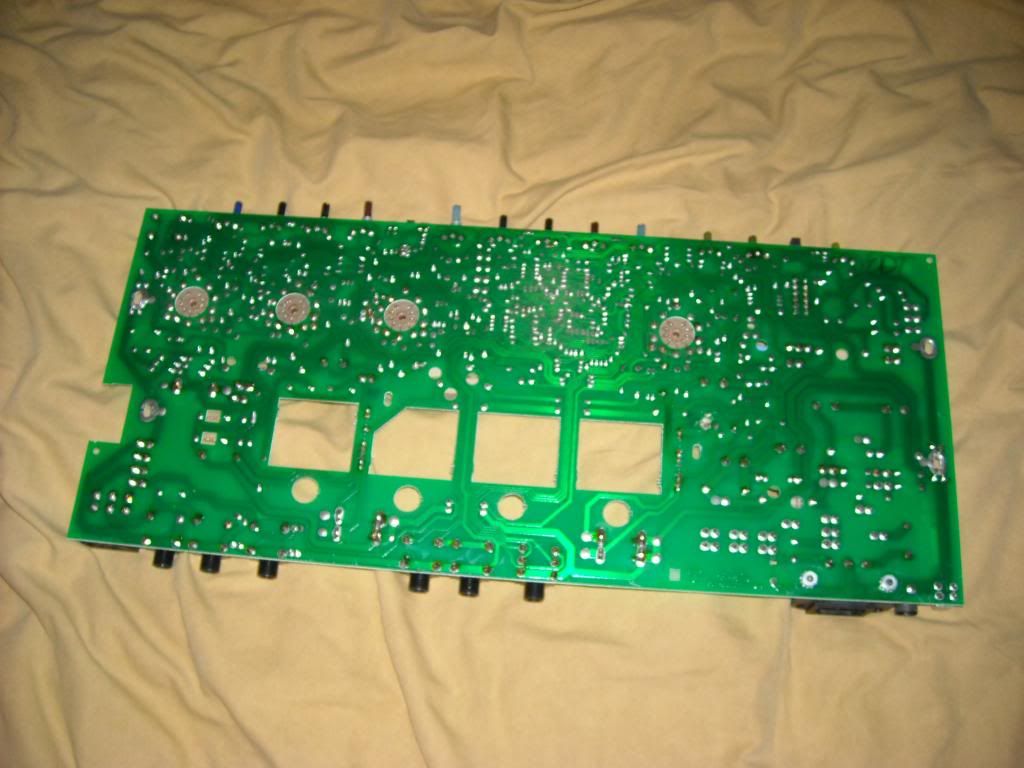

here it is as it sits
