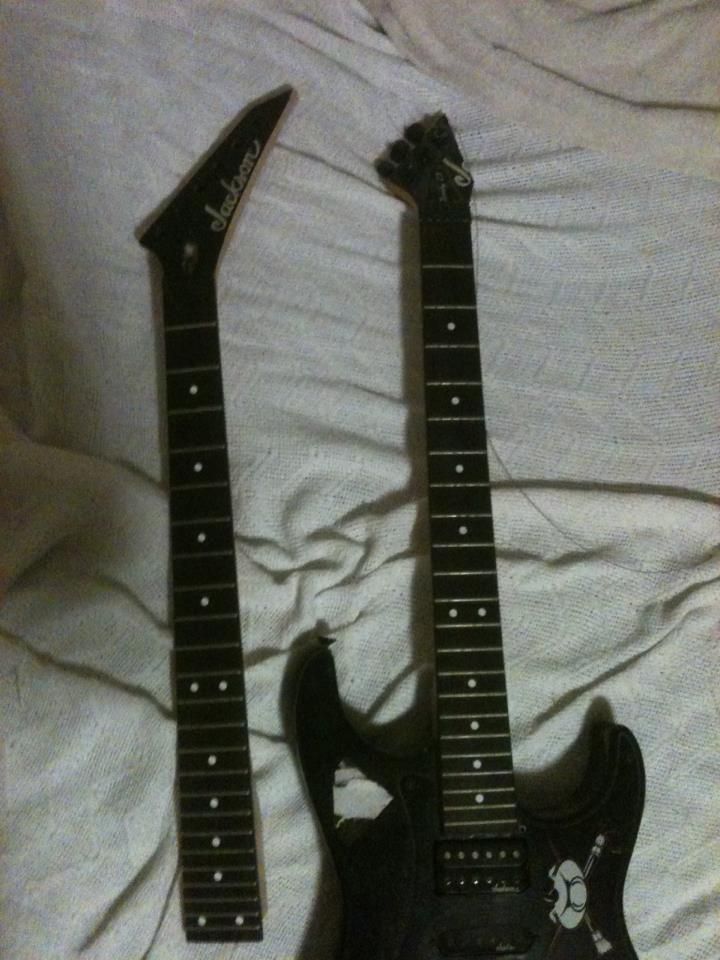

hey guys, so i did this a couple weeks ago:

now it just so happened that one of my cousins buddys had an extra neck



i was wondering how to go about doing this, if there's anything i should/ shouldn't do when changing a neck. it seems pretty straight forward to me but i'd rather be sure before I **** anything up worse.
A painter paints pictures on canvas. But musicians paint their pictures on silence
jeleopard
Jackson Fanboy!
Join date: Apr 2011
170 IQ
#2
I screamed at the first pic.

I'd imagine just screw it in...
Legion!
Original 1969 Fender Jazzmaster
Ibanez RG8
Jackson JS32R Dinky "Curry"
Schecter KM7
83 Gibson Explorer "Kimmy"
MiM Fender Jazz Bass "Pancho"
Ibanez SR485
Peavey 6505+ 112
Line 6 POD HD500
MiseryMonster
UG's Contract Killer
Join date: Sep 2009
10 IQ
#4
actually, it fits pretty much exactly how the other one did. i was wondering the same thing myself, but it seems like its gonna work
A painter paints pictures on canvas. But musicians paint their pictures on silence
whoomit
Join date: Jul 2006
375 IQ
#5
Bolt it on then. Before you string it up, measure from the nut to the 12th fret, and the 12th fret to the bridge. If they match then you're okay.
amatas83
VA shred head
Join date: Aug 2009
20 IQ
#6
you'll have to re-intonate for sure.
Live Rig:
Peavey VK (power amp)
R&R Amps SL/LD (preamp)
EB Volume
Zoom G3
Morpheus Dive bomber
Dunlop 95Q
Guitar-any in my stable
5150 Cab (V30/Sheffield X-pat)
J_W
Registered User
Join date: Jan 2012
10 IQ
#7
Neck pickup is probably going to be in the way of those extra 2 frets. Look how the fret board overhangs the neck.
MiseryMonster
UG's Contract Killer
Join date: Sep 2009
10 IQ
#8
Quote by J_W
Neck pickup is probably going to be in the way of those extra 2 frets. Look how the fret board overhangs the neck.


your right, the neck does overhang. but the original neck does too, im not 100% sure, but it overhangs pretty much the same as the original does. ill have to take another look at it when i get home

Quote by amatas83
you'll have to re-intonate for sure.

iv'e heard about this, im not 100% sure how to do it though, is it something i can do myself or do i have to take it to the shop?
A painter paints pictures on canvas. But musicians paint their pictures on silence
Last edited by MiseryMonster at Oct 23, 2012,
sytharnia1560
I hate sanding
Join date: Sep 2007
10 IQ
#9
All you have to do is hold one neck against the other (fretboards touching) and you will see right away where the heels sit compared to each other and will have your answer........I'm picking the intonation will be out. Yes the neck will fit the pocket given the fact that its still a jackson neck. Good thing is you have a pick guard which makes moving the front pick up easier so you can rout out the little bit of the neck joint to correct it. Totally worth do
J_W
Registered User
Join date: Jan 2012
10 IQ
#10
Quote by MiseryMonster
your right, the neck does overhang. but the original neck does too, im not 100% sure, but it overhangs pretty much the same as the original does. ill have to take another look at it when i get home


If it doesn't overhang more it's going to be longer, looking at the pic it's a longer neck and won't be intonated correctly.
