this is a tech question really, looking to learn the difference. i have a good understanding of electricity, but not a ton with pedals. i have successfully built amps, and i understand that other than the 'why' certain components change. i understand RC circuits decently.

but really matters in my inquiry is what is the difference in tone and a tiny bit of knowledge.

also i realize that i probably have both. i know a tubecsreamer is symmetric and for instance a blues driver is asymmetric.

what holds advantage over the other? and when?

i hope i didn't piss anybody off.
WTLT 2014 GG&A

Quote by andersondb7
alright "king of the guitar forum"


Quote by trashedlostfdup
nope i am "GOD of the guitar forum" i think that fits me better.


Quote by andersondb7
youre just being a jerk man.



****** NEW NEW NEW!
2017-07-07 2017-07-07 Update and a Chat On Noise Constraints *** NEW FRIDAY 7/7
2017-04-13 RUN AWAY from COMPUTERS!!! TCE? RANT ALERT!!!
2017-03-02 - Guitar Philosophy 1001- Be Prepared For the Situation (Thursday 2017-03-02)
2017-02-21 How to Hot-Rod the Hell of your Stratocaster for $50! (Tuesday 2017-2-21)
Resentments and Rambling from a Guitar Junkie
---> http://trashedengineering.blogspot.com/
#2
The main difference is basically the difference in sounds between these two pedals.

With symmetrical clipping you get a softer, more controlled sound.
Asymmetrical clipping is harsher, and gets less clear when playing more than a string at a time.

The difference between hard and soft clipping is bigger though, so have a look to that, too.
Name's Luca.

Quote by OliOsbourne
I don't know anything about this topic, but I just clicked on this thread because of your username :O
Quote by Cajundaddy
Clue: amplifiers amplify so don't turn it on if you need quiet.
Quote by chrismendiola
I guess spambots are now capable of reading minds.
#3
You honestly won't notice the difference between an asymmetrical TS and symmetrical in a mix. Think of it in terms of a diode limiter. If you've got two antiparallel diodes that are identical, you're limiting the positive/negative swings equally (symmetrical). If you add another diode in series with one of the antiparallel diodes, or swap one for an LED or diode with a different forward voltage, the peak limit will become greater for that side of the signal (asymmetrical). People usually say this sounds a little more "raw" or harsh, but I just don't hear it. Those qualities are primarily determined by the frequency shaping going on around the clippers rather than the clippers themselves.
E-peen:
Rhodes Gemini
Fryette Ultra Lead
Peavey 6505
THD Flexi 50

Gibson R0 Prototype
EBMM JP13 Rosewood
Fender CS Mary Kaye

WTLT

(512) Audio Engineering - Custom Pedal Builds, Mods and Repairs
#4
if anybody has anything else to say or have a reliable article or a link to one, i would be happy to read it. more in depth would be fine too.

i know most of you know me, but the reason i didn't Google it is because i trust your collective advice, or link to article more than the internet. there are a lot of people talking out of their ass all over the place.

Quote by Spambot_2
The main difference is basically the difference in sounds between these two pedals.

With symmetrical clipping you get a softer, more controlled sound.
Asymmetrical clipping is harsher, and gets less clear when playing more than a string at a time.

The difference between hard and soft clipping is bigger though, so have a look to that, too.


thanks. short and sweet.

have they kind of developed a color code like TS's? the blues driver is blue, so is the SD-1.
WTLT 2014 GG&A

Quote by andersondb7
alright "king of the guitar forum"


Quote by trashedlostfdup
nope i am "GOD of the guitar forum" i think that fits me better.


Quote by andersondb7
youre just being a jerk man.



****** NEW NEW NEW!
2017-07-07 2017-07-07 Update and a Chat On Noise Constraints *** NEW FRIDAY 7/7
2017-04-13 RUN AWAY from COMPUTERS!!! TCE? RANT ALERT!!!
2017-03-02 - Guitar Philosophy 1001- Be Prepared For the Situation (Thursday 2017-03-02)
2017-02-21 How to Hot-Rod the Hell of your Stratocaster for $50! (Tuesday 2017-2-21)
Resentments and Rambling from a Guitar Junkie
---> http://trashedengineering.blogspot.com/
#5
Quote by mmolteratx
You honestly won't notice the difference between an asymmetrical TS and symmetrical in a mix. Think of it in terms of a diode limiter. If you've got two antiparallel diodes that are identical, you're limiting the positive/negative swings equally (symmetrical). If you add another diode in series with one of the antiparallel diodes, or swap one for an LED or diode with a different forward voltage, the peak limit will become greater for that side of the signal (asymmetrical). People usually say this sounds a little more "raw" or harsh, but I just don't hear it. Those qualities are primarily determined by the frequency shaping going on around the clippers rather than the clippers themselves.


thanks, i was typing when you posted that. thanks for a simple technical definition.



its always nice to have you around
WTLT 2014 GG&A

Quote by andersondb7
alright "king of the guitar forum"


Quote by trashedlostfdup
nope i am "GOD of the guitar forum" i think that fits me better.


Quote by andersondb7
youre just being a jerk man.



****** NEW NEW NEW!
2017-07-07 2017-07-07 Update and a Chat On Noise Constraints *** NEW FRIDAY 7/7
2017-04-13 RUN AWAY from COMPUTERS!!! TCE? RANT ALERT!!!
2017-03-02 - Guitar Philosophy 1001- Be Prepared For the Situation (Thursday 2017-03-02)
2017-02-21 How to Hot-Rod the Hell of your Stratocaster for $50! (Tuesday 2017-2-21)
Resentments and Rambling from a Guitar Junkie
---> http://trashedengineering.blogspot.com/
#6
Quote by mmolteratx
You honestly won't notice the difference between an asymmetrical TS and symmetrical in a mix. Think of it in terms of a diode limiter. If you've got two antiparallel diodes that are identical, you're limiting the positive/negative swings equally (symmetrical). If you add another diode in series with one of the antiparallel diodes, or swap one for an LED or diode with a different forward voltage, the peak limit will become greater for that side of the signal (asymmetrical). People usually say this sounds a little more "raw" or harsh, but I just don't hear it. Those qualities are primarily determined by the frequency shaping going on around the clippers rather than the clippers themselves.


that's what i was gonna say only in much more layman's type language there might be a difference if you tried the two head to head (in a pedal with both on a switch, say), but in most pedals where there's a difference in the clipping (say an sd1 versus a tubescreamer) there are other differences too in the circuit which also affect how the things sound.

for example, IIRC the sd1 loses a smoothing cap around the first op-amp stage (which the tubescreamer has). which (if RG Keen is to be believed, and as far as i'm aware he's pretty well-respected) leads to a harsher sound.
I'm an idiot and I accidentally clicked the "Remove all subscriptions" button. If it seems like I'm ignoring you, I'm not, I'm just no longer subscribed to the thread. If you quote me or do the @user thing at me, hopefully it'll notify me through my notifications and I'll get back to you.
Quote by K33nbl4d3
I'll have to put the Classic T models on my to-try list. Shame the finish options there are Anachronism Gold, Nuclear Waste and Aged Clown, because in principle the plaintop is right up my alley.

Quote by K33nbl4d3
Presumably because the CCF (Combined Corksniffing Forces) of MLP and Gibson forums would rise up against them, plunging the land into war.

Quote by T00DEEPBLUE
Et tu, br00tz?
Last edited by Dave_Mc at Nov 20, 2013,
#7
Yup. The TS has a small bypass cap (51p) across the NFB loop that acts as a short for high frequencies. That essentially lowers the gain to one for anything above the cut off frequency, while anything below has a gain determined by the rest of the NFB loop. The SD-1 doesn't have that bypass cap, so all high frequencies are passed, and you wind up with more treble distortion, which people typically associate with harshness/aggression.

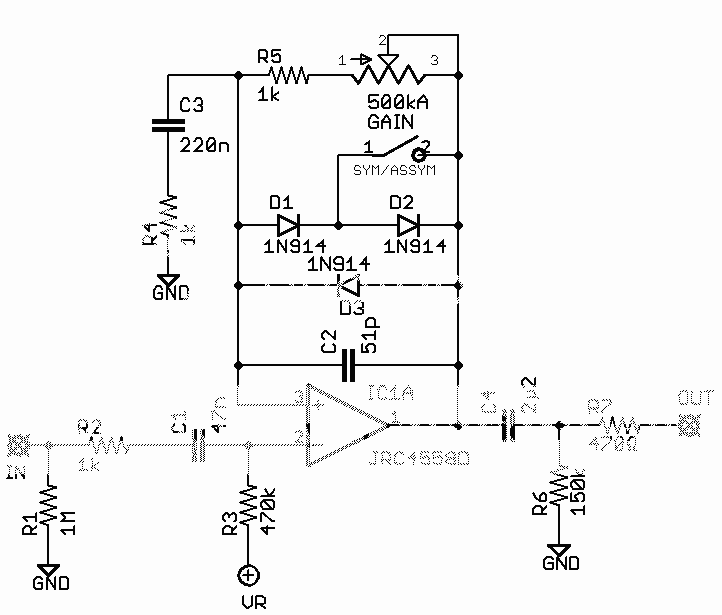

Here's a generic soft clipper circuit you can try to see if you can notice the difference solely with symmetrical/asymmetrical clipping. You could just use the D1/D2 network and throw it in any effects pedal. Basically all you do is add another diode in series with one of the others, and short across it when you want symmetrical clipping.
