#1

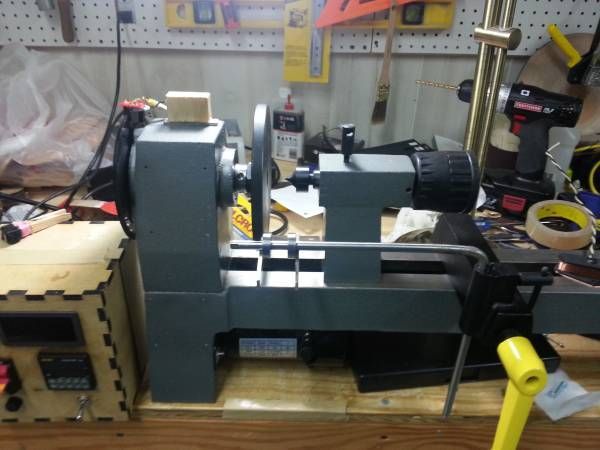

Hi all, first post. I've recently built and documented a new pickup winder over at Instructables , and a friend of mine who frequents this forum suggested that some here might be interested/benefit from the post - hope it helps someone out :-)

http://www.instructables.com/id/Pro-quality-pickup-winder-3000-RPM-pickup-winder-w/







http://www.youtube.com/watch?v=6VmGmyYsuDI
Last edited by mojoatomic at Sep 12, 2014,
#3
Quote by Rusty_Chisel
nice. Is that dovetailed plexiglass and did you cut it yourself?


It's dovetailed wood, I cut it on my laser cutter. I see where you're coming from though - it looks just like paper covered plexi. In the end, I'll probably re purpose a preexisting enclosure - while completely functional, the current one is kind of ugly. Fine for a working example though :-)
Last edited by mojoatomic at Sep 12, 2014,
#6
No he's not, you had it right to begin with :-) they're dovetails - they have a 1deg taper. Very slight, but makes for super tight lasercut joints. When you add glue simple shapes swell, align and self jig.
#7
For some reason the one thing that gets me above all else is how much of a pain it'll be to work on the receptacle behind the pegboard if you ever need to. Yes I've been running electrical circuits lately and it's stuck in my head.
