#1
this is my first attempt at building an amp, so here it goes.





ill update again soon, i'm just waiting on some parts.
VHT Special 6 ultra
TC HOF Reverb
Line 6 DL4
EHX OD Glove
Fender standard Tele
Ibanez Rga121
Taylor GA 214E
#2
Good stuff. Do you have a schematic we could have a look at. Is this your own custom design?
'It takes 100 guitar players to change a light. One to change the light and 99 to stand around pointing, saying..."Yeah man, look...I can do that too"...'

My gear is in my Profile

Builds & Refurbs
Hondo 780 Deluxe
Gibson Studio
Epi LP100
#3
it is not my design. i also only have a wiring diagram, i couldn't find the schematic.

VHT Special 6 ultra
TC HOF Reverb
Line 6 DL4
EHX OD Glove
Fender standard Tele
Ibanez Rga121
Taylor GA 214E
#4
Interesting project. No one can accuse you of taking the easy route here as it will either look awesome or a dogs dinner. I admire your style.
#5
thanks, its a learning process. like i said this is my first ever build, so i am sure mistakes will be made.


Update:
went to my local radioshack that is closing and picked up tons of resistors and various other parts i needed (knobs, 1/4" jacks, 2 way switch, ect.) all for 50% off.

currently waiting on the tube and its socket, as well as some capacitors and that's about it.

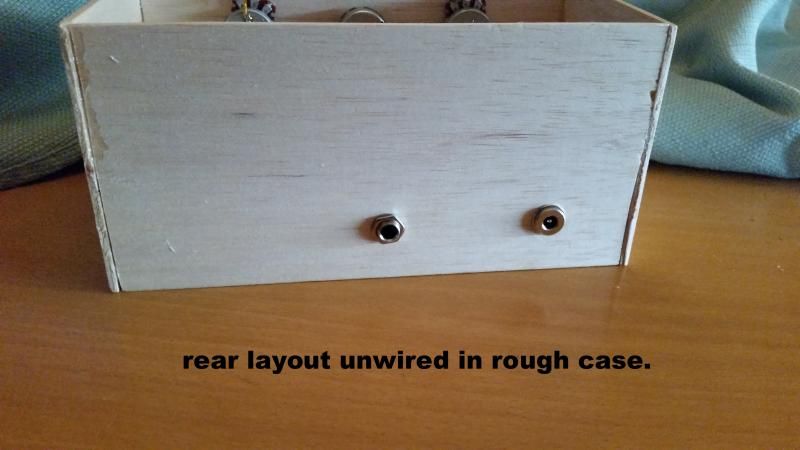

this is what i got done when i came home.


VHT Special 6 ultra
TC HOF Reverb
Line 6 DL4
EHX OD Glove
Fender standard Tele
Ibanez Rga121
Taylor GA 214E
#6
Cool project, but is that a balsa wood case? If so, that seems like a pretty poor choice of woods.
#7
Quote by Jeffh40
Cool project, but is that a balsa wood case? If so, that seems like a pretty poor choice of woods.



it is, but i wont be using that for the final product.
i'm going to break it down and use the 4 parts as templates to transfer to another more solid material. i wanted to see how i should lay it out. i will most likely be sticking with wood though.
VHT Special 6 ultra
TC HOF Reverb
Line 6 DL4
EHX OD Glove
Fender standard Tele
Ibanez Rga121
Taylor GA 214E
#9
Quote by John Sims
Will you be changing the knobs so that they match?



no, but i do have matching sets of both types of knobs.

i like the the look of the volume knob being different, its gives it a almost an old HIFI amp look.
VHT Special 6 ultra
TC HOF Reverb
Line 6 DL4
EHX OD Glove
Fender standard Tele
Ibanez Rga121
Taylor GA 214E
Last edited by the_white_bunny at Feb 19, 2015,
#10
Quote by the_white_bunny
no, but i do have matching sets of both types of knobs.

i like the the look of the volume knob being different, its gives it a almost an old HIFI amp look.


I'm not feeling it myself. My thoughts with any DIY job is to get it as close to a factory look as possible so that it doesn't look home made. But it's your amp so you can be as bohemian as you like ;-) .
