#1
hello I am just starting a new project Custom Guitar

I will post a full Piccy thread when it gets going

Baicaly for now i have purchased a couple of no name humbuckers and a DiMarzio 3 Way switch and pots.

How on earth do i wire this thing togeather??

basically i want the 3 way switch to be Neck - Both - Bridge pickups

with 2 Vol and 1 Tone bit like a gibson (one vol per pickup but share tone pot)

from the pickups on one is a red and a bare wire and on the other a white and a bare wire but there are 3 points to solder to on each pot and 8 on the switch.

could some one do a quick paint digram to basically show how this would go.

i have searched but cannot find anything

Regards
Ben
#2

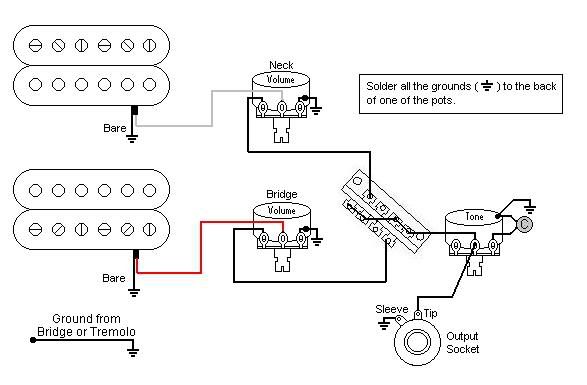

Here you go

Gear
Gibson Les Paul Studio
London City Comet MK1
London City Spitfire II (Modded)
Squire Tele Custom (Modded)

Peavey Classic 30
Electro Harmonix Holy Grail Reverb
Line 6 Echo Park Delay
Visual Sound Jekyll and Hyde
Dunlop Crybaby Classic
#3
It isn't as easy as that, his switch is different, and his humbucker wires.
I'll make a doodlygram.
Just something I need to know.. Do you know which is the bridge pickup? The one with the red, or the one with the white?
These go to eleven...
#4
guys quick question, sorry for hijacking, but the normal connectins that don't say "Solder" do you just wind the wire around the hole like any old connection or is it a good idea to solder those as well?
Member of the "Marty Friedman > You" Club. PM apocalypse13 or altronataku to join

Gear:

ESP LTD DV8-R
Squier SG (Specs Unknown)
Kustom KGA-10 Ten watt practice amp
Marshall TSL 602

My JEM Build
#5
When soldering grounds to the back of a pot, there is no hole. But the solder will hold the wire on nicely.
These go to eleven...
#6
Quote by JimPlaysGuitar
When soldering grounds to the back of a pot, there is no hole. But the solder will hold the wire on nicely.


no i mean regular connections, like on the ports of the pots, not the grounding
Member of the "Marty Friedman > You" Club. PM apocalypse13 or altronataku to join

Gear:

ESP LTD DV8-R
Squier SG (Specs Unknown)
Kustom KGA-10 Ten watt practice amp
Marshall TSL 602

My JEM Build
#7
You have to solder them, ofcourse. You can't just wrap it round a twist it. You can just thread the wire through and then solder it, or wrap it a little and then solder it, if you want.
These go to eleven...
#8
k thanx alot, sorry threadstarter for hijacking
Member of the "Marty Friedman > You" Club. PM apocalypse13 or altronataku to join

Gear:

ESP LTD DV8-R
Squier SG (Specs Unknown)
Kustom KGA-10 Ten watt practice amp
Marshall TSL 602

My JEM Build
#9
Heya thanks for the pic for the seymore duncans helps a bit get idea about where to ground to

ive got some pics

at the moment i have the white in neck as it has a longer wire ive mounted it on a spare strat picguard for now to stop it getting broken

if there is anything ese you need give me a shout
Ben

well i would attach pics if it would let me if any one wants them post your email and ill send them you

Thanks
#11
cheers mate
i'm going to wire it up tomorow and see what happens
its going to start of as a strat and will have a new body and neck made in stages so that it remains playable at all times

details to folow ....
