When I get more money I am planning on assembling a Strat. The different thing about it is it is going to have a telecaster bridge (proboly a 52') and telecaster neck/bridge pickups and i will have a Texas Special most likely for the middle pickup. Another difference is it's gonna be a string-thru. As far as wiring goes, i am to use a five way selecter. The positions will be:
position 1: neck
position 2: middle and neck
position 3: middle
position 4: bridge
position 5: neck and bridge

Now I am a complete begginer when it comes to electronics so if anyone could draw me up a diagram it would greatly appreciated. I will start a new thread later when i begin the build.
I could draw you a diagram for those selections, but...
A regular 5 way switch won't handle it, but..
A superswitch will.
So if you can get one of those, I can draw something for it.
One volume and one tone, same as Tele?
These go to eleven...
I think by 52' bridge he actually means the bridge. One of those vintage ones with 3 saddles, I imagine.
These go to eleven...
Because he wants the fifth position of the selctor switch to be bridge-neck instead of bridge, and make the 4th selction just bridge.
Gibson Les Paul Studio
London City Comet MK1
London City Spitfire II (Modded)
Squire Tele Custom (Modded)

Peavey Classic 30
Electro Harmonix Holy Grail Reverb
Line 6 Echo Park Delay
Visual Sound Jekyll and Hyde
Dunlop Crybaby Classic
From what I know now I would use the superswitch so if anyone can draw me or find my a wiring diagram that would be awsome
the first tone is for the neck and the second one will be for the bridge
MEMBER 6 OF I <3 Online Putt Putt Group
Quote by DoTheEvolution
I like peni better. It sounds funnier.
"a group of naked guys jumped me, I have never seen so much peni ."
he likes peni

Captain of the Rage Against the Myspace Club. PM Bloody Mary to enlist.
^ I was looking at that but i already have a pickgaurd with a graphic that i got painted on and pretty sure i couldnt get it painted it again

And plus I can hardley wire a normal 5 way switch, let alone 13 different ones
I have to suggest the bridge+mid position...
It elimates hum.
I'm not very active here on UG currently.
I'm a retired Supermod off to the greener pastures of the real world.

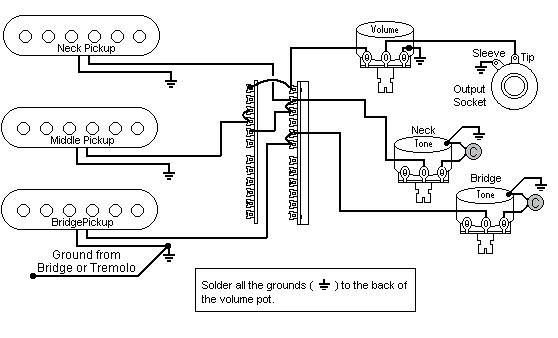

Well if you still want that first doodlygram, it goes a little something like this...
