#1
If not then I'll deleat this. If you do then I'll show you all how piano's work, how to tune them, and some basics on how to fix them.
Not taking any online orders.
#2
Bring on ze photographz!
Gear
Gibson Les Paul std faded, Godin LG
Marshall jcm900
Keeley ds1, maxon od808, boston tu500, RMC Wizard
#3
Ok i like pianos and i wish i could play one. (oh well at least i can spell "delete") And i don't think there is anything in this forum that says u have to do about customizing guitars
EH


"Show me war; show me pestilence; show me the blood-red hands of retribution..."
#5
go for it mate!
my bro has a baby grand, love it and would like to see how theyre contructed/work
#7
Ok, I'll do it then. I'm still waiting for the right size tuning wrench for this piano but once I get it then I'll get started. A lot of what goes into tuning a piano works very well when tuning your guitar too so it is still guitar related.
Not taking any online orders.
#9
I wish I could play piano. ..
Gibson SG Standard
Fender 52 RI Telecaster
'77 Deluxe Reverb
Sunface w/ SunDial
MXR Carbon Copy
Crybaby



Quote by Sid McCall
Epic win. He speaks the truth, boys and girls.



Founder of the Neutral Milk Hotel club PM to join~
#10
Ooo, piano porn, bring it on!
"Breathe, breathe in the air
Don't be afraid to care"

Fender Strat/Tokai LS80>few pedals>Orange Rocker 30
#11
Yes!
Sounds awesome!
I'm not very active here on UG currently.
I'm a retired Supermod off to the greener pastures of the real world.
#14
post em
Quote by Chikitty_China
Well, when I'm fapping, I sometimes look at my left hand and wonder what could have been ....
#16
do it! any fix to any instrument is cool, even more if the one doing it is cord!


Quote by robbo_0013
UniverseZero is some kind of pwnerer of numerals

Quote by spazzymagee417
your avatar entertains me.
#17
Well to start things off I have to take the piano apart. You would be amazed how easy that actually in. Without the use of any tools I can get the whole front of the cabinate taken off, the keys taken out, and the action removed.

the piano with the covers removed


Taking the keys out


the keys are gone but the action is still there


The action is now out and the piano is ready for cleaning


The action is off to the side and ready to be inspected for broken parts, stiff parts, loose parts, and warn out felt.
Not taking any online orders.
#19
Before I start tuning I want to go though and make sure all the part on the action are in good repair, and working properly.

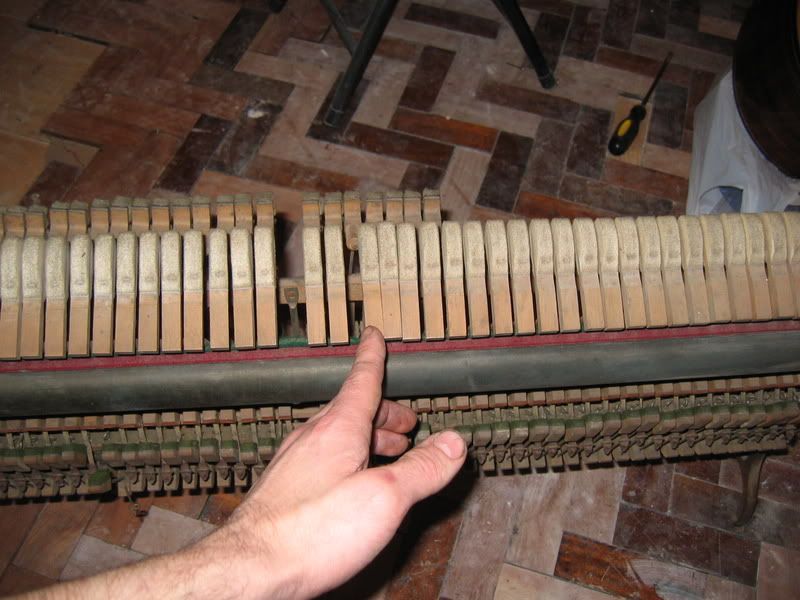

Here you can see that the felt on the hammers is flat and the felt on the dampers is warn out. I will have to replace the damper felt but I can reshape the hammers.

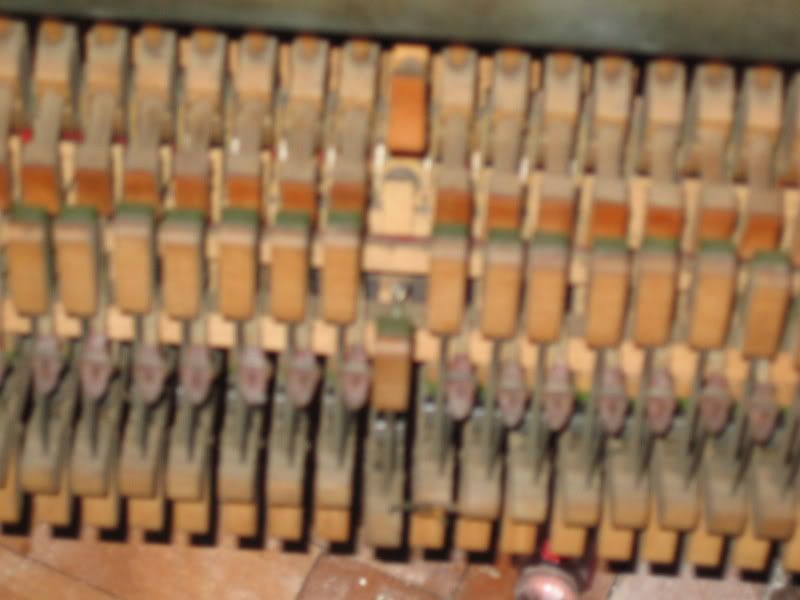

Looking at the other side you can see that there is one key that isn't sitting in the same place as all the others. That is because there is a cloth peice called a bridle strap that is broken. As a general rule, when 1 of them breaks you need to replace all of them.



Now I'm lifing each key one at a time and letting it fall again. I'm watching for keys that are suggish when they drop, or stick up. I'm also listening for clicking noises. If I hear clicking it could mean a hammer is coming unglued from the shaft, or a spring is rusty or any number of other things. When the action is sliggish it's usually because swealling at one of the hinges is causing it to move slowly. Sluggish action parts can sometimes be fixed with graphite but often times means replacing bushings or sanding little bits of wood off.

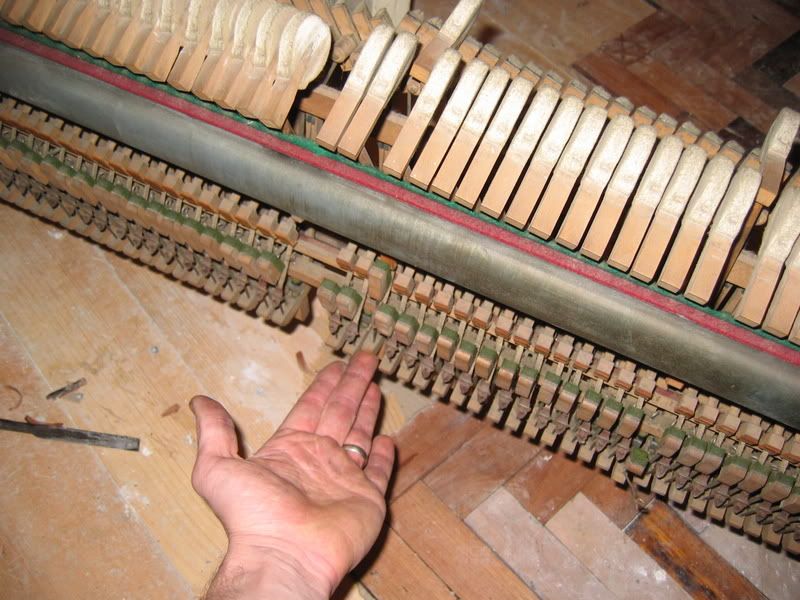

Here you can see where one of the hammers doesn't fall back down when I push it up.

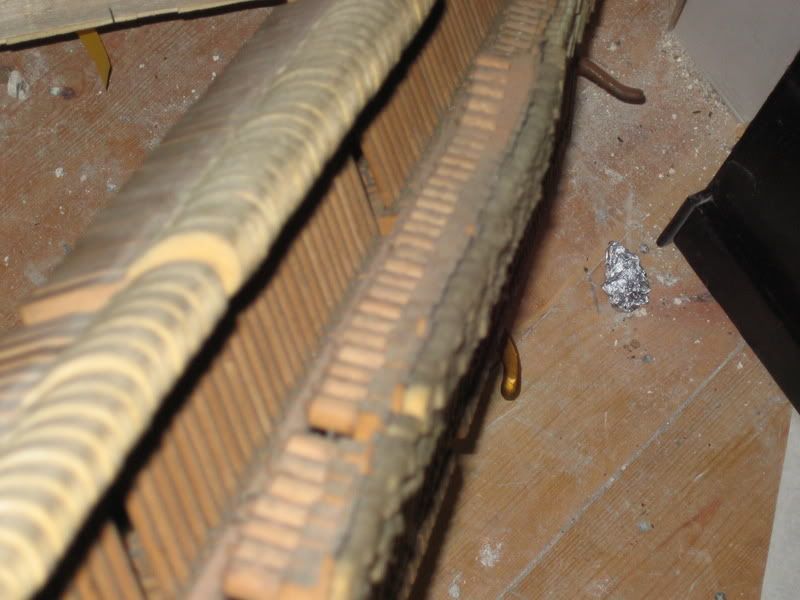

Another thing to look for is loose hammers. So I wiggle each one of them. I found one and the cause of this is warn out hinges. The hammers move as much as the one in this pic

Not taking any online orders.
#22
very interesting indeed.

i didnt know piano keys were that long, i thought they were just what you saw, the white and black parts. didnt know they went that far into the thing.
Quote by red star
"If its good enough for gay cowboys, its god enough for you."

Quote by Dyaxe666
you guys are all idiots! SRV played a schecter C1 Blackjack thrugh a metalmaster into a Krankensteing, GOD!
#23
kool, i already knew how a piano worked but i never new the bit that the hammers are put on is called the action.
EH


"Show me war; show me pestilence; show me the blood-red hands of retribution..."
#24
Sweet stuff...I've looked around inside our piano just when I mic it for a recording(I flip up the top) but I've never dug in that deep. Cool beans.
I'm not very active here on UG currently.
I'm a retired Supermod off to the greener pastures of the real world.
#26
Nice thread, interesting to see something like this.

Nice Herringbone Parque flooring too. Good to see it's being put down not taken up. I LOVE Parque flooring. You better put a double border round it too
Double Neck Project - Winner of 2006 GB&C "Best guitar build from scratch", "(Best) Most expensive build" and "Best Idea" awards - FINISHED!

Member #2 of the UG Luthier's club. PM AlGeeEater to join.
#27
it looks very interesting, but i have a question..... you have a lot of worn out felts there.... will you have to replace them all? and what is the price of each one? looks like an expensive job


Quote by robbo_0013
UniverseZero is some kind of pwnerer of numerals

Quote by spazzymagee417
your avatar entertains me.
#28
make sure you go into alot of detail when you get to the tuning bit, that would be something that would be really usefull to know.
#29
^Nah, I think he was planning on going to all this detail pulling it apart, and then he was going to skip over the tuning part. That makes sense, for sure. =]
#30
you dont have to be an ass gymmeh, i just wanted to reassurt the need for a piano tuning tutorial that actually has some depth to it.
#32
^so am i but you have to at least have a reason, and im sure the mods would love to hear about this btw..
#33
I'm sure they would, too.

I have an pedal pumped organ that's at least 115 years old, but it could be up to 130 years old, Cord, and I was just wondering, would the insides of the organ look similar to this?

I COULD check, but you know, this thing's OLD.

The wood and cosmetics are all damn-near freaking perfect. But the mechanics of it are just ruined. Like the leather straps that connect the pedal to the air bag/sack thing are broken, and a few of the knobs for switching are broken off.
#34
Quote by madmk
Very nice, a big big job compared to setting up a guitar


You would be surprised just how easy it is working on a piano. Much easier than guitars because pianos are held together with screw and guitars are held together with glue. Pianos are not as tempremental and guitars either so they don't need to be as exact.

Quote by Calum_Barrow
Nice Herringbone Parque flooring too. Good to see it's being put down not taken up. I LOVE Parque flooring. You better put a double border round it too


Sorry man, Not doing a border at all, but I am laying this stuff down in 5 rooms of my house. Nothing looks like 100 year old honduran mahogany, and it looks even better when you know it was free. My wife pulled it out of a library that was getting torn down


Quote by UniverseZero
it looks very interesting, but i have a question..... you have a lot of worn out felts there.... will you have to replace them all? and what is the price of each one? looks like an expensive job


Yeah, it's expensive. The new felts cost me 80 quid or $150


Quote by sempri_fi
make sure you go into alot of detail when you get to the tuning bit, that would be something that would be really usefull to know.


I'll go into as much detail as I can.
Not taking any online orders.
#35
Quote by CorduroyEW
Sorry man, Not doing a border at all, but I am laying this stuff down in 5 rooms of my house. Nothing looks like 100 year old honduran mahogany, and it looks even better when you know it was free. My wife pulled it out of a library that was getting torn down

Wish I could get some for free. I'd just do my room in it or something. Our school is full of it, which is what you'd expect for a 93 year old building, though they've covered it up in some rooms with vinyl. Lovely. I'll shut up about floors now.
Double Neck Project - Winner of 2006 GB&C "Best guitar build from scratch", "(Best) Most expensive build" and "Best Idea" awards - FINISHED!

Member #2 of the UG Luthier's club. PM AlGeeEater to join.
#37
Quote by Calum_Barrow
Wish I could get some for free. I'd just do my room in it or something. Our school is full of it, which is what you'd expect for a 93 year old building, though they've covered it up in some rooms with vinyl. Lovely. I'll shut up about floors now.

As you should.... Before people raise questions about your sexuality...

This thread is definitely getting bookmarked, v. interesting.


For sale: Early 1985 Ibanez AH10 (Allan Holdsworth signature model) PM for details
#38
to the guy who asked, isn't an organ run on wind pipes instead of strings? in which case it would be insanly different?
Member of the "Marty Friedman > You" Club. PM apocalypse13 or altronataku to join

Gear:

ESP LTD DV8-R
Squier SG (Specs Unknown)
Kustom KGA-10 Ten watt practice amp
Marshall TSL 602

My JEM Build
#39
Quote by sempri_fi
^so am i but you have to at least have a reason, and im sure the mods would love to hear about this btw..


I'd just like you to stop being an idiot Sempri_fi!
Don't ever try and use the mods for a threat again.
Gymmeh>you.

And yeah...the only thing really in common with an organ and a piano would be the fact that they both have keys...I'd think, at least.
I'm not very active here on UG currently.
I'm a retired Supermod off to the greener pastures of the real world.
#40
well id like you to leave me be, both arent going to happen, and who said i would even report anything to you? they're are a couple other mods that are a bit more unbiased that i could talk with.
