I decided to use some various other articles and compose a guide on how to wax pot. Mainly because all the ones ive fond never went into detail about adding a pickup cover. So here it goes.

Wax potting actually helps with two things. First and foremost it reduces microphonic feedback, and also helps protect the inner coils from corrosion. So if your having feedback problems, or putting on metal covers, this maybe be desired, especially for adding metal covers.

If done properly, the wax will soak into the pole peices, in between the coils, the magnent. With the metal cover, the wax also fills the gaps. If this is not done, the gaps between the metal cover and the pickup may allow the cover to "shake" which would be picked up and put through the amp.

*EDIT* Corduroy posted this and he knows what he is talking about. Wax potting can affect your tone

Quote by CorduroyEW
wax potting does change the tone, but so does shellac, epoxy, or lacquer. Potting with epoxy or wax is going to make the pickup sound less airy than shellac or lacquer because epoxy and wax hold the wires absolutly solid. Epoxy will give you better top end than wax too. Something like shellac will give you more mellow airy tone with slightly rolled off high end. It's very vintage sounding. Lacquer doesn't roll off the high end as much as shellac. So the best potting depends on your aplication. I look at potting as a way to manipulate your tone. If done right it won't rob your tone away, it just changes it


==============================

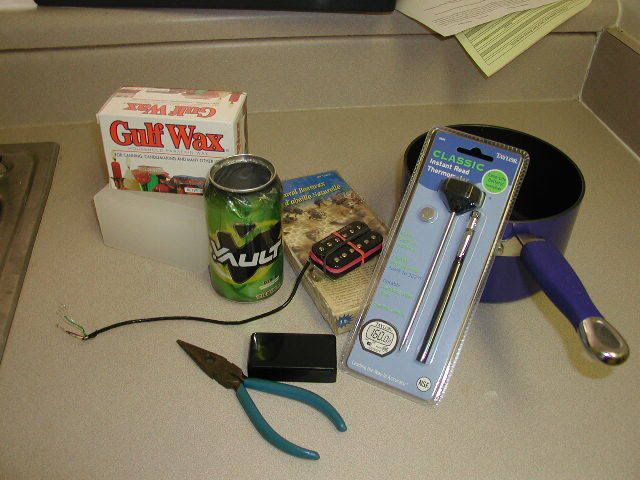

Things you need:

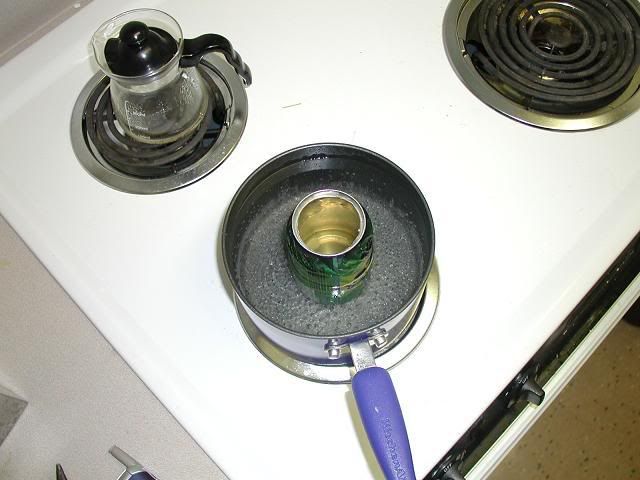

First things first. What is used is a double boiler, or in this case, a vault can with the top cut out inside a pot of water, this helps control the temperature so it does not burn

*Double Boiler
* Paraffin Wax
*Bee's Wax
*Pliers
*Rubber Bands
*Thermometer

=============================

Step One: Break up the slabs of Wax:



The easiest way to do this is to break the wax into cubes. Unfortunately since im at college, money is a bit short, and I wish I had a nice sharp nice, but I had some nice dull scissors, so my chunks where a bit of a mess.

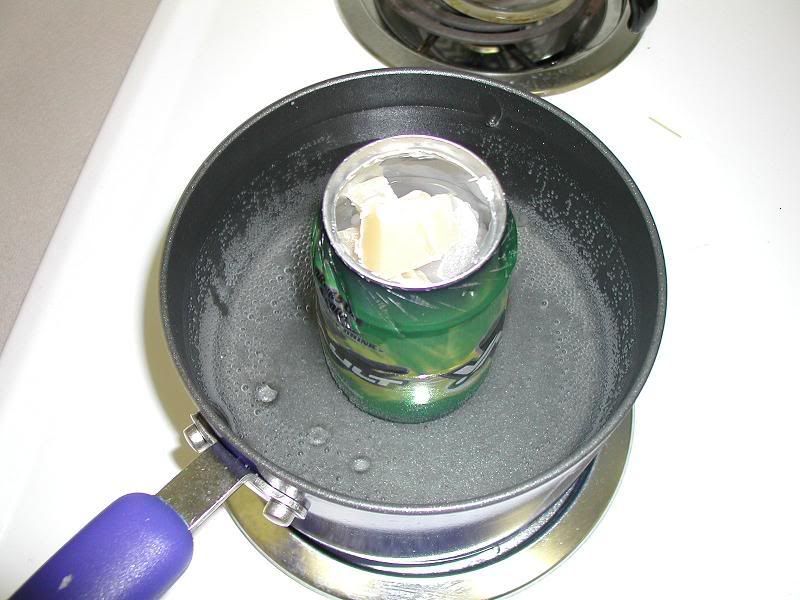

Start by heating the water, and filling your coke can with paraffin wax junks. At first where you fill the can up, it has a tendency to float, just hold it down, or place anything heavy on top of it. Once you start filling it up more and more, the cans weight will eventually stay submerged on its own.

========================

Step two: start melting the wax




The thing to remember is that you dont want you pickups comming in contact with anything hotter then 150 degrees Fahrenheit, but to move along the melting process, I made the water and the wax a little hotter, and backed the temperature down when it was time to insert the pickup

You also want to start adding the bees wax, which is a great additive in making the wax solution much more pliable. The typical portions are usually 80% paraffin wax, and 20% beeswax. But this doesnt have to be exact

=======================

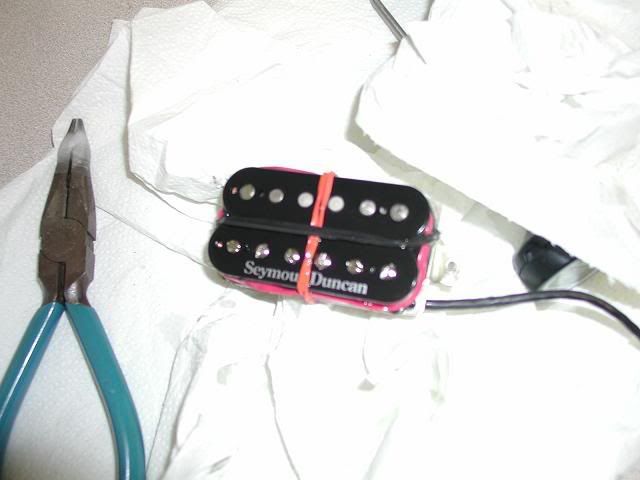

Step three: wrap rubber bands around the pickup and submerge it.



The tape around the coils needs to stay on the pickup. The rubber bands keep them in place. The glue on them can also melt and leave this nasty residue... the rubber bands bring this threat down to a minimum. This is anothe reason while your pickup is submerged, the wax should not be hotter then 150 degrees Fahrenheit.

The goal here is to saturate the coils with wax. Submerge the pickup, and hold it at different angles. Bubbles should arise, this is good, it means that wax is entering the coils which is exactly what you want.

================================

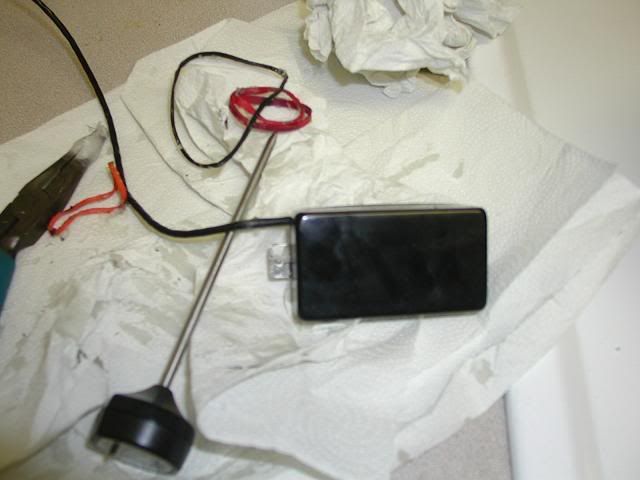

Step four: Clean off the wax

Pretty straight forward....

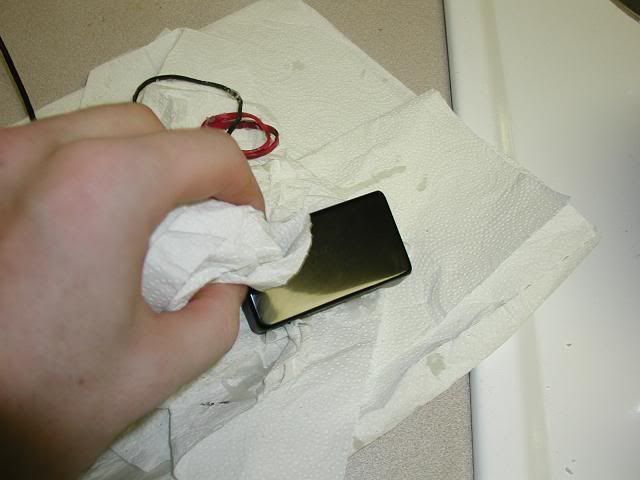

CAREFUL! the thing is going to be pretty hot. But the wax is much easier to clean with a paper towel while the wax is warm. Once it hardens you have to scrape.

If your not adding a cover, You can stop here. But please read the last notes also

==============================

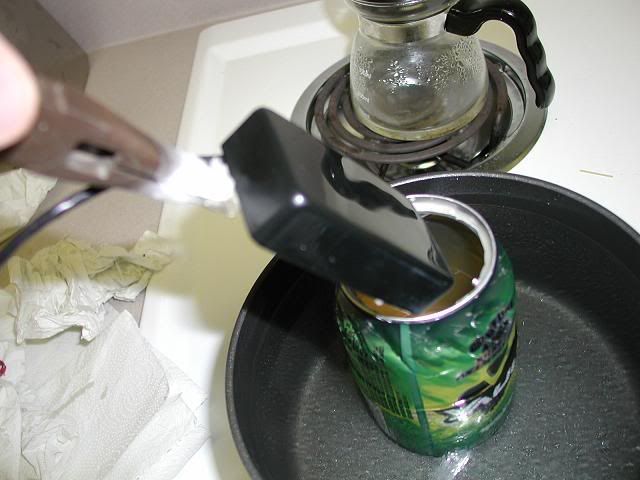

Step five: Put on the cover if your adding one and submerge the covered pickup into the wax again

Note: I did not solder the covers to the pickup here, I waited, and the wax seemed to really make it a lot harder to solder. Id recommend soldering the cover to the pickup to ensure a good ground connection







Here you dont have to saturate any coils. All your trying to do is fill the gap between the cover and the actual pickup. This part should not take nearly as long for all the bubbles to stop as the first time you wax potted

==============================

Almost done....

Clean up again!


========================


Final Notes
Wax is flammable, if your using an open flame stove be very careful. An electric one is preferable...

You basically done. Make sure the the covers are also soldered to the base of the pickup to ensure a good ground. I tried soldering after the potting, and it made it very difficult.

I also like to draw a wiring diagram before I take the pickups out of my guitar

Save the wax when your done! the coke can is good, and let the wax dry. If you ever need to pot again, you got plenty of wax ready to go! The coke can is also nice, because it take less wax to be able to submerge the pickup entirely.


As always, while I did make this to help people, I will not take responsibilty for anything you do to your pickups

Sources I used....
http://projectguitar.com/tut/dip.htm
CorduroyEW also helped me out a lot, and helped me where I was confused
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
Last edited by ICANSEEYOU7687 at Jun 4, 2008,
ICANSEEYOU7687
Registered User
Join date: Sep 2005
2,689 IQ
#2
If you wanna know where I got my stuff...
The only way you can really mess up your pickups is if the temperature of the wax exceed's 150 degree's Fahrenheit. To melt the wax I made it about 160-170 degrees Fahrenheit, but that was only to help melt the wax, I turned off the heat and let it cool to 150 degrees after it was all melted

I got the slab of bees wax, 1lb, from Michaels, they have an entire section made to candle making, although the only thing I saw that would be enough paraffin wax was an 11 lb slab of it, and that was way to much. Also Michaels didnt have the candle stuff listen online.

The paraffin wax I got from some random site that I found by searching froogle for gulf wax. I also remember seeing some on ebay. Although any old paraffin wax will do.

The thermometer I got from publix for a few bucks. I found the rubber bands, and the pliers just lying around.

And the pup is a SH-5 seymour duncan, just in case you where curious
And it sounds almost identical with the cover on, I plan on putting a chrome cover on my pup in the bridge
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
Last edited by ICANSEEYOU7687 at Oct 13, 2007,
senor_penguin
I think I shot Marvin
Join date: Nov 2006
805 IQ
#3
wow, very insightful and very intresting, great job
GEAR
- Epi Les Paul Custom (emma)
- Orange Tiny Terror
- 2x12 w/greenbacks
-MXR ZW-44 Overdrivel
- MXR Phase 90
- EB Volume JR.
- Boss DD-3
rafarquhar
Registered User
Join date: Jul 2006
771 IQ
#4
I love the way the setup works with the double boiler. Thinking about it, it sounds a lot better than just straight heating the wax. Plus, you can just throw the can away when you're done.

Great tutorial!

EDIT: On second thought, what was the beeswax for? I don't see it used anywhere in the tutorial. Is it just a suitable alternative to the other wax?
Main gear (For complete list, see profile):
Epiphone Les Paul Standard Plain-top
Basswood Telecaster, 2 single-sized HB's, both split.
Epiphone Valve Junior
B-52 AT-412 Cabinet
Oh, and I have a Squier VM Jazz Bass too.
Last edited by rafarquhar at Oct 7, 2007,
ICANSEEYOU7687
Registered User
Join date: Sep 2005
2,689 IQ
#5
oh I forgot to mention that ill edit and add it. But it makes the wax much more pliable, and easier to work with. The wax I got came from michaels. But it was kinda expensive, like 12$.... You could probably find some bees wax candles off the internet for a lot cheaper and the same amount, although after shipping cost it would probably come out to be close to the same price
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
ECistheBest
Makes Pedals for YOU!
Join date: Jul 2006
1,824 IQ
#7
^reduce microphonics. mine's wax potted by corduroyEW. definitely no microphonics. my BJ's volume 12, MV 8, tubescreamer on full with tone 10, i was 2 feet from the speaker and i had no microphonics.

(ofcourse i had my attenuator though. and at MV 12, i got microphonics but that was at 2 feet from my amp.)
Call me "Shot".

ShotRod Guitar Works

Custom Hand-wired Amplifiers and Effect Pedals.

Est. 2007


Source to everything I say about Guitars, Pedals, and Amplifiers: I make them.


UG's Best DIY PedalBoard
ICANSEEYOU7687
Registered User
Join date: Sep 2005
2,689 IQ
#8
corduroyEW had a really good shellac potting tutorial. Which I sent him a few pm's and he really helped me. Shellac is a great way to go, but from what corduroyEW told me, wax potting is better if your trying to add a humbucker cover
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
ICANSEEYOU7687
Registered User
Join date: Sep 2005
2,689 IQ
#9
*bump*
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
Will_Minus
UG's nail-head-hitter
Join date: Nov 2005
188 IQ
#10
Don't bump. It's against the rules.
Will says:
DON'T FEAR THE REAPER!
- SmarterChild - says:
I don't know if I can help it.

Member #6 of the "I play my guitar as high as Tom Morello does" club
ICANSEEYOU7687
Registered User
Join date: Sep 2005
2,689 IQ
#11
I thought there was a 24 hour time before you could bump again...I just read through it my bad...

Ive seen so many threads about people wanting to add humbucker covers. But ill just let it die if no one is interested
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
Last edited by ICANSEEYOU7687 at Oct 8, 2007,
GnGonzalesjoe
Registered User
Join date: May 2005
664 IQ
#13
those are black covers right? Can you solder black pickup covers to a pickup?
Quote by ICANSEEYOU7687
I did note solder the covers to the pickup here, I waited, and the wax seemed to really make it a lot harder to solder. Id recommend soldering the cover to the pickup to ensure a good ground connection

is that supposed to say not?
Ibanez RGT42DXFX with emg 81/85
Schecter C1-Classic
Vox AD30VT
Knock off P-Bass
Pikka Bird
Jack of no trades
Join date: Apr 2006
681 IQ
#14
You might wanna add that your temperature is 150° fahrenheit, which is roughly 66° celsius. It might sorta throw people off if they're trying to shoot for a little below 150°C, since that's 1) impossible and 2) way too much.
ICANSEEYOU7687
Registered User
Join date: Sep 2005
2,689 IQ
#15
Quote by GnGonzalesjoe
those are black covers right? Can you solder black pickup covers to a pickup?

is that supposed to say not?


color doesnt matter, as long as they are made of a metal that will accept solder. And with the cover I got, only the outside is black.

Quote by Pikka Bird

You might wanna add that your temperature is 150° fahrenheit, which is roughly 66° celsius. It might sorta throw people off if they're trying to shoot for a little below 150°C, since that's 1) impossible and 2) way too much.


yea, thanks, ill make sure to add that its in Fahrenheit, and bold it to make sure people see it
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
ECistheBest
Makes Pedals for YOU!
Join date: Jul 2006
1,824 IQ
#16
does wax potting muffle the sound?
Call me "Shot".

ShotRod Guitar Works

Custom Hand-wired Amplifiers and Effect Pedals.

Est. 2007


Source to everything I say about Guitars, Pedals, and Amplifiers: I make them.


UG's Best DIY PedalBoard
Pikka Bird
Jack of no trades
Join date: Apr 2006
681 IQ
#17
^^ Good, but you might wanna add the celsius temperature too, just in case the reader doesn't know the conversion, and is a retard at Google.
ICANSEEYOU7687
Registered User
Join date: Sep 2005
2,689 IQ
#18
Quote by ECistheBest
does wax potting muffle the sound?



no, it doesnt affect your tone at all...
If your having feedback problems, or adding a cover, you might want to consider this. But if not... well if it aint broke dont fix it :P
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
Pikka Bird
Jack of no trades
Join date: Apr 2006
681 IQ
#19
^Eric Johnson would be able to tell the difference...

Well, this is getting better and better. Now, if you just added brackets with the celsius temperature, I'd call it close to perfect.
ECistheBest
Makes Pedals for YOU!
Join date: Jul 2006
1,824 IQ
#20
^i see. well mine has been wax potted when i bought mine. but i was wondering.
Call me "Shot".

ShotRod Guitar Works

Custom Hand-wired Amplifiers and Effect Pedals.

Est. 2007


Source to everything I say about Guitars, Pedals, and Amplifiers: I make them.


UG's Best DIY PedalBoard
Whole Lotta Led
Registered User
Join date: Jan 2007
525 IQ
#21
Quote by ICANSEEYOU7687
no, it doesnt affect your tone at all...
If your having feedback problems, or adding a cover, you might want to consider this. But if not... well if it aint broke dont fix it :P


Actually it does affect the tone some, it'll obviously react differently to differnent pickup though. An unpotted pickup is going to have a slight "honk" characteristic to it. I have my brigde pickup covered and unpotted (Duncan '59) and compared to a potted '59 you can definitely notice a slight honk to it, which I like.
ICANSEEYOU7687
Registered User
Join date: Sep 2005
2,689 IQ
#22
Unfortunately I did not do any tone comparison. But from what I researched, potting doesnt affect your tone, while a cover maybe slightly affect it...

But like I said I did no tone comparisons so I couldnt say for certain :P
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
GnGonzalesjoe
Registered User
Join date: May 2005
664 IQ
#24
Quote by ICANSEEYOU7687
color doesnt matter, as long as they are made of a metal that will accept solder. And with the cover I got, only the outside is black.

for some reason i thought the pickup covers were plastic.
Ibanez RGT42DXFX with emg 81/85
Schecter C1-Classic
Vox AD30VT
Knock off P-Bass
Will_Minus
UG's nail-head-hitter
Join date: Nov 2005
188 IQ
#25
Single coil and p-90 covers are usually plastic. Humbucker covers are metal.
Will says:
DON'T FEAR THE REAPER!
- SmarterChild - says:
I don't know if I can help it.

Member #6 of the "I play my guitar as high as Tom Morello does" club
XibanezedgeX
ME, yes me!
Join date: Jan 2007
656 IQ
#26
http://www.curtisnovak.com/pickups/repairs/GFS-2-PAF/index.shtml


The pickup was potted in what appeared to be straight paraffin wax. Most PAFs type pickups are not potted because it will effect the tone. If they are potted the wax should be mixed with bees wax to make not so hard and brittle. Potting is a fast cheap way to address the problem of microphonics and squeal. There are other, and better methods to stop the microphonics with out potting the bobbins


Accourding to him it does affect tone and they're are better ways.
Does anyone know the better ways? He doesn't say...
ICANSEEYOU7687
Registered User
Join date: Sep 2005
2,689 IQ
#28
shellac potting is one of the best ways to pot your pickups...
But if you want pickup covers, the shellac stuff doesnt work as well in filling all the spaces between the cover and the pickup.

and straight paraffin wax isnt preferable. 80% paraffin wax, and 20% bees wax is usually what is used
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
CorduroyEW
UG's pickup winder
Join date: Nov 2004
3,338 IQ
#29
Quote by ECistheBest
does wax potting muffle the sound?

wax potting does change the tone, but so does shellac, epoxy, or lacquer. Potting with epoxy or wax is going to make the pickup sound less airy than shellac or lacquer because epoxy and wax hold the wires absolutly solid. Epoxy will give you better top end than wax too. Something like shellac will give you more mellow airy tone with slightly rolled off high end. It's very vintage sounding. Lacquer doesn't roll off the high end as much as shellac. So the best potting depends on your aplication. I look at potting as a way to manipulate your tone. If done right it won't rob your tone away, it just changes it.


Quote by XibanezedgeX
http://www.curtisnovak.com/pickups/repairs/GFS-2-PAF/index.shtml

Accourding to him it does affect tone and they're are better ways.
Does anyone know the better ways? He doesn't say...


1 thing about Novac is that he hates paraffin wax. He thinks beeswax is much better. I'm the opposite and don't like beeswax but it's realy just oppinions on what sounds best. Something you need to note about that link is that he is talking about a PAF. Original PAF's were not potted and to get a real PAF tone then you can't pot your pickups. That is what Novac was talking about. Getting true PAF tone.
Still doing business but not taking any online orders.
Last edited by CorduroyEW at Oct 15, 2007,
ECistheBest
Makes Pedals for YOU!
Join date: Jul 2006
1,824 IQ
#30
^i got his pickups with wax potting. its great.
Call me "Shot".

ShotRod Guitar Works

Custom Hand-wired Amplifiers and Effect Pedals.

Est. 2007


Source to everything I say about Guitars, Pedals, and Amplifiers: I make them.


UG's Best DIY PedalBoard
Used666
Registered User
Join date: Sep 2006
2,445 IQ
#32
I dont know if this has been asked but is the bees wax necessary?
ICANSEEYOU7687
Registered User
Join date: Sep 2005
2,689 IQ
#33
it just makes the paraffin wax easier to work with though
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
Psycho^
Registered User
Join date: Dec 2005
11 IQ
#36
just finished doing mine yesterday, quite time consuming but it DOES work, it has slightly affected my tone but it like it even more now, cheers for the guide was really helpful, keep up the good work
ICANSEEYOU7687
Registered User
Join date: Sep 2005
2,689 IQ
#37
Sorry this response was a couple weeks late, ive been really busy with college...

But im glad it helped. Hopefully ill be able to put my neck pup soon, I want to get a silver cover for it this time, haha I think it would look interesting with the black cover. :P

glad everything went well for you
-------------------------------
Faded Gibson SG Special - Black ice mod
Seymour Duncan SH-5 in bridge
B-52 AT 112
Ted Weber Mass100 attenuator
EHX Small Clone
EHX Metal Muff
DIY Modded tubescreamer
Dunlop 535Q Wah
Wax Potting tutorial
DSOTM80
Registered User
Join date: Sep 2007
2,172 IQ
#38
Just had to revive this thread with a quick question. I thought that all Seymour Duncan higher end pickups were paraffin potted from the factory? Not sure where I read this. I also read that EVH got the paraffin potting idea/secret off Seymour Duncan but not sure on that either lol. When I installed my pickups there seemed to be a very thin film on the bottom of the pickup that was kinda waxy in feel. Anyone have any real info on this?
