#1
So, as some of you may know, I semi-recently picked up a '73 Fender Twin Reverb from a crazy guy in a barn. One of those lovely Craigslist finds. A half an hour drive and $400 in cash later, I was sitting on the thing. I took it straight to band practice, since I was in that direction, and got to futz with it at high volume for a few hours. Bliss.

After getting it back to my shop, (tiny dorm room) I proceded to give it a closer look. One of the 4 6L6GC's was dim, and the phase inverter 12AT7 wasn't lighting up. Also, there was a bit too much buzz to be natural, so I called on Roc (Colin, from the Tube Thread) for some help. He advised new filter caps and tubes, so off I went. A week later, I had a new set of Illinois filter caps, a generic Chinese 12AT7 phase inverter, and 2 matched Sovtek 6L6WXT+'s. I went to work, pulling out the tubes and removing the chassis to replace the filter caps, and decided to take a few pics for you all.

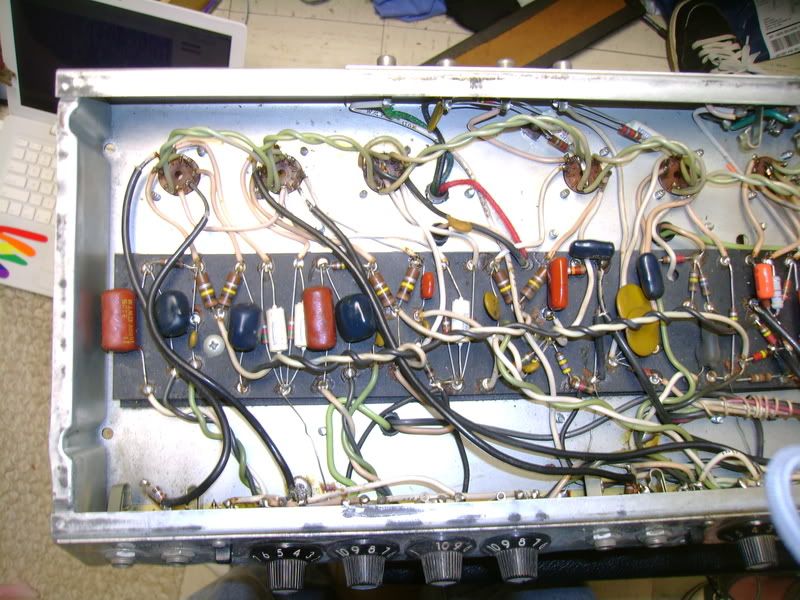

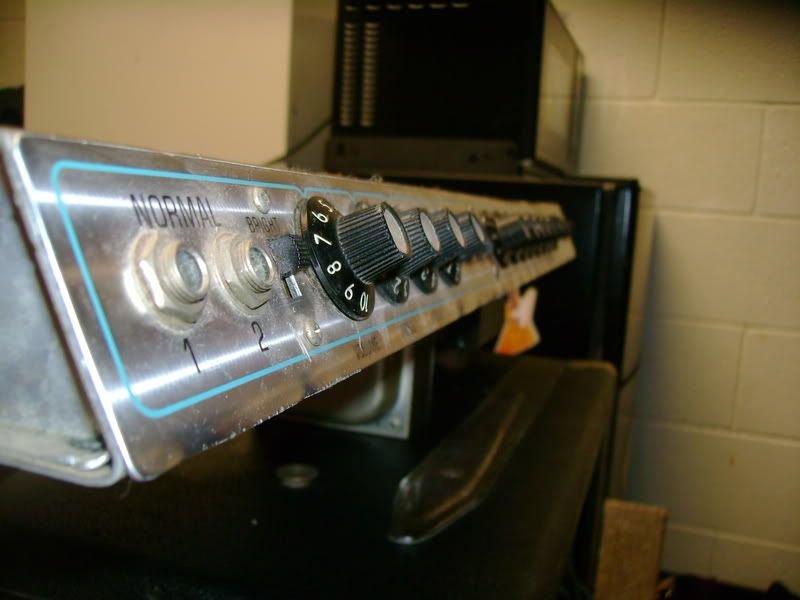

So here she is, my Twin Reverb bearing it all!

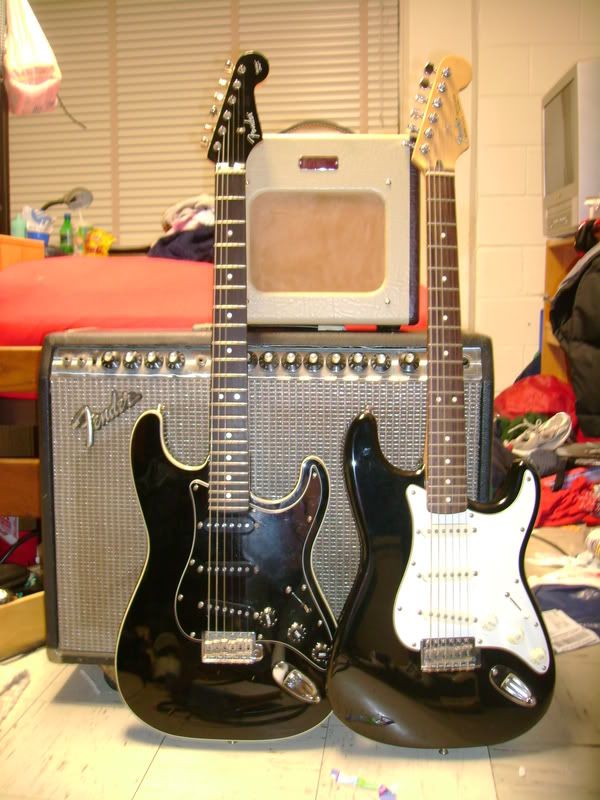

Once it was all done, I thought I'd stand up a few of my pretty Fender whatsits. Anyone see my bias? Cheers everyone!

#2
nice score man, and good job on the work. Bet she sounds beautiful.
"The fool doth think he is wise, but the wiseman knows himself to be a fool." - W.S.
amp clips
amp vids
#4
That porn is so hot it should be internationally banned!

Nice Strat, is that the Aerodyne?
"Make my funk the P-Funk, I want my funk uncut"
Quote by jambi_mantra
James, are you God?

Fender Highway One Tele
1985 Encore 335
Takamine EG523sc
Laney VC15
Vox V847
MXR M-108
EHX Q-Tron+, Big Muff Pi, POG
MI Audio Crunch Box
Yamaha DTXplorer DrumKit
#5
Wow, nice!

Like that silverface instead of the regular old blackface controls.

How does it sound? Have you compared it to a newer Twin? Did you get any break-up at those higher volumes?

I used to have a Twin Reverb...I kind of miss it .
High as tits
#7
Sorry but I love this amp so much I'm gonna have to post again with the cheers

"Make my funk the P-Funk, I want my funk uncut"
Quote by jambi_mantra
James, are you God?

Fender Highway One Tele
1985 Encore 335
Takamine EG523sc
Laney VC15
Vox V847
MXR M-108
EHX Q-Tron+, Big Muff Pi, POG
MI Audio Crunch Box
Yamaha DTXplorer DrumKit
#8
Quote by Erock503
nice score man, and good job on the work. Bet she sounds beautiful.

She really does. I've kind of stopped careing about gain completly now!

Quote by thellamaking
*jizz*
You're a very lucky man.

I know! Just months and monts of patient Craigslisting, I suppose
Quote by jxljxl
That porn is so hot it should be internationally banned!

Nice Strat, is that the Aerodyne?

Yes it is. Mine is actually the model they buint in Japan for the Japanese market. The more common one with no pickguard was built in Japan for the American market. No idea how it got accross the Pacific, though.
#9
^ Very nice! Lucky you, they look better with a guard
"Make my funk the P-Funk, I want my funk uncut"
Quote by jambi_mantra
James, are you God?

Fender Highway One Tele
1985 Encore 335
Takamine EG523sc
Laney VC15
Vox V847
MXR M-108
EHX Q-Tron+, Big Muff Pi, POG
MI Audio Crunch Box
Yamaha DTXplorer DrumKit
#11
Cool.

Does it have a three-prong cord? Is the internal pot hum balance or bias?

EDIT: Could you measure how high the transformers are? They look like they're the same size as my Bassman's (50W).
#12
Quote by mr_hankey
Cool.

Does it have a three-prong cord? Is the internal pot hum balance or bias?

EDIT: Could you measure how high the transformers are? They look like they're the same size as my Bassman's (50W).

It does have a three-prong cord. I'm not entirely sure, but I'll check the schemtic after class. The Transformers come in at just about 2".

Cheers to everyone for your kinds words!
#14
Quote by the.spine.surfs
The Transformers come in at just about 2".

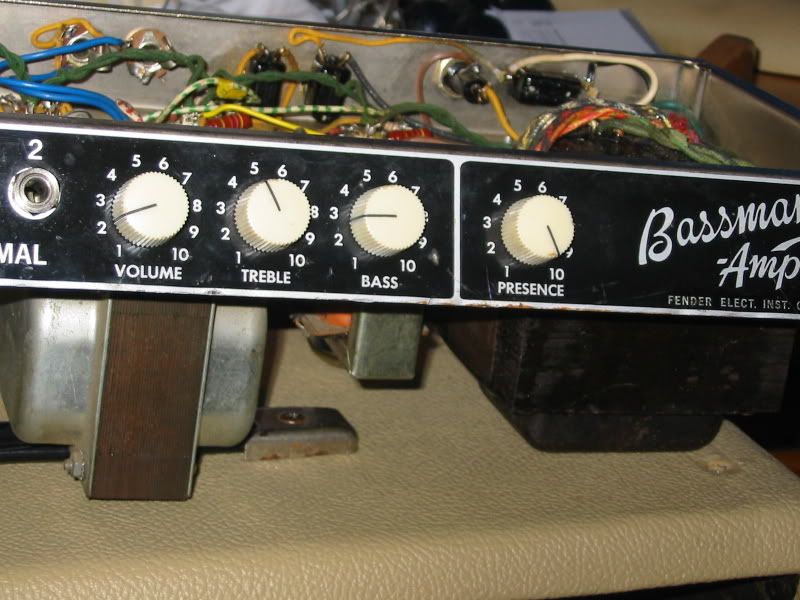

Wow! I knew the Bassman had oversized transformers, but not that they were bigger than the Twin's... They're both 3".

Last edited by mr_hankey at Feb 28, 2008,
#15
Quote by mr_hankey
Wow! I knew the Bassman had oversized transformers, but not that they were bigger than the Twin's... They're both 3".

I could be wrong; I'll take a better measurement after class. I might have measured the wrong dimension, too. But isn't your Bassman a mid-60's model? I could see Fender using a different size of transformer 10 years later.
#16
Sweet amp man.

I have a 76' with the master volume push pull knob. It needs to be recapped...it's crapped out right now. I got mine for $150 though!
Major of 7 String Legion 7 > 6

Carvin DC747
Ibanez RG2228
Schecter Avenger Custom Shop
and my baby....
Gibson Explorer Studio
#17
He advised new filter caps and tubes, so off I went. A week later, I had a new set of Illinois filter caps, a generic Chinese 12AT7 phase inverter, and 2 matched Sovtek 6L6WXT+'s. I went to work, pulling out the tubes and removing the chassis to replace the filter caps, and decided to take a few pics for you all.

I recommend you replace the cathode bypass caps as well (the white electrolytics). They are also way past their 'best before' date. You could keep using them, seeing as they won't damage anything when they fail (besides shooting nasty crap in all directions), but putting some fresh ones in will improve the sound, and the reliability.
#18
Quote by mr_hankey
I recommend you replace the cathode bypass caps as well (the white electrolytics). They are also way past their 'best before' date. You could keep using them, seeing as they won't damage anything when they fail (besides shooting nasty crap in all directions), but putting some fresh ones in will improve the sound, and the reliability.

I gather you mean the 3 white caps in the 4th pic from the top?

Dang, MESA, I thought I had a good deal!
#19
Quote by the.spine.surfs
I gather you mean the 3 white caps in the 4th pic from the top?

Dang, MESA, I thought I had a good deal!


Yup, and the one on the rectifier board.
#20
tis beautiful sir.
Im jealous.
Gear:
Ibanez RG550 20th RFR
Traynor YCV50
Fender FMT HH Tele
Mesa Boogie 2ch Triple Rectifier
2 1x12 custom Theile cabs
ISP Decimator
Krank Kranshaft
Boss BF-2 Flanger
BBE Sonic Maximizer
#22
Quote by mr_hankey
Any pics of the filter caps, btw?

No, I didn't think to get any. Just boring grey Illinois caps anway.
#23
Quote by the.spine.surfs
No, I didn't think to get any. Just boring grey Illinois caps anway.


Boring caps don't exist.
