#1

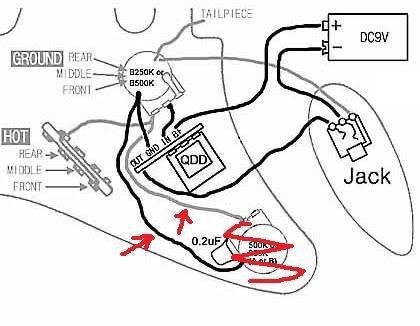

Hey, recently got a Jackson Performer, dark translucent red, black hardwear, beautiful. But I'm thinking of putting some on-boardson it, but the only wiring diagrams are for strats, but mine only has 1 tone pot, which im not fussed about. so would I just chaange it like:
Getting rid of highlighted wires




Thanks
Member of the Bugera Users Militia

Quote by JagerSlushy
Go with Ibanez...Or if you're going high-end, get a Jackson.
#2
I think thats right. The wires from the on-board effects board don't even go to that pot so i don't think it matters.
#3
that will work if you wire it as it looks on the diagram.
Call me "Shot".

ShotRod Guitar Works

Custom Hand-wired Amplifiers and Effect Pedals.

Est. 2007


Source to everything I say about Guitars, Pedals, and Amplifiers: I make them.


UG's Best DIY PedalBoard
#4
Cheers dudes.
