#1
Hey guys, i have some soldering I need to do but i need some assistance with the wiring. Im not sure which wires go where and ive looked at different strat wiring diagrams for at least 1 hour a day for the last week. the guitar i have is a strat copy so thats probably the reason im having alot of problems. i took the guitar into a shop (Long & Mcquade) where they refused to do just the soldering, they said they have to put it all back together themselves. i previously took the bridge protector off so i could spray paint it, and some of the wiring was loose and feel apart...the shop wants me to pay them $200 for 10 minutes of soldering and screwing back on a bridge protector, which i cant afford.

if you think you can help me out please leave me a message, your email address, MSN, AIM what ever, thanks.
Scar tissue that I wish you saw
Sarcastic mister know it all
Close your eyes and I’ll kiss you ’cause
With the birds I’ll share...
#2
So what is the issue with the wiring diagrams? Do you not understand them? That is a common problem, and if that is the case you can get more simply illustrated ones that show pretty much hoe it looks in real life.
Enjoi <--- Friend me
Quote by Scowmoo
Otter, you're my new god.
#3
If you take a picture or draw a diagram I can help you put it back together. My AIM is in my sig if that's more convenient for you.
#5
Quote by Øttər
So what is the issue with the wiring diagrams? Do you not understand them? That is a common problem, and if that is the case you can get more simply illustrated ones that show pretty much hoe it looks in real life.
well the problem im mainly having is on the diagrams the pickups have two wires coming from them, a black and a white one, the black one going into the the volume and the white one going into the 5 way bridge selector
like so
http://users.adelphia.net/~cygnusx_1/Jpegs/stratschem.jpeg


the way that mine is wired is, one wire is coming from each pickup to the volume
like so
http://i204.photobucket.com/albums/bb289/famebrain/Picture005-1.jpg


leaving the two tone controls and the 5 way selector(i dont know what to solder to what)

then coming from the guitar, the wire connecting to the bride(white) and a wire coming from the jack(yellow)
http://i204.photobucket.com/albums/bb289/famebrain/Picture001.jpg


another picture
http://i204.photobucket.com/albums/bb289/famebrain/Picture.jpg

edited
Scar tissue that I wish you saw
Sarcastic mister know it all
Close your eyes and I’ll kiss you ’cause
With the birds I’ll share...
Last edited by blues_man at Apr 2, 2008,
#6
Quote by kurtlives91
Whats your issue?

Which Long and McQuade did you go to, what city?
the one is Oshawa. the thing that pissed me off the most is that the sales man threw the price in my face without even letting me talk to the electrician and telling me the electrician wou'dn't just solder the wires for me, he said i would have to bring the bridge protector in with all the screws to they can put it all back together(even re-stringing it) even though i just want the thing soldered.
Scar tissue that I wish you saw
Sarcastic mister know it all
Close your eyes and I’ll kiss you ’cause
With the birds I’ll share...
#7
Quote by blues_man
the one is Oshawa. the thing that pissed me off the most is that the sales man threw the price in my face without even letting me talk to the electrician and telling me the electrician wou'dn't just solder the wires for me, he said i would have to bring the bridge protector in with all the screws to they can put it all back together(even re-stringing it) even though i just want the thing soldered.

That sucks man...

Im in Toronto, I only had to deal with the repair guys at the Toronto one once and they were great.

Too bad your not closer I could quickly solder it for you.
#8
Quote by kurtlives91
That sucks man...

Im in Toronto, I only had to deal with the repair guys at the Toronto one once and they were great.

Too bad your not closer I could quickly solder it for you.
he was even nice enough to suggest i just buy a new guitar... lol
Scar tissue that I wish you saw
Sarcastic mister know it all
Close your eyes and I’ll kiss you ’cause
With the birds I’ll share...
#10
Quote by blues_man
well the problem im mainly having is on the diagrams the pickups have two wires coming from them, a black and a white one, the black one going into the the volume and the white one going into the 5 way bridge selector
like so
http://users.adelphia.net/~cygnusx_1/Jpegs/stratschem.jpeg


the way that mine is wired is, one wire is coming from each pickup to the volume
like so
http://i204.photobucket.com/albums/bb289/famebrain/Picture005-1.jpg


leaving the two tone controls and the 5 way selector(i dont know what to solder to what)

then coming from the guitar, the wire connecting to the bride(white) and a wire coming from the jack(yellow)
http://i204.photobucket.com/albums/bb289/famebrain/Picture001.jpg


another picture
http://i204.photobucket.com/albums/bb289/famebrain/Picture.jpg

edited

On your pickups, see how the wire coming from the pickup has an insulated wire, and then a metal braid around the insulated wire? The metal braid thing goes to ground. The other wire is your hot connection..

Now, What's the rest of your problem? I don't quite understand what you're saying.
#11
Quote by forsaknazrael
On your pickups, see how the wire coming from the pickup has an insulated wire, and then a metal braid around the insulated wire? The metal braid thing goes to ground. The other wire is your hot connection..

Now, What's the rest of your problem? I don't quite understand what you're saying.
yea ok the metal wire has been soldered to the volume and there are 3 white wires that aren't soldered to anything


the rest of my problem is i dont know wtf im doing... i dont know what is the ground all the other stuff... i just need to be told what to solder to what in baby steps...

the other thing that messing me up is that my 5 way switch looks like this
http://www.promusicaustralia.com/guitar/PARTimages/GTH13.BK.WH.JPG

and not like the ones in other diagrams like this
http://users.adelphia.net/~cygnusx_1/Jpegs/stratschem.jpeg
Scar tissue that I wish you saw
Sarcastic mister know it all
Close your eyes and I’ll kiss you ’cause
With the birds I’ll share...
#13
Quote by forsaknazrael
Bah! I've only worked with that kind of switch once, and I can't remember how the lugs work.

Are you willing to buy a normal switch? Get one off eBay. Shouldn't cost much at all.
cant' im 17 and dont have a credit card an my parents are afraid of internet fraud lol


anyway here are some more pictures, these are a few pictures of the volume control with the metal wires being soldered into the volume

http://i204.photobucket.com/albums/bb289/famebrain/Picture017.jpg
http://i204.photobucket.com/albums/bb289/famebrain/Picture018.jpg
http://i204.photobucket.com/albums/bb289/famebrain/Picture019.jpg


here are the picture of the two tone controls
http://i204.photobucket.com/albums/bb289/famebrain/Picture027.jpg
http://i204.photobucket.com/albums/bb289/famebrain/Picture026.jpg
http://i204.photobucket.com/albums/bb289/famebrain/Picture025.jpg
Scar tissue that I wish you saw
Sarcastic mister know it all
Close your eyes and I’ll kiss you ’cause
With the birds I’ll share...
#16
Quote by forsaknazrael

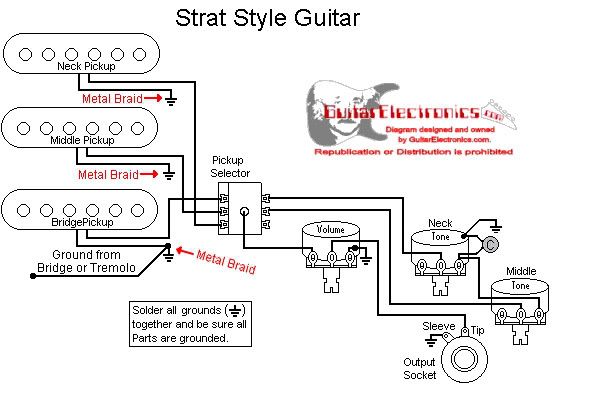

Okay, I dug through my memory, and I think this is how those switches work. Try this:
ok ill have to try this, thanks man i really appreciate it.
Scar tissue that I wish you saw
Sarcastic mister know it all
Close your eyes and I’ll kiss you ’cause
With the birds I’ll share...
#17
Just doing the best I can.

The only problem I anticipate is that the switch chooses the neck, even though it looks like you're picking the bridge, based on where the switch is set. This is because I'm not sure how to align the lugs, so it's a bit of a guess.
It's just a quick flip around if you get it wrong.

Double check by tapping the pickups with a metal object, while the guitar is plugged in.
