I play a gibson sg, and love playing guitars that have a floating tremolo. I like the ability to pull up on it, but since i have a solid body guitar, I can't have a floating tremolo like a floyd rose on it.

so here's my idea

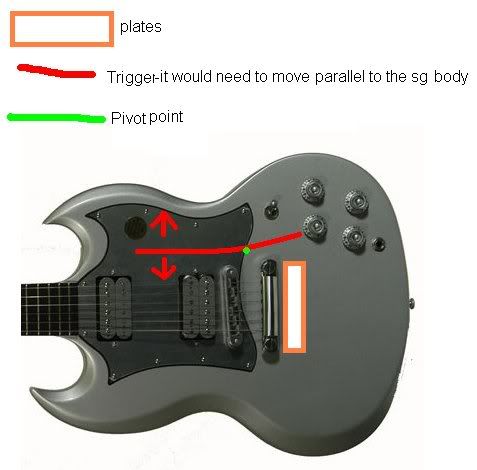

A trigger style tremolo, that sits above the pick guard (keep in mind i'm basing this off an sg setup) with pieces that replaced the tail stop so that it had the ability of moving freely with the trigger. It would have to have springs obviously to keep the tail stop in a neutral position when not in use. How the trigger would make the tail stop move idk, since it would have to go from a horizontal pull or push to a vertical pull or push. Maybe a wedge between two plates could change the motions. So as the trig. is pulled in the wedge allows the plates to come together to pull the tail stop back and put more tension on the strings, and when the trigger is pushed out it pushes the wedge between the plates more forcing the tailstop forward and releasing the tension on the strings, for a dive bomb effect.

like this



now
keep in mind
i'm a 15 year old
so i havent put together a prototype of it yet
and i havent exactly thought everything out yet

i do know though
that
1-i would have to change the horizontal motion of the trigger parallel to the pick guard to a vertical motion of the tail stop rotating and changing tension
2- the trigger would need a pivot point
3- the trigger and the tail stop would need springs to keep them in a neutral position when not in use
4-the tail stop would also need a way to pivot

questions? comments? concerns?
