#1
Hi guys. I've drawn up a wiring scheme for a bass I'm building and I'm not sure that it'll work. It incorporates a humbucker and piezo, a wiring job I've never done before and can't find much help online.

Basically what I'm trying to acheive is a Jazz Bass style setup with no switch and two volumes. The difference being I need two tone controls because of the humbucker being passive and the piezo being active.

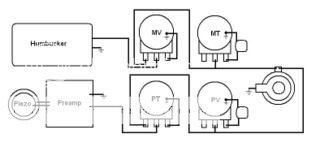

Like I say, I've drawn up a diagram, based off the jazz bass that I think should work but I just want to be sure. Thanks.

Quote by masterohumans
there is something wrong with you that has nothing to do with that instrument you want to build.
#2
Good to be unbanned, finally, now I can help people with stuff again! Your Piezo Tone and Volume are mixed up (volume is shown with a capacitor). It should work, but if you're building the preamp yourself you may want to adjust the frequencies used in the EQ, because they are obviously a lot lower than a guitars'.
Gear:
Schecter Hellraiser Deluxe
Boss DS-1
Crate GTD65

GAS List:
Mesa Boogie Dual Rectifier Roadster
#3
Silly me! Funny how your brain sees what it thinks is there not what actually is. Thanks for your input.
